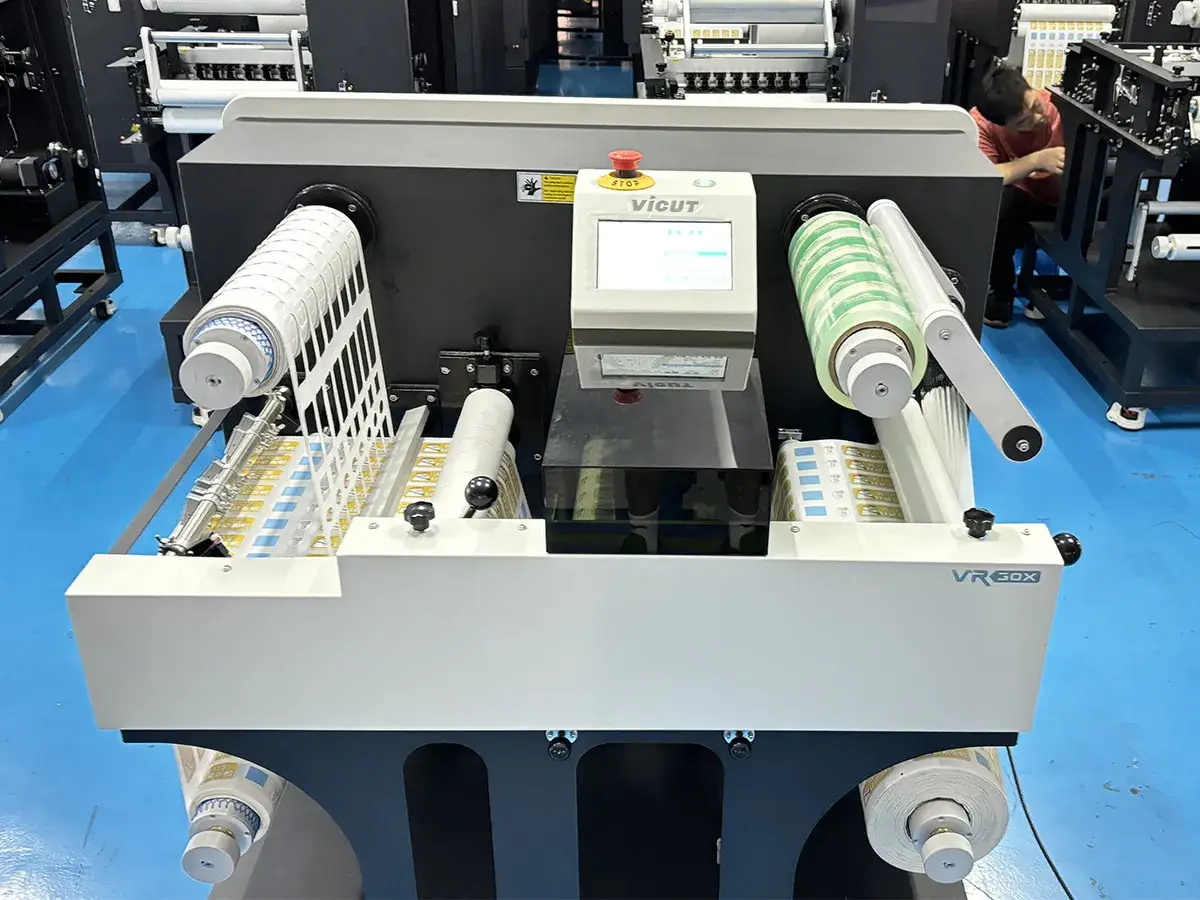

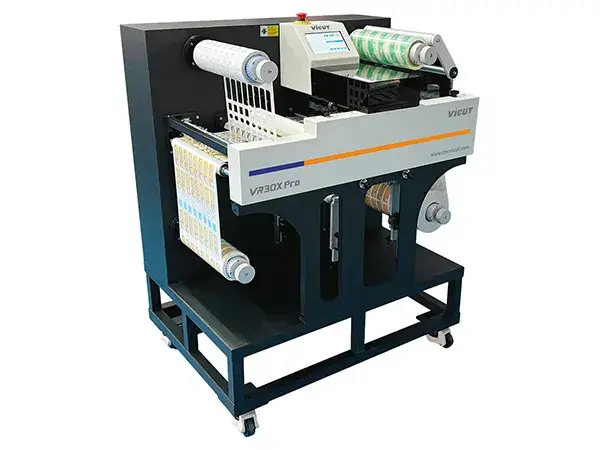

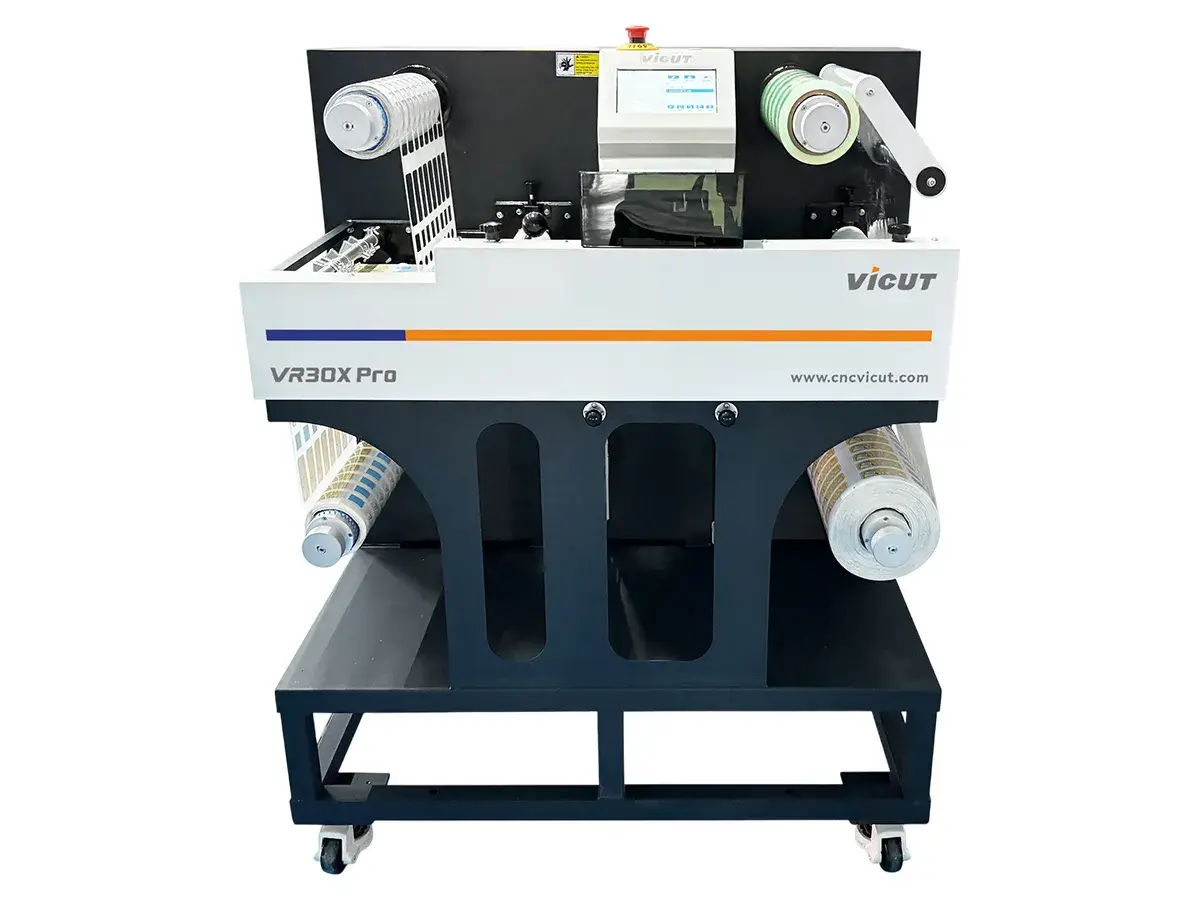

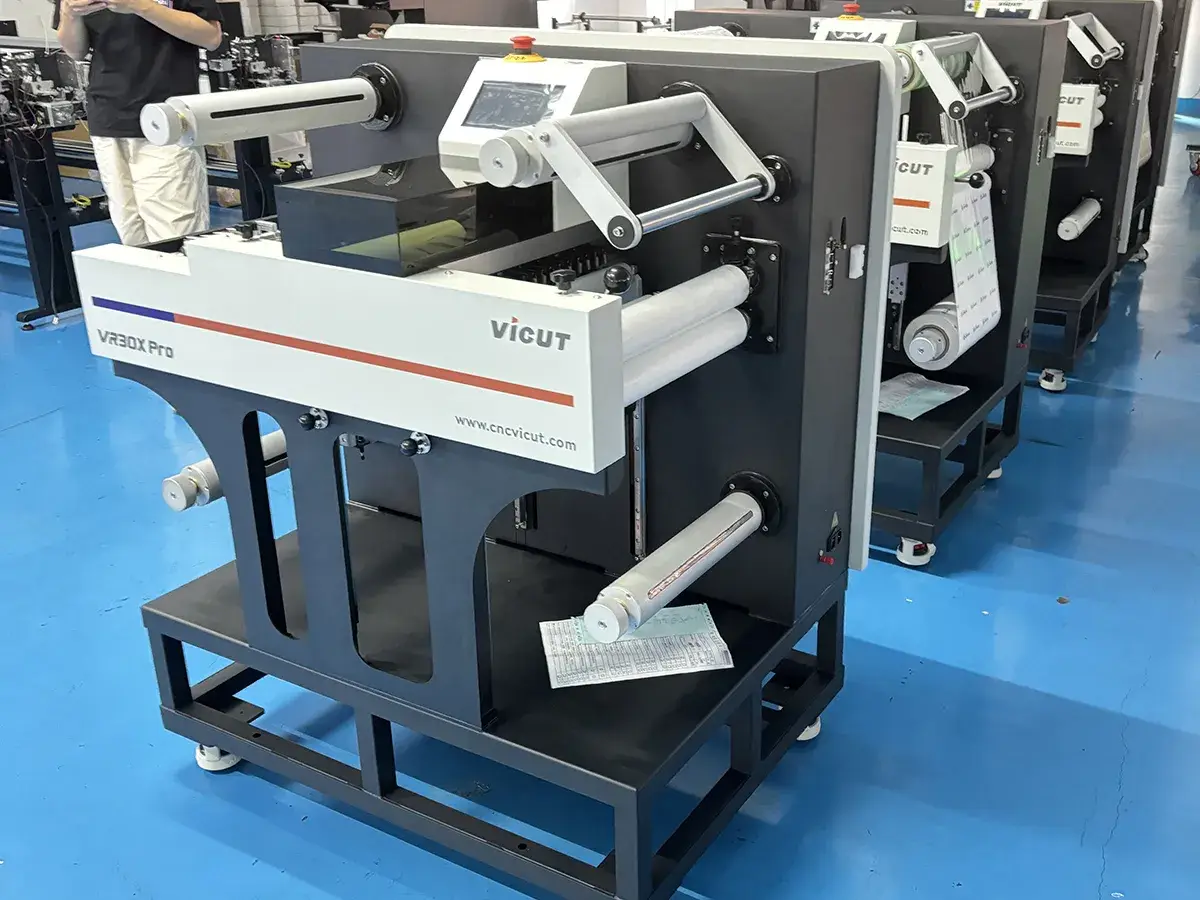

VR30X Pro Digital Roll Label Cutter
The digital roll label cutter gives small and medium label producers a practical way to bring label finishing in-house without adding a complex production line. By combining laminating, digital die cutting, slitting, waste removal, and rewinding in one compact workflow, it helps users produce finished labels with better control over cost, turnaround time, and order flexibility.
For businesses that need short-run production, sample labels, or on-demand product labels before shipment, this label finishing solution makes daily work easier to manage. It can work with different full-color label printers, allowing users to print and finish labels in smaller batches instead of relying on outsourced die cutting or large-volume production.
The easy-to-use CutStudio cutting center supports AI and CDR plugins, helping operators prepare cutting files more efficiently. With QR code registration, the digital roll label cutter can switch jobs automatically and handle both blank label cutting and printed contour cutting, making mixed-order production smoother and more practical for growing label businesses.
| Max. Media Width | 330 mm |
| Max. Blank Cutting Width | 330 mm |
| Max. Contour Cutting Width | 320 mm |
| Max. Label Size (Blank Cutting & Contour Cutting) | 330 × 330 mm (blank) & 330 × 320 mm (contour) |
| Min. Label Size (Contour Cutting & Blank Cutting) | 10×10 mm |
| Drive System | Servo system |
| Scan Device | CCD camera |
| Control Panel | 7-inch touchscreen |
| Registration Marks | Dot marks, QR codes |
| Functions | Laminating, Die-Cutting, Slitting, Matrix Removal, Rewinding |
| Cutting Speed | 3 m/min (7 × 15 cm rectangle) |
| Max. Cutting Force | 750 gf |
| Slitting System | 6 blades (expandable to 8) |
| Max. Unwind Diameter | Ø 350 mm (paper feed) |
| Max. Rewind Diameter | Ø 300 mm (finish / waste) / Ø 150 mm (lamination) |
| Interface | USB, Ethernet, USB flash drive, Wi-Fi |
| Working Voltage | 100–120 VAC/200–240 VAC, 50/60 Hz |
| Consumption Power | Max. 350 W |
| Machine Dimensions (L × W × H) | 1086 × 819 × 1320 mm |
| Package Size | 125 × 95 × 152 cm |
| Weight (G.W. / N.W.) | 380 kg / 293 kg |
-
Small-Volume on-Demand Label Production
Suitable for short-run jobs, sample labels, custom orders, and in-house product label finishing.
-
Blank and Printed Label Cutting
Supports blank label cutting and contour cutting for printed labels.
-
Common Label Applications
Suitable for blank labels, ink labels, chemical labels, beverage labels, bottled water labels, chili sauce labels, coffee labels, cosmetic labels, home appliance labels, toiletries labels, gum labels, wine labels, and more.
-
Compatible Materials
Works with self-adhesive stickers, paper, PP, BOPP, PET, PVC, and other roll label materials.
-
Ideal Users
A practical choice for small and medium label producers, print shops, packaging businesses, and manufacturers that need labels before product shipment.
-
- All-In-One Label Finishing Workflow
Combines laminating, digital die cutting, slitting, waste removal, and rewinding to help users complete more finishing steps in one compact process.
-
- Easy Cutstudio Operation
The CutStudio cutting center works with AI and CDR plugins, making file preparation, cutting adjustment, and daily operation easier for new users.
-
- QR Code Registration System
The QR code registration function supports automatic job switching, helping operators handle mixed label orders with less manual setup.
-
- Blank and Printed Label Cutting
Supports both blank label cutting and printed contour cutting, giving users more flexibility for different label production needs.
-

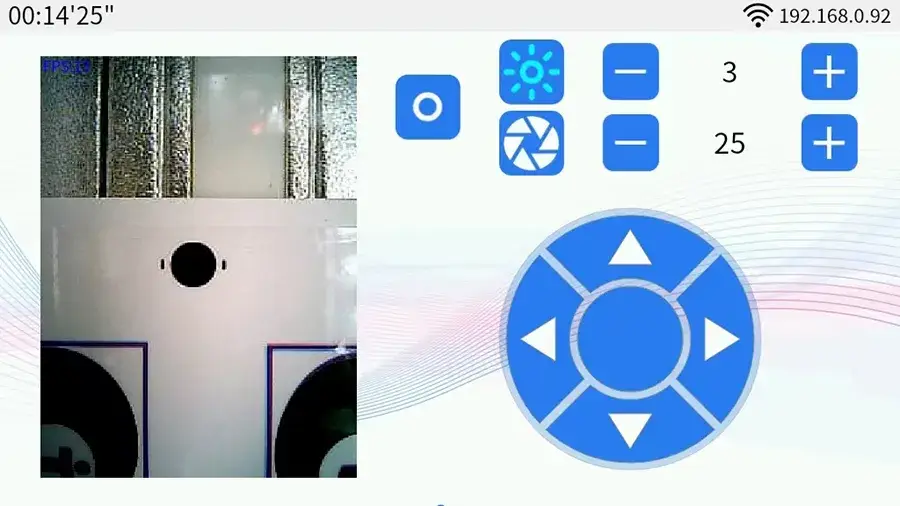

CCD CameraThe CCD camera reads QR codes on printed files, helping the digital roll label cutter identify each job accurately and support smoother automatic job switching.
-

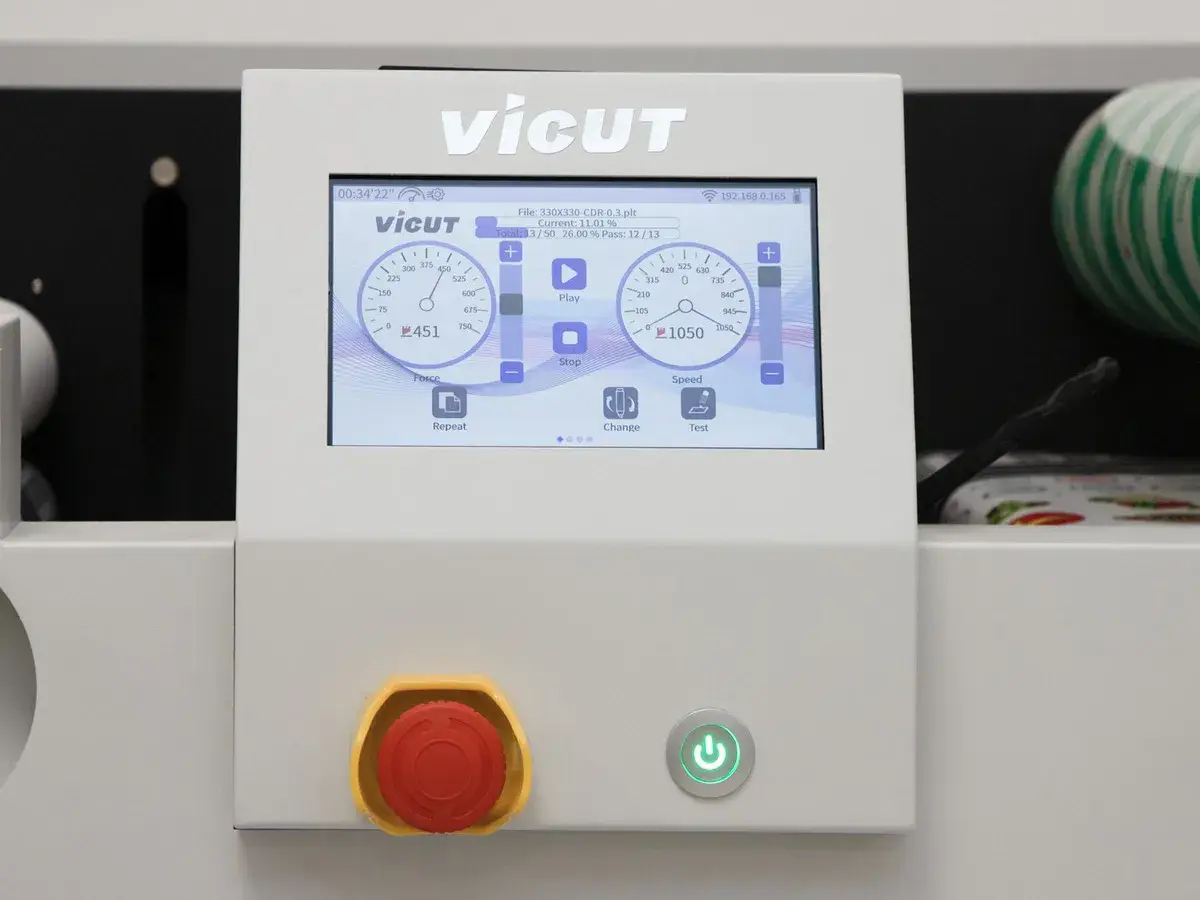

User-Friendly Touch Screen PanelThe touch screen panel gives operators a clear and simple way to manage daily settings, reducing the learning curve for new users.
-

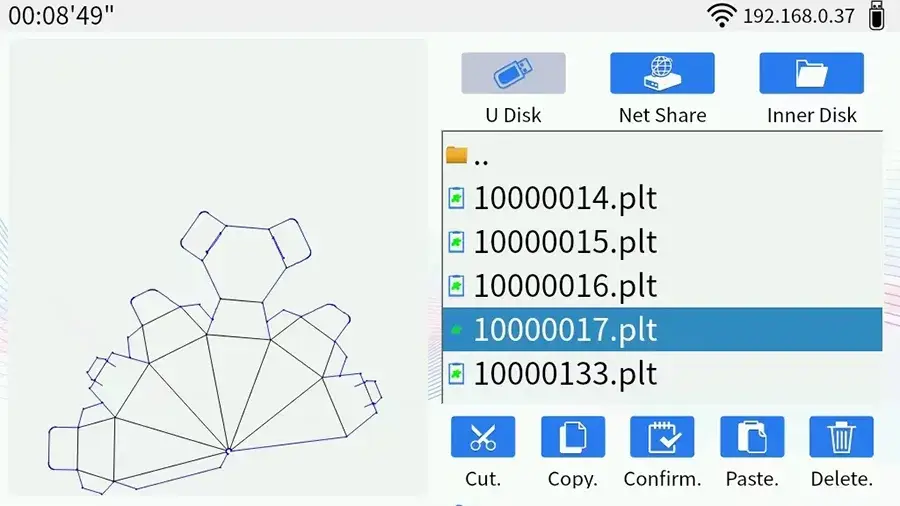

Multiple File Transfer MethodsNetwork, U-disk, USB cable, Wi-Fi, LAN, and internal disk transfer options give operators more flexibility to load cutting files according to their workflow.
-
Easy-to-Use CutStudio SoftwareDedicated CutStudio software works with AI and CDR plugins, making it easier to adjust offset, ending points, and cutting files for more accurate label finishing.
-

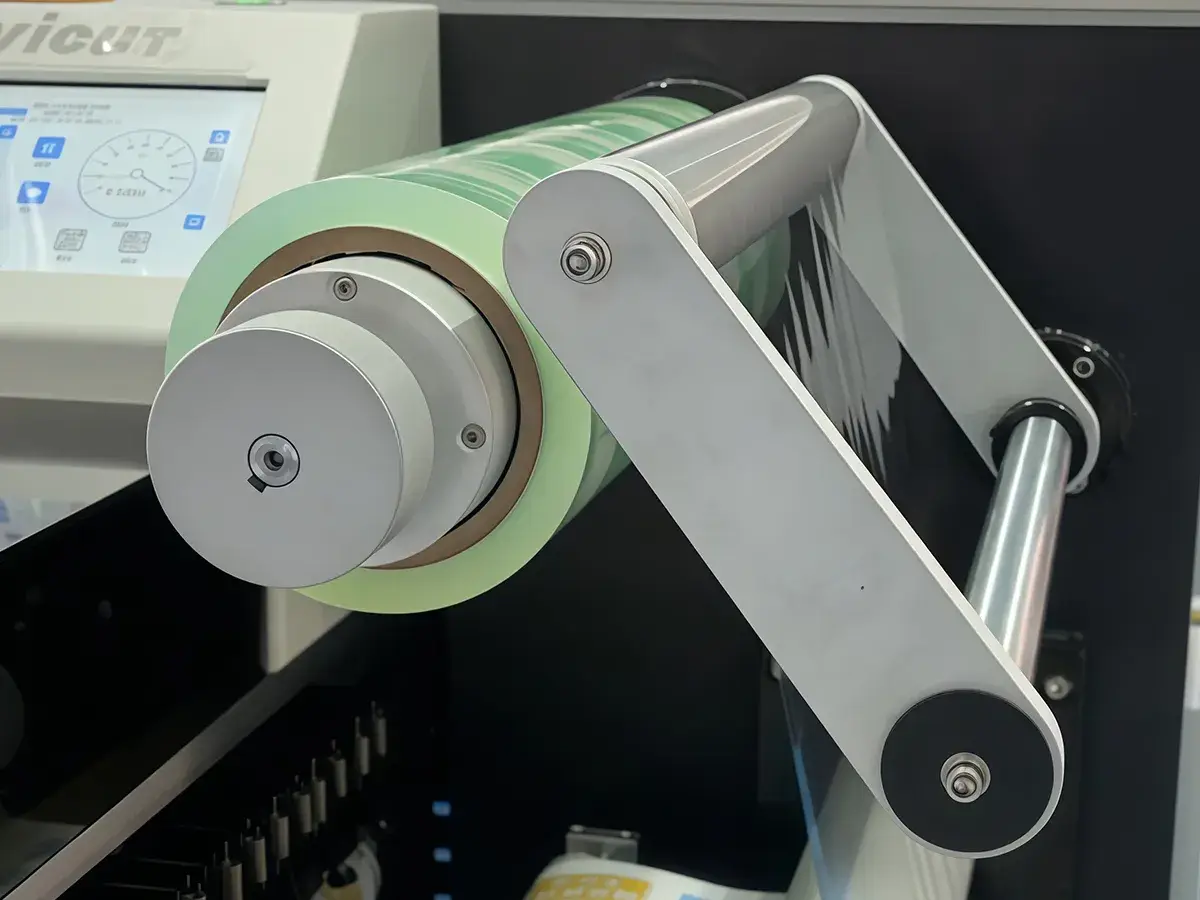

Automatic Laminating Before Die CuttingBuilt-in laminating helps protect printed labels before cutting, adding durability and a more finished look to the final label rolls.
-

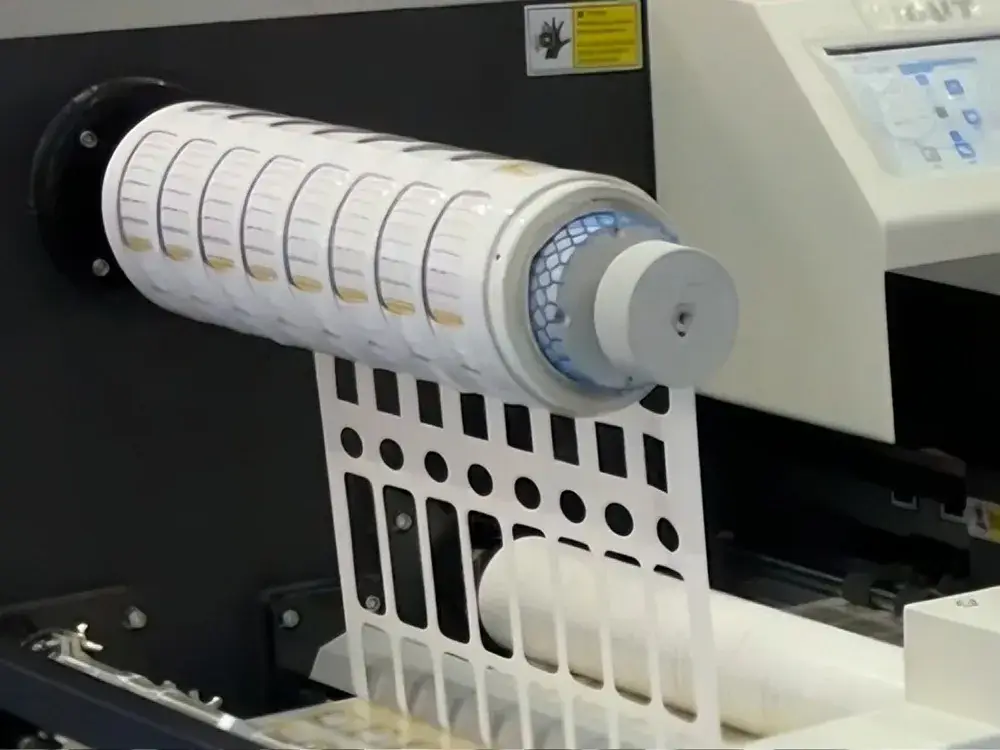

Automatic Waste Removal and Tension SystemThe waste removal and tension system keeps production cleaner and more stable, helping operators reduce manual handling during label finishing.
-

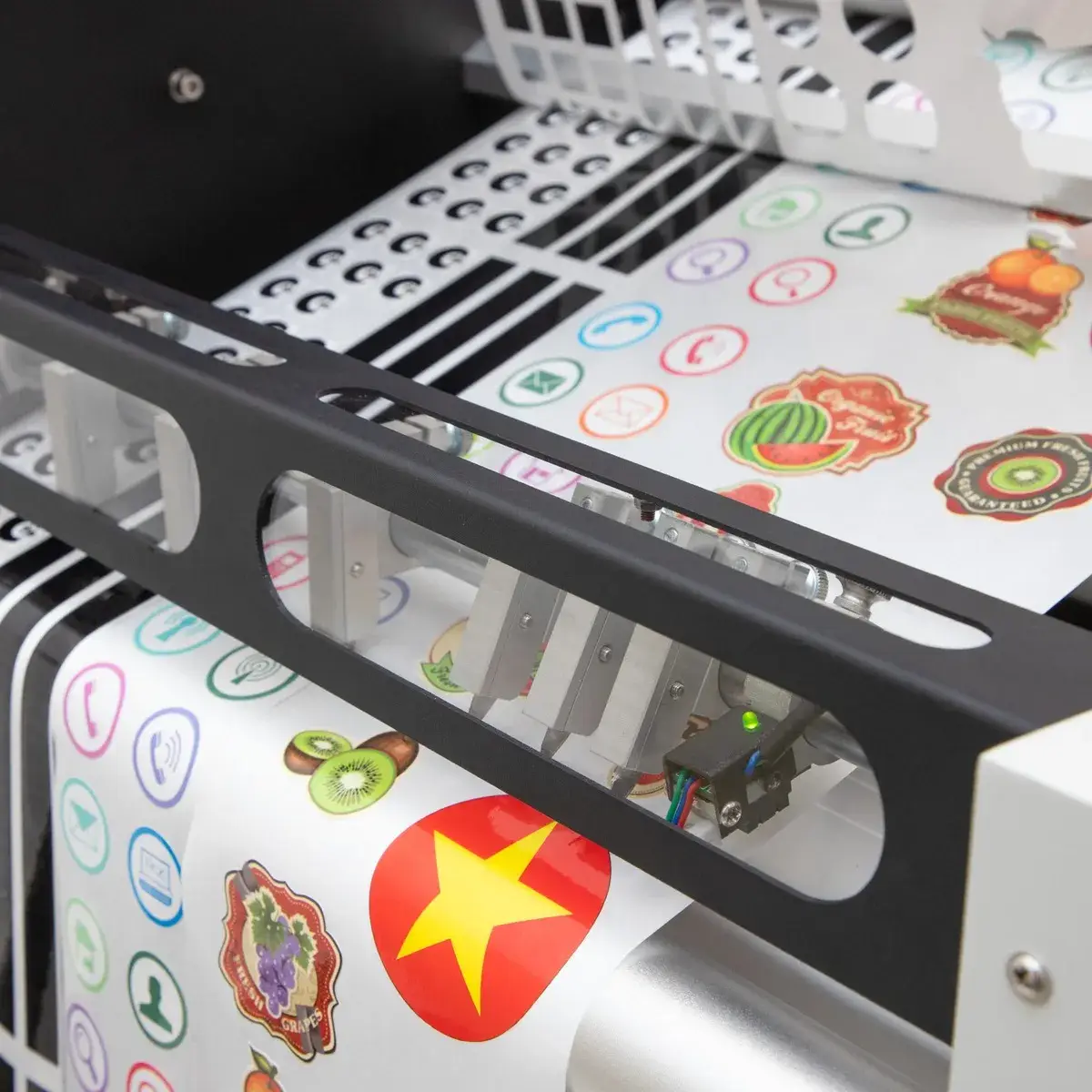

Edge Sensor Correction Slitting SystemThe edge sensor correction system supports more accurate slitting, helping finished label rolls maintain cleaner edges and better consistency.
-

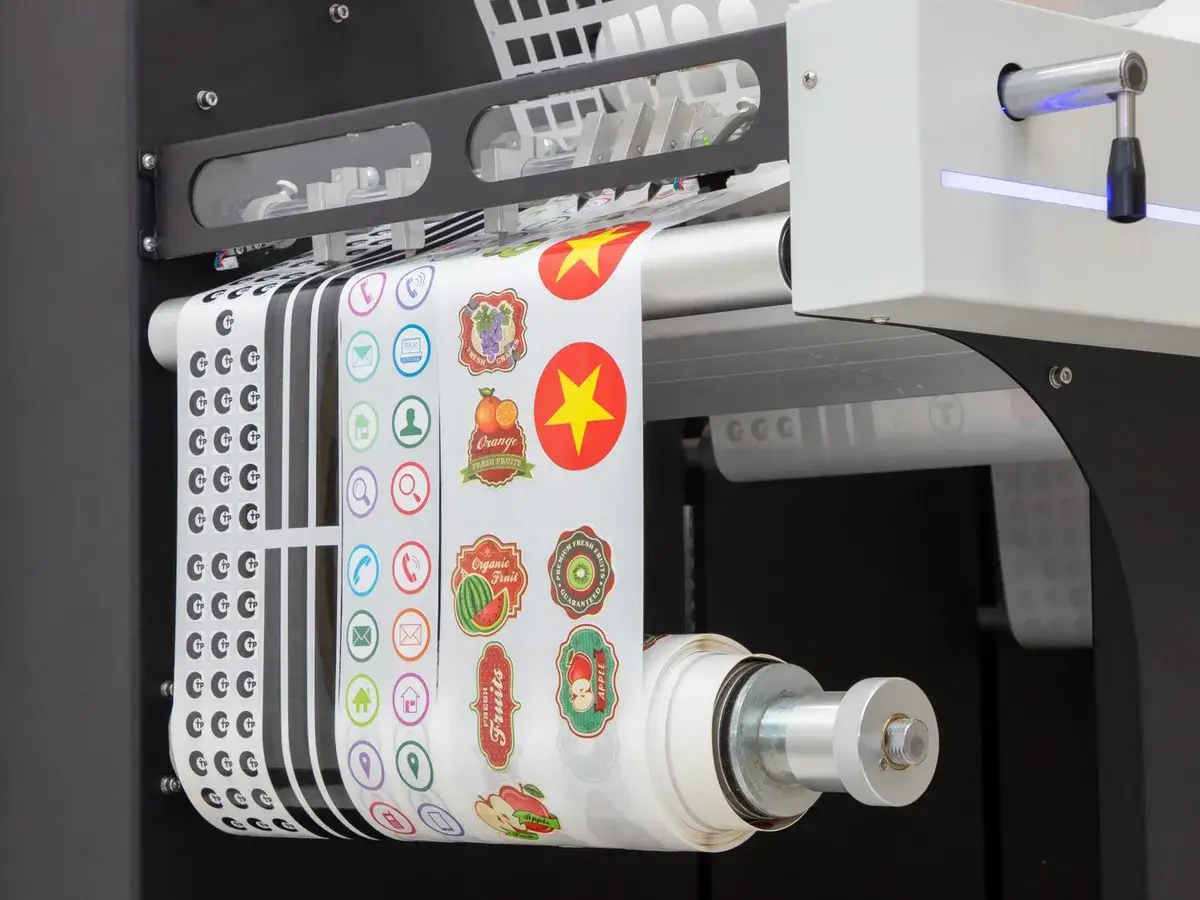

Automatic Rewinding SystemAutomatic rewinding collects finished labels neatly after cutting and slitting, making the final rolls easier to handle, pack, and use.
