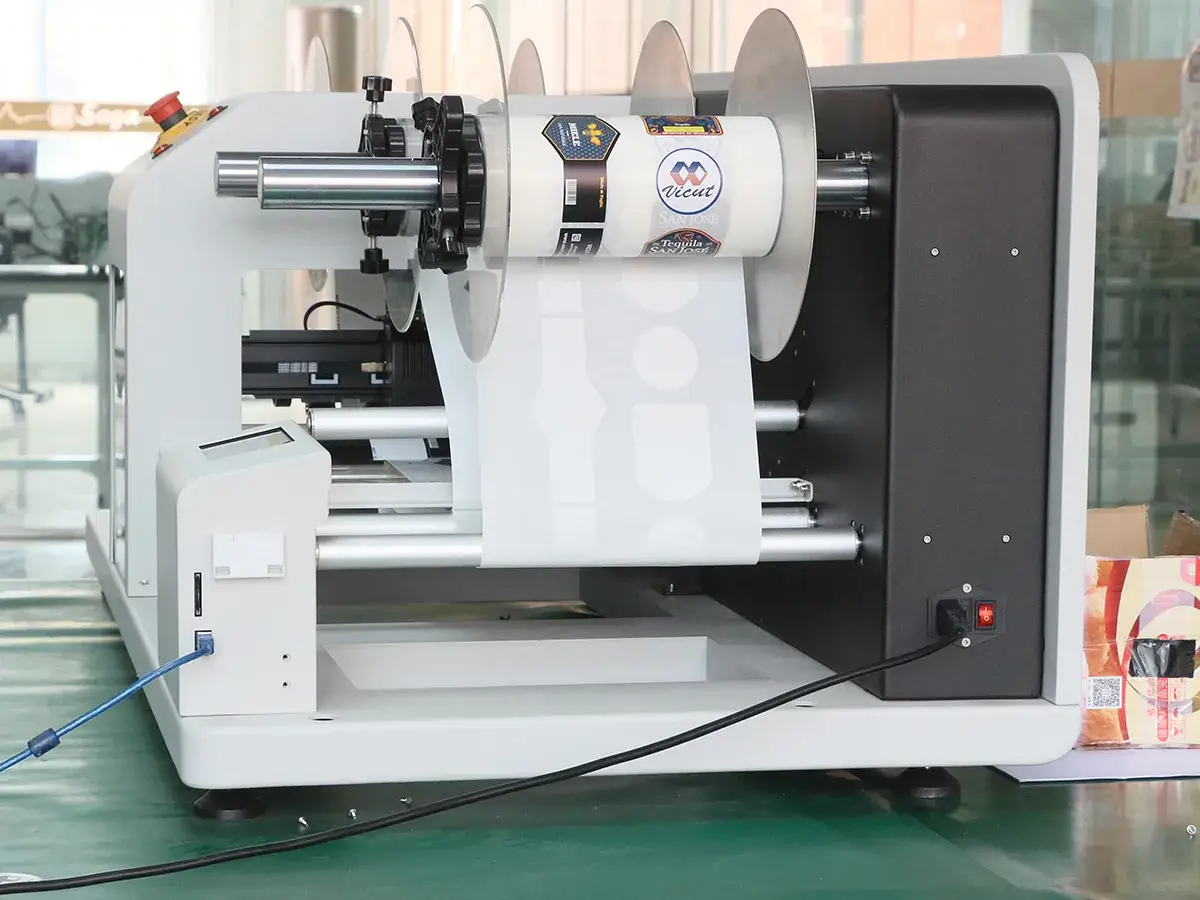

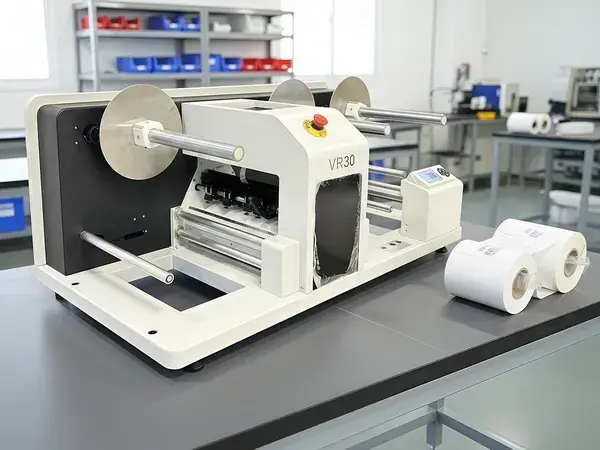

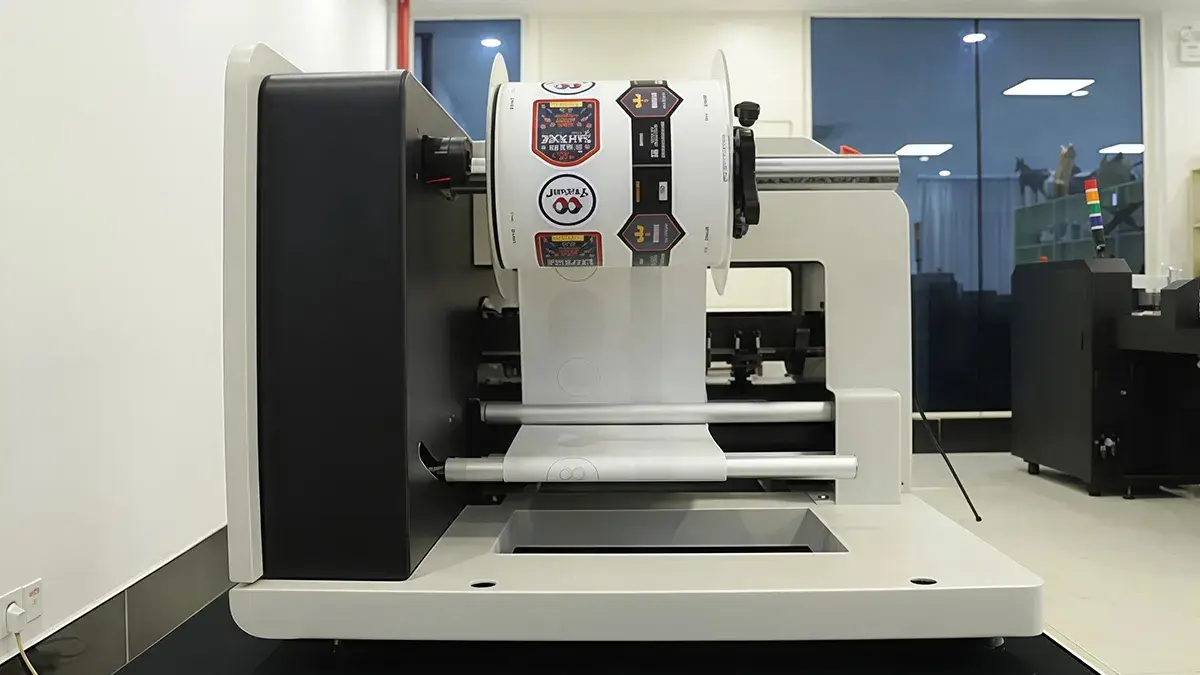

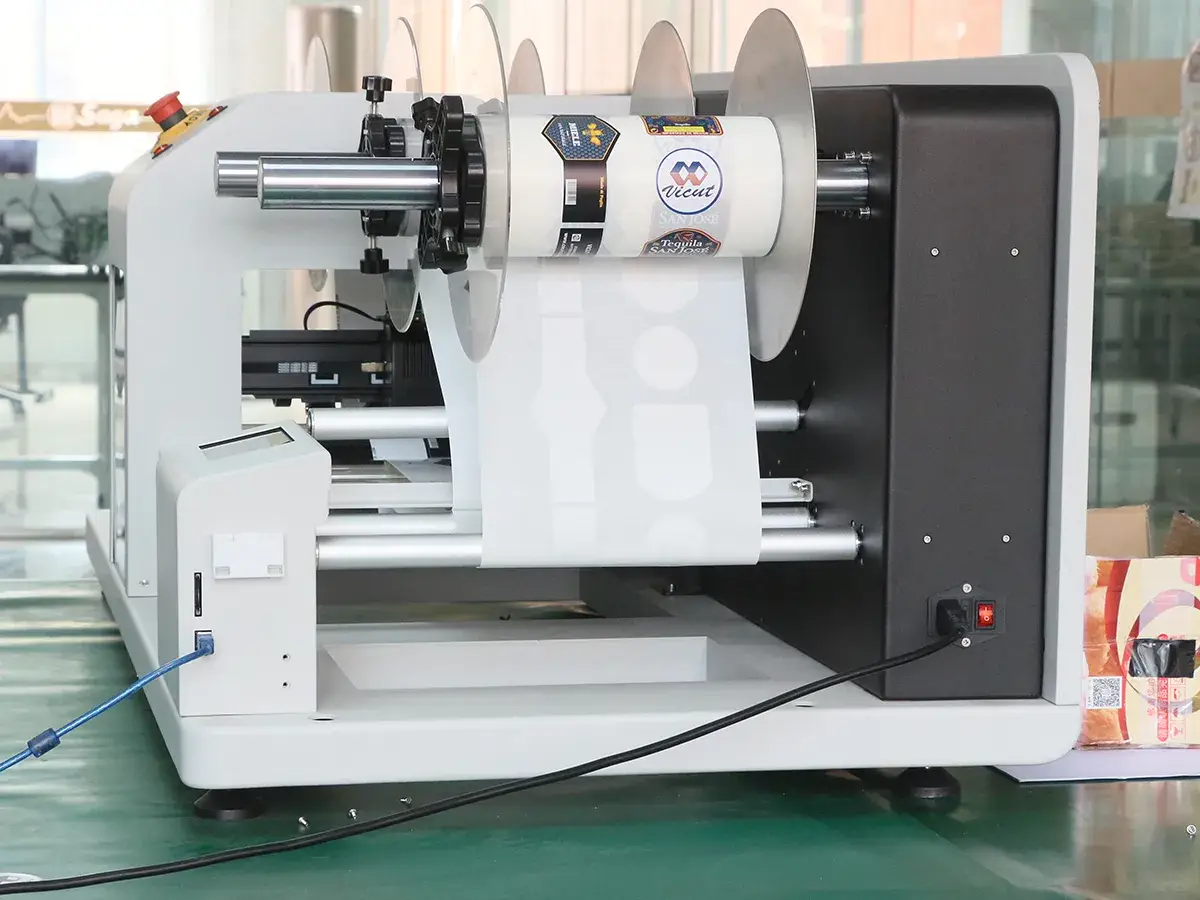

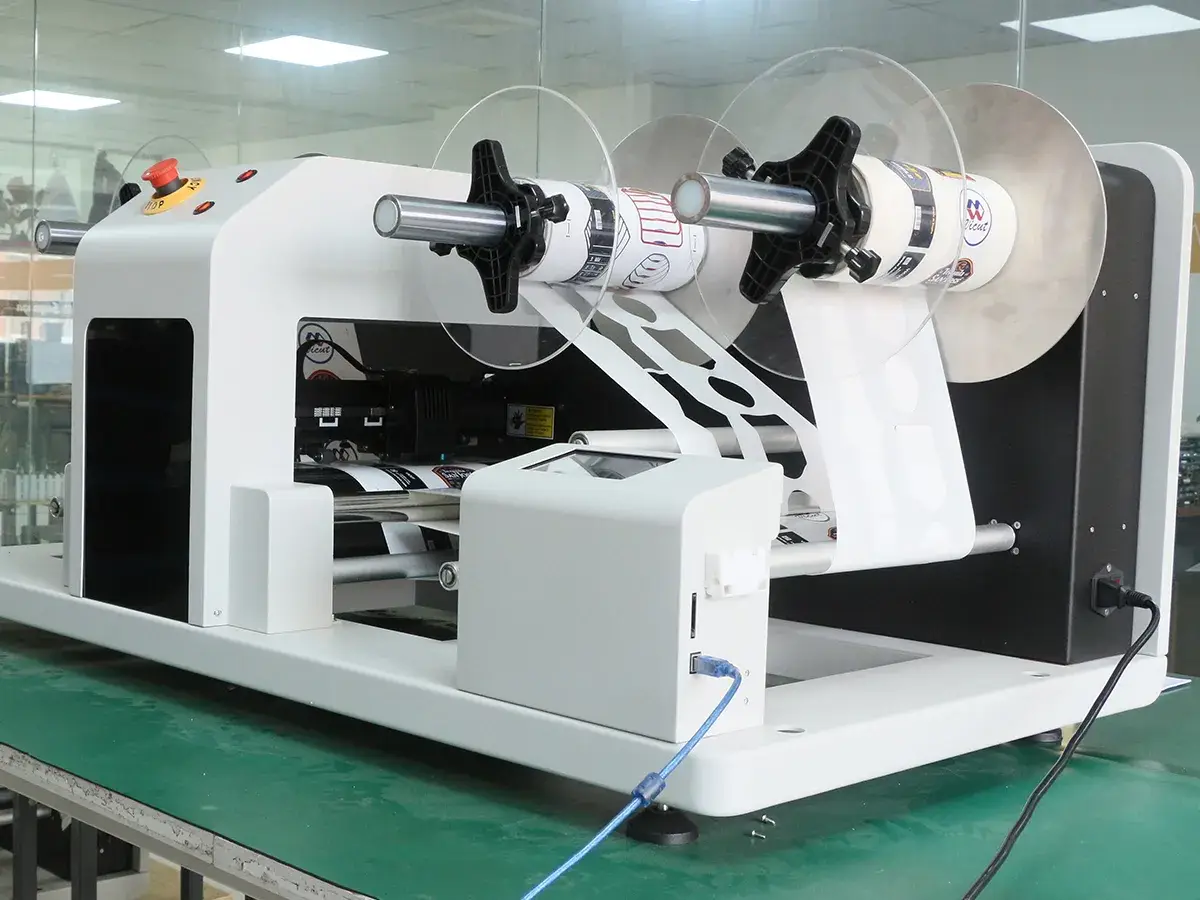

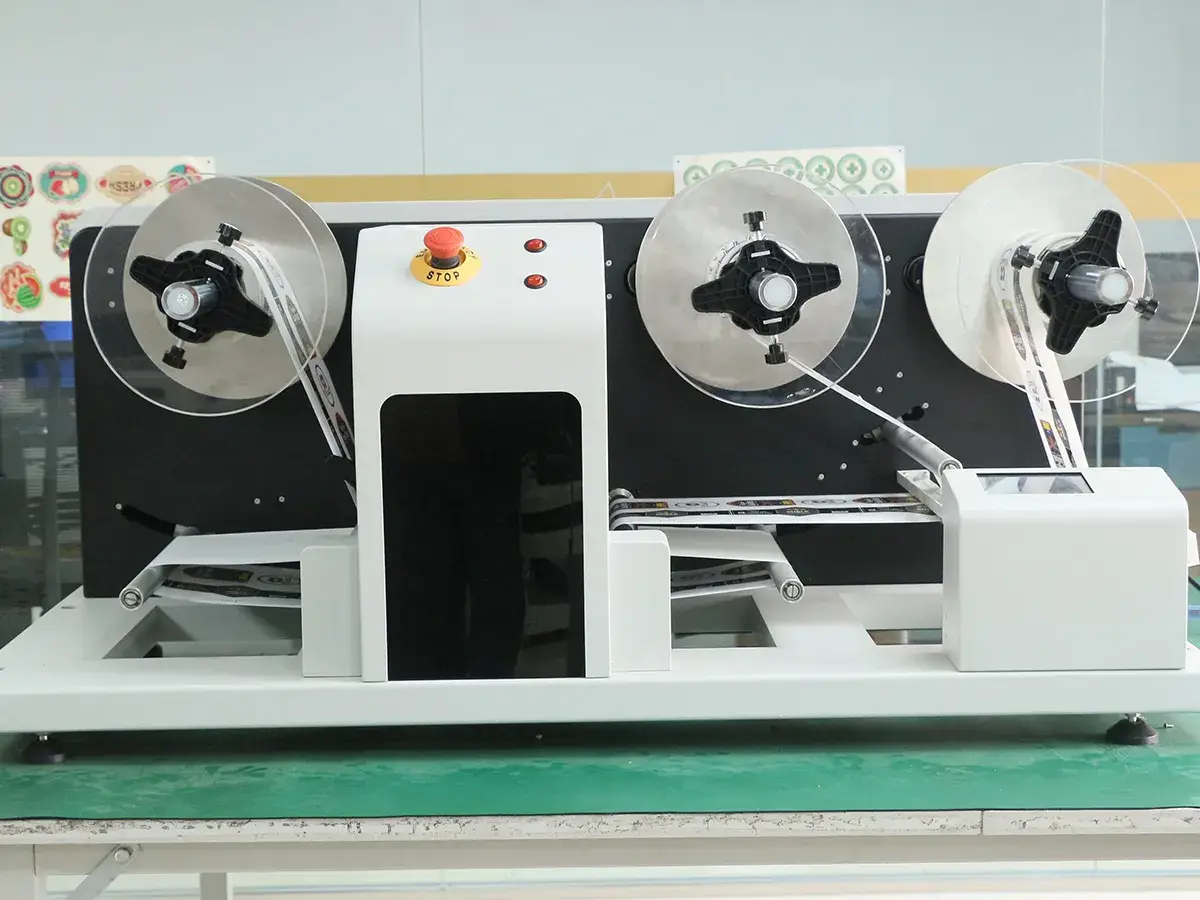

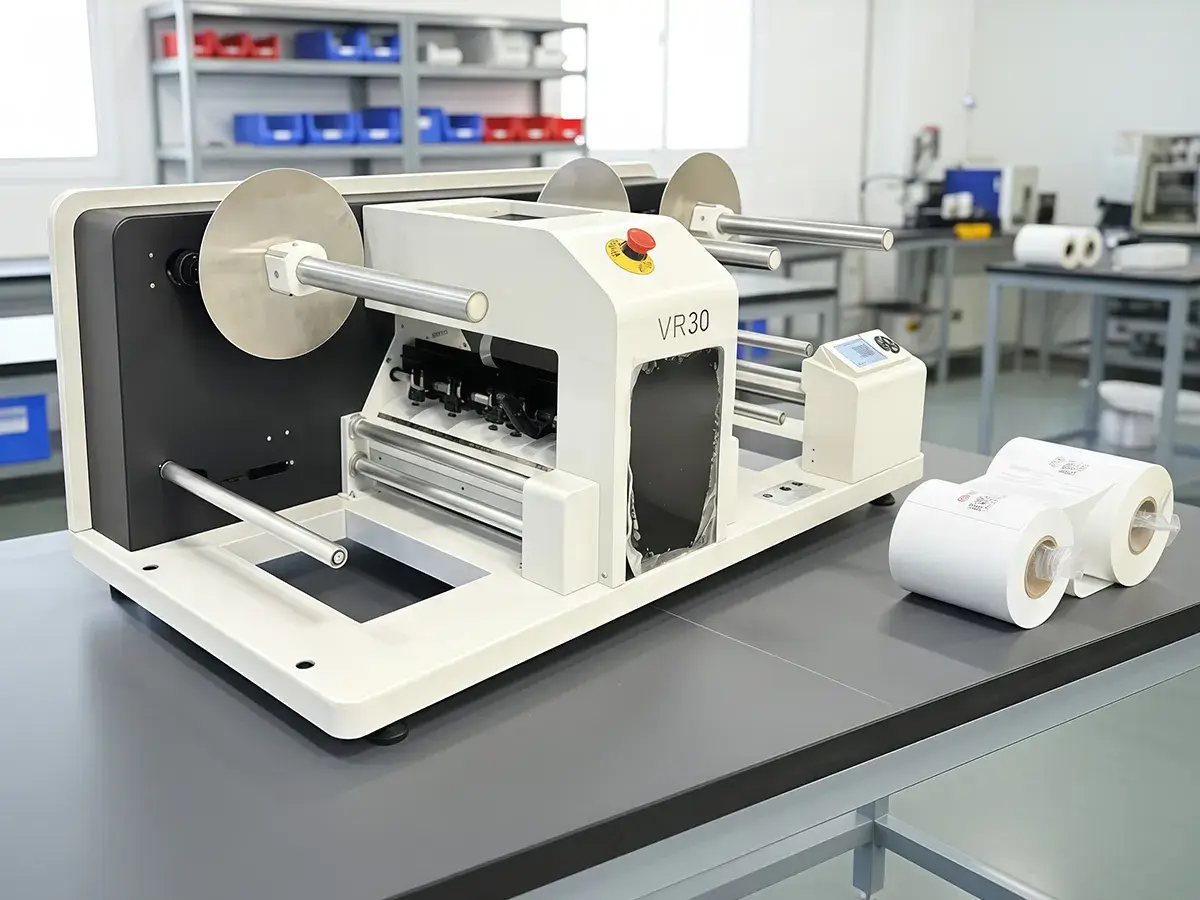

VR30 Desktop Roll-to-Roll Digital Label Finisher

The roll-to-roll digital label finisher gives small label producers, print shops, and in-house packaging teams an easier way to start roll label finishing without investing in large industrial equipment. It is well suited for short-run label production, pre-press sampling, and on-demand label jobs where cost control, fast setup, and flexible cutting matter.

For businesses currently using pre-cut label stock, this compact label finishing solution makes it possible to shift toward continuous roll media. That means fewer limits from fixed label shapes and sizes, better material planning, and more freedom to handle custom label orders.

Daily operation is designed to stay simple and practical. Once the media and cutting file are loaded, the machine can continue cutting through the roll without interruption, helping operators complete small-batch jobs more smoothly. Its easy-to-learn software also helps new users start production quickly with less training time.

Request a Quote
Watch Videos
Applications
  • Production Scenarios: Short-run roll label production, pre-press sampling, on-demand label jobs, and small-batch custom label finishing.

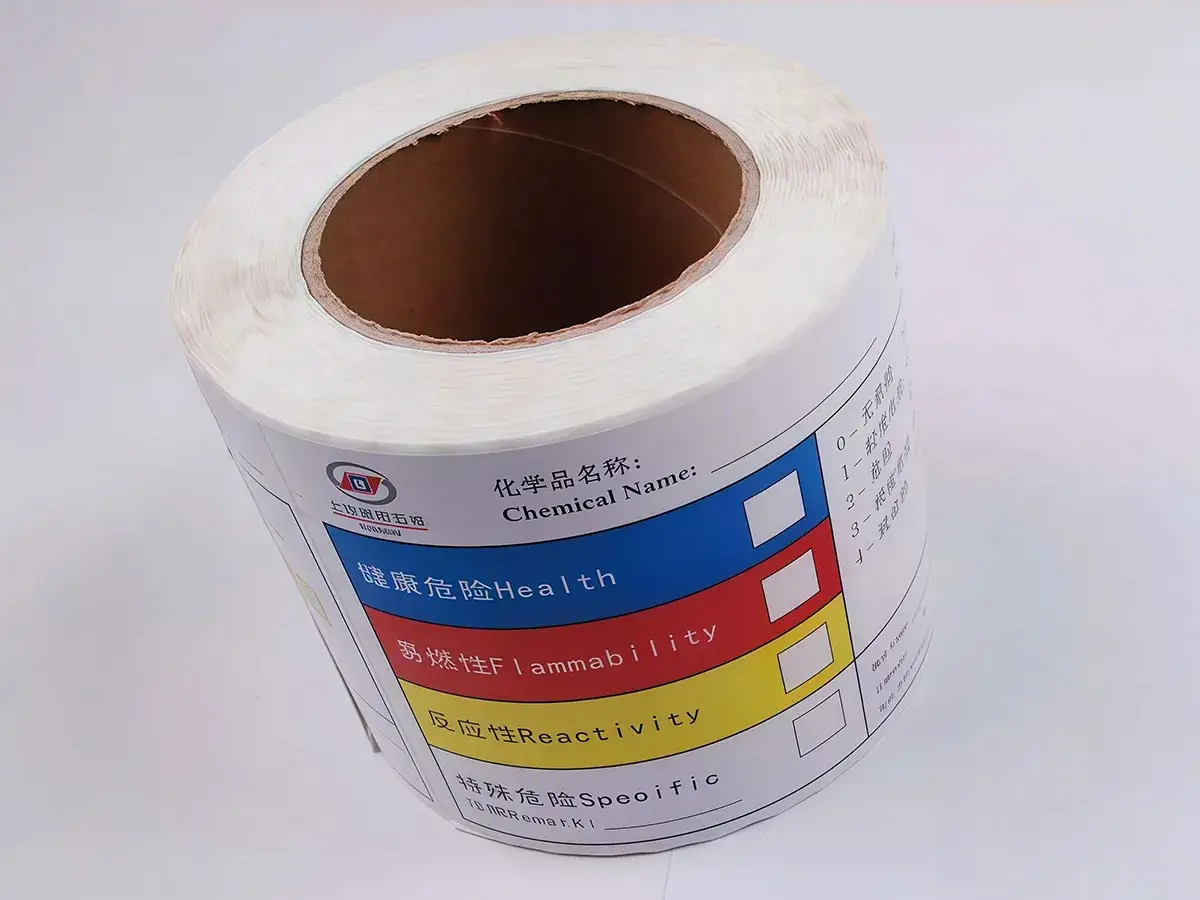

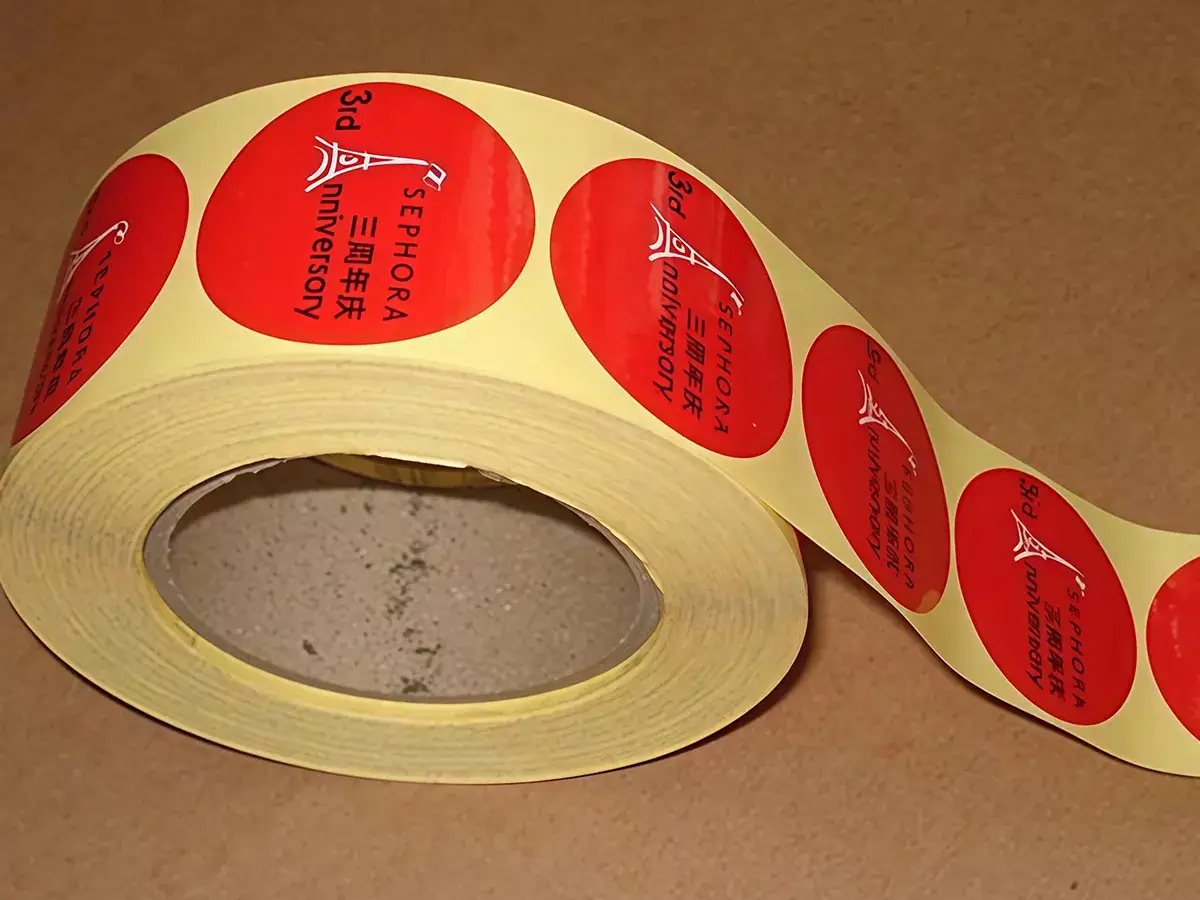

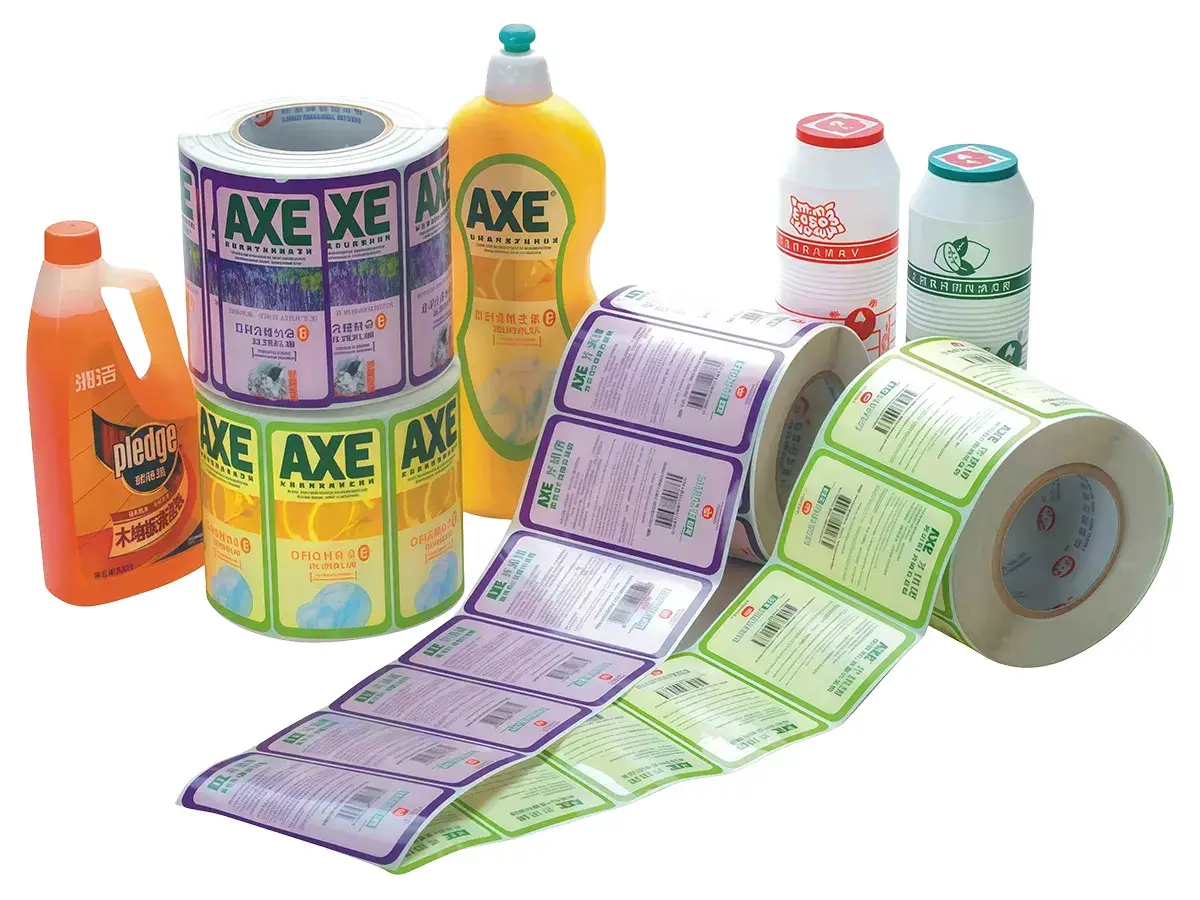

  • Label Types: Paper labels, film labels, color contour labels, custom-shaped stickers, ink labels, chemical labels, tea labels, coffee labels, beverage labels, bottled water labels, cosmetic labels, home appliance labels, toiletries labels, gum labels, and wine labels.
  • Compatible Materials: Self-adhesive stickers, glossy paper, PET, PP, PVC, wallpaper, and other roll media.
  • Ideal Users: Small and medium label producers, print shops, packaging businesses, and in-house label production teams.
  • Applications
  • Applications
  • Applications
  • Applications
Technical Parameters
Model VR30
Working Mode Roll-to-roll
Software Cut Studio
Control Panel Touch screen &Physical buttons
Max. Media Width 320 mm
Max. Blank Cutting Size 320 × 200 mm
Max. Contour Cutting Size 295 × 120 mm
Max. Cutting Speed (straight-line) 3 m/min (7 × 15 cm rectangle)
Max. Down Force 750 g (3 g/step)
Mechanical Resolution 0.0125 mm
Repeatability ≤ ± 0.08 mm
Drive System Servo system
Interface USB, Wi-Fi, USB flash drive, Ethernet
Control System 64-bit DSP, 32 MB Flash
Operating Noise ≤ 35 dB(A)
Ambient Temperature 5 °C to 35 °C
Support File Format PLT
Rated Power 150 W
Machine Dimensions 103 × 61 × 75 cm (L × W × H)
Weight (G.W. / N.W.) 110 kg / 75 kg (242 lb / 165 lb)
Packing Size (L × W × H) 120 × 80 × 75 cm / 0.72 CBM
Key Advantages
    • Lower Entry Cost

      A practical choice for businesses that want to enter roll label finishing without the cost of a large industrial system.

    • More Flexible Label Production

      Supports custom label shapes and short-run jobs, helping users respond faster to different customer orders.

    • Continuous Roll Cutting

      Keeps cutting through the loaded roll once the media and file are ready, reducing unnecessary production interruptions.

    • Easy Daily Operation

      Simple software and a compact workflow help operators get started quickly.

    • Flexible File Transfer

      Supports USB, Wi-Fi, U-disk, and Ethernet for convenient cutting file management.

Product Details

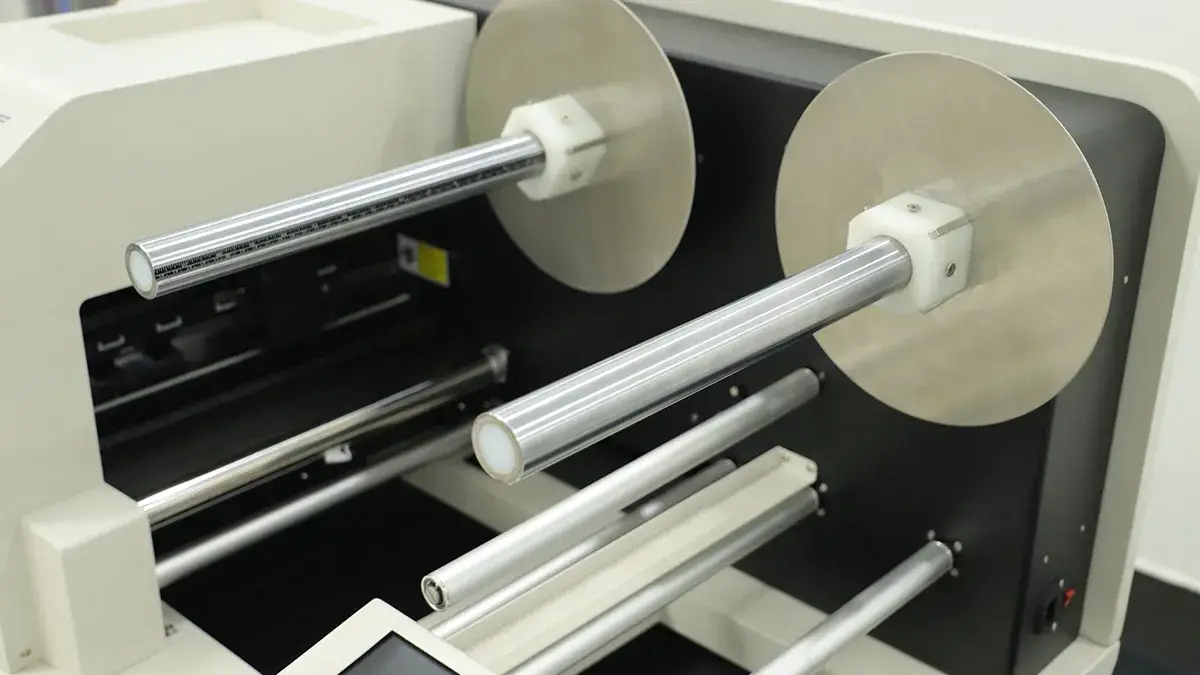

    • Double Disc Media Fixing
      Double Disc Media Fixing

      The double disc structure keeps roll media centered during cutting, helping prevent material offset and ensuring cleaner, more accurate rewinding.

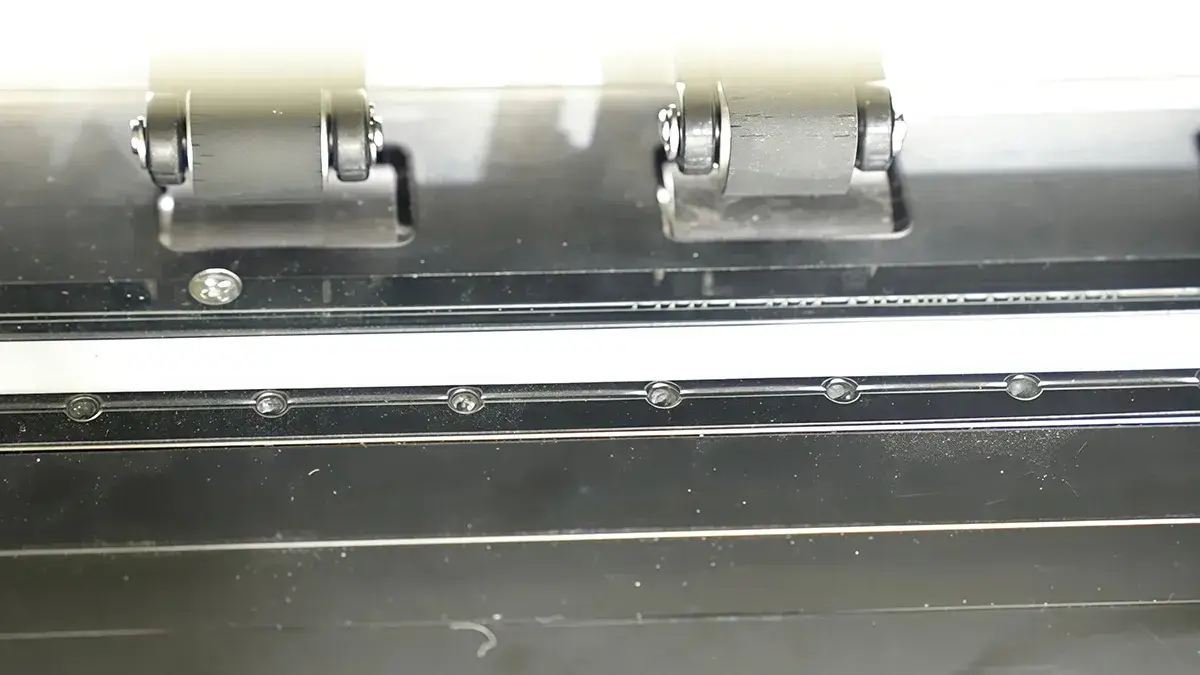

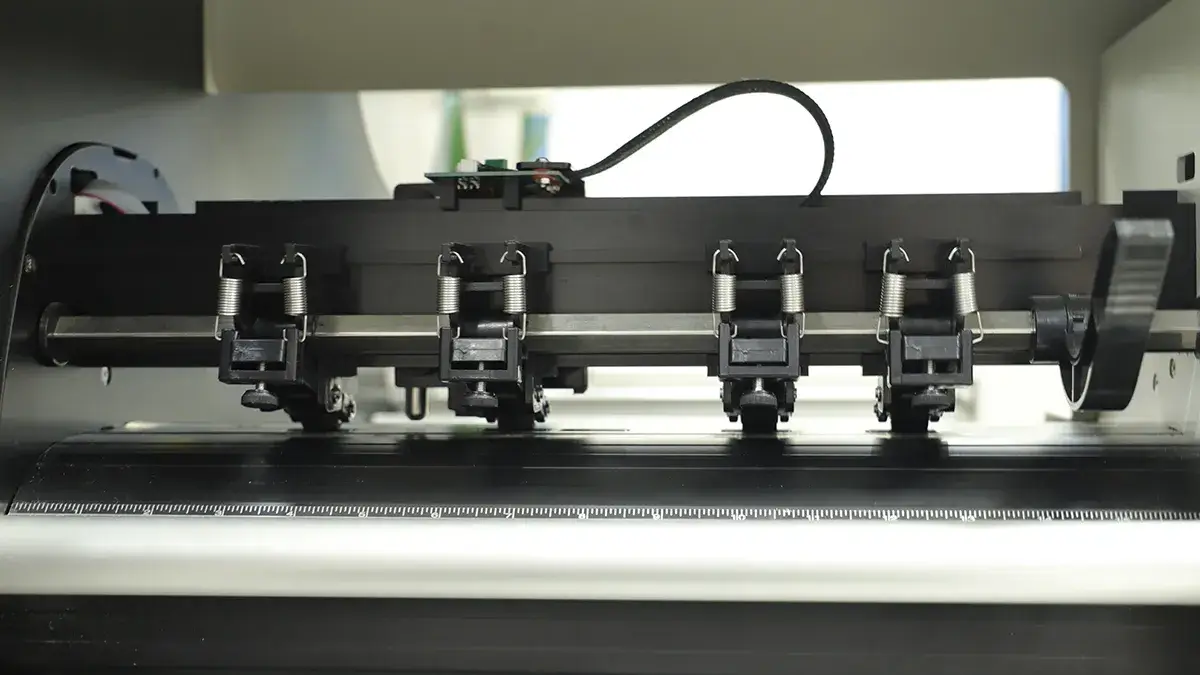

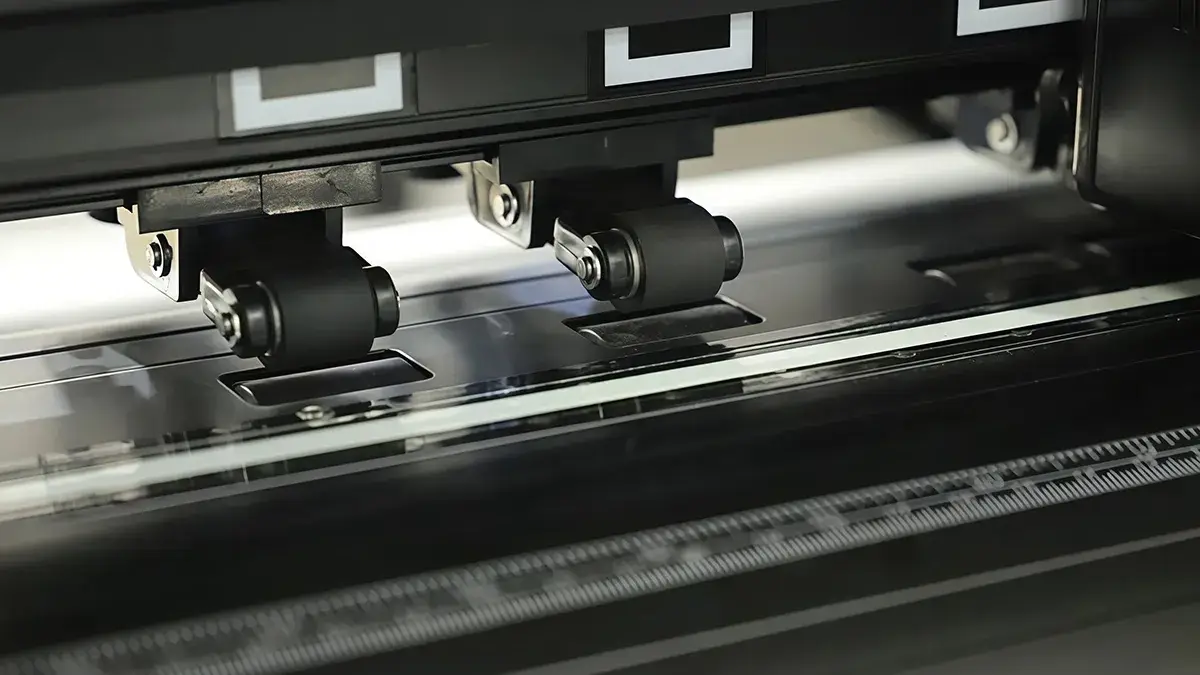

    • Grit Roller and Pinch Roller Feeding
      Grit Roller and Pinch Roller Feeding

      The feeding structure holds the media firmly during operation, supporting stable movement and consistent cutting accuracy.

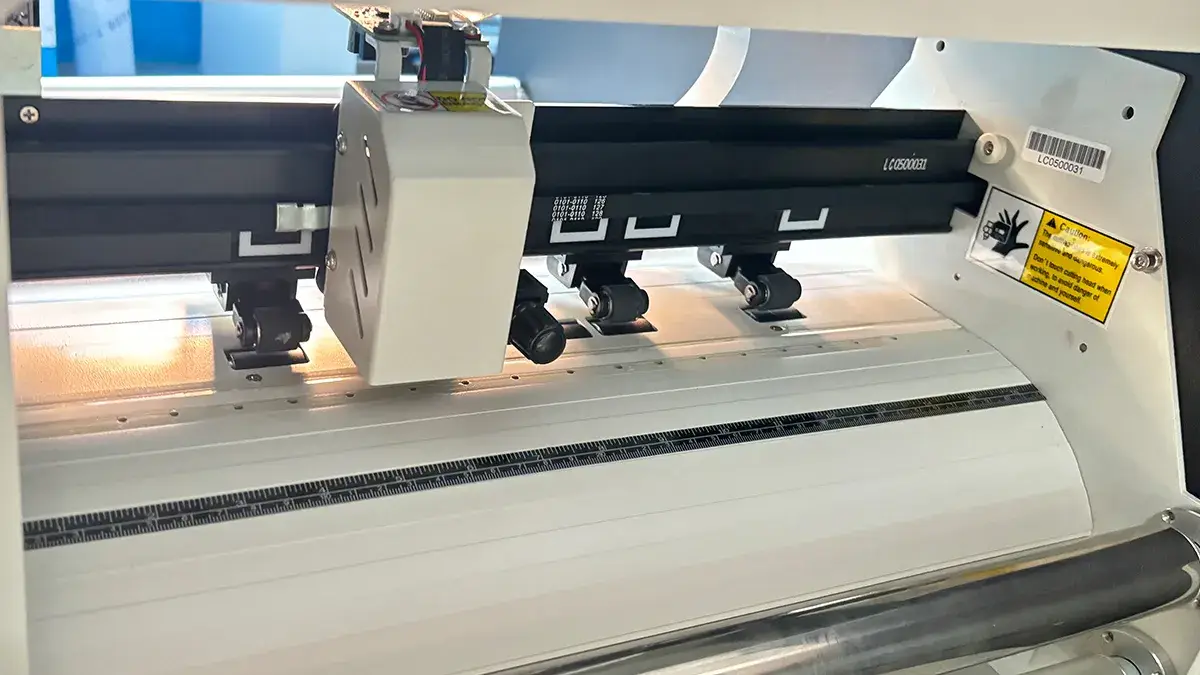

    • CCD Camera Registration Mark Reading
      CCD Camera Registration Mark Reading

      The CCD camera reads registration marks on printed media, helping the roll-to-roll digital label finisher complete accurate contour cutting for custom label shapes.

    • Web Tension Control System
      Web Tension Control System

      The web tension system keeps the media running smoothly through the cutting process, reducing feeding errors and improving production stability.

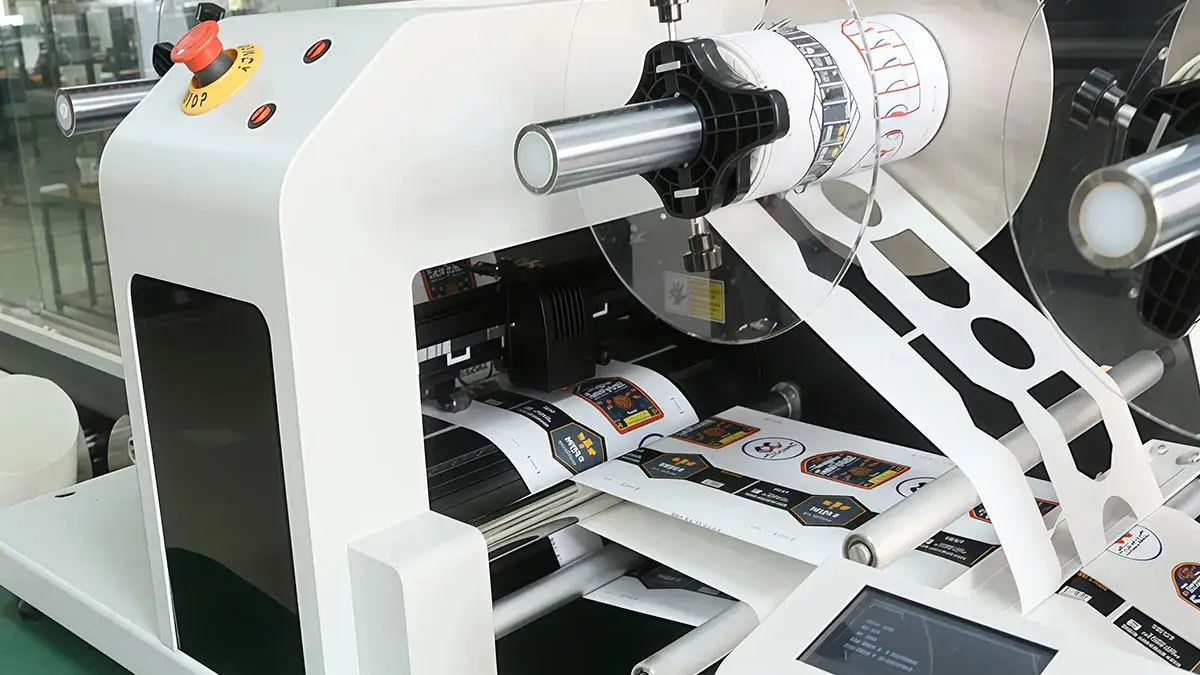

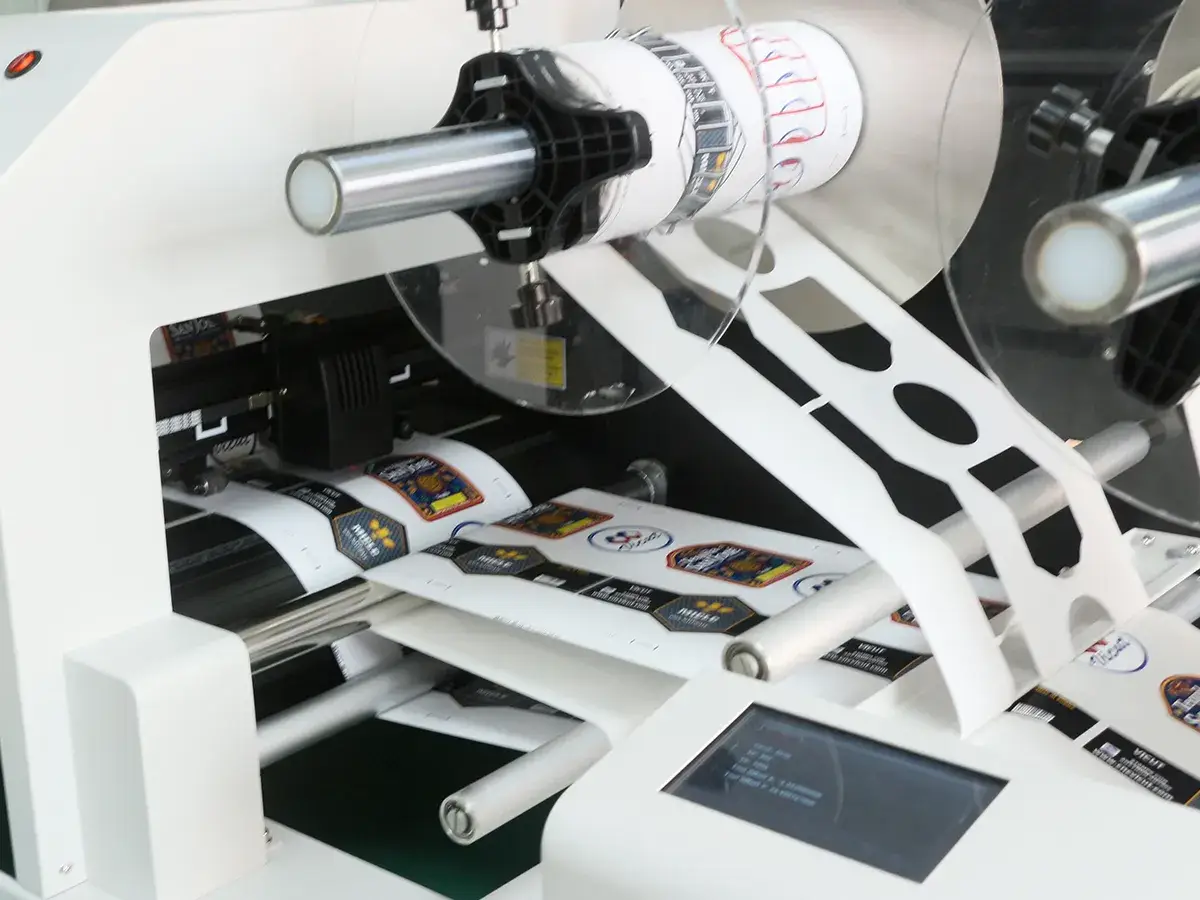

    • Automatic Waste Removal System
      Automatic Waste Removal System

      The automatic waste removal system separates unwanted material after cutting, helping operators save time and keep label finishing more efficient.

    • Fan Suction Holes
      Fan Suction Holes

      Fan suction holes hold the media flat on the cutting area, supporting precise cutting and reducing movement during operation.

    • Media Fixture
      Media Fixture

      The media fixture helps secure the material during production, keeping the roll stable and reducing the risk of shifting.

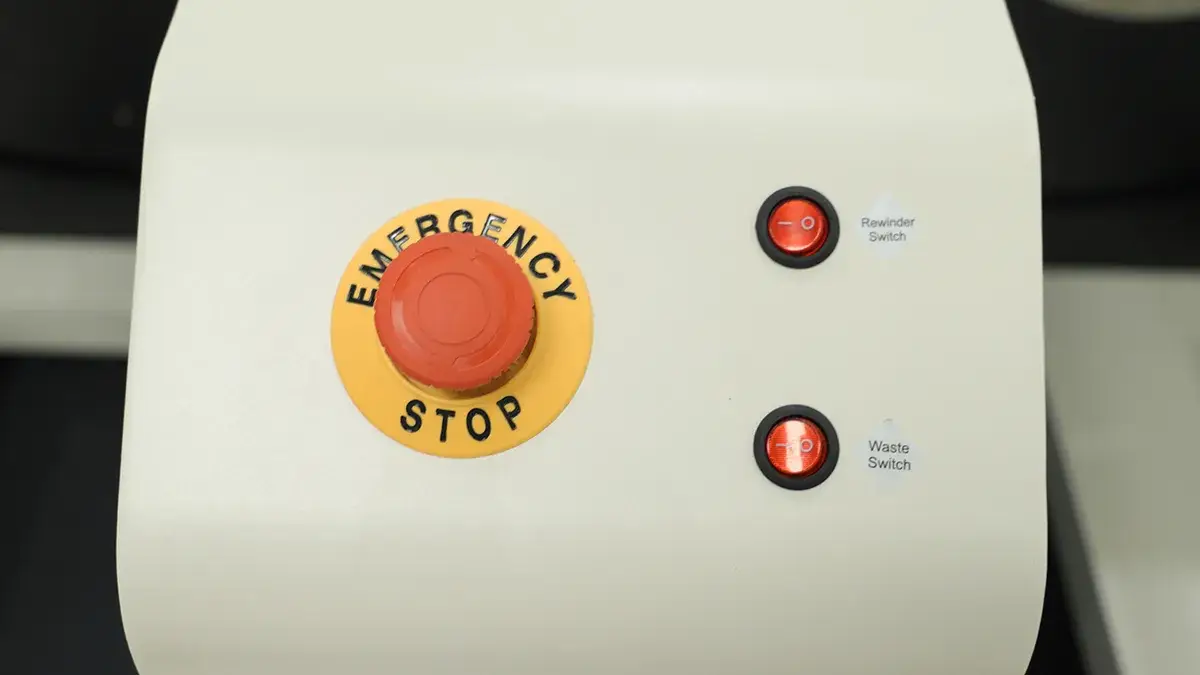

    • Emergency Stop Button
      Emergency Stop Button

      The emergency stop button allows operators to stop the machine quickly when needed, adding an extra layer of operational safety.

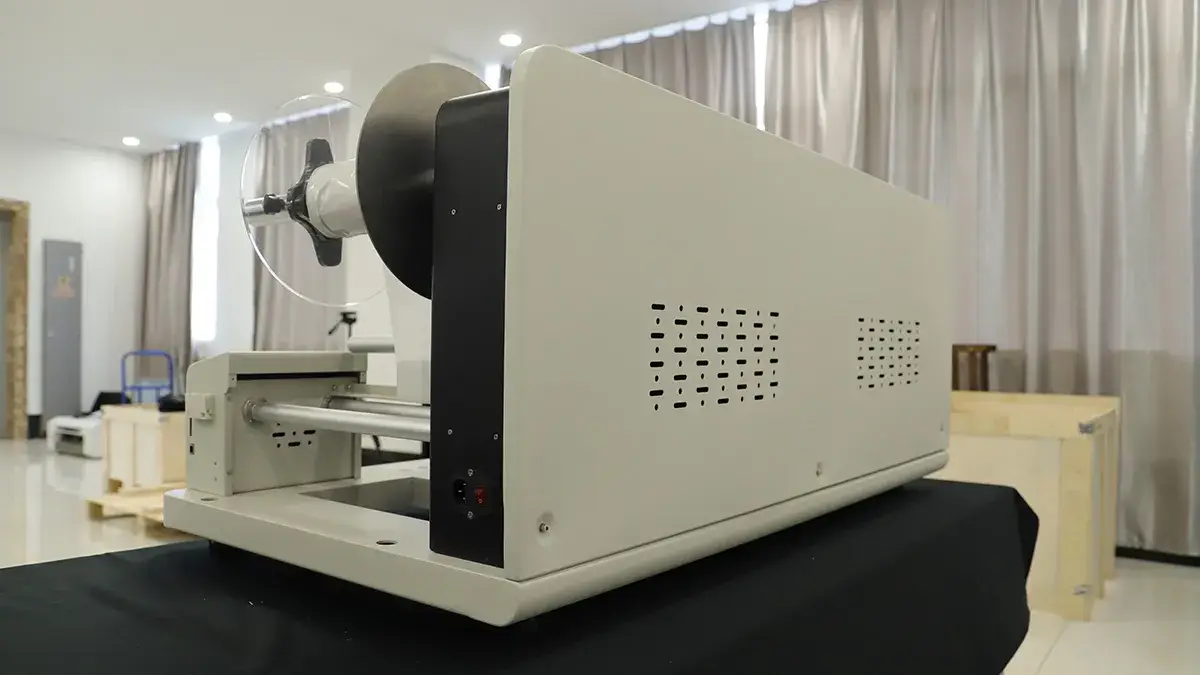

    • Rear Cooling Vents
      Rear Cooling Vents

      Rear cooling vents support heat dissipation during operation, helping maintain stable machine performance.
