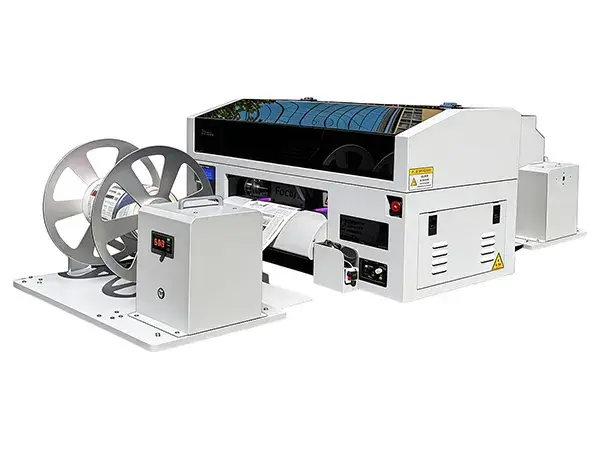

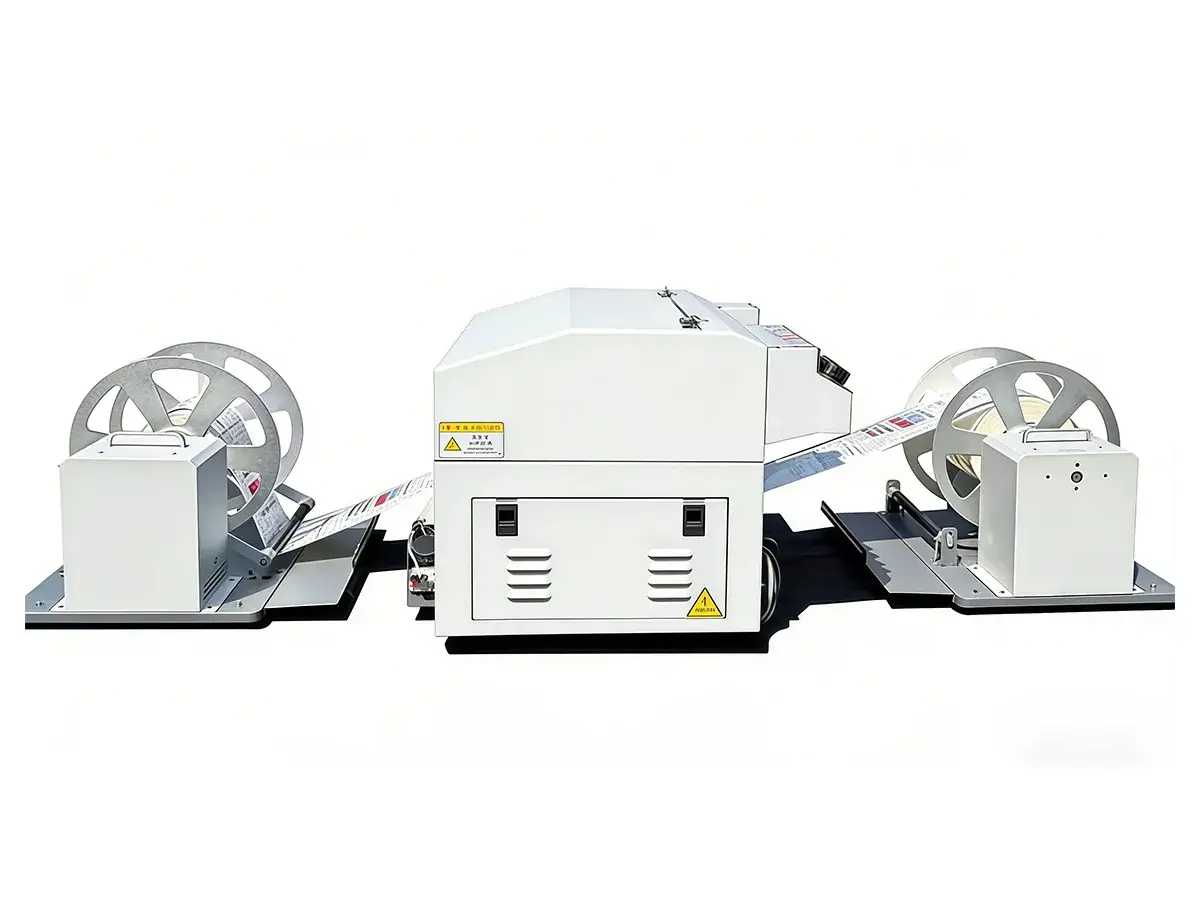

ViPrint UV300 UV Roll-to-Roll Label Printer

Custom label production requires sharp image quality, strong ink adhesion, and the flexibility to print on different label materials. The UV roll-to-roll label printer is built for small and medium production runs, helping label producers, print shops, and packaging businesses create full-color roll labels with consistent results.

With UV printing technology, ViPrint UV300 supports high-quality label output on paper, films, coated materials, synthetic substrates, and other approved media. This makes the printer suitable for businesses that need customized labels for different products, short-run orders, and changing packaging designs.

For users working with challenging substrates such as plastic films or non-standard label materials, the UV roll-to-roll label printer provides a practical way to expand in-house label printing capabilities while maintaining stable print quality and faster job turnaround.

Request a Quote
Watch Videos
Printing Media
  • Roll-Type Materials: Film, paper, canvas, and leather.
  • Plastic Media: PE, PP, PET, PVC labels or films.
  • Inkjet-Coated Materials: Inkjet-coated paper and synthetic materials, including BOPP, vinyl, and PET.
  • Surface Finishes: Glossy and matte media.
  • Non-Coated Paper: Suitable for selected non-coated paper applications.
  • Approved Media: Other ViPrint-approved label and roll materials.

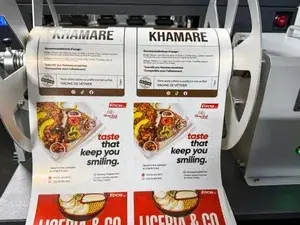

  • Applications
  • Applications
VICUT ViPrint Industrial Ink-jet UV Label Printing Machine Specifications
Item UV300
Max. Printing Area 11.8 " (300 mm × Y no limited)
Print Head Head Type 2 pcs EPSON i3200 U1 Micro Piezo print heads
Print Nozzle Amount 6400 staggered, 400 × 16 rows (400 × 8 rows per head)
Printing Method EPSON MEMS PrecisionCore Micro Piezo printing technology
Jetting Frequency 21.6–43.2 kHz
Drop Volume 3.5–12.5 pL (variable data single drop & multi-drop), 2–4 grayscale
Print Resolution (dots per inch) 720 × 1200 dpi, 720 × 1800 dpi, 720 × 2400 dpi: Uni-directional / Bi-direction
Print Speed 4 Pass: 12–17㎡/hour, 6 Pass: 10–12㎡/hour, 8 Pass: 8–10㎡/hour (depending on resolution and design)
Print Head Maintenance Auto keep-wet capping station system & clean flushing during printing and idle
Media Size Max. Load Width 11.8" (300 mm)
Max. External Diameter ≤ Ø 350 mm
Roller Inner Diameter Ø 75 mm, Ø 40 mm, Ø 25 mm
Film Feeding Automatic Release Automatic tension release roller
Film Take-up Automatic Take-up Automatic detect electronic take-up roller
Media Vacuum System Vacuum Power 200 W
Vacuum Area Full flatbed area adsorption
Vacuum Control Electronic button switch control
Media Type Roll type film, paper, canvas, leather; Plastic type media: PE, PP, PET, PVC label or film; Inkjet-coated paper and synthetics (BOPP, Vinyl, PET); Glossy, matte; Non-coated paper; Other ViCut approved media
Media Margin Alignment Encode film + encode sensor alignment
Media Process Roll-to-roll
Media Feeding Unwinder, rewinder, self-tension control
Job Format TIFF, PNG, JPEG, PDF
Ink Type UV curing ink, aqueous dye, pigment, edible ink
Color White, Black, Cyan, Magenta, Yellow (W, K, C, M, Y)

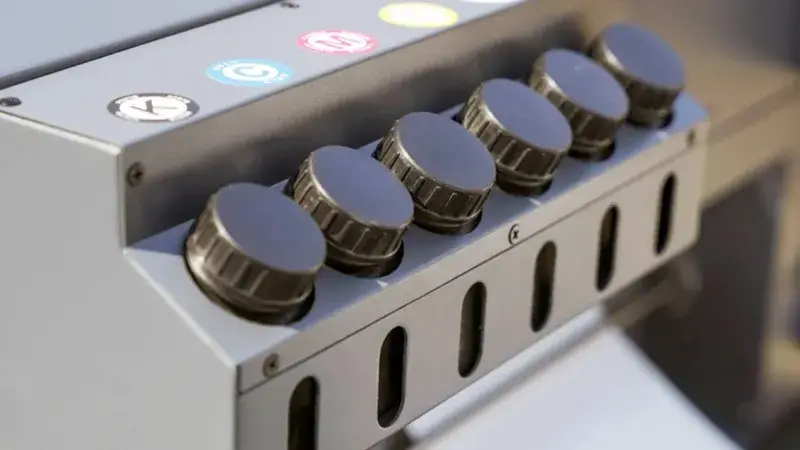

Ink Tank Capacity 220 ml per color, 500 ml for white ink tank, refillable
Ink Process Unit White Ink Stirring Automatic white ink stirring system
White Ink Circulation Automatic white ink circulation system
Ink Curing Unit Curing Technology 405 nm UV-LED lamp × 2 pcs
Media Vacuum System Vacuum Power 200 W
Vacuum Area Full flatbed area adsorption
Vacuum Control Electronic button switch control

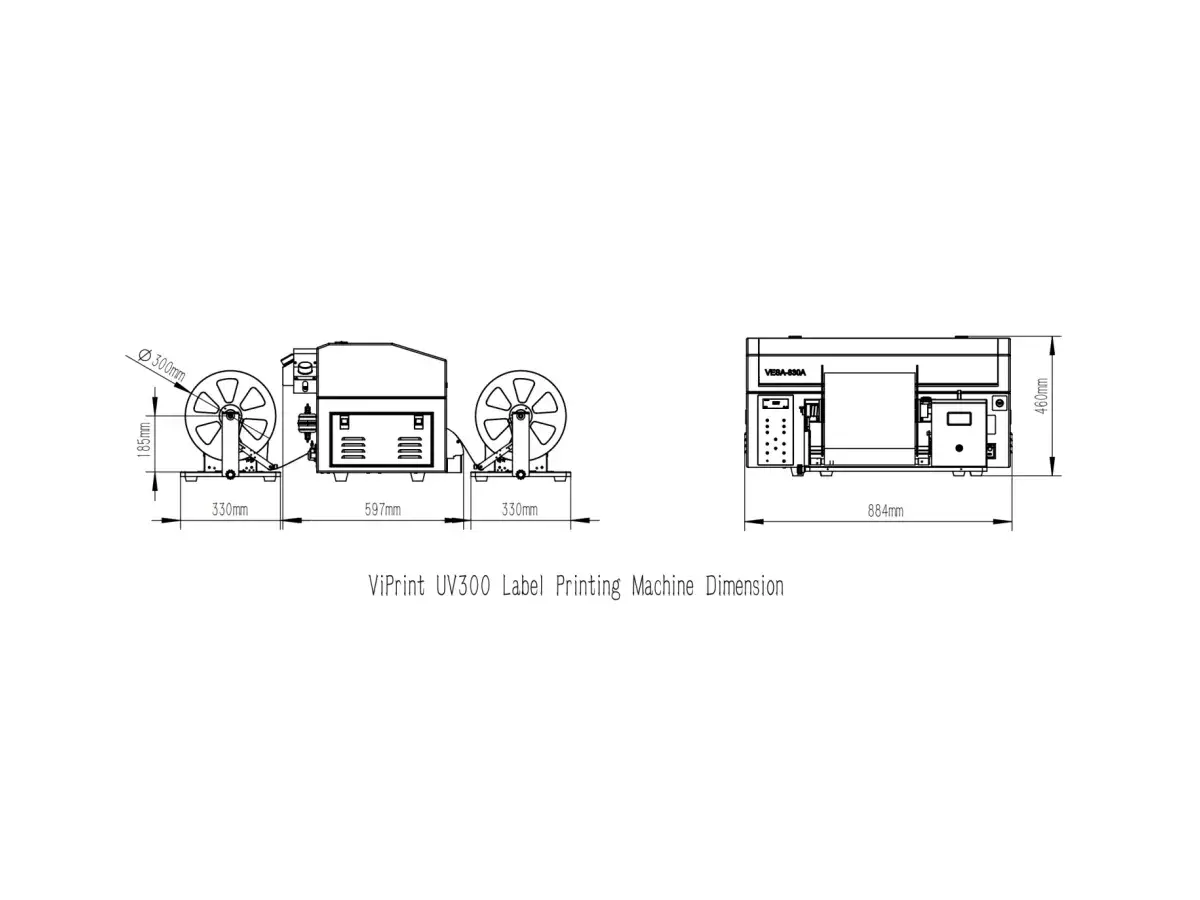

Dimensions Printer Only (W × D × H) 34.5 × 23.6 × 16.9 in. (876 × 600 × 431 mm)
Unwinder, Rewinder size (L × W × H) 13.0 × 26.1 × 14.3 in. (330 × 664 × 364 mm) each
Packing Size (L × W × H) 54.3 × 38.9 × 28.4 in. (1380 × 990 × 720 mm) combined
Weight Net Weight 251 lbs (114 kg) printer only; 112 lbs (51 kg) unwinder + rewinder
Packing Weight 407 lbs (185 kg) combined
Environment Temperature 59 to 86 °F (15 to 30 °C)
Humidity 40% to 80 %
Included Items Print cable, cleaning kit, USB flash drive with manuals and installation videos
Connectivity Ethernet cable
Working Power Printer 350 W, unwinder + rewinder 120 W
Power Requirements 12 A, single-phase 220 V, 50/60 Hz
Acoustic Noise Level ≤ 75 dB(A)
Software System Requirements
Print Control (bundled)
System CPU RAM Video Card and Monitor HDD
Windows® 7/10/11(64-bit) recommend Intel® Core™ i5, 2.5 GHz or higher 8 GB or more A resolution of 1152 × 854 with 16-bit color or higher Installation space: 1 GB or more
Working space: 100 GB

* Note: Technical specifications are subject to change without notice.

Product Details
    • LED UV Real-Time Curing Technology
      LED UV Real-Time Curing Technology

      LED UV real-time curing supports high-precision printing on different materials, including uncoated media, dark substrates, and plastic films such as PP, BOPP, PE, PET, and PVC.

    • 300 mm Maximum Printing Width
      300 mm Maximum Printing Width

      The 300 mm printing width supports different roll label sizes, giving users more flexibility for custom label production.

    • White and CMYK Printing
      White and CMYK Printing

      White ink can be printed together with CMYK, making the UV roll-to-roll label printer suitable for transparent films, dark films, and specialty label materials.

    • Automatic Lifting Cap Station

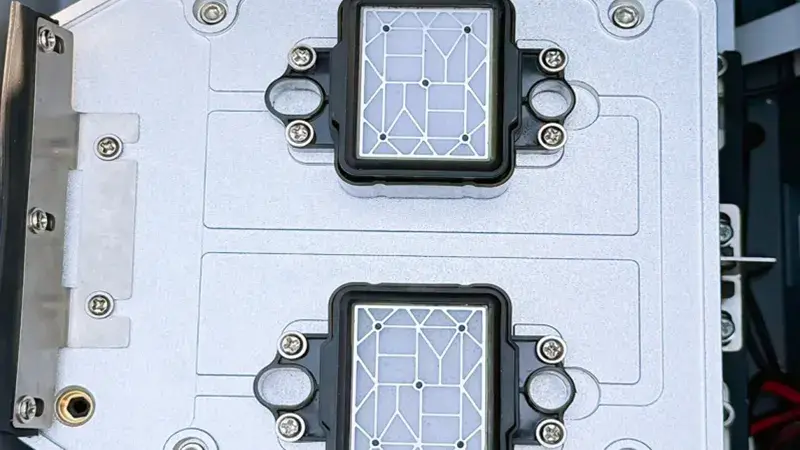

      Automatic Lifting Cap Station

      The automatic lifting cap station makes printhead cleaning and moisturizing smoother, helping protect the printheads and reduce maintenance difficulty.

    • Automatic Material Tension Adjustment
      Automatic Material Tension Adjustment

      Built-in tension control keeps roll media feeding smoothly and positioning accurately during printing.

    • Movable Paper Pinch Sheet

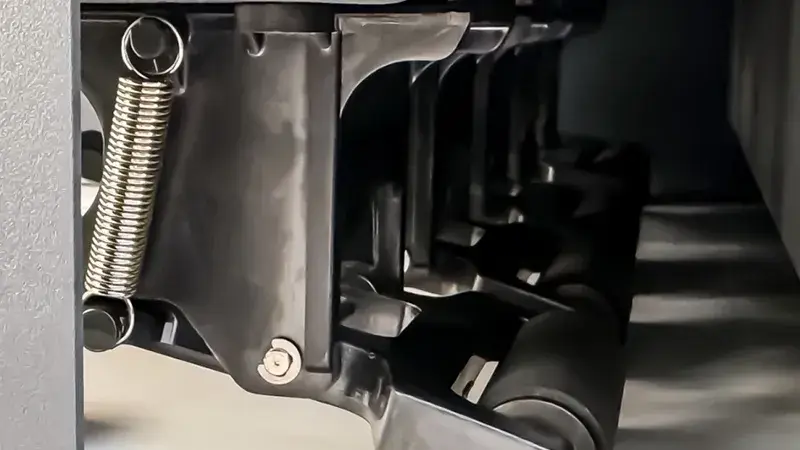

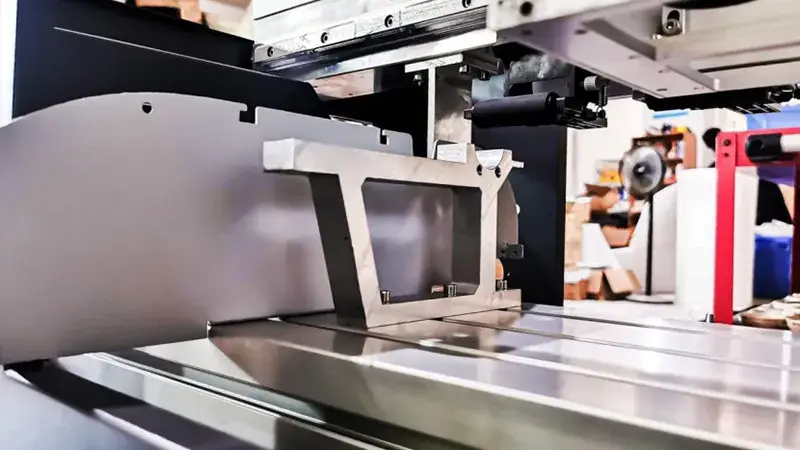

      Movable Paper Pinch Sheet

      The movable pinch sheet helps prevent media arching during printing, reducing the risk of printhead contact and protecting print quality.

    • Pre-Printing Heating Function
      Pre-Printing Heating Function

      Pre-printing heating improves ink adhesion and scratch resistance on the material, helping produce more durable labels.

    • Adjustable Vacuum Adsorption

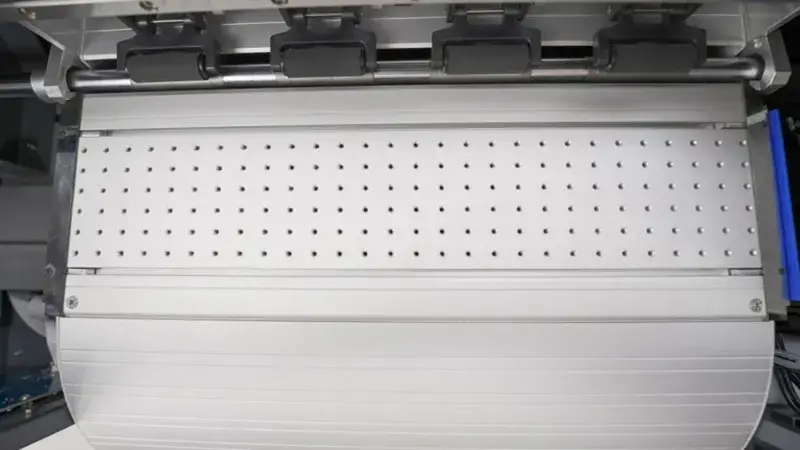

      Adjustable Vacuum Adsorption

      Adjustable vacuum adsorption helps keep printing film flat, reducing bending and preventing the media from scraping the printheads.

    • Pressure-Cast Aluminum Frame
      Pressure-Cast Aluminum Frame

      The high-quality pressure-cast aluminum frame supports stable high-speed printing and long-term machine reliability.

    • Dual EPSON i3200 Industrial Printheads
      Dual EPSON i3200 Industrial Printheads

      Two EPSON i3200 industrial printheads with 9600 nozzles support high-speed grayscale printing with 3.8 pl ink droplets at 43.2 kHz.

    • WIPCS White Ink Stirring System
      WIPCS White Ink Stirring System

      The self-developed WIPCS white ink stirring system helps prevent white ink precipitation and reduces the risk of nozzle clogging.

    • Dual UV LED Curing Lamps

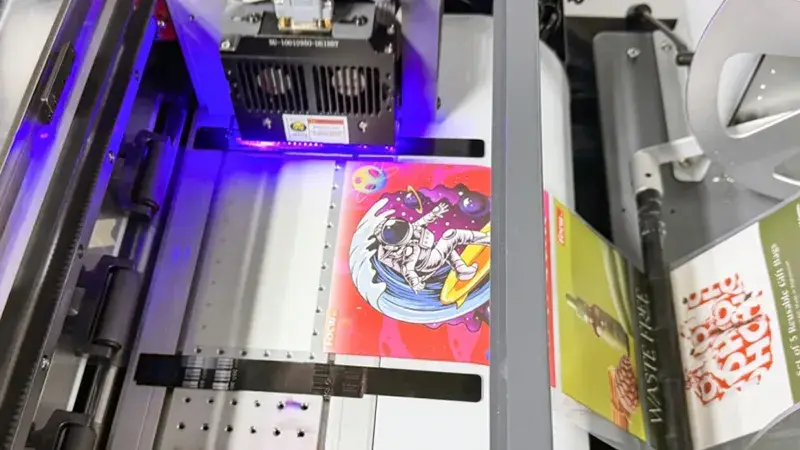

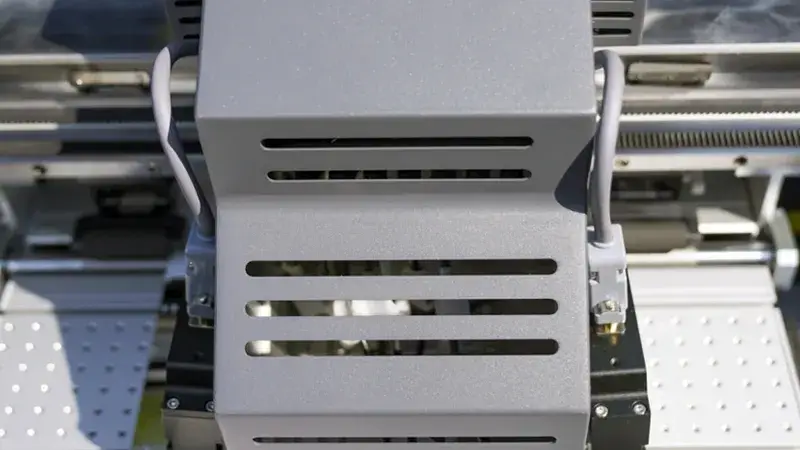

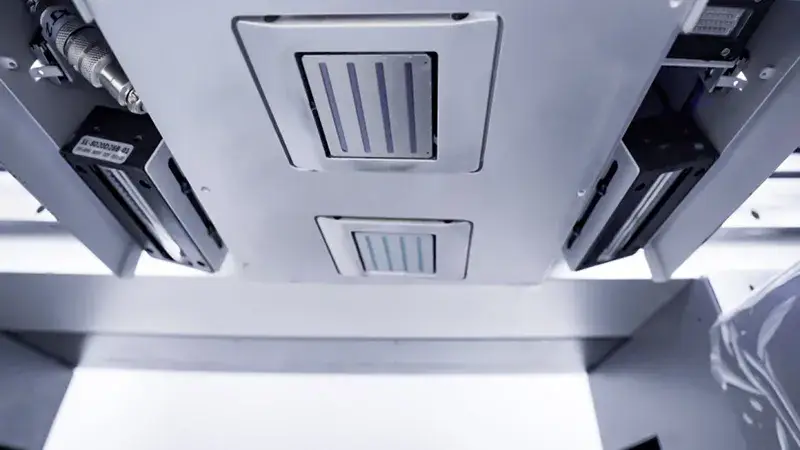

      Dual UV LED Curing Lamps

      Dual UV LED curing lamps cure ink efficiently after printing, supporting faster drying and stable label output.

    • White Ink Circulation Pump

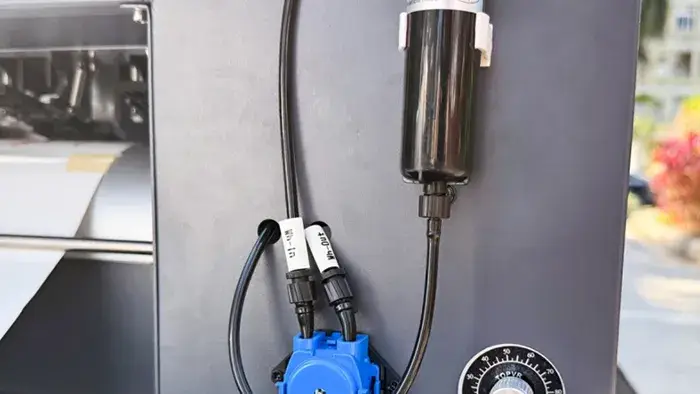

      White Ink Circulation Pump

      The gear-motor peristaltic pump supports white ink circulation and helps extend service life for stable white ink performance.

    • Industry 4.0 Circuit Protection Design

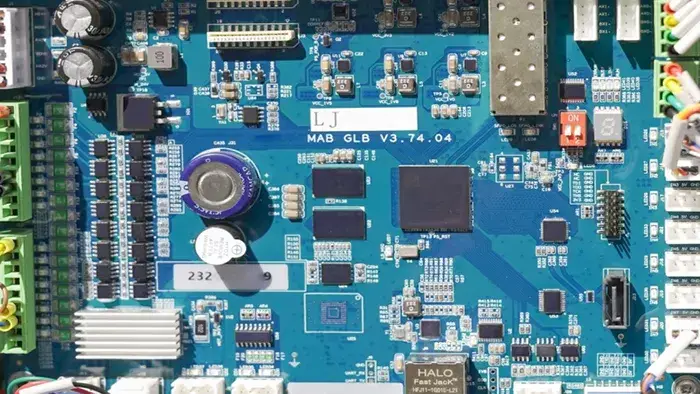

      Industry 4.0 Circuit Protection Design

      The multifunctional printing board uses a three-level circuit protection design to support printing speed, print quality, and operational stability.

    • LED Control Panel

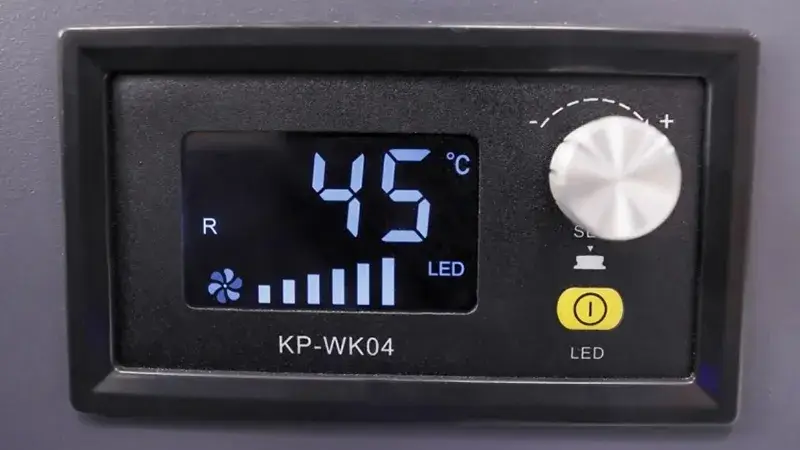

      LED Control Panel

      The LED control panel allows operators to manage pre-heating, post-heating, and table adsorption more conveniently.

    • Self-Tension Control Baffle Plate

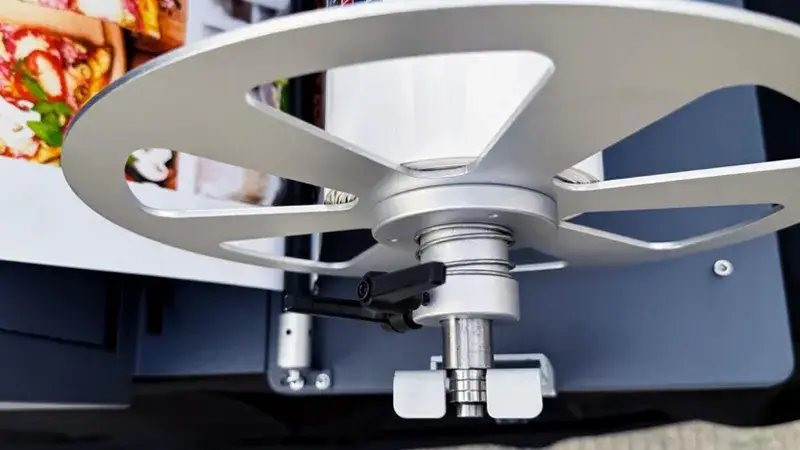

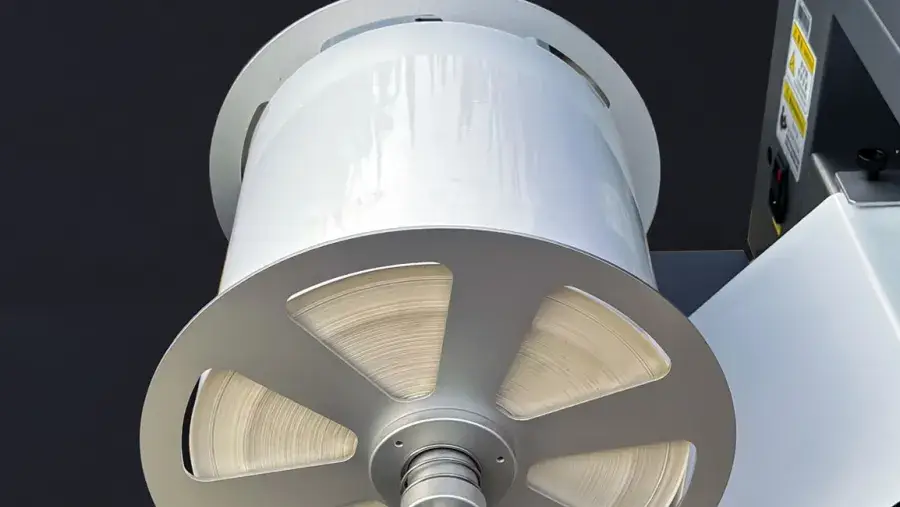

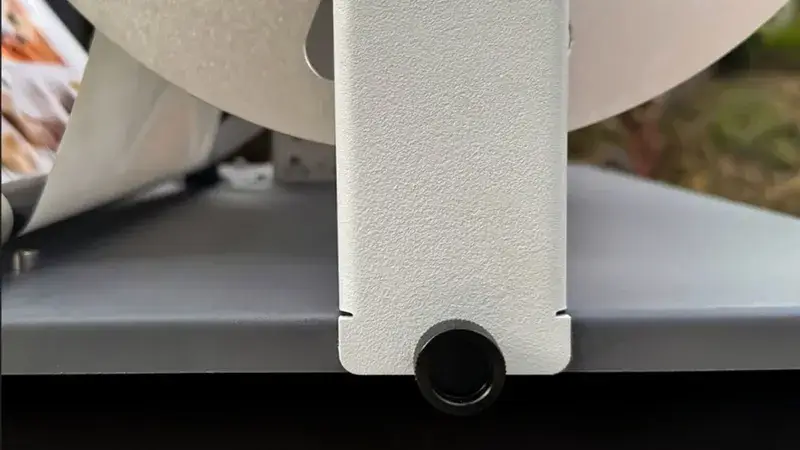

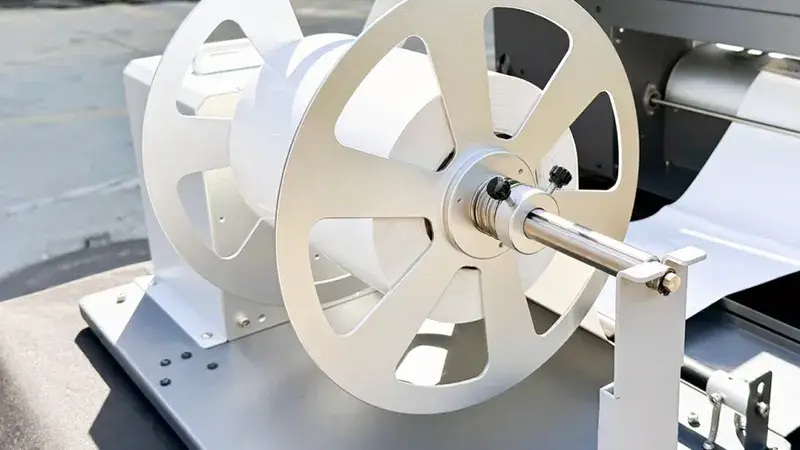

      Self-Tension Control Baffle Plate

      The self-tension control baffle plate supports media rolls up to 350 mm in diameter, helping users handle larger roll materials.

    • Self-Tension Control Rewinder

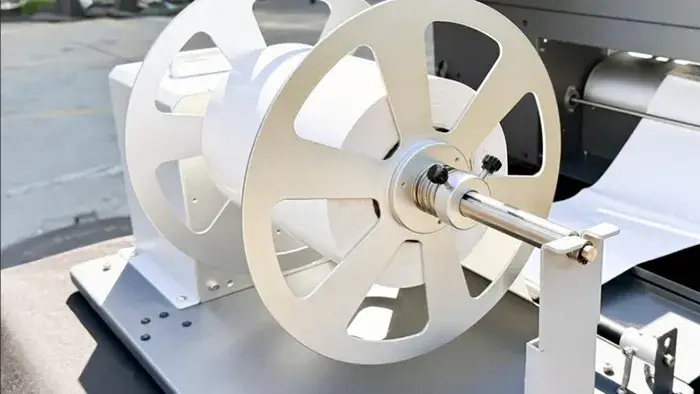

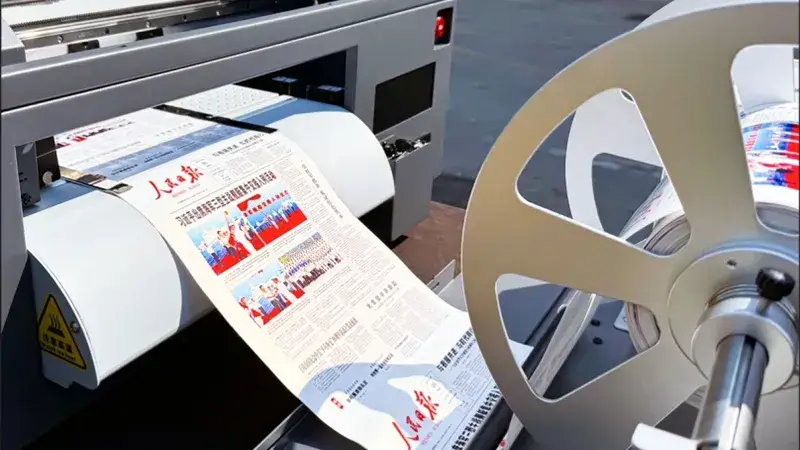

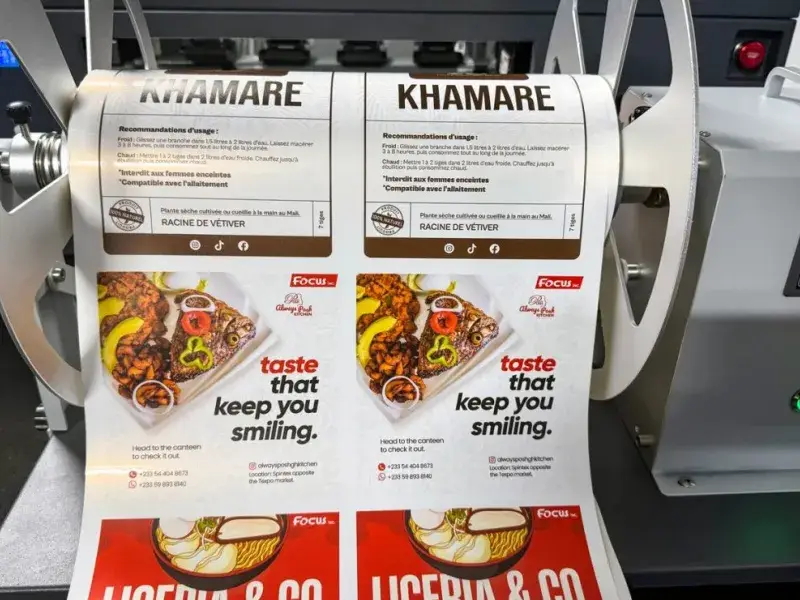

      Self-Tension Control Rewinder

      The self-tension rewinder keeps printed media winding smoothly after printing, supporting cleaner roll collection.

    • Multi-Pinch Feed Roller

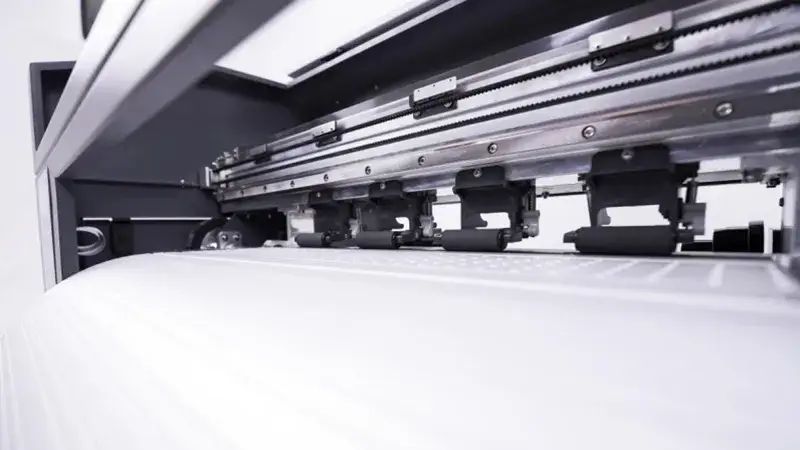

      Multi-Pinch Feed Roller

      Multiple pinch feed rollers keep paper feeding stable and faster, helping maintain accurate step printing.

    • Fast-Exchange Roll Paper Kit
      Fast-Exchange Roll Paper Kit

      The fast-exchange roll paper kit makes material loading and replacement quicker for daily production.

    • Multiple Roll Core Compatibility
      Multiple Roll Core Compatibility

      The printer supports 75 mm, 40 mm, and 25 mm roll core diameters, giving users more flexibility with different media rolls.

    • Multifunction Printing Control Panel

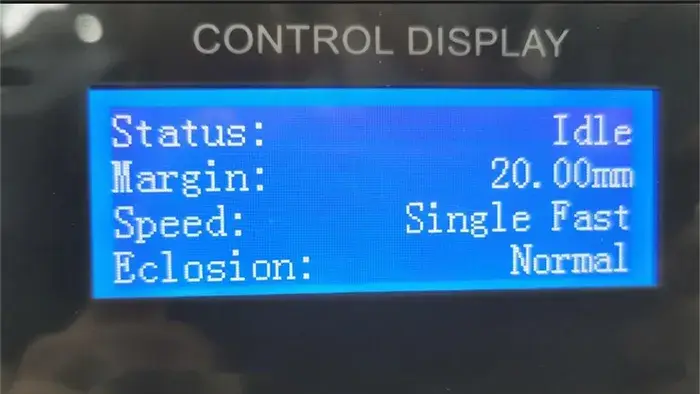

      Multifunction Printing Control Panel

      The control panel displays the printing process in real time, making operation faster and easier to monitor.

    • Quick Material Change and Loading Design
      Quick Material Change and Loading Design

      The quick loading structure makes material changeover more convenient, helping reduce downtime between jobs.

    • Anti-Static Rubber Pinch Roller

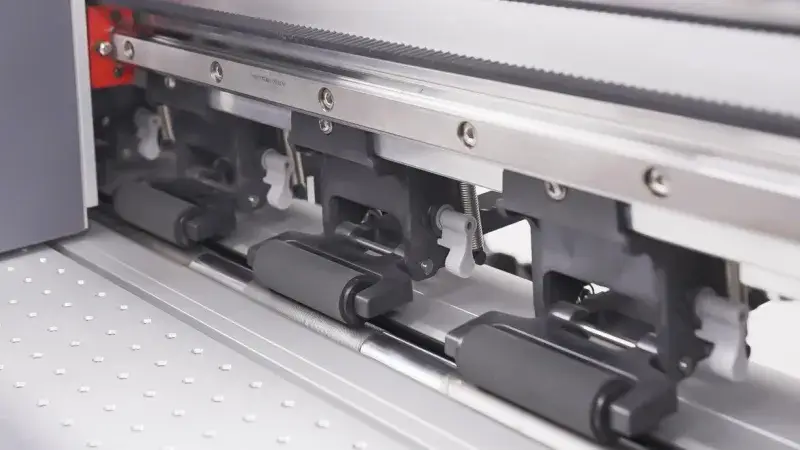

      Anti-Static Rubber Pinch Roller

      The anti-static rubber pinch roller helps prevent waste ink buildup, keeps film cleaner, and improves step printing accurac.
