ViPrint-A3 A3 UV Printer
Personalized product printing becomes easier when users can print directly on different materials without plate making. The A3 UV printer is designed for small-batch customization, helping print shops, gift producers, signage makers, and creative studios produce full-color graphics on acrylic, glass, metal, wood, leather, plastic, and other flat or compatible surfaces.
With instant UV curing, the printer allows users to create high-precision prints, raised 3D effects, and decorative finishes for phone cases, signs, promotional gifts, packaging items, and personalized products. Its compact desktop design makes the printer suitable for offices, workshops, retail customization spaces, and small production environments.
-

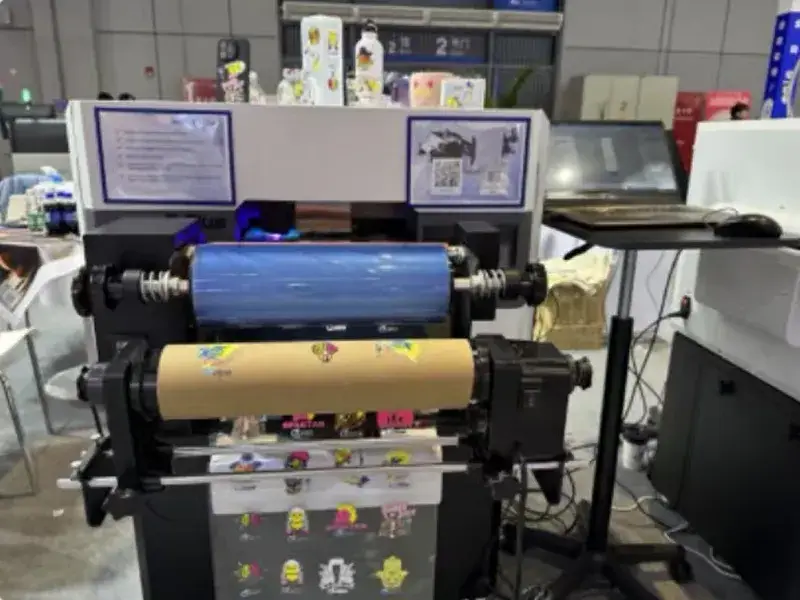

UV DTF Label Printing with LaminatorThe A3 UV printer can print on Film A and then work with Film B lamination to create transferable UV DTF labels. After peeling off the surface film, the printed design can be applied to products such as power banks, bottles, packaging, and other customized items.
-

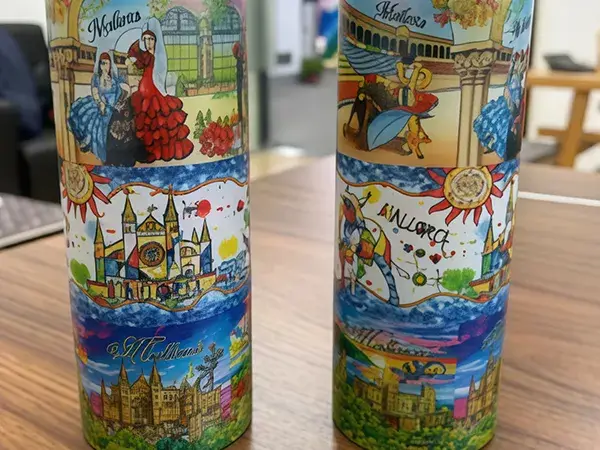

Bottle and Cylinder PrintingThe printer supports cylindrical product printing with an applicable diameter of 25–80 mm and length of 20–210 mm, making it suitable for bottles, cups, tubes, and other round objects.
-
Photo Paper PrintingThe A3 UV printer can print on photo paper for personalized images, decorative prints, and small-batch creative products.
-
UV DTF Crystal Film PrintingWith an additional device, the printer can print directly on crystal film for UV DTF label applications.
-

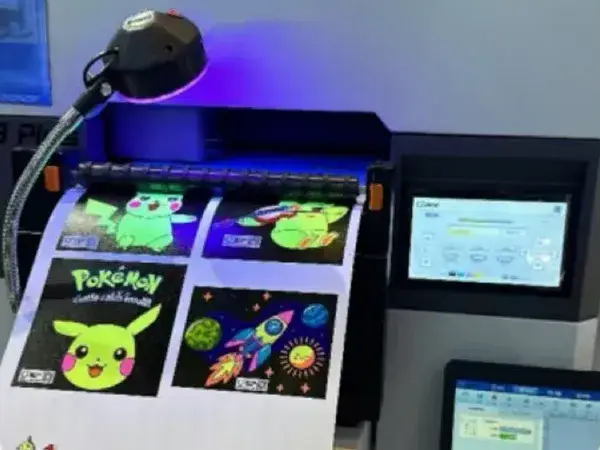

Optional Fluorescent Color PrintingFluorescent color printing is available as an optional solution for brighter and more eye-catching visual effects.
-

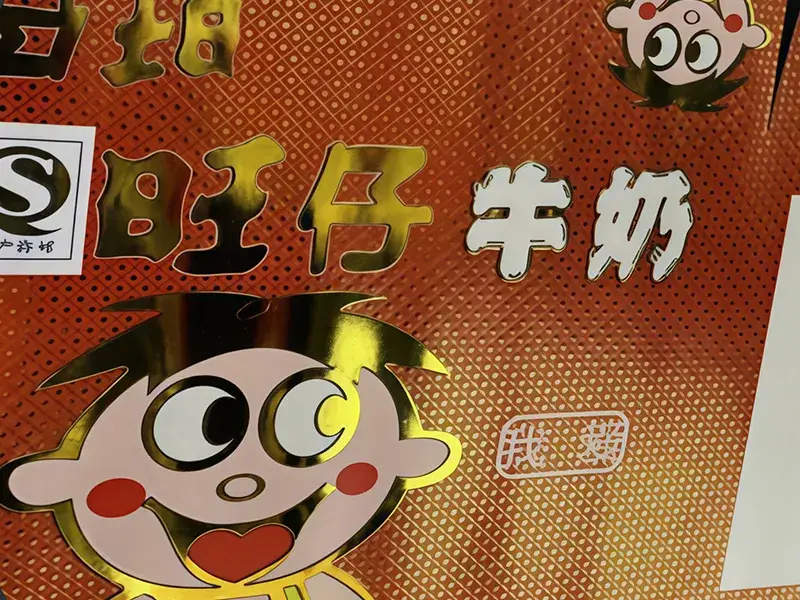

Optional Gold Color SolutionThe optional gold color solution supports premium decorative printing effects for customized products, gifts, labels, and creative applications.
-

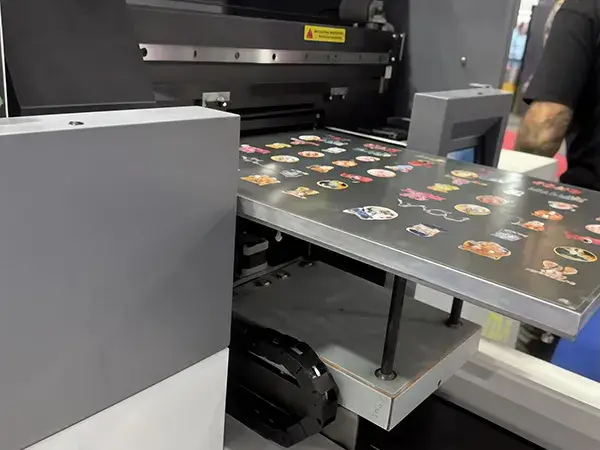

Flat Material PrintingThe printer supports direct printing on flat materials for digital products, handicrafts, personalized gifts, and stationery items. Common applications include watches, iPad covers, earphone cases, earrings, bookmarks, Rubik’s cubes, bowling balls, refrigerator magnets, brooches, buttons, keychains, pendants, small badges, small metal signs, bottle openers, lithographs, art albums, mobile phone cases, puzzles, car accessories, stationery gift sets, gift lights, ballpoint pens, glasses cases, notebooks, pencil cases, rulers, erasers, mouse pads, staplers, pencils, and label paper.
| Printer Type | Digital inkjet printer |
| HS Code | 84433221 |
| Print Head | Epson i3200 U1HD, 3.5pL, 8 channels (typically for UV use) |
| Print Head Quantity | 1 unit |
| Max. Supported Colors | 8 colors (print head has 8 nozzle lines) |
| Printing Speed | 0.28–3 ㎡/hour |
| Max. Print Resolution | 960 × 900 dpi, 960 × 1200 dpi |
| Max. Print Area | 297 × 420 mm |
| Print Format | White + Color + Varnish simultaneous printing |
| Ink consumption | ≤ 15 ml/m² |
| A3 Ink Consumption | A3 size (297 × 420 mm, ~ 0.125 m²) consumes approx. 1.87 ml ink |
| A4 Ink Consumption | A4 size (297 × 210 mm, ~ 0.062 m²) consumes approx. 0.93 ml ink |
| Color Format | CMYK+W+V CMYK LC LM+W CMYK LC LM CMYK |
| Print Thickness | 0–95 mm |
| Ink Type | UV ink |
| Ink Bottle | 250 ml per bottle |
| Ink Storage Environment | Keep away from direct sunlight; Temperature: 20–28 °C; Humidity: 35%–65% |
| Interface | Ethernet cable |
| Graphic Format | TIFF, JPEG, EPS, PDF, PNG |
| Power Supply | 110/220 VAC, 50/60 Hz |
| Printer Dimensions | 1.0 × 1.0 × 0.65 m (L × W × H); Net weight: 98 kg |
| Packing Dimensions | 1.18 × 1.03 × 0.8 m (L × W × H); Gross weight: 125 kg |
- High-Resolution UV Printing
Printing resolution up to 1200 dpi supports sharp image output and detailed graphics for customized products.
- Up to 8-Color Printing
High-fidelity color output supports richer visual effects and more flexible design options.

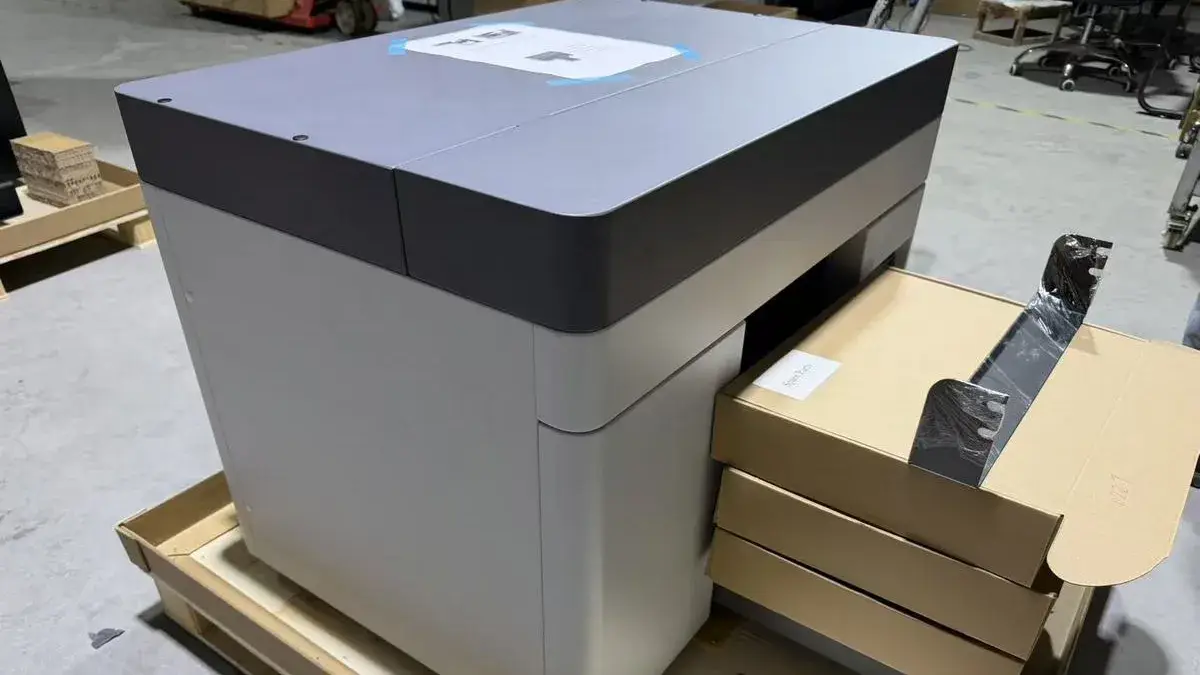

- Compact Desktop Design
The small footprint makes the A3 UV printer easy to place in offices, studios, shops, and limited production spaces.
- Flatbed and Roll Printing Support
The multifunctional design supports both flatbed printing for rigid materials and roll printing for compatible flexible media.
- White, Color, and Varnish Printing in One Pass
White ink, color ink, and varnish can be printed in the same process, helping users create finished effects more efficiently.
- Fast Setup
Simple installation allows the printer to be set up and ready for use in as little as 10 minutes, helping users start production quickly.
-

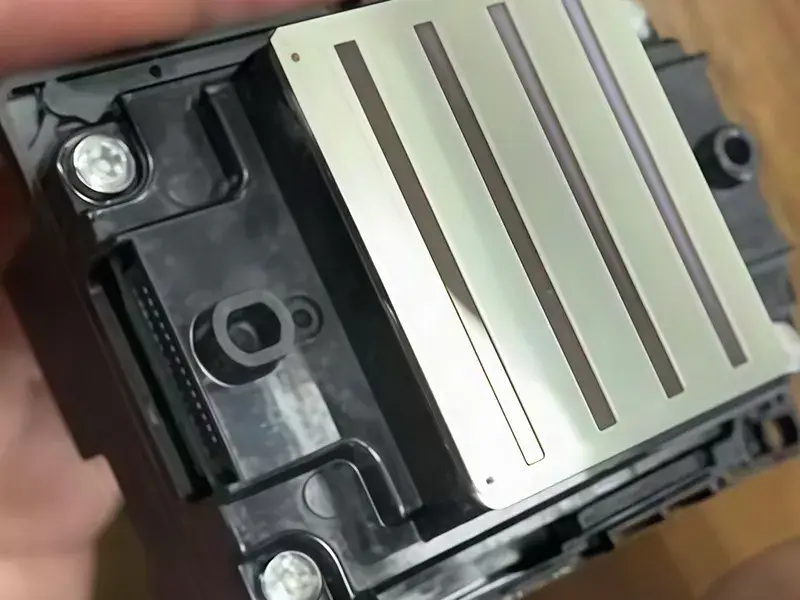

EPSON i3200 U1HD PrintheadThe EPSON i3200 U1HD printhead supports high-quality UV printing, helping users produce sharp images, fine details, and stable color output for customized products.
-
Lifting Suction PlatformThe high-precision honeycomb hard aluminum platform keeps the material stable during printing. With flatness controlled within 0.1 mm and a flatbed size of 320 × 470 mm, it supports accurate printing on different flat materials.
-

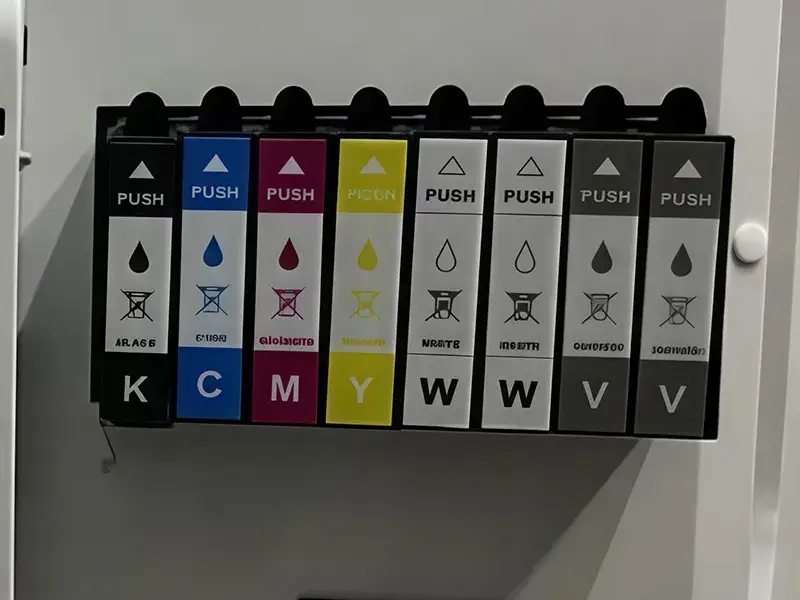

Intelligent Ink Supply SystemThe intelligent ink supply system includes automatic ink circulation and an ink shortage alarm, helping maintain smoother ink flow and reducing the risk of printing interruption.
-

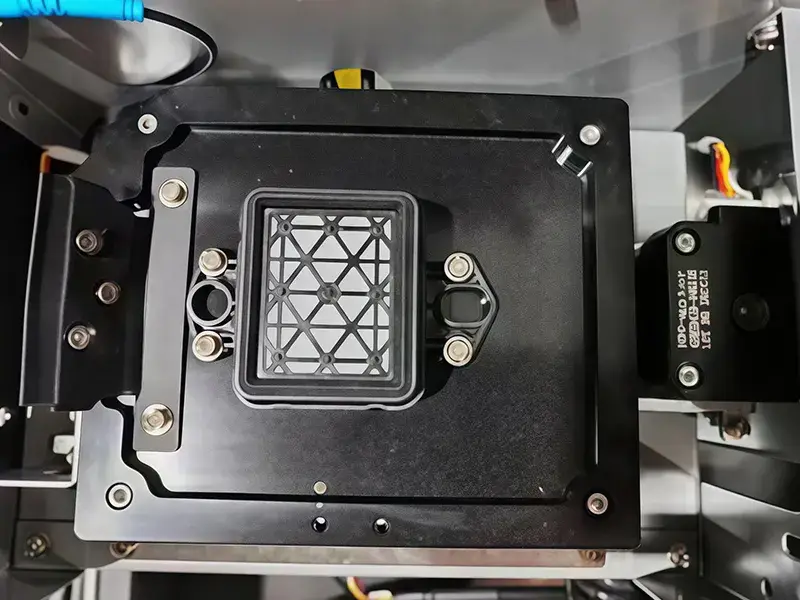

Lifting Ink Station DesignThe motor-driven lifting ink station controls the carriage position more precisely and provides better printhead protection during cleaning, standby, and daily operation.
