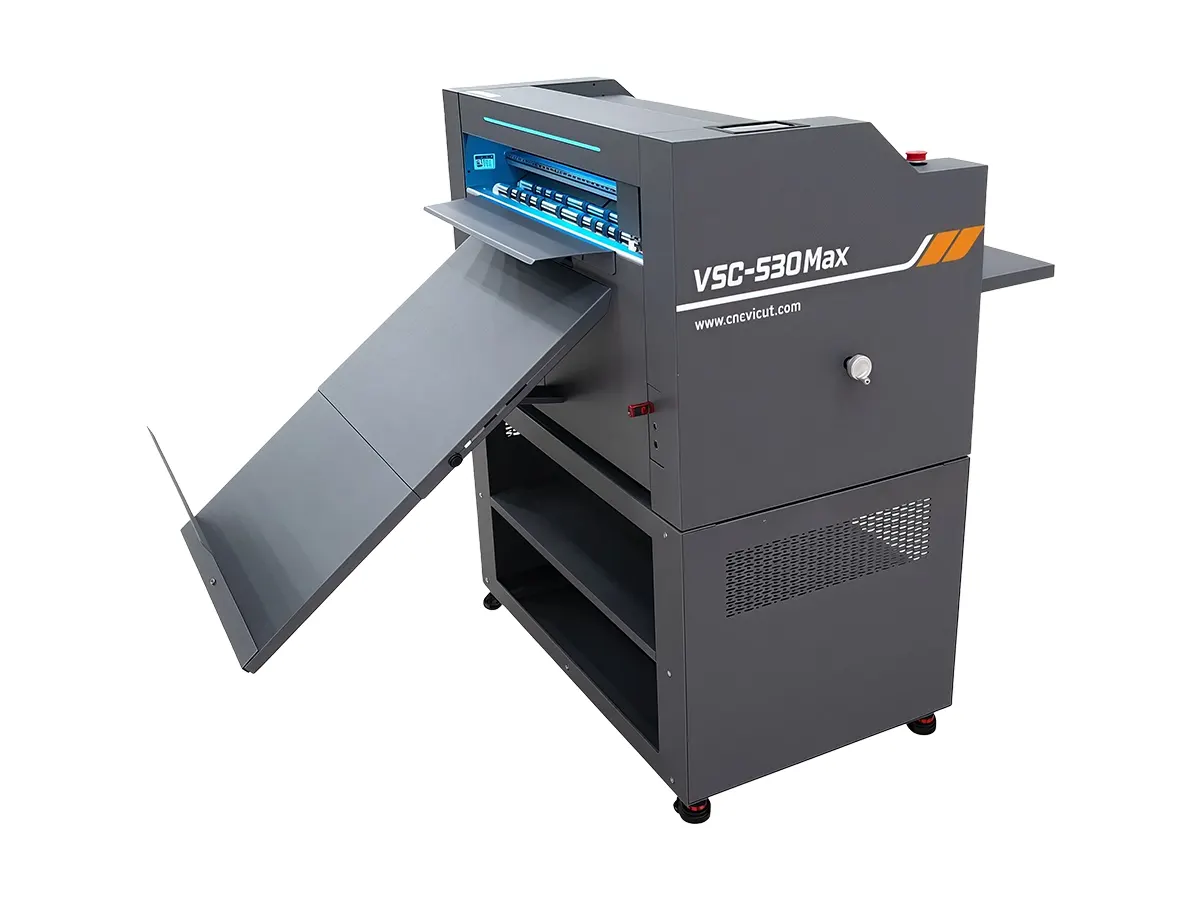

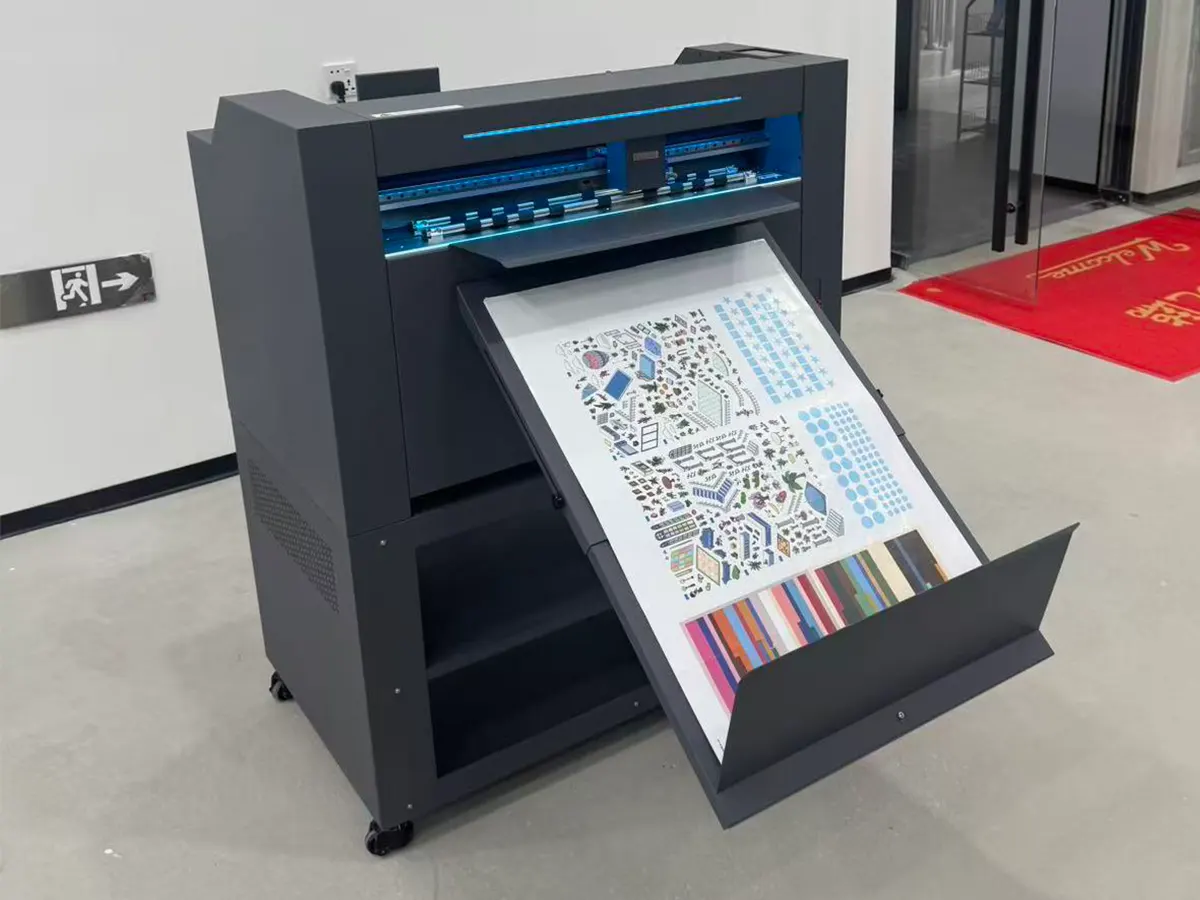

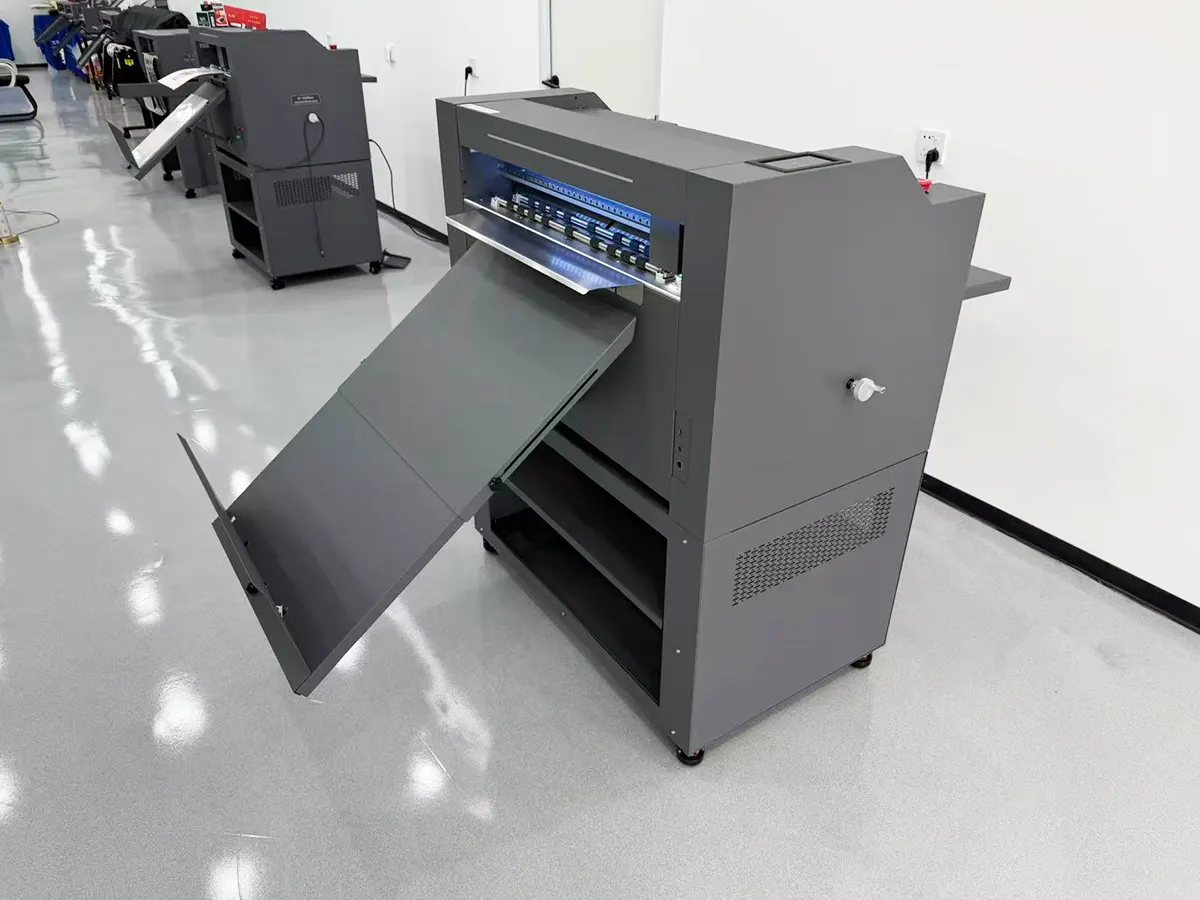

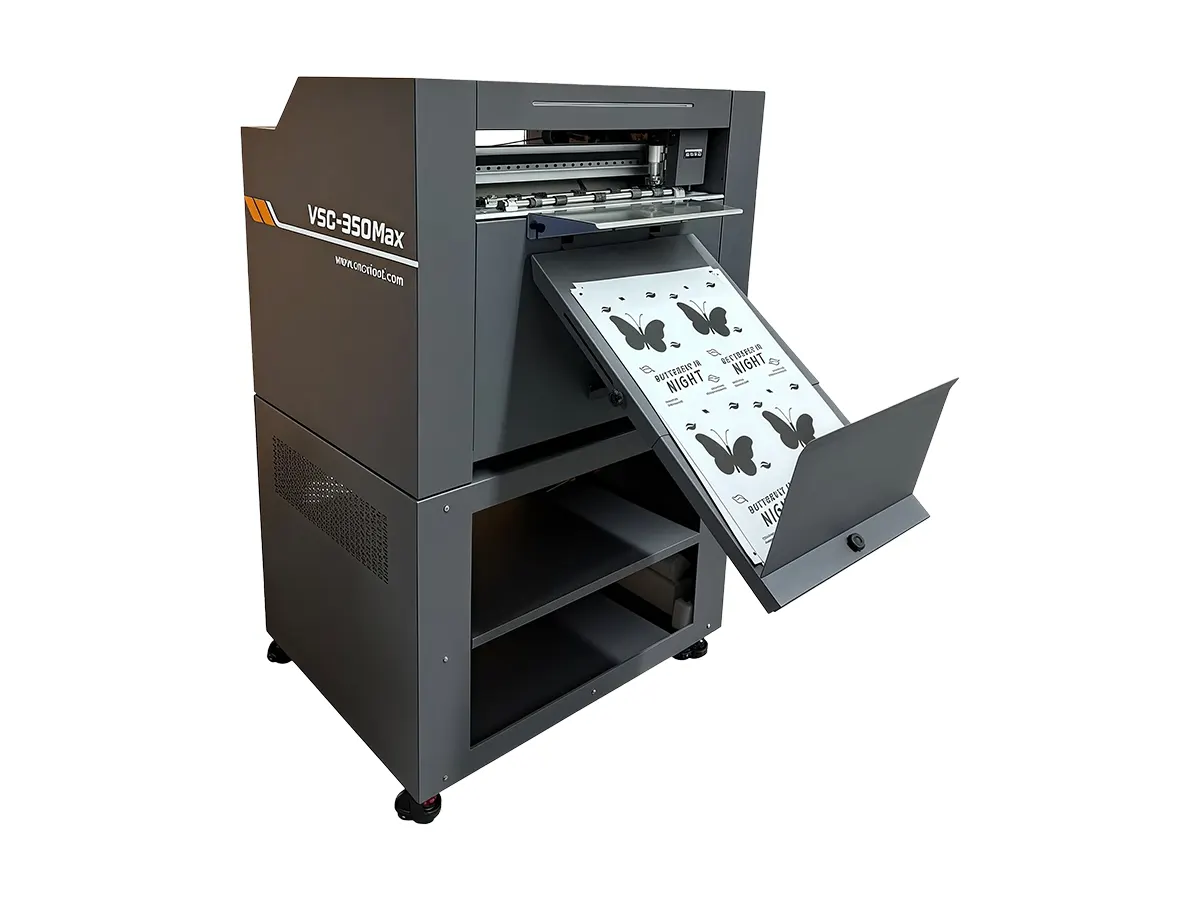

VSC-350MAX & VSC-530MAX Automatic Digital Die-Cutting and Creasing Machine
VICUT VSC Max series digital sheet die cutter creaser boasts integrated automatic sheet feeding, quick job changeover and high-speed cutting. Fitted with dual tools, it supports full cut, kiss cut, creasing, perforation and plotting. Its air suction feeding fits adhesive labels, paper cards, films and other materials.
Ideal for automated production of labels and small boxes, this digital die cutting and creasing machine is suitable for print shops, label producers and office use. Free from die-cutting molds and length setup, it perfectly handles small-batch, customized and urgent orders, reducing costs and boosting production flexibility.
Applications
- Material: Label media, photo paper, T-shirt transfer paper, stickers, glossy paper, paper cards, etc.
- Usage: It integrates the functions of kiss cutting, die cutting and creasing. It is widely used for proofing and small batch production of labels, tags, packaging boxes, processing of advertising signs and paper art, etc.
Technical Parameters
| Model | ||
| Supported sheet size | Width: 185 to 350mm Length: 150 to 600mm | Width: 185 to 530mm Length: 150 to 740mm |
| Supported regular sheet | A4, A3, SRA3, A3+ | A4, A3, SRA3, A3+, B4, B3, B2. |
| Sheet feeding method | Suction feeding method, with a larger capacity paper tray, effectively preventing the feeding of double sheets, and featuring anti-static material design | |
| Media hold-down method | Double row platen | |
| Paper stacking height | 120mm stacker height (Up to 1,200 sheets based on 80gsm media) or max. 40kg | |
| Positioning method | High resolution CCD camera | |
| Registration mark type | L mark, dot mark, QR code | |
| Job recognition | QR code job retrieval for mixed jobs to be processed at one stack | |
| Repeat cutting | One-click repeat cutting | |
| Sheet feeding time | 2 seconds (SRA3 sheet) | |
| Mark detecting time | 4 seconds (SRA3 sheet) | |
| Max. cutting speed | 1800mm/s | |
| Max. cutting force | 1000gf | |
| Data transfer | USB2.0 (full Speed) / U disk (offline) / network cable/ Wifi | |
| System Memory | 256MB | |
| Command language | HP-GL | |
| Number of tool holder | Two tool holders at one carriage | |
| Tool type | Kiss cut blade, die cut blade, tangential creasing wheel, perforation tool, plotting pen | |
| Control panel | 5.1 inch LCD touch screen | |
| Voltage | 100 to 240 V AC, 50/60 Hz (automatic switching) | |
| Machine power | 200W | |
| Operating temperature | 10–35°C (50–95°F) | |
| Software | ADICUT software; Independent plugin for CorelDRAW®/ Illustrator® /Adobe Photoshop® /AutoCAD® | |
| Software functions | Automatic nesting, hot folder, carton box templates, automatic batch files generation, etc. | |
| Support Computer OS | Windows and Mac | |
| Machine Dimensions | 1240×818×1208mm | 1638×1021×1208mm |
| Package size | 1140×770×800mm | 1220×770×800mm |
| Gross / Net weight | 150kg / 130kg | 180kg / 150kg |
Features
- Top suction feeding system: Equipped with a fully automatic, constant paper feeding system, it ensures continuous multi-sheet cutting without paper jams, truly enabling "unattended" operation.
- Processing material up to 500gsm: Digitally cut-through any shape on up to 500gsm media, or kiss-cut sheet labels, all at up to 1800mm/sec. it significantly boosts work efficiency and shortens production cycles.
- Paper stacking height 12cm: The automatic feeder can hold up to 1,200 sheets of 80gsm or 480 sheets of 250gsm vinyl stickers. The VSC350Max model digital die cutter supports maximum sheet size of 350×600mm, while VSC530Max supports sheet sizes up to 530×740mm and accepts custom sizes. Equipped with self-centering function and air blade paper separation, as well as extendable paper tray.
- High end components ensures machine stability: The VSC350/530Max digital sheet cutter adopts a heavy-duty mechanical structure and reliable components (including AC servo brushless motor, featuring a service life of 10 to 20 years, Taiwan PMI/Taiwan Hiwin guide rails, Taiwan MEAN WELL power supply, a full-aluminum voice-coil motor moving carriage, and a 5.1-inch color touch screen), ensuring a long service life and consistent, stable operation.
- Independent plug-ins: The VSC350/530Max digital cutter features complimentary plug-ins compatible with CorelDRAW, Adobe Illustrator and Photoshop to expand users’ operational options.
-
Powerful ADICUT Software:
- Built-in graphic design module eliminates reliance on third-party professional design software.
- Automatically generates registration marks in batches for printing and cutting files.
- Preloaded with over 100 carton templates for direct use; no additional packaging design software required.
- Hot folder function streamlines workflow collaboration between designers and machine operators.
- The auto-nesting feature calculates the most material-efficient layout based on your paper dimensions and label profiles, cutting both material and labor costs. One-click operation delivers optimized economical nesting instantly.
- Multiple Data Transfer Modes: The VSC350/530Max digital cutting machine supports cutting file transfer via USB flash drive, USB cable, Wi-Fi and network cable. Users can select the most suitable working mode based on their specific needs.
- Free Firmware Upgrade: Our factory continuously develops and optimizes the machine’s functions, providing regular free firmware updates for all sold units to enhance performance and add new features.
Machines Details

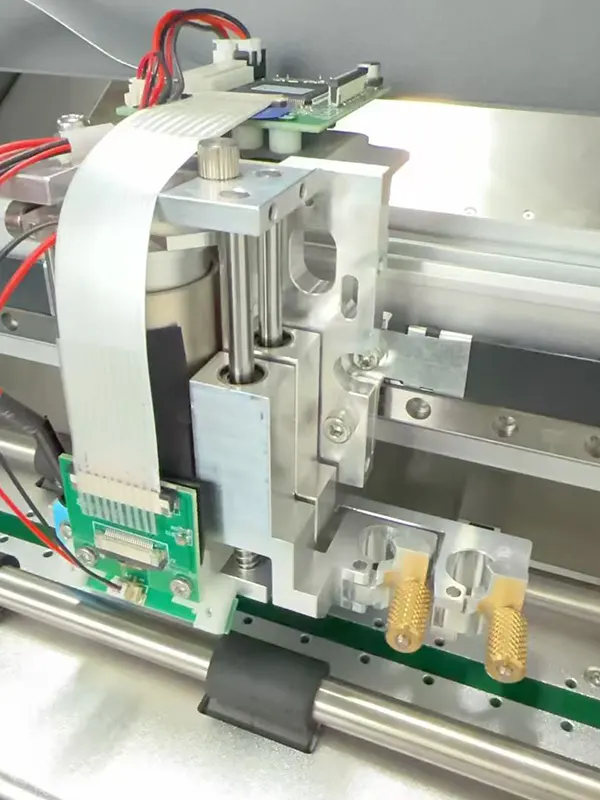

Aluminum Cutting Carriage

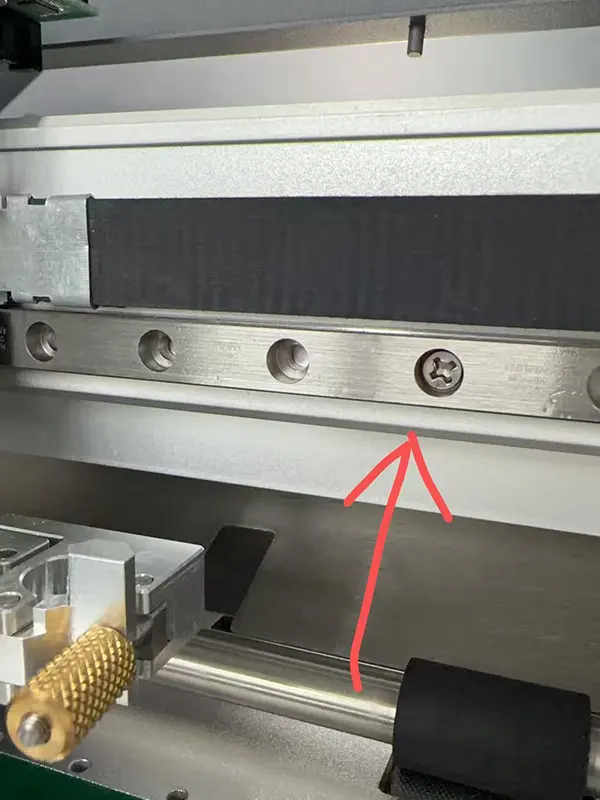

Taiwan PMI/Taiwan Hiwin Guiding Rails

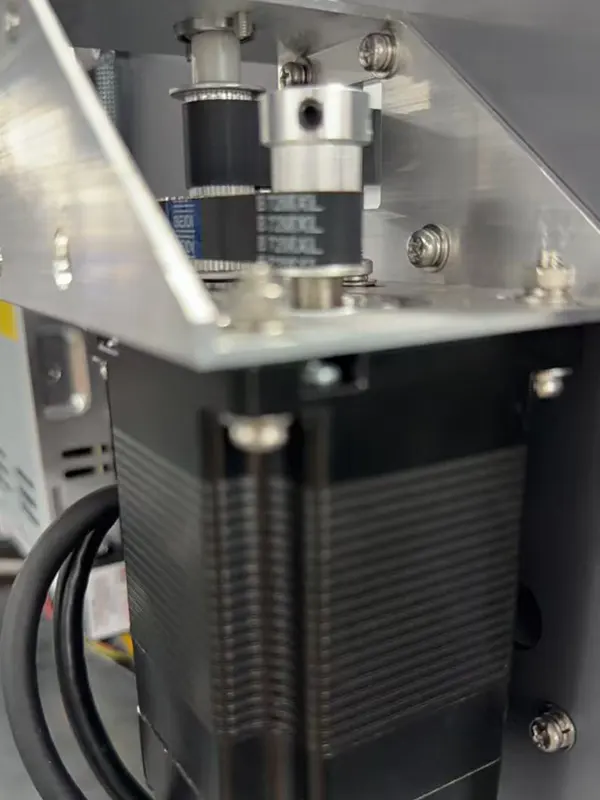

Brushless Servo Motor

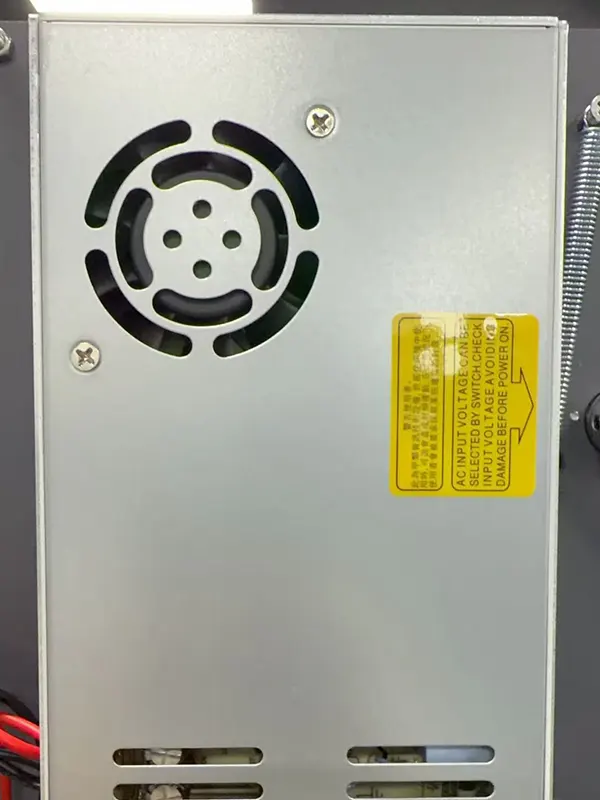

Taiwan MW Power Supply

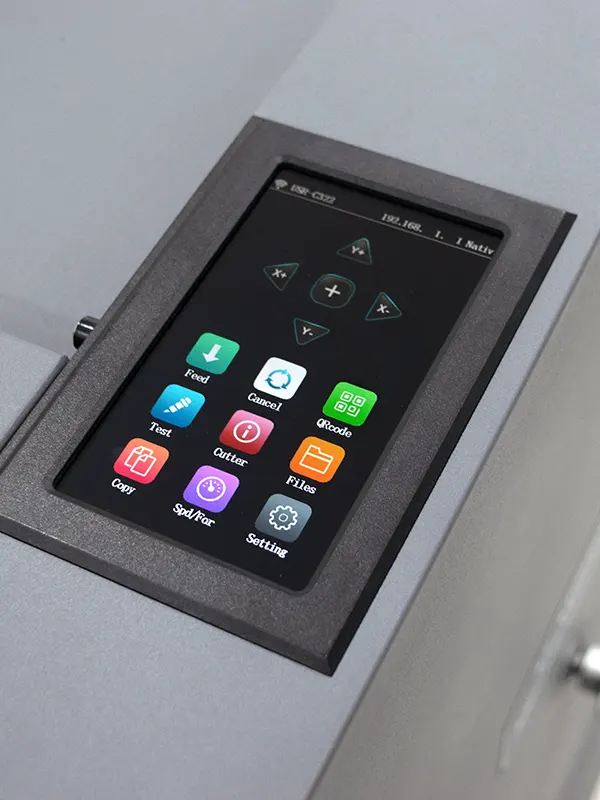

Touch Screen

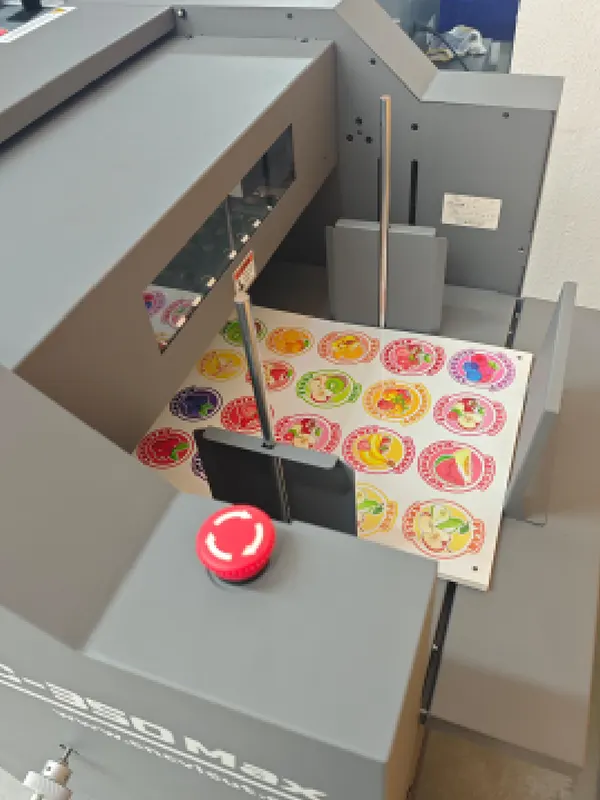

Paper Feeding System

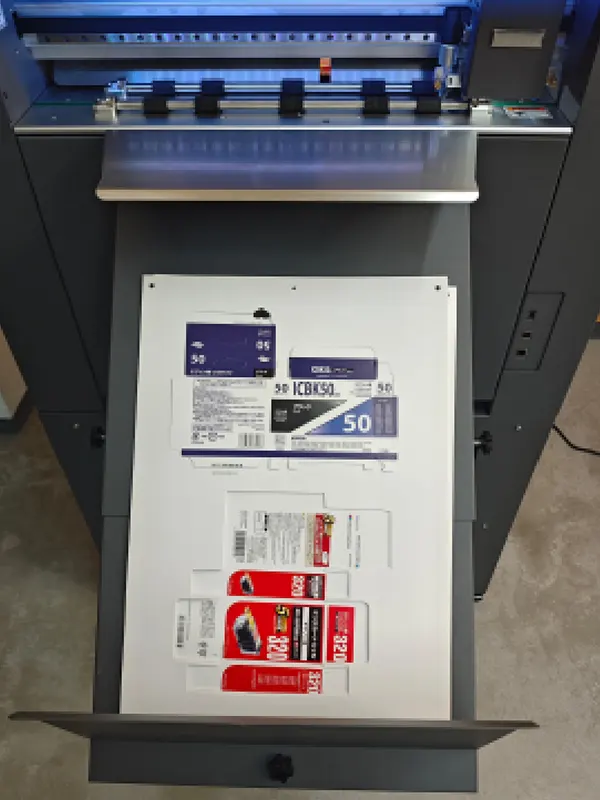

Paper Collecting Tray

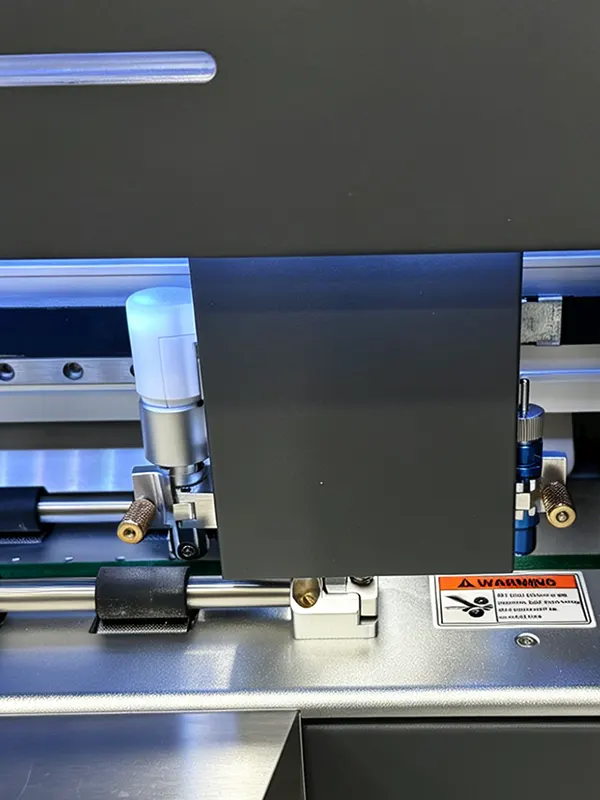

Dual Tool Head
