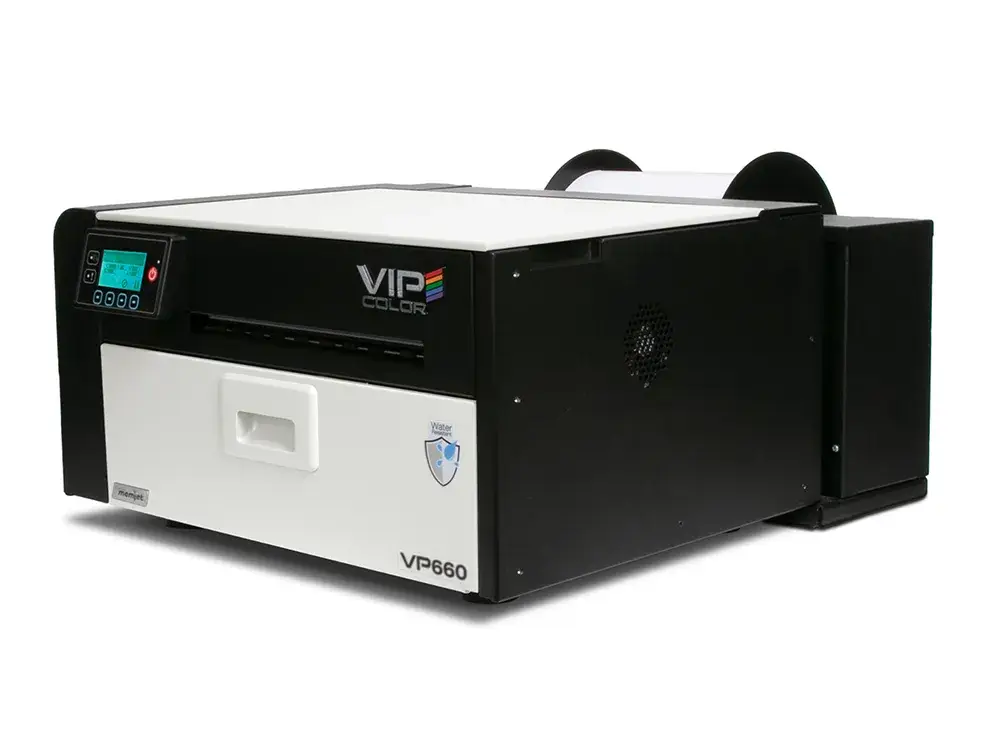

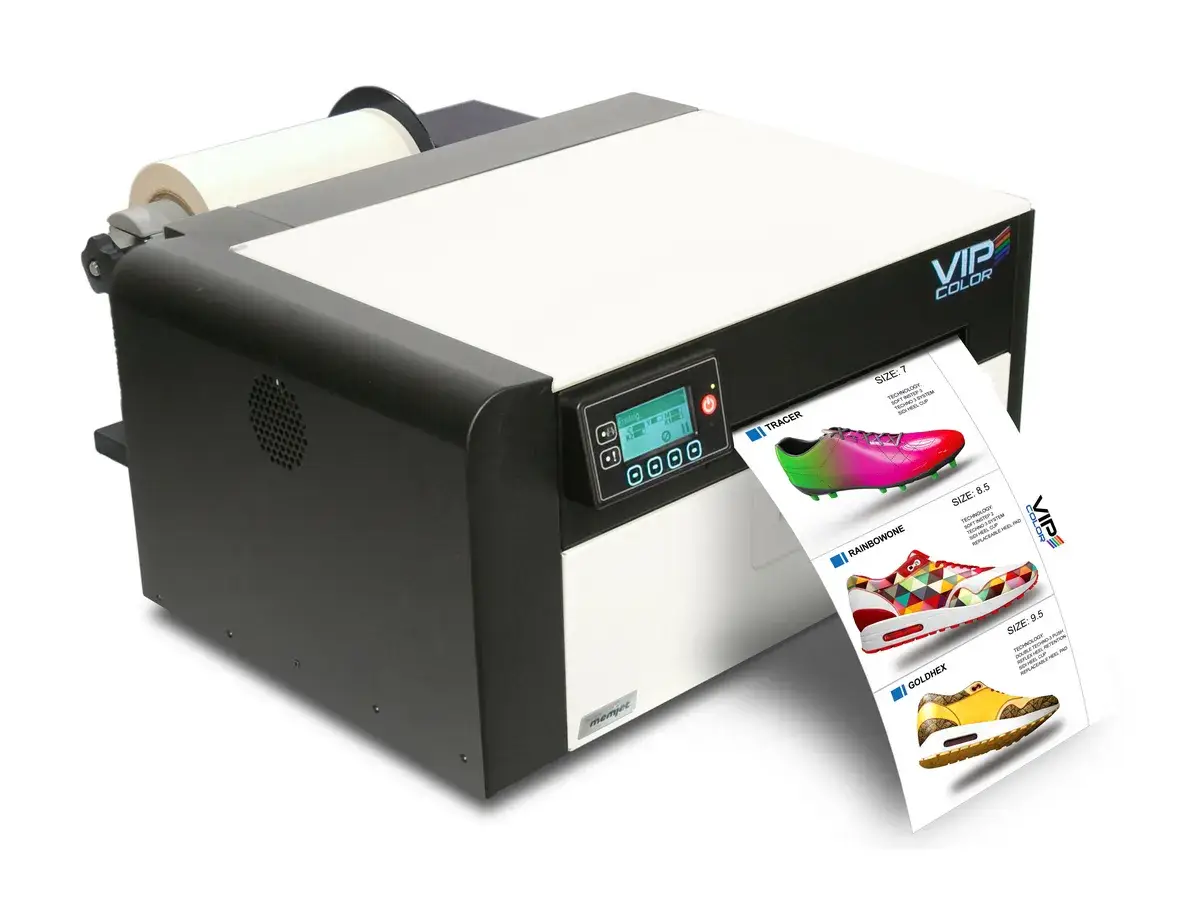

VP500/VP660 Desktop Inkjet Label Printer
In-house label printing becomes more flexible when businesses can produce full-color labels on demand instead of waiting for outsourced batches. The desktop inkjet label printer is designed for companies that need reliable label output for packaging labels, receipts, tickets, barcode labels, and other daily product identification needs.
With simple operation and fast output, this color label printing solution allows users to produce up to 2,400 labels in 10 minutes for 4 × 6 inch labels. Whether a business needs a few hundred labels per day or a much larger daily volume, the desktop inkjet label printer supports responsive production and faster label delivery.
For manufacturers, packaging teams, print shops, and small label producers, VP500/VP660 Desktop offers a practical way to print professional labels in-house, reduce dependence on pre-printed inventory, and respond more quickly to changing product, batch, or order requirements.
| Model | ||
| Print Speed | 6 and 12 IPS (154 and 305 mm/second) / Standard printing speed 9 m/min | 6 and 12 ips (154 and 305mm/second)/standard printing speed 12m/mim |
| Print Resolution | 1600 × 1600 dpi | 1600 × 1600 dpi |
| Print Width / Length | 2"–8.5" (51–216 mm) / Up to 40" (1,016 mm) | 2"–8.5" (51–216 mm) / Up to 40" (1,016 mm) |
| Communication Ports | USB 2.0, 10/100Base-T, GPIO | USB 2.0, 10/100Base-T, GPIO |
| Inks | Five individual 200 ml dye ink cartridges (Enhanced water-resistant) | Five individual 250 ml dye ink cartridges (Enhanced water-resistant) |
| Time to First Label | Less than 10 seconds | Less than 10 seconds |
| Print Modes | Roll-to-Cut, Roll-to-Roll, Print & Hold | Roll-to-Cut, Roll-to-Roll, Print & Hold |
| Barcode PQ | Grade B or better for 1D barcode (Code 39) with 10 mils bar width; 2D barcode (PDF417) with 10 mils cell size | Grade B or better for 1D barcode (Code 39) with 10 mils bar width; 2D barcode (PDF417) with 10 mils cell size |
| Electrical | Universal power supply: 100–240 VAC, peak current < 4 A | Universal power supply: 100–240 VAC, peak current < 4 A |
| Operating Environment | Operation: 15 ℃ to 35 ℃ at RH 20%–80%; Storage: -5 ℃ to 50 ℃ | Operation: 15 ℃ to 35 ℃ at RH 20%–80%; Storage: -5 ℃ to 50 ℃ |
| Safety / Compliance | FCC Part 15, Subpart B, Class A (US), cULus, IEC-62368-1, RCM, CCC, UKCA mark, Singapore Safety Mark | FCC Part 15, Subpart B, Class A (US), cULus, IEC-62368-1, RCM, CCC, UKCA mark, Singapore Safety Mark |
| User Interface | Embedded web server, backlit LCD control panel in 9 languages, LED for warning and readiness indication | Embedded web server, backlit LCD control panel in 9 languages, LED for warning and readiness indication |
| Acoustics | Sound pressure level < 60 dB(A) | Sound pressure level < 60 dB(A) |
| Printer Driver | Windows™ 10 and above | Windows™ 10 and above |
| Supported Software | All major Windows-based label and graphic design applications like Adobe Illustrator, NiceLabel, BarTender | All major Windows-based label and graphic design applications like Adobe Illustrator, NiceLabel, BarTender |
| Sensor Type | Gap, reflective sensor for black mark | Gap, reflective sensor for black mark |
| Media Type | Roll (continuous, die-cut), fan-fold | Roll (continuous, die-cut), fan-fold |
| Media Thickness | 0.1–0.3 mm | 0.1–0.3 mm |
| Roll Diameter | 8" (203 mm) OD with 3" (76 mm) core | 8" (203 mm) OD with 3" (76 mm) core |
| Supported Media | Glossy, matte, synthetics | Glossy, matte, synthetics |
-
-
High-Resolution Color Labels:
With resolution of 1,600 x 1,600 dpi, this digital printer delivers color labels with text in an elegant form.
-
-
High-Speed Printing:
At 12 ips or 18 m/min, the label printer can handle 1,800 6×4″ labels in less than 10 minutes. At least 2x faster than most mid-range thermal printers. Up to 4x faster than other desktop color label printers.
-
-
Food Safe:
VIPColor label printer uses non-toxic aqueous dye ink that is safe for indirect-contact food labels.
-
You have dynamic or seasonal orders. -
You have variable data like date codes or QR codes. -
You have multiple variants or languages of the label. -
You have a demanding environment in terms of cleanliness & hygiene.
We streamline the process so you can deliver to your customers faster.
