Automatic Foiling and Laminating Machine VL350

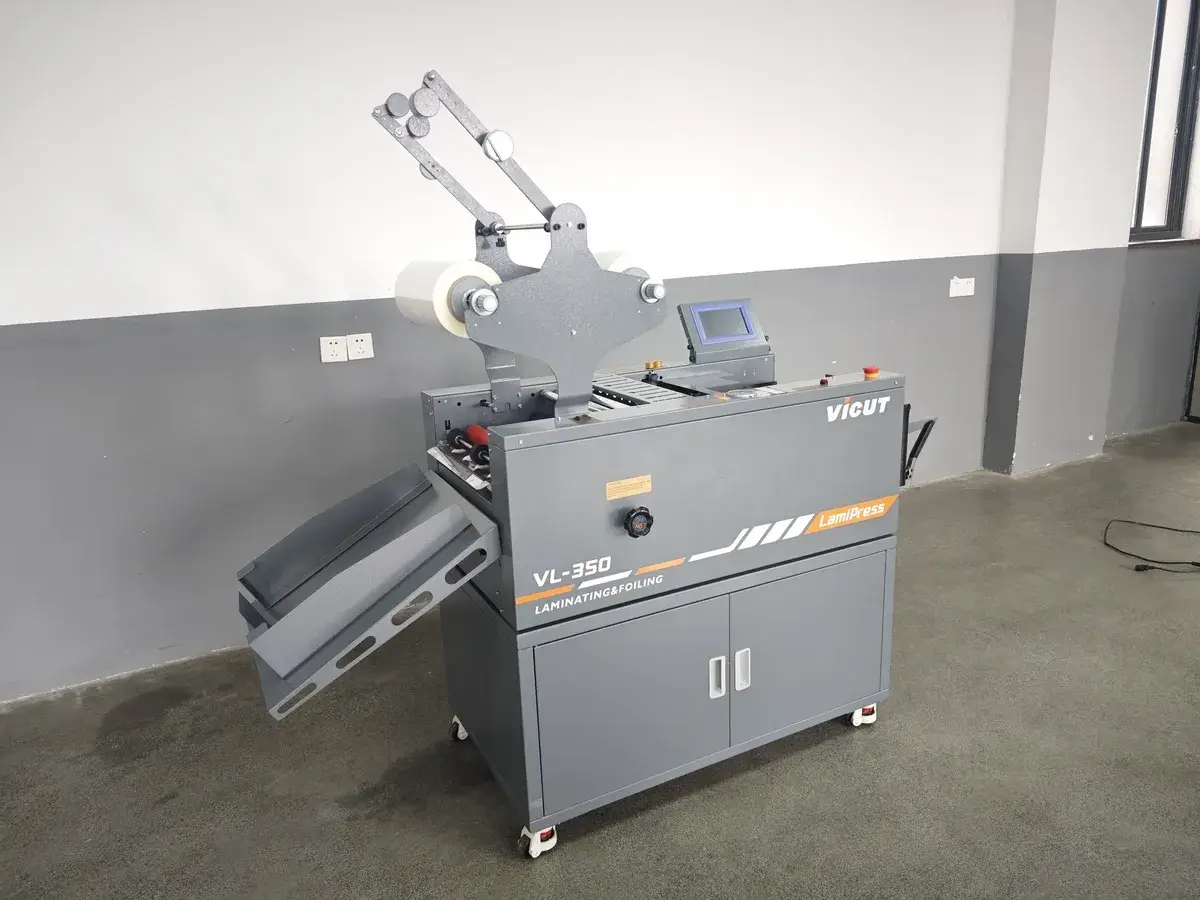

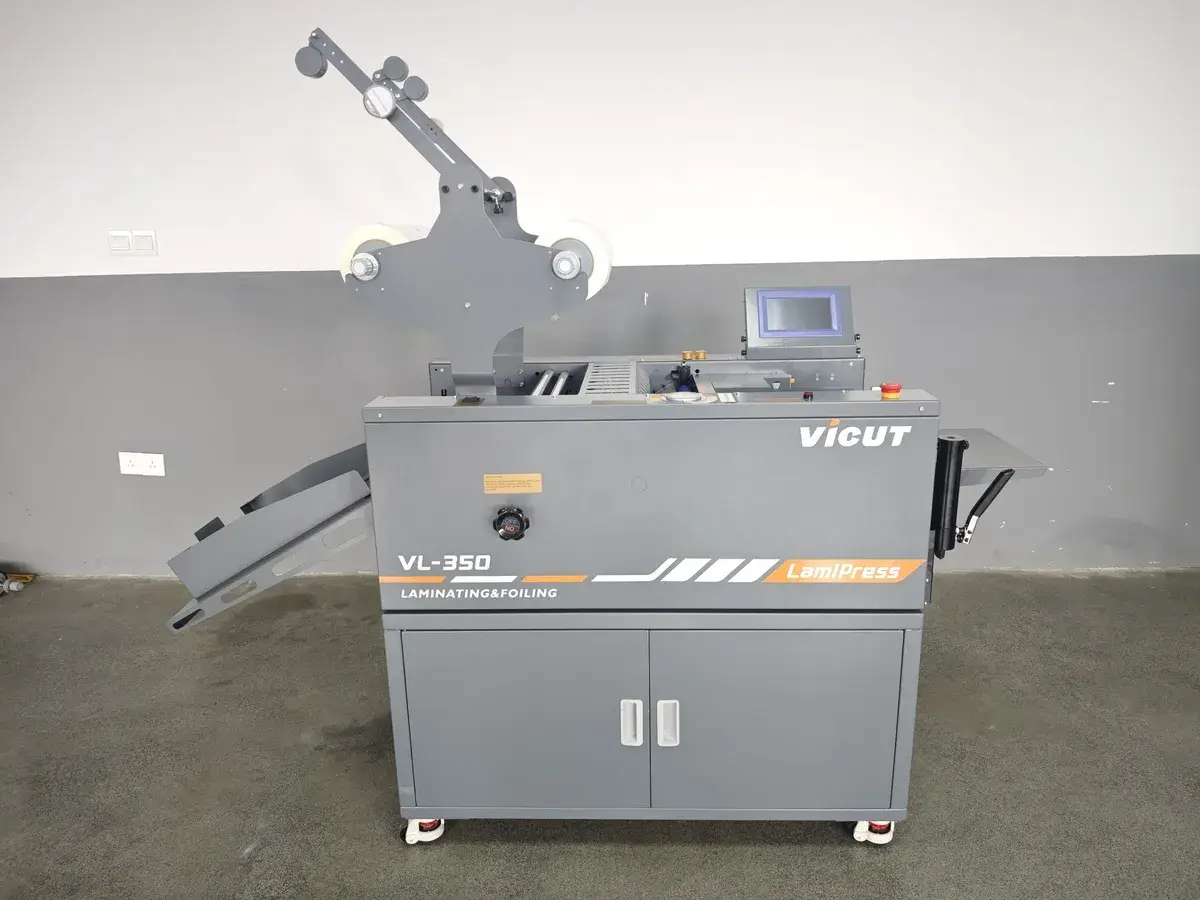

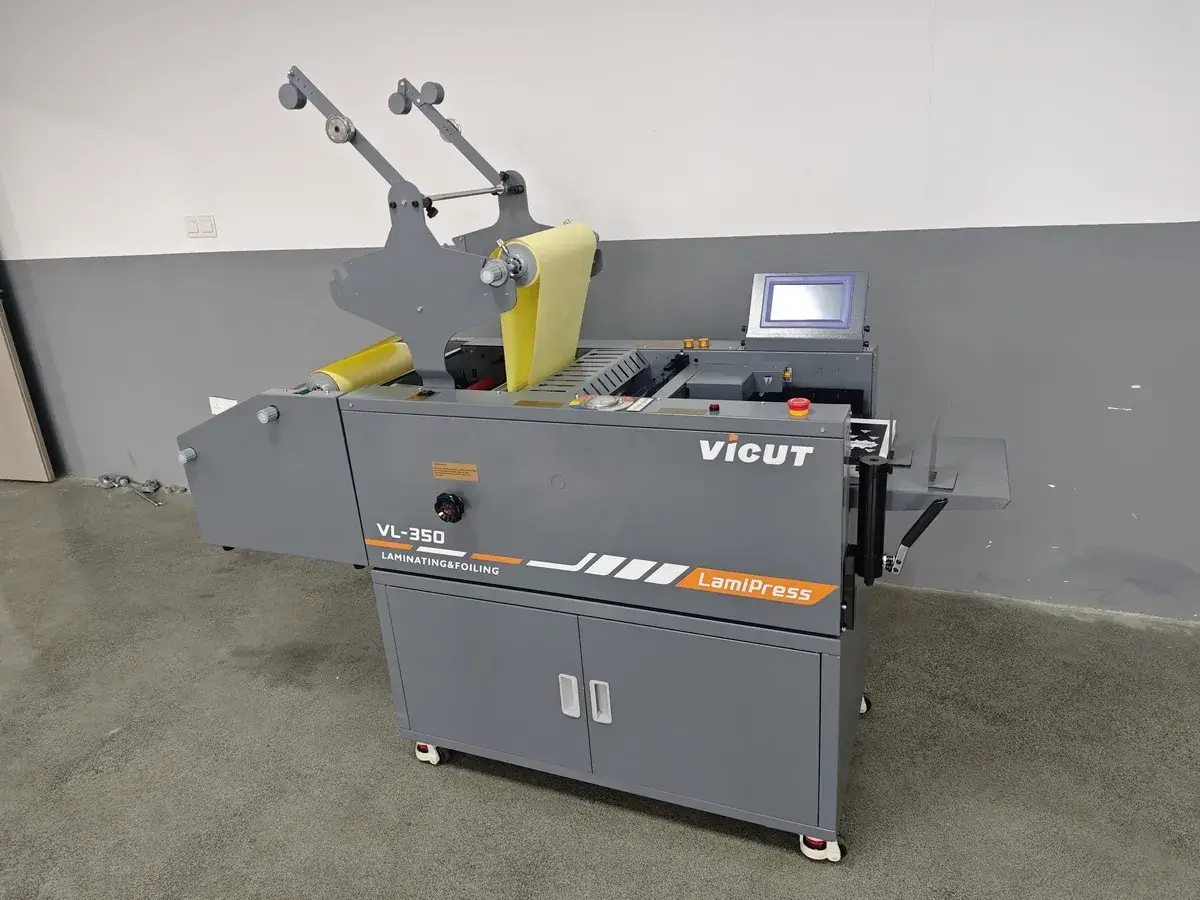

VL350 Automatic Foiling and Laminating Machine

Small-format print finishing often requires more than basic lamination, especially when customers expect stronger visual appeal, better surface protection, and premium metallic effects. The automatic foiling and laminating machine helps print shops, copy centers, packaging studios, and short-run print businesses complete lamination and digital foiling on sheet-fed printed materials with a more efficient workflow.

By combining automatic paper feeding, hot lamination, cold lamination, and digital foiling in one compact system, the sheet-fed finishing solution supports business cards, invitations, packaging samples, brochures, menus, covers, and other printed products that need a more polished finish. It can apply plastic film to improve gloss, color depth, dust resistance, and water resistance, while digital foiling adds localized metallic effects for higher-value print products.

The automatic suction feeding design keeps sheet handling smoother, while the lifting feed platform can hold media stacks up to 7 cm high, equivalent to about 200 sheets of 250 gsm paper. Intelligent sensors automatically adjust edge positioning and film separation, helping operators manage different paper types more easily and achieve stable finishing results with less manual adjustment.

Request a Quote
Watch Videos
Technical Parameters
Min. Sheet Size 130 × 200 mm
Max. Sheet Size 340 × 800 mm
Operating Modes Single-sided hot lamination, cold lamination, digital foiling
Heating Method Electric heating tube
Warm-up Time 5-10 minutes
Laminating Speed 1–5 m/min
Coating Temperature 10–130°C
Paper Weight 125–400 gsm
Mirror Roller Diameter 105 mm
Film Core Diameter 3 inches
Max. Film Roll Diameter 350 mm
Max. Film Width 340 mm
Control Panel Resistive LCD touch screen
Temperature Control Electronic
Pressure System Hydraulic
Feeding System Automatic suction feeding
Collecting System Adjustable collecting tray
Pull-off System Electric CAM control
Perforation Included
Anti-curl Technology Included
Sheet Bursting System Automatic
Power Consumption 1600 W
Power Supply 220–240 VAC, 50/60 Hz
Operating Humidity 20%–80% RH
Net Weight 205 kg
Gross Weight Package 1: 260 kg Package 2: 38 kg
Machine Dimensions (L × W × H) 1870 × 635 × 1264 mm
Packing Dimensions (L × W × H) Package 1: 122 × 72 × 110 cm; Package 2: 70 × 60 × 65 cm.
Product Details
    1. Fully Automatic Paper Feeding System
      Fully Automatic Paper Feeding System

      The automatic paper feeding system keeps sheet feeding smooth and efficient, helping operators reduce manual handling during lamination and foiling jobs.

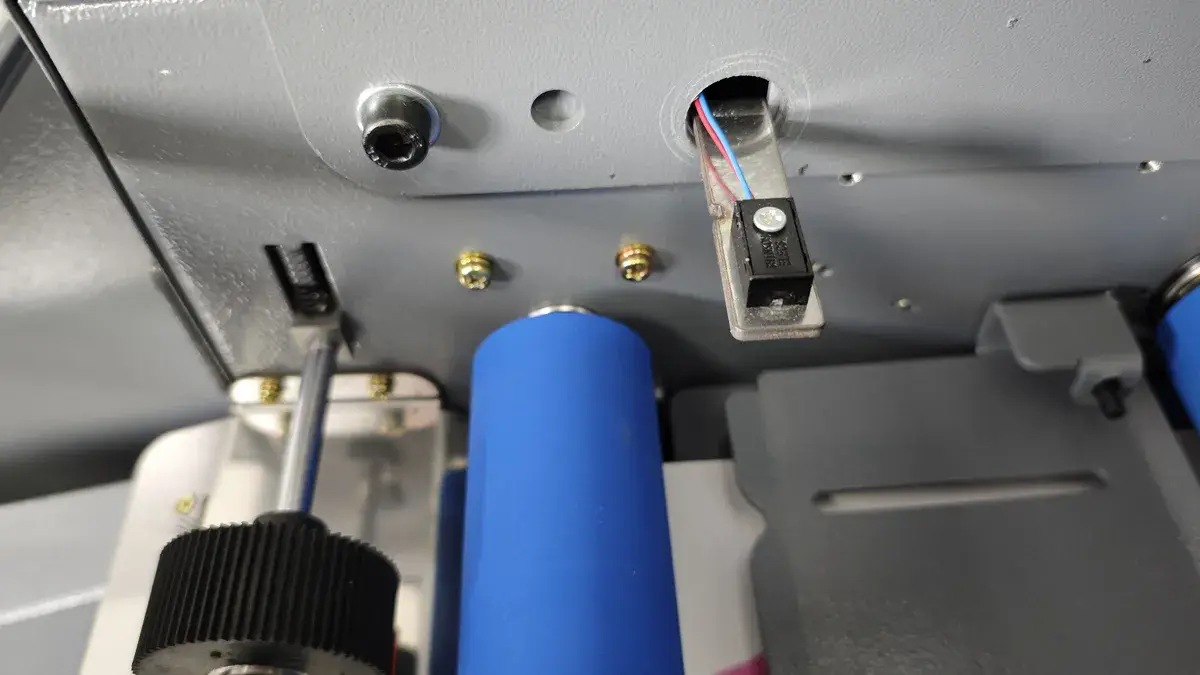

    1. Intelligent Sensor
      Intelligent Sensor

      The intelligent sensor detects paper position and supports automatic adjustment, helping improve finishing accuracy across different sheet materials.

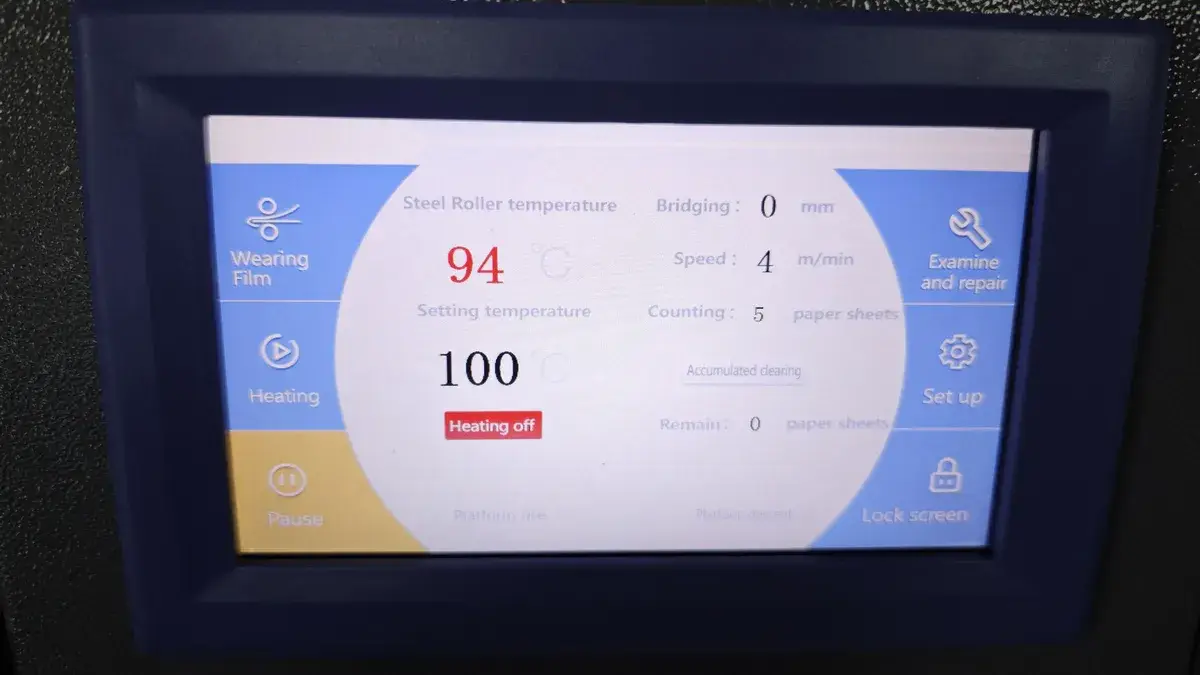

    1. Easy-to-Use Touch Panel
      Easy-to-Use Touch Panel

      The touch panel provides a clear control interface, making daily operation easier for both new and experienced operators.

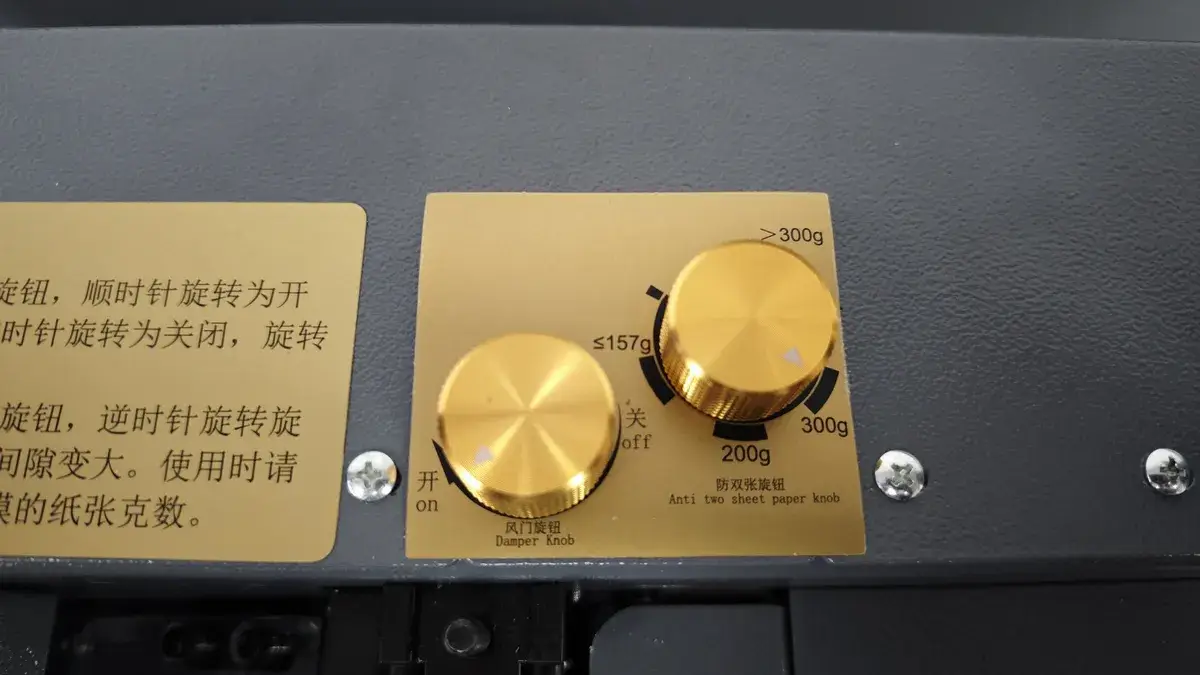

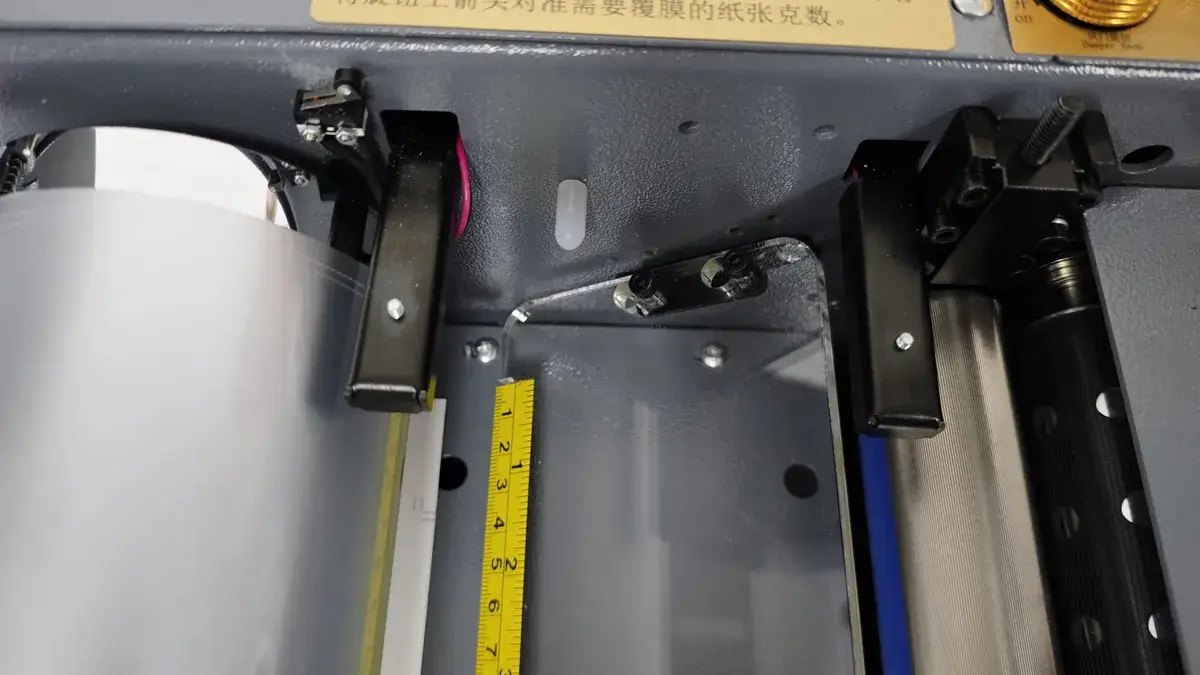

    1. Anti-Double Sheet Adjustment System
      Anti-Double Sheet Adjustment System

      The anti-double sheet adjustment system helps prevent multiple sheets from entering at the same time, reducing feeding errors and protecting finishing quality.

    1. Safety Protection
      Safety Protection

      Built-in safety protection supports safer operation during paper feeding, lamination, and foiling work.

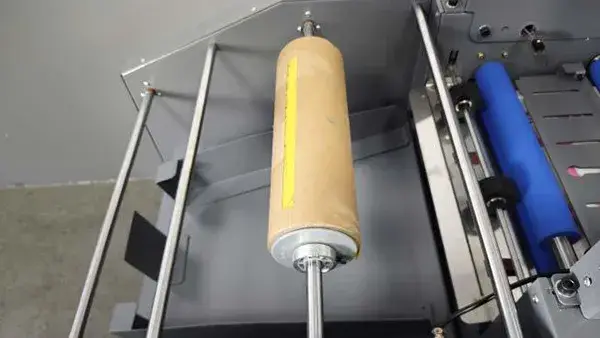

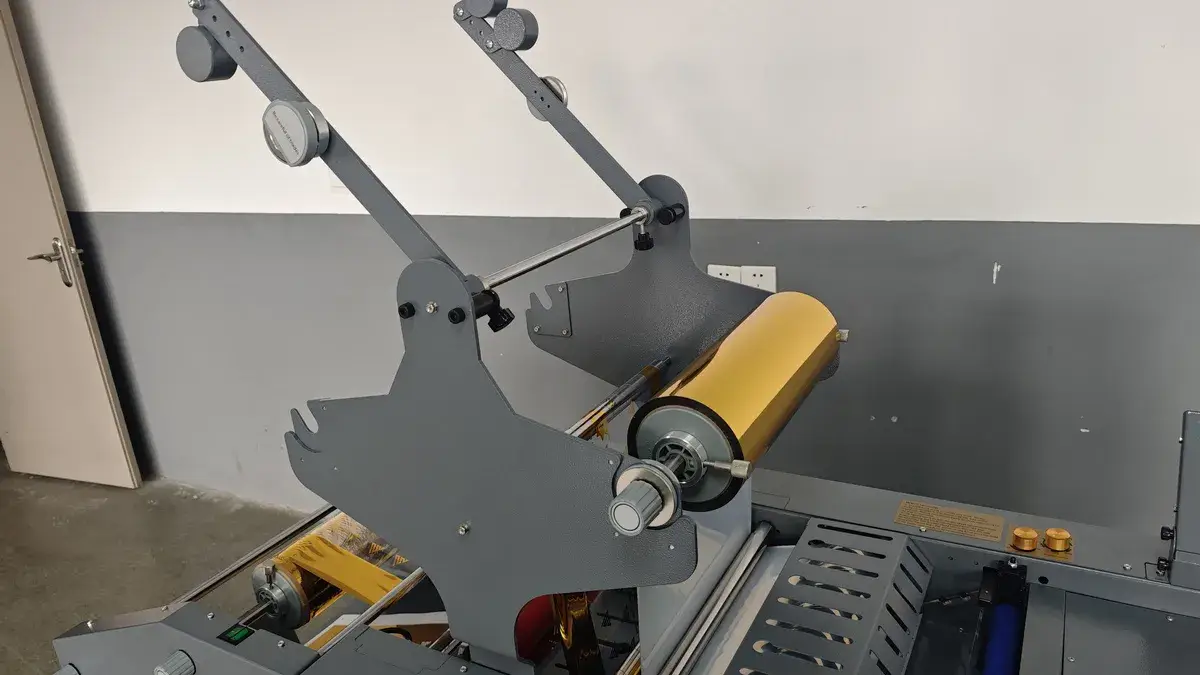

    1. Unwinding Roller Shaft
      Unwinding Roller Shaft

      The manually tightened unwinding and feeding shaft keeps film feeding stable, helping operators maintain smoother lamination and foiling performance.

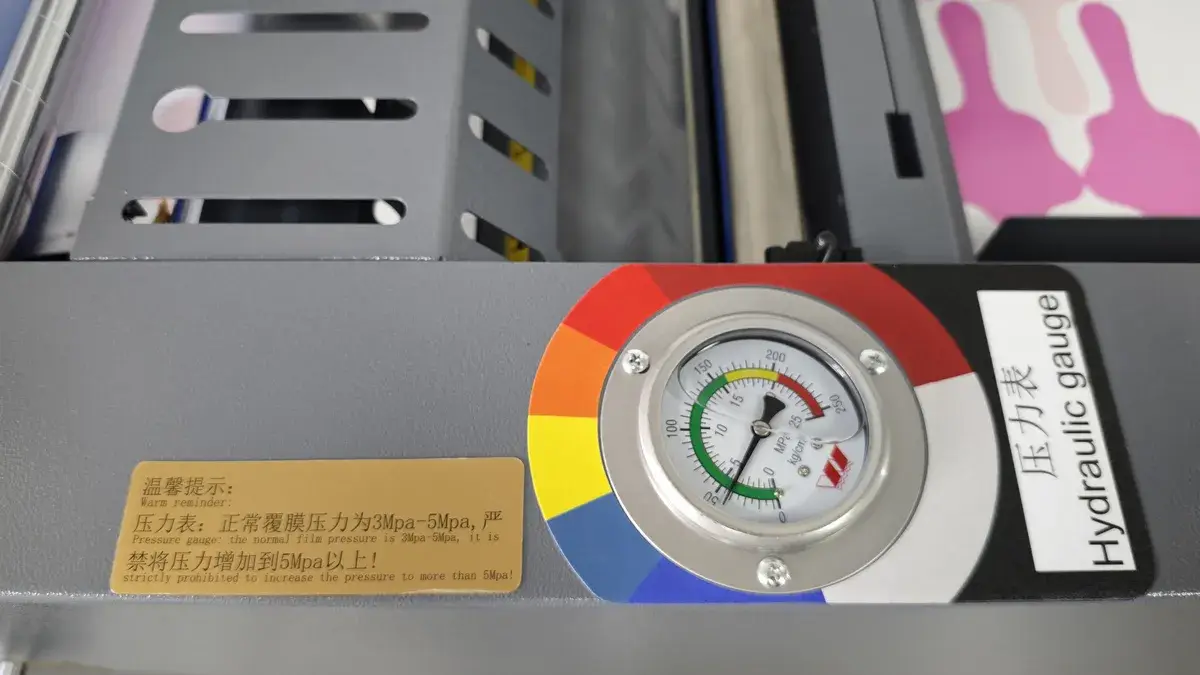

    1. Hydraulic Pressure Control
      Hydraulic Pressure Control

      Hydraulic pressure control helps apply stable pressure during lamination and foiling, supporting cleaner bonding and more consistent surface results.

    1. Foiling Waste Removal System
      Foiling Waste Removal System

      The foiling waste removal system collects used foil after processing, keeping the workflow cleaner and reducing manual cleanup.

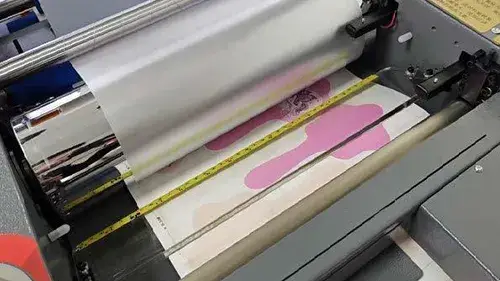

    1. Mirror Pressure Roller
      Mirror Pressure Roller

      The mirror pressure roller supports smooth pressure transfer, helping improve the surface finish of laminated and foiled sheets.

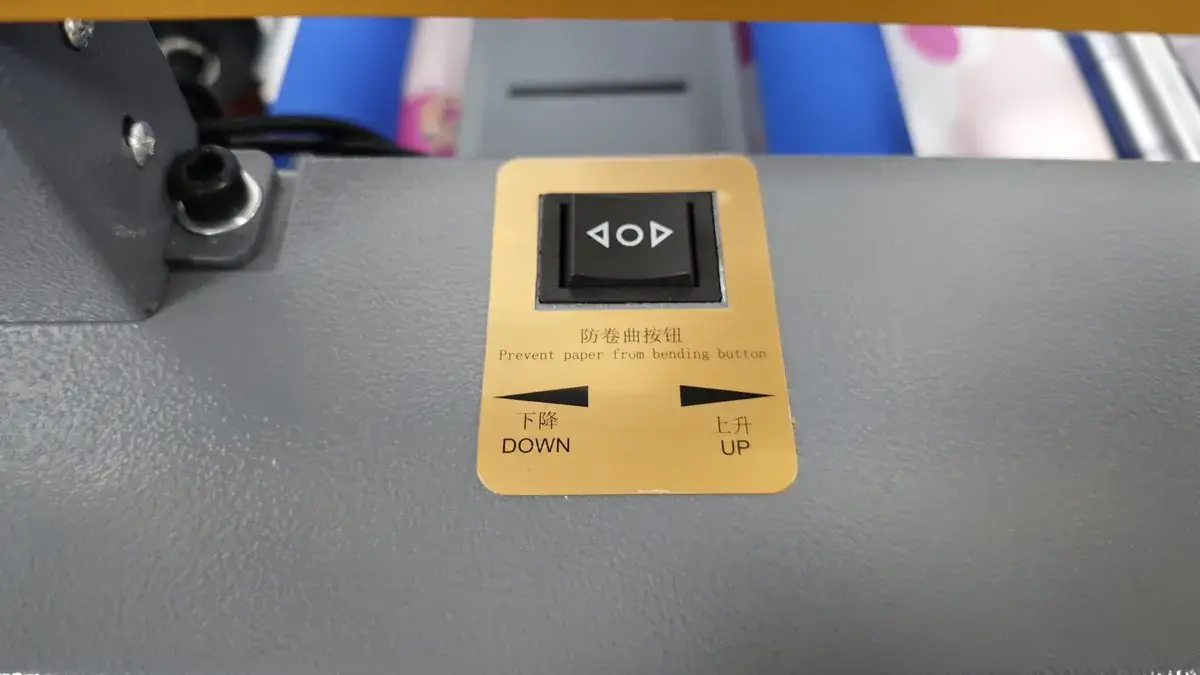

    1. Anti-curl button
      Anti-curl button
More
Applicable Laminating and Foiling Materials
    1. Cold Lamination Films
      Cold Lamination Films

      Cold lamination films offer different surface finishes, including glossy, matte, and soft-touch effects. They are suitable for offset prints and digital printed materials that need surface protection or a more refined appearance.

    1. Metallic Foiling Films
      Metallic Foiling Films

      Metallic foiling films add bright metallic effects to printed sheets, helping business cards, invitations, packaging samples, covers, and promotional prints achieve a more premium look.

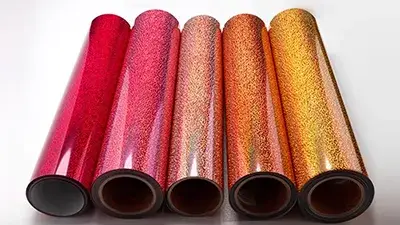

    1. Holographic Foiling Films
      Holographic Foiling Films

      Holographic foiling films create decorative visual effects such as sparkle, milky way, crystal, carbon fiber, and other specialty finishes, making printed products more attractive for creative and high-value applications.

Working Samples
  • StickersStickers
  • Business CardsBusiness Cards
  • DIY Invitation CardsDIY Invitation Cards
  • DIY Packaging BoxesDIY Packaging Boxes
  • Product BrochuresProduct Brochures
  • MenusMenus
