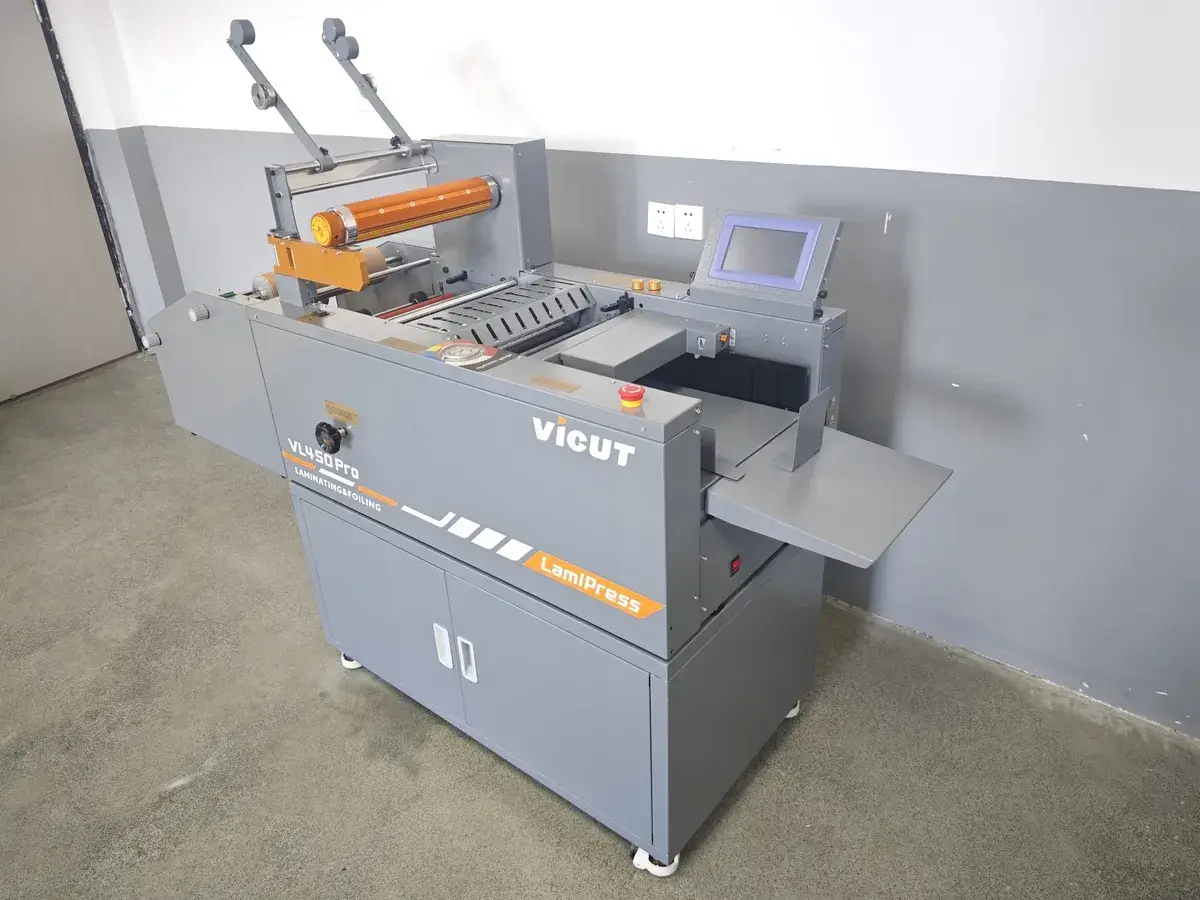

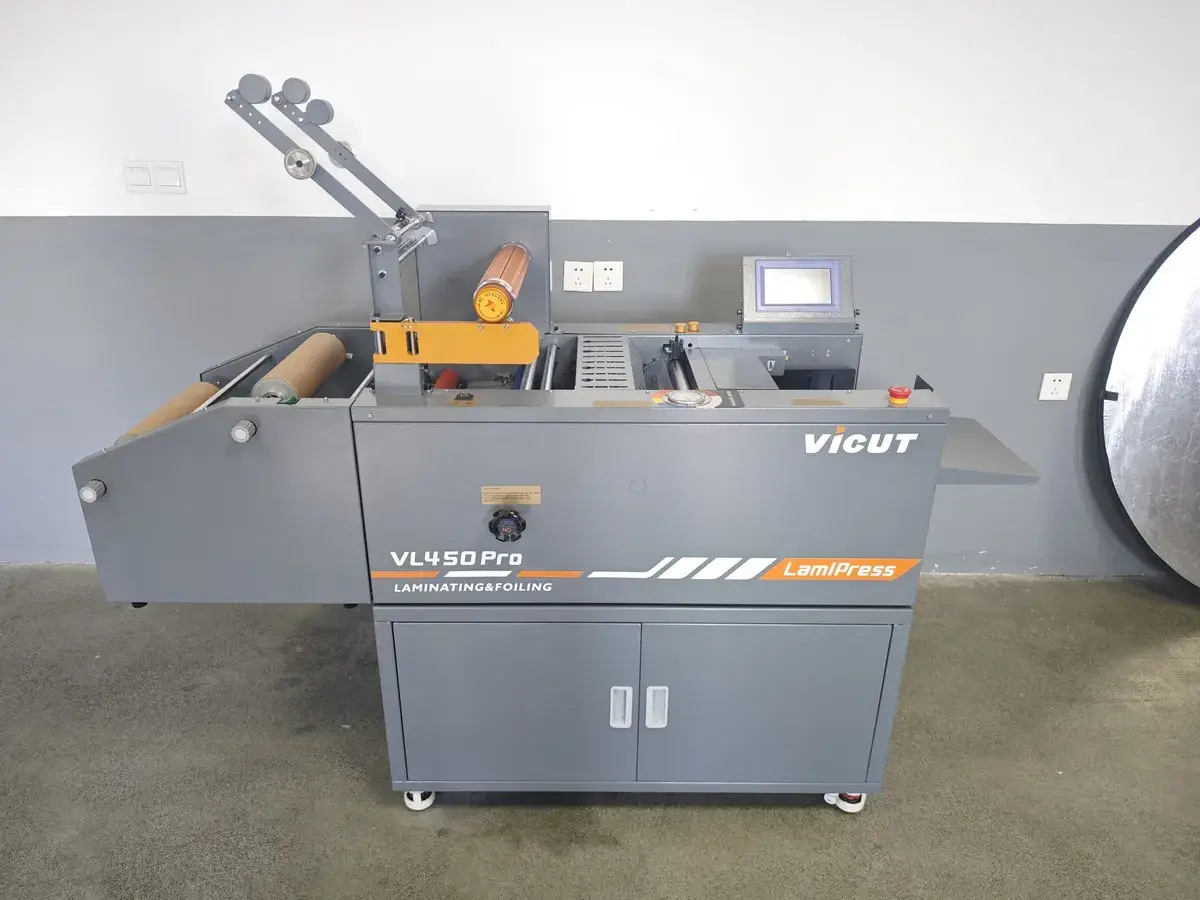

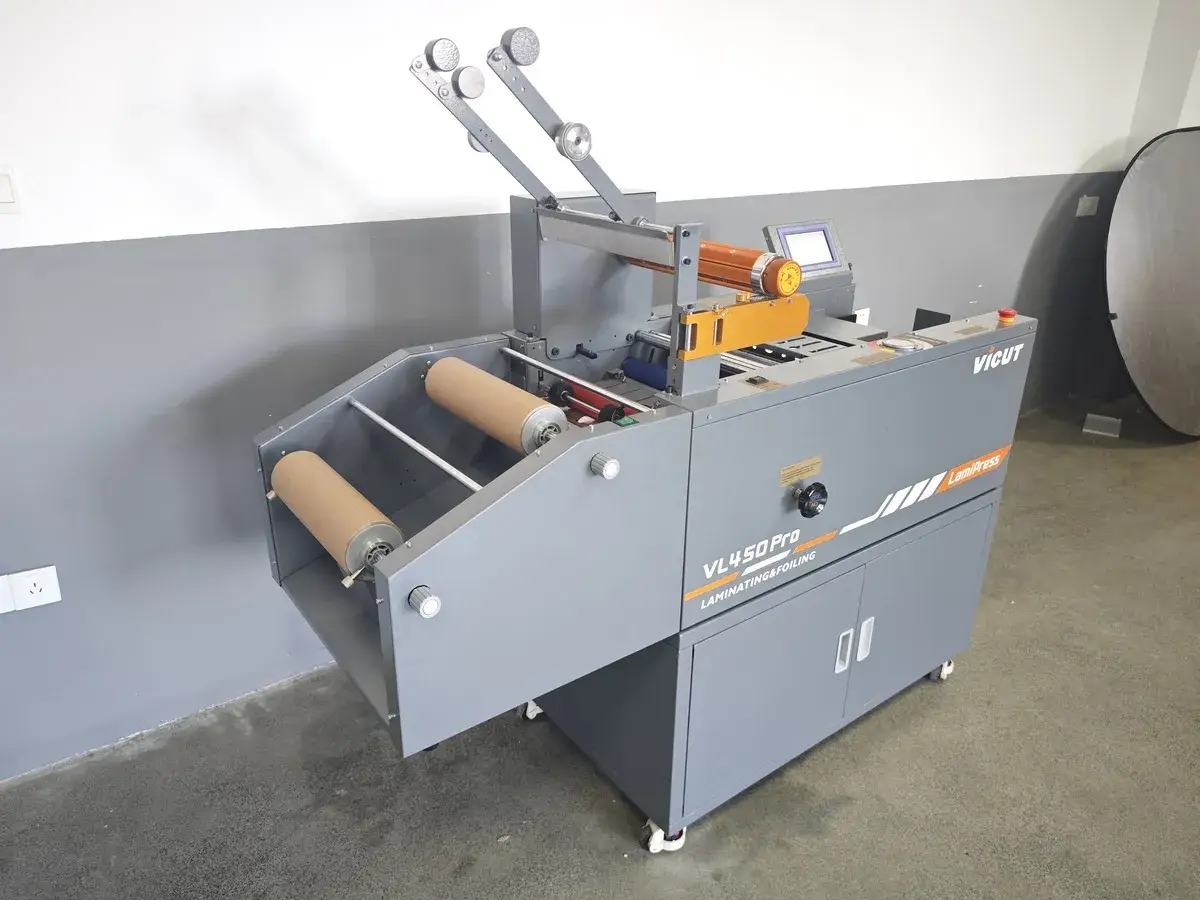

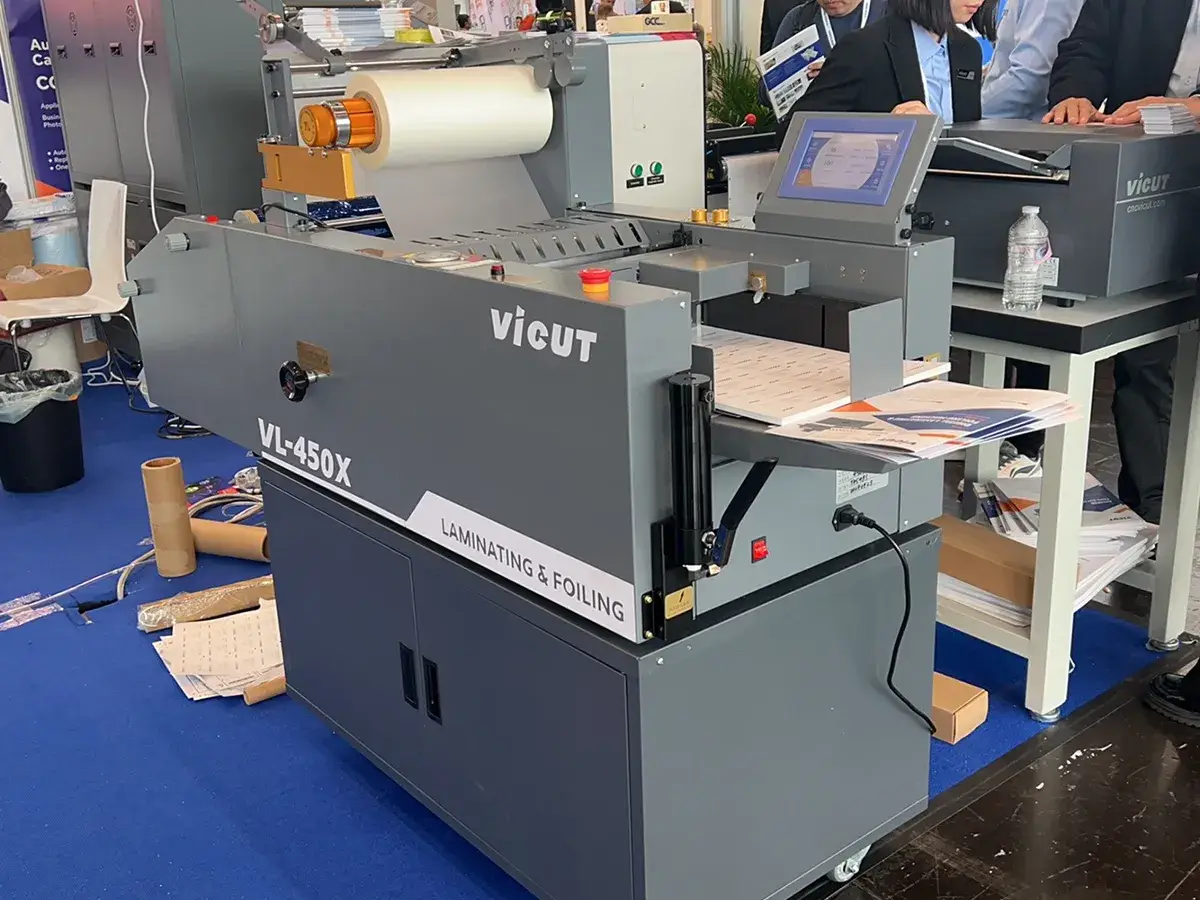

VL450X Automatic Laminator Foiler
Premium sheet finishing becomes easier when lamination and foiling can be completed in one controlled workflow. The automatic laminator foiler helps print shops, copy centers, packaging studios, and short-run print businesses add surface protection, gloss or matte lamination, and metallic foil effects to sheet-fed printed materials.
With a heated silicone roller and precise control system, the machine supports cold lamination, hot lamination, partial foiling, and cold foil applications on individual sheets. This helps reduce the complexity of traditional single-process finishing and lowers the risk of wrinkled output, allowing operators to produce cleaner and more attractive finished prints.
The automatic laminator foiler is suitable for coated paper, white cardboard, matte art paper, specialty paper, art paper, pearlescent paper, and selected heat-resistant plastic films such as PET and PVC. It is a practical finishing solution for business cards, covers, packaging boxes, invitations, brochures, menus, and other printed products that need stronger visual impact and better surface durability.
| Min. Sheet Size | 130 × 200 mm |
| Max. Sheet Size | 340 × 800 mm (Optional length up to 1200 mm) |
| Operating Modes | Single-sided hot lamination, cold lamination, foiling |
| Heating Method | Electric heating tube |
| Warm-up Time | 5–10 minutes |
| Foiling Speed | 1–6 m/min |
| Coating Temperature | 10–130℃ |
| Paper Weight | 125–400 gsm |
| Mirror Roller Diameter | 105 mm |
| Film Core Diameter | 3 inches |
| Max. Film Roll Diameter | 300 mm |
| Max. Film Width | 340 mm |
| Control Panel | Resistive LCD Touch Screen |
| Temperature Control | Electronic |
| Pressure System | Automatic hydraulic |
| Feeding System | Automatic suction feeding |
| Collection System | Adjustable collecting tray |
| Pull-off System | Electric CAM control |
| Perforation | Included |
| Anti-curl Technology | Included |
| Sheet Bursting System | Automatic |
| Power Consumption | 1600 W |
| Power Supply | 220–240 VAC, 50/60 Hz |
| Operating Humidity | 20%–80% RH |
| Net Weight | 190 kg |
| Gross Weight | Package 1: 252 kg Package 2: 38 kg |
| Machine Dimensions (L × W × H) | 1870 × 635 × 1264 mm |
| Package Dimensions (L × W × H) | Package 1: 134 × 80 × 159 cm Package 2: 66 × 57 × 62 cm |
-
Fully Automatic Paper Feeding SystemThe automatic paper feeding system keeps sheet feeding smooth and efficient, helping operators reduce manual handling during laminating and foiling jobs.
-

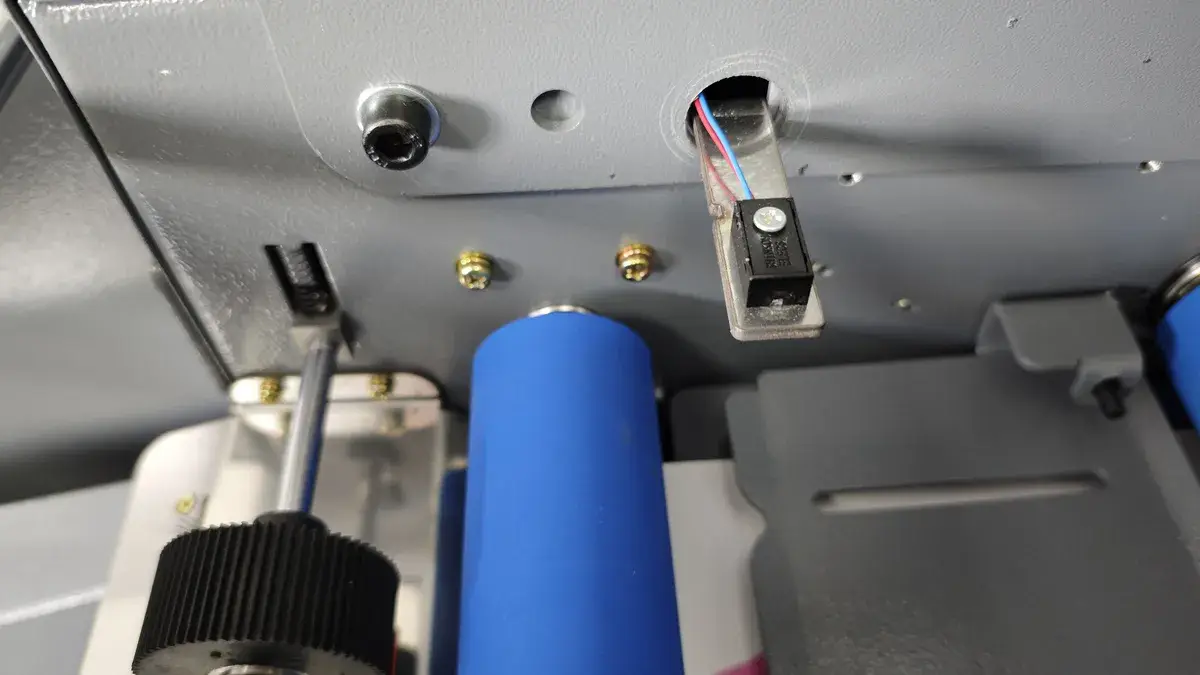

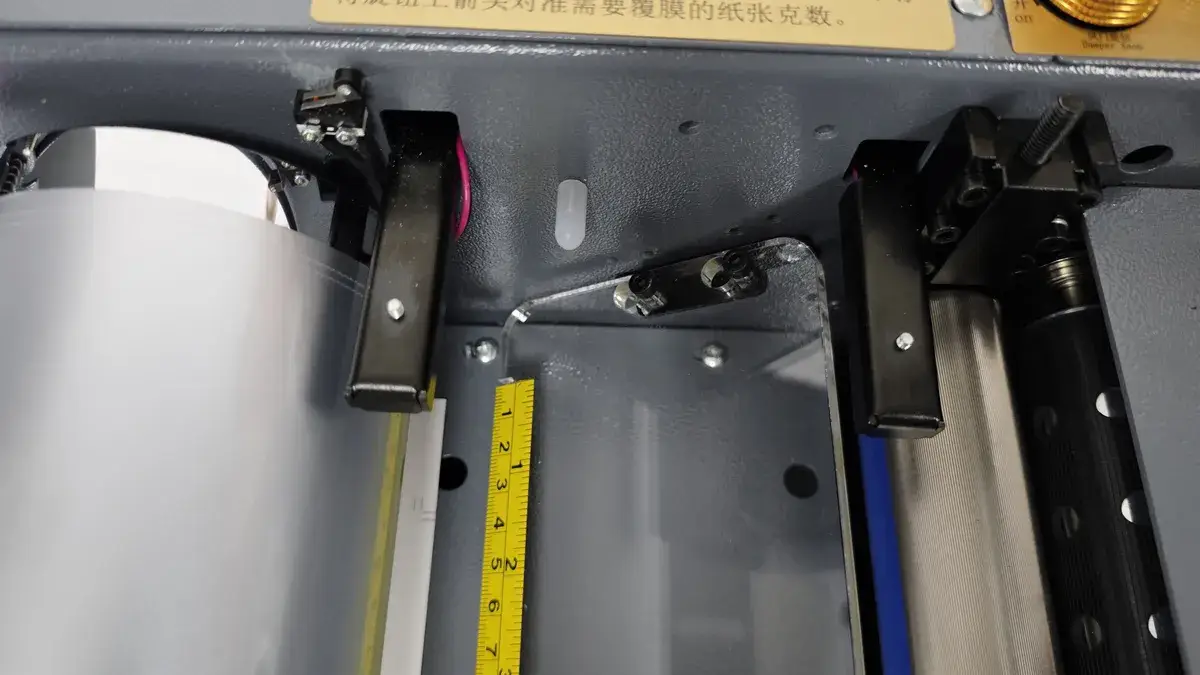

Intelligent SensorThe intelligent sensor supports accurate paper detection and automatic adjustment, helping improve finishing consistency across different sheet materials.
-

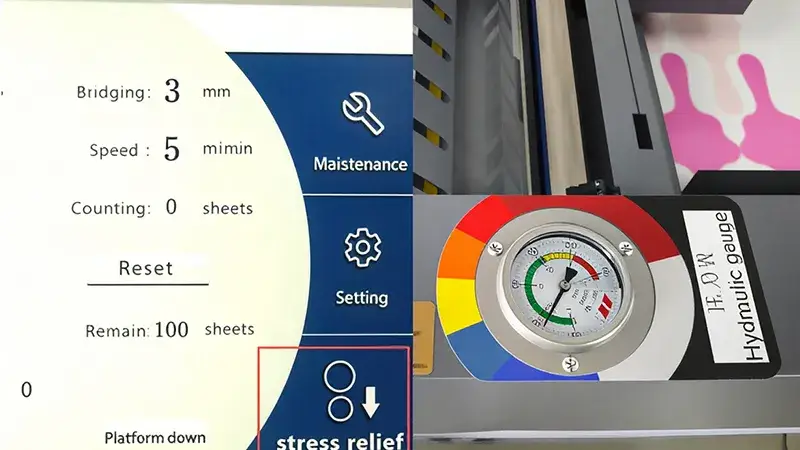

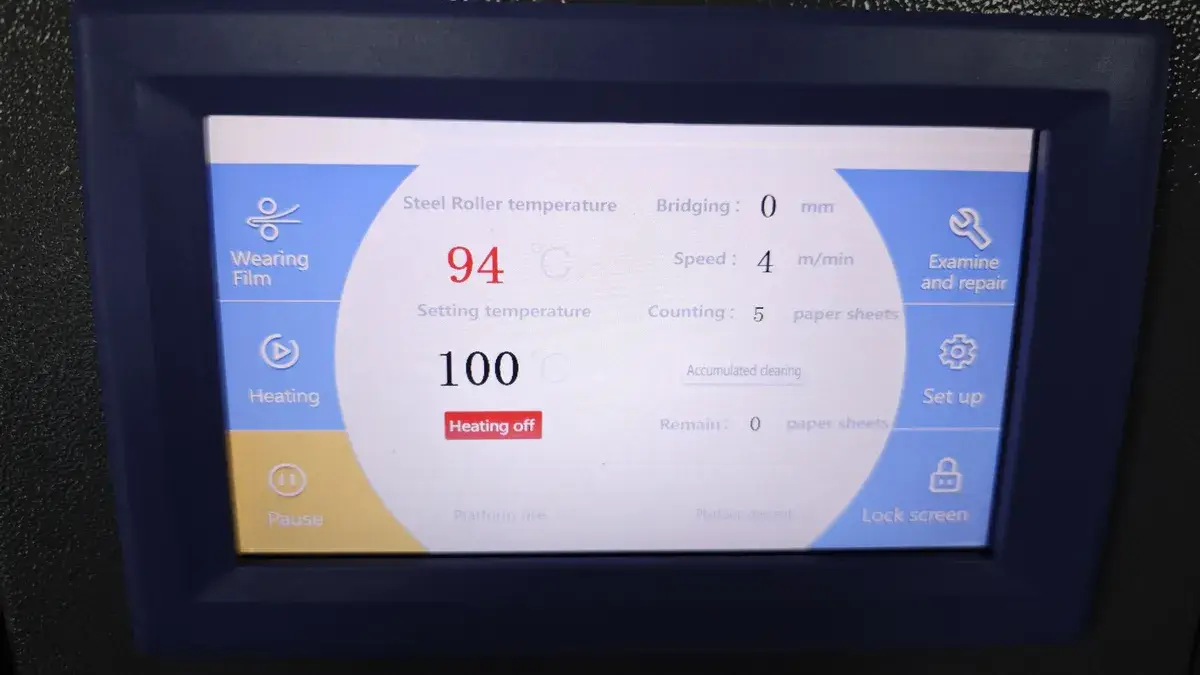

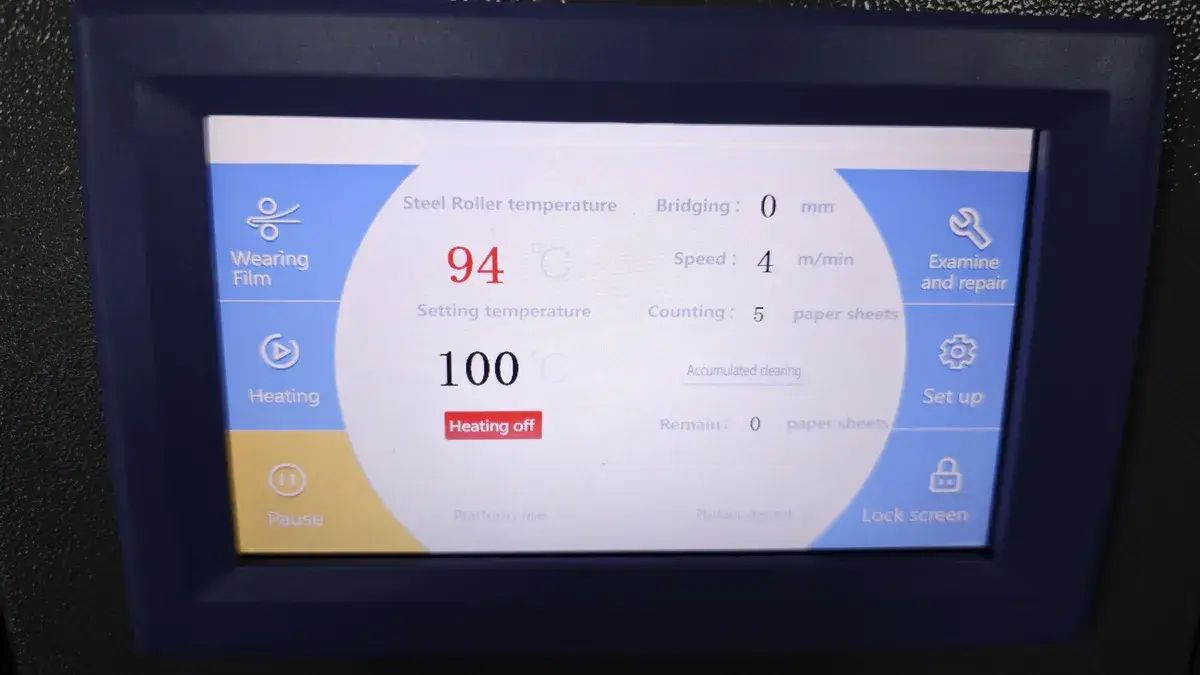

Easy-to-Use Touch PanelThe touch panel provides a clear control interface, making daily operation easier for both new and experienced operators.
-

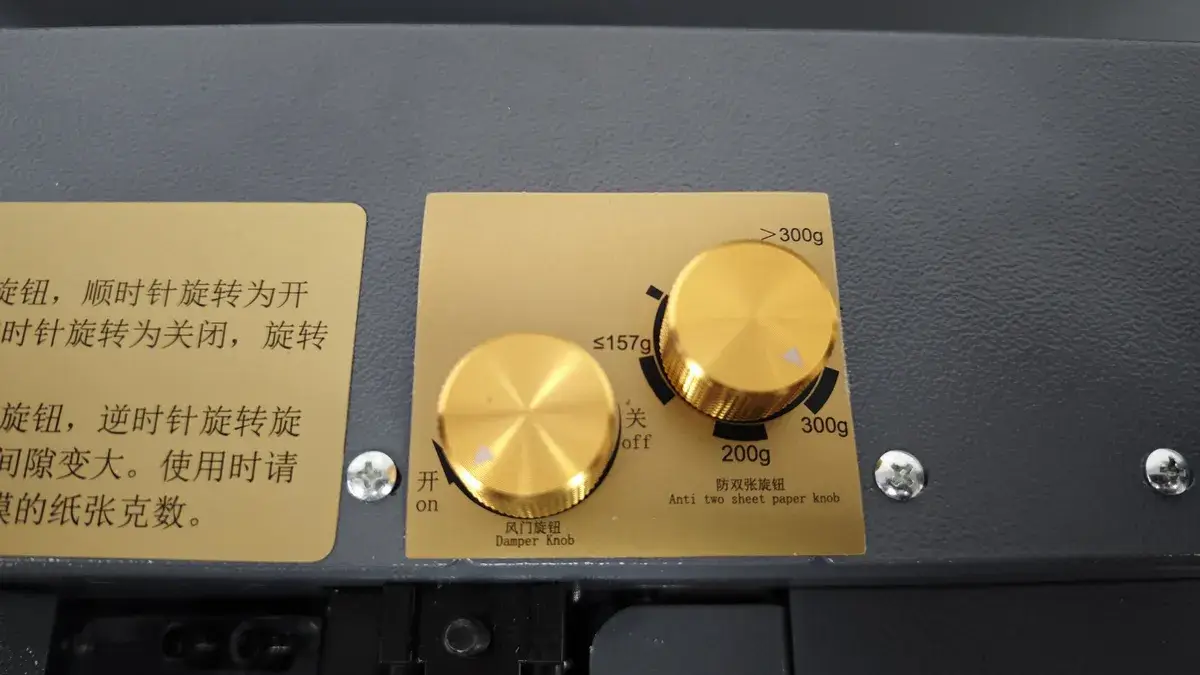

Anti-Double Sheet Adjustment SystemThe anti-double sheet adjustment system helps prevent multiple sheets from entering at the same time, reducing feeding errors and protecting finishing quality.
-
Safety ProtectionBuilt-in safety protection supports safer operation during paper feeding, lamination, and foiling work.
-

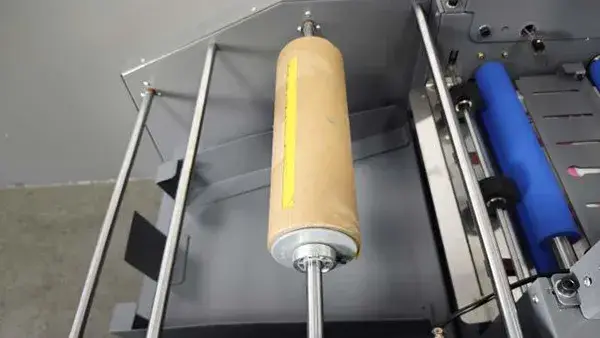

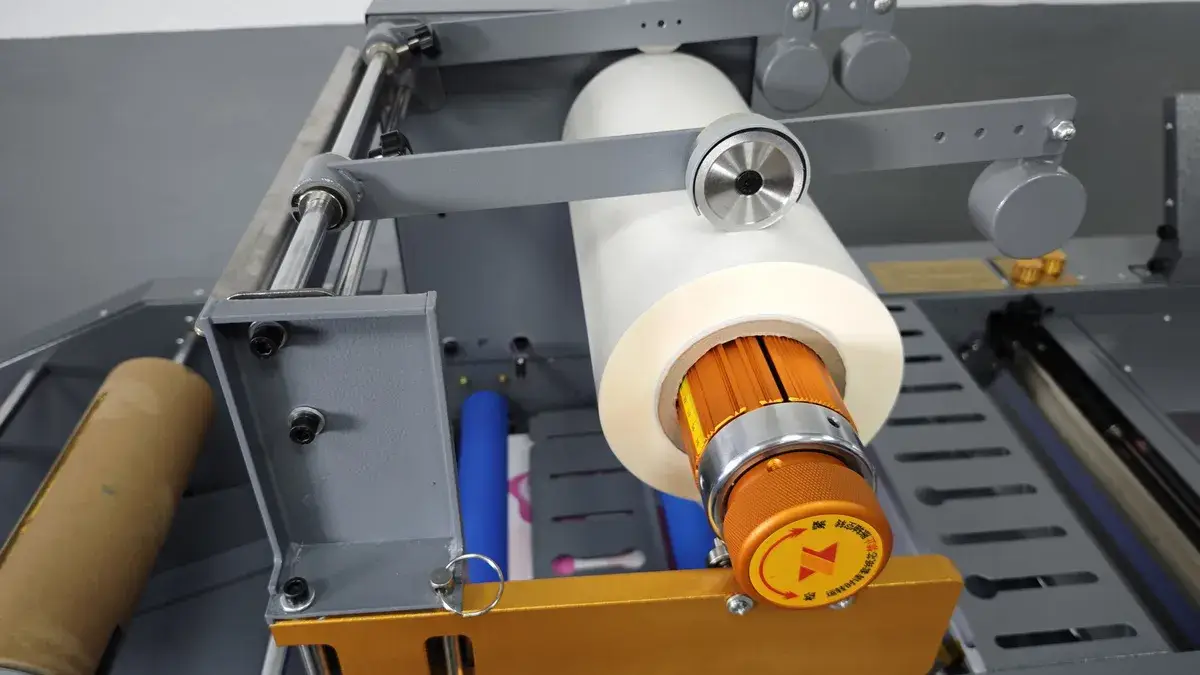

Unwinding Roller ShaftThe unwinding roller shaft keeps film feeding stable, helping operators maintain smoother laminating and foiling performance.
-
Automatic Hydraulic Pressure ControlAutomatic hydraulic pressure control applies stable pressure during lamination and foiling, supporting cleaner bonding and more consistent surface results.
-
Foiling Waste Removal SystemThe foiling waste removal system collects used foil after processing, keeping the workflow cleaner and reducing manual cleanup.
-

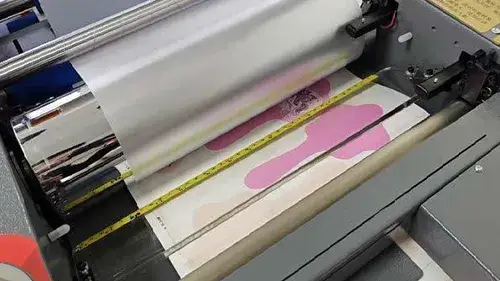

Mirror Pressure RollerThe mirror pressure roller supports smooth pressure transfer, helping improve the surface finish of laminated and foiled sheets.
-

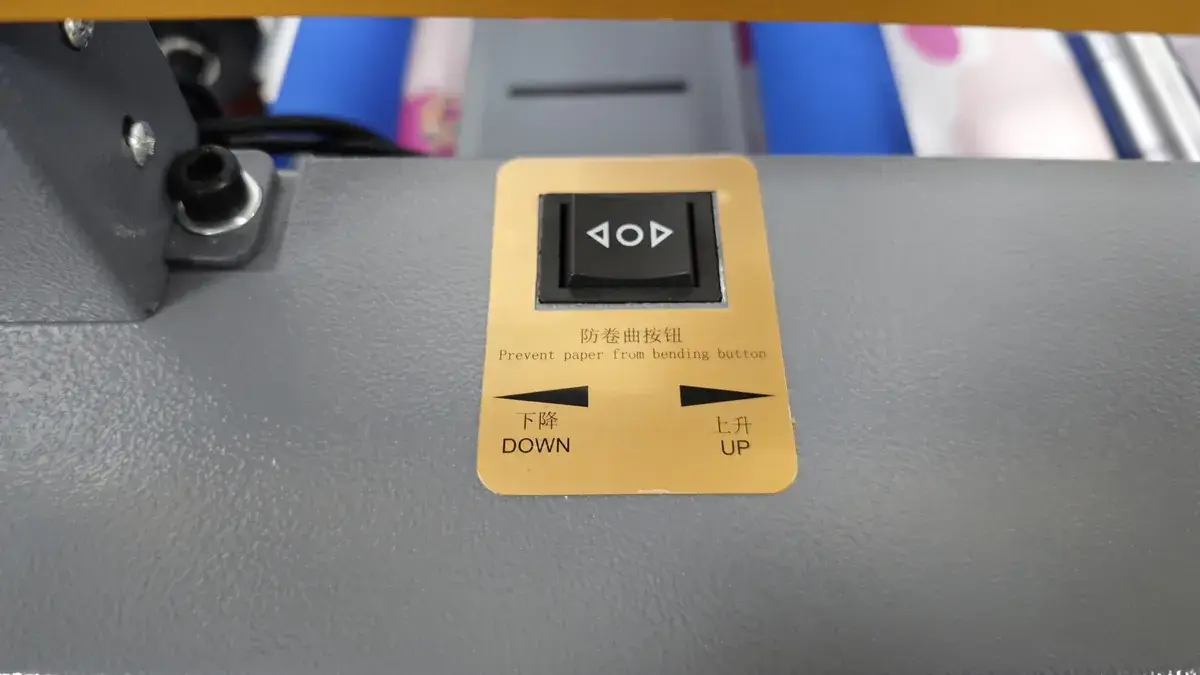

Anti-Curl ButtonThe anti-curl function helps keep finished sheets flatter after lamination, improving output quality and making printed materials easier to handle.
-
Cold Lamination FilmsCold lamination films provide different surface finishes, including glossy, matte, and soft-touch effects. They are suitable for offset prints and digital printed materials that require surface protection or a more refined appearance.
-
Metallic Foiling FilmsMetallic foiling films add a bright metallic effect to printed sheets, making business cards, invitations, packaging boxes, covers, and promotional materials look more premium.
-
Holographic Foiling FilmsHolographic foiling films create decorative effects such as sparkle, milky way, crystal, carbon fiber, and other specialty finishes for creative and high-value printed products.
Stickers
Business Cards
DIY Invitation Cards
DIY Packaging Boxes
Product Brochures
Menus
