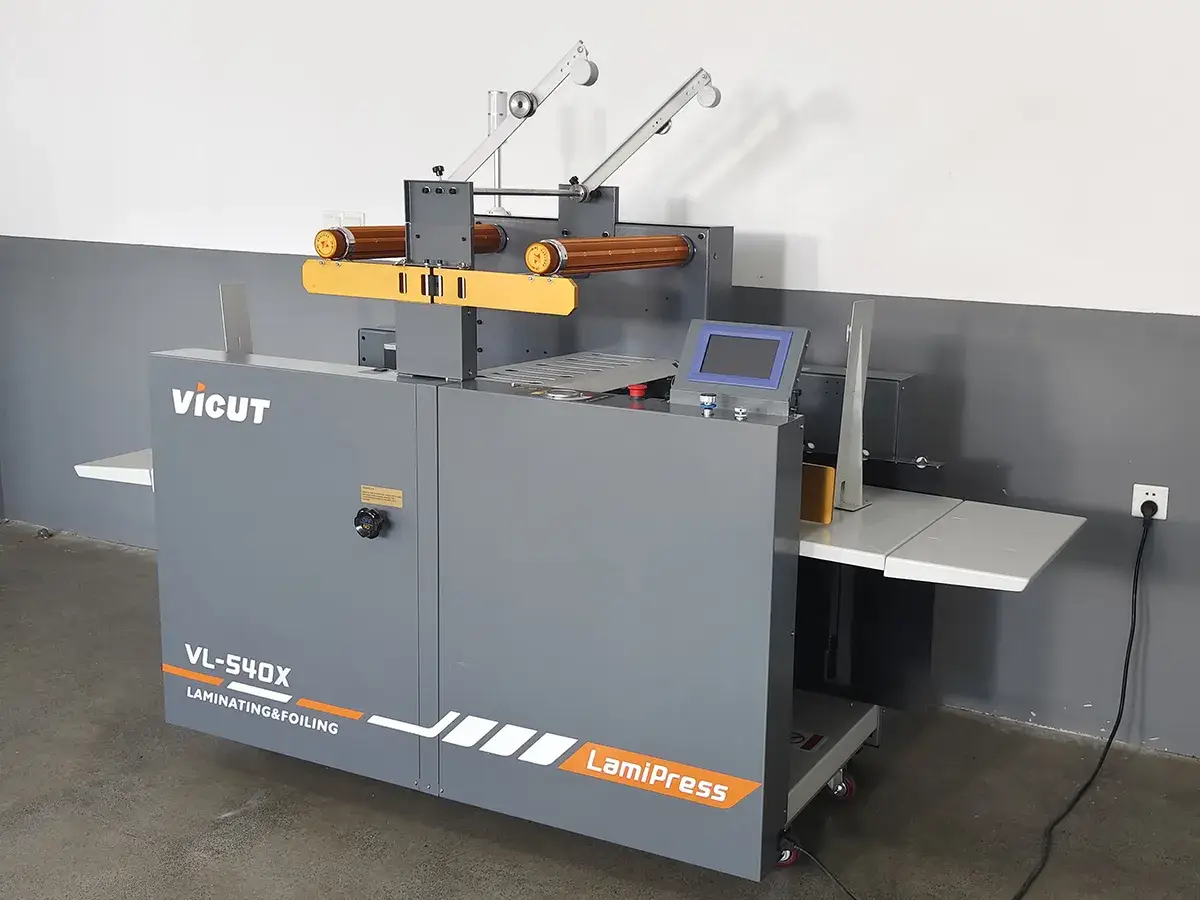

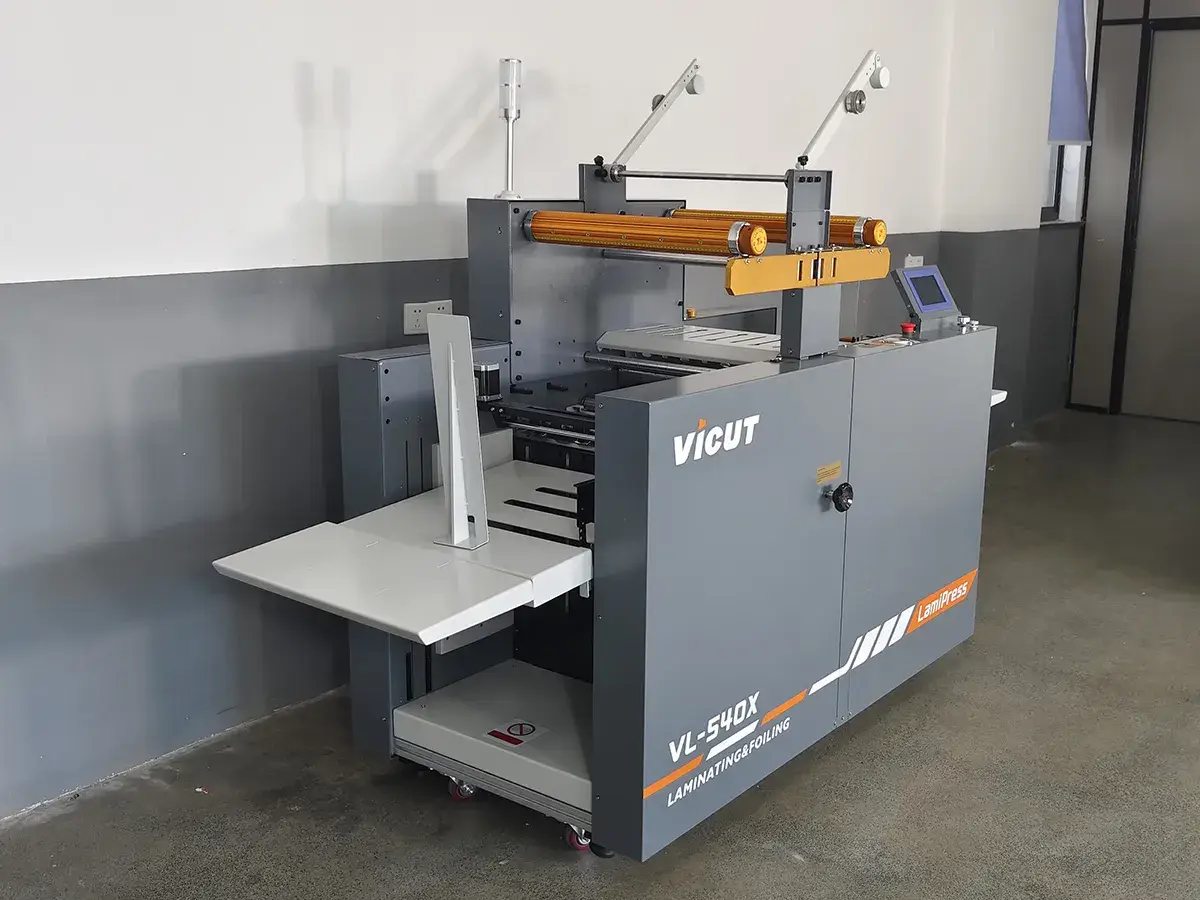

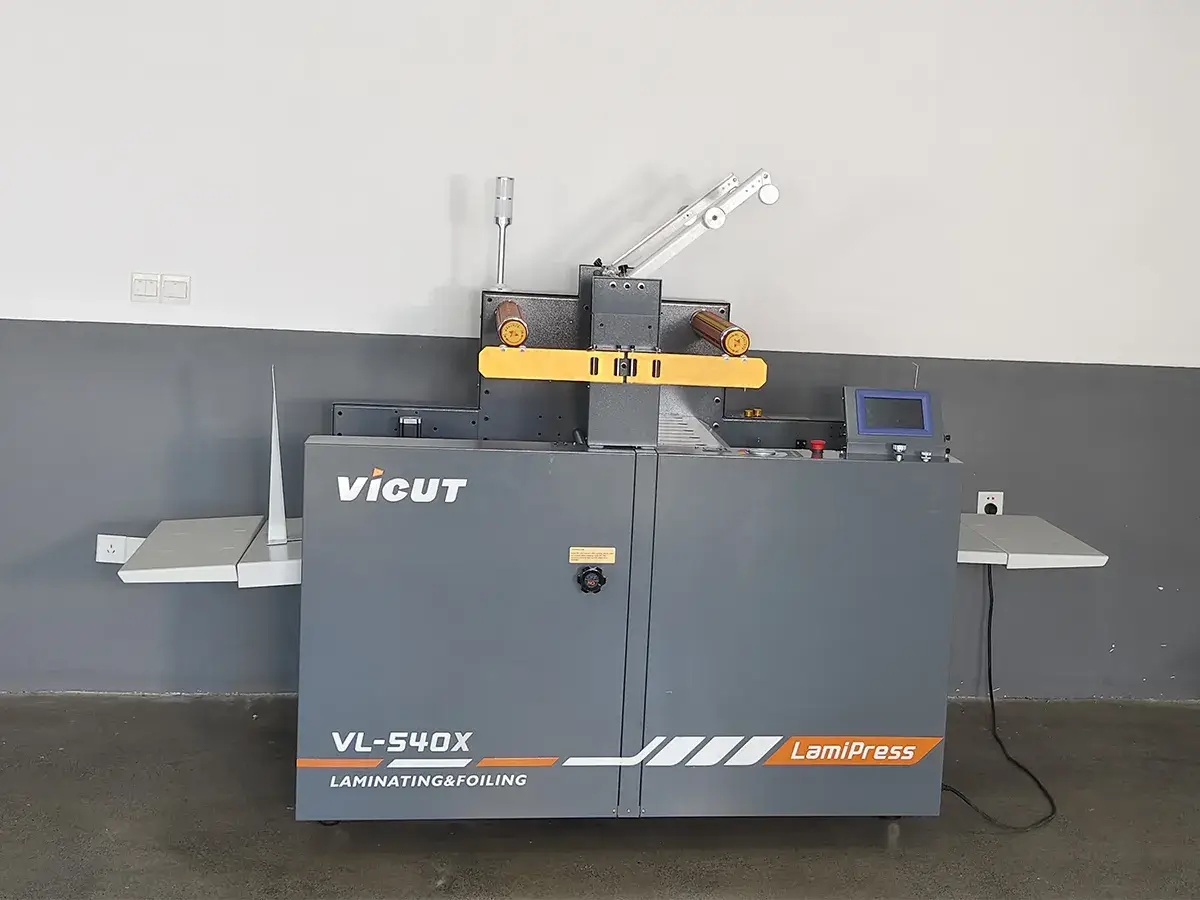

VL540X Automatic Foiling and Lamination System
High-volume sheet finishing becomes more efficient when feeding, laminating, foiling, cutting, and collection are handled in one automated workflow. The automatic foiling and lamination system helps print shops, packaging businesses, and digital print providers protect printed sheets, add decorative finishes, and reduce manual operation during post-printing production.
By applying film to paper, cards, and other printed materials through heat and pressure, the system improves dust resistance, water resistance, surface protection, and visual appeal. It can be used as a hot laminator, cold laminator, or professional foiling system, making it suitable for books, packaging boxes, posters, covers, menus, business cards, and other printed products that need a cleaner, more premium finish.
With automatic paper feeding, lamination, sheet cutting, and paper collection, the system supports unattended processing and helps users increase production efficiency. The cold lamination liner waste removal function also makes cold lamination work cleaner and easier to manage.
| Min. Sheet Size | 297 × 210 mm |
| Max. Sheet Size | 540 × 800 mm (Optional length up to 1200 mm) |
| Operating Modes | Single-sided hot lamination, cold lamination, foiling |
| Heating Method | Electric heating tube |
| Warm-up Time | 5–10 minutes |
| Foiling Speed | 1–10 m/min |
| Coating Temperature | 20–120°C |
| Paper Weight | 125–400 gsm |
| Pressure Drum Diameter | 176 mm |
| Film Core Diameter | 3 inches |
| Max. Film Roll Diameter | 280 mm |
| Max. Film Width | 540 mm |
| Control Panel | Resistive LCD touch screen |
| Temperature Control | Electronic |
| Pressure System | Hydraulic |
| Feeding System | Automatic suction feeding |
| Collection System | Adjustable collecting tray |
| Pull-off System | Electric cam control |
| Perforation | Included |
| Anti-curl Technology | Included |
| Sheet Bursting System | Automatic |
| Power Consumption | 3400 W |
| Power Supply | 220–240 VAC, 50/60 Hz |
| Operating Humidity | 20%–80% RH |
| Net Weight | 470 kg |
| Gross Weight | 606 kg |
| Machine Dimensions (L×W×H) | 2000 × 900 × 1800 mm |
| Package Dimensions (L×W×H) | 2150 × 1000 × 1550 mm |
- Automatic suction paper feeding
The lifting feed platform can hold media stacks up to 50 cm high, equivalent to about 56,000 sheets of 60 gsm copy paper, helping users process longer runs with less frequent loading.
- Anti-curl technology
Dedicated anti-curl control helps keep laminated menus, covers, business cards, and other sheets flat, reducing curling and edge lifting after finishing.
- Open base structure
The hollow base design provides convenient space for storing paper, film, and tools, while the bottom wheels make the system easier to move in print shops and workshops with limited space.
- Electric tube heating
Electric tube heating provides safer operation compared with traditional oil-pressure heating systems, reducing risks linked to heated oil systems.
- High-definition touch screen
The clear touch interface makes operation easier to understand and helps operators manage settings more efficiently.
- Standard film slitting knife
The built-in film slitting knife allows users to adjust film width according to different production needs.
-

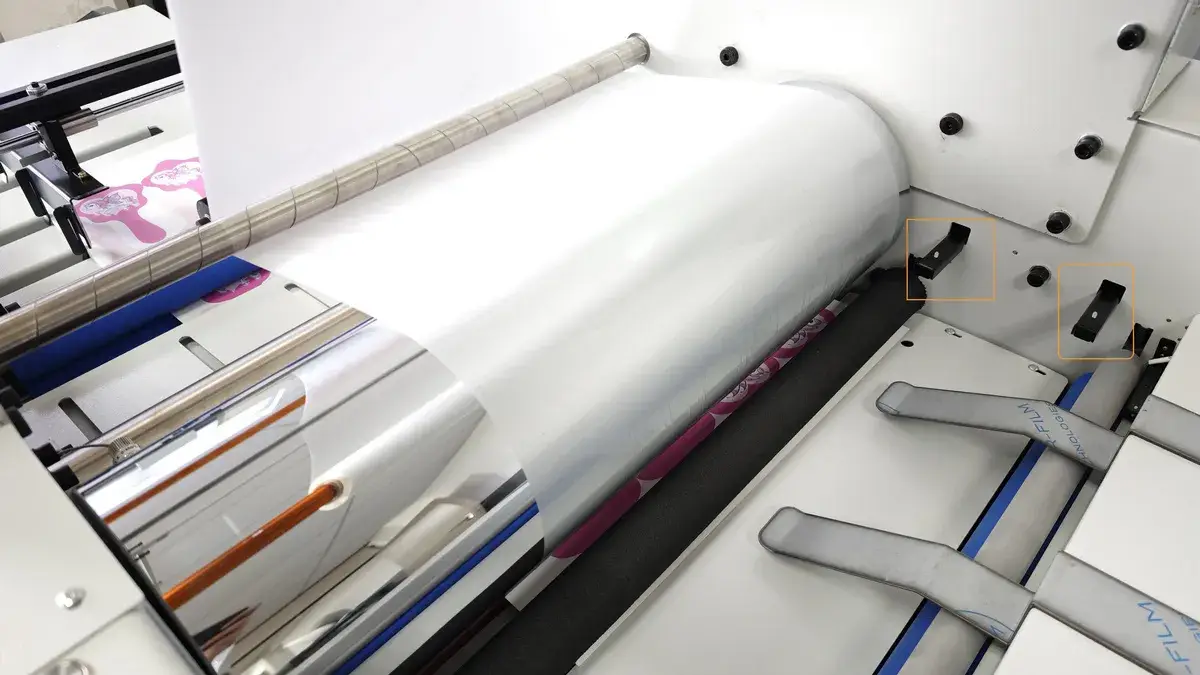

Automatic Paper Feeding SystemThe automatic paper feeding system keeps sheet feeding stable and efficient, helping reduce manual handling during long lamination and foiling runs.
-

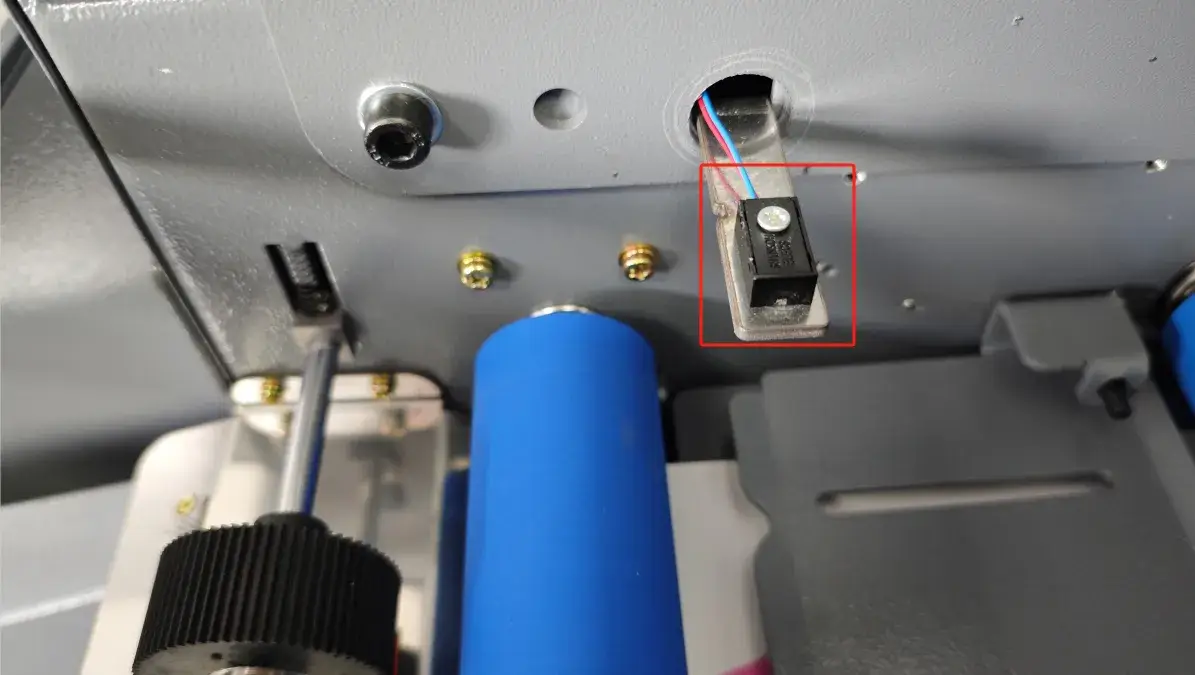

Intelligent SensorThe intelligent sensor detects sheet position and supports automatic adjustment, helping maintain consistent finishing quality across different paper types.
-

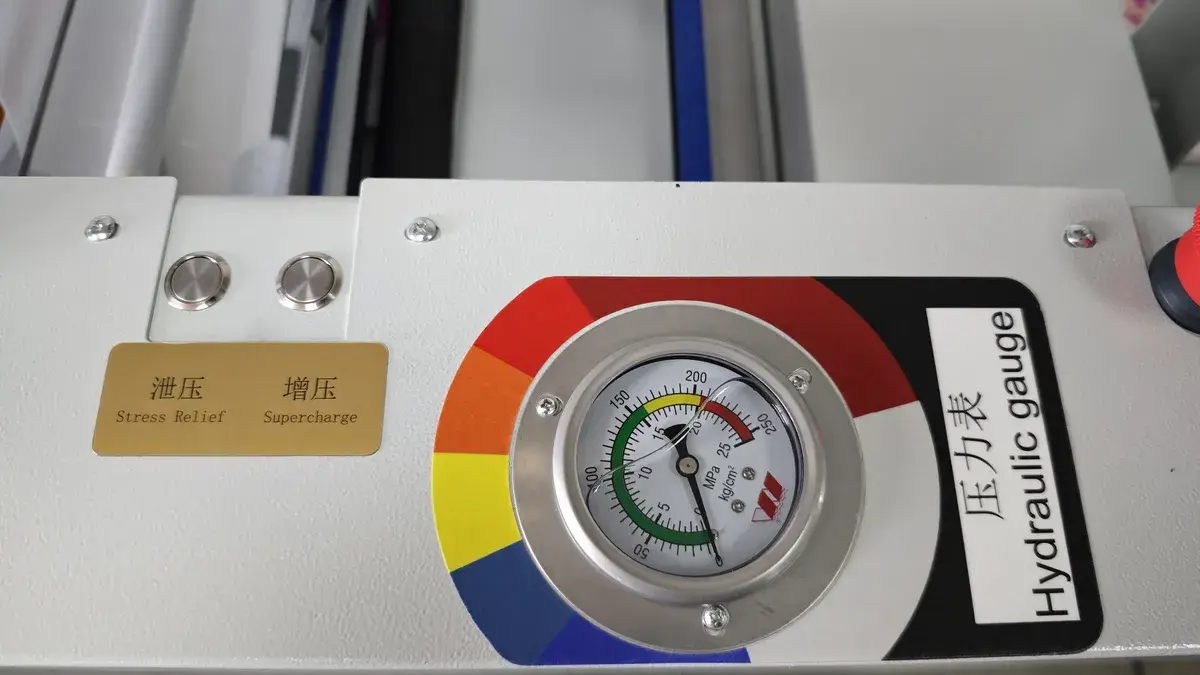

Automatic Hydraulic Pressure ControlAutomatic hydraulic pressure control applies stable pressure during lamination and foiling, supporting cleaner bonding, smoother surfaces, and more reliable output.
-

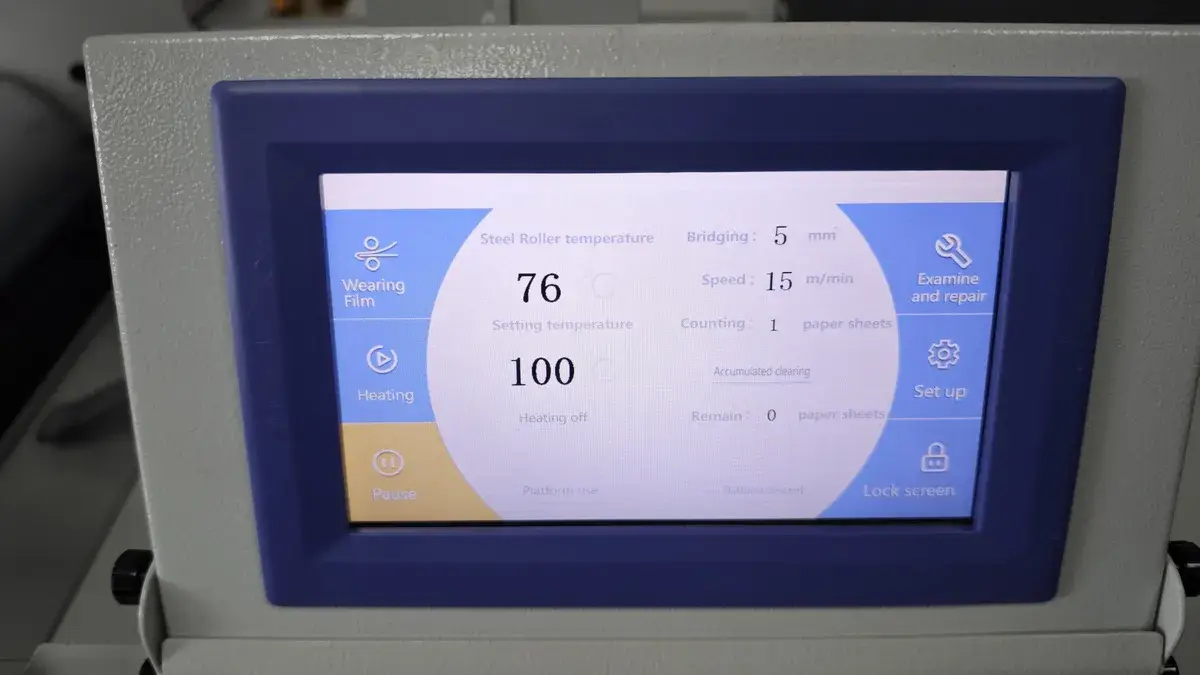

Easy-to-Use Touch PanelThe touch panel provides a clear control interface, making daily operation simple and easy to manage for operators.
-

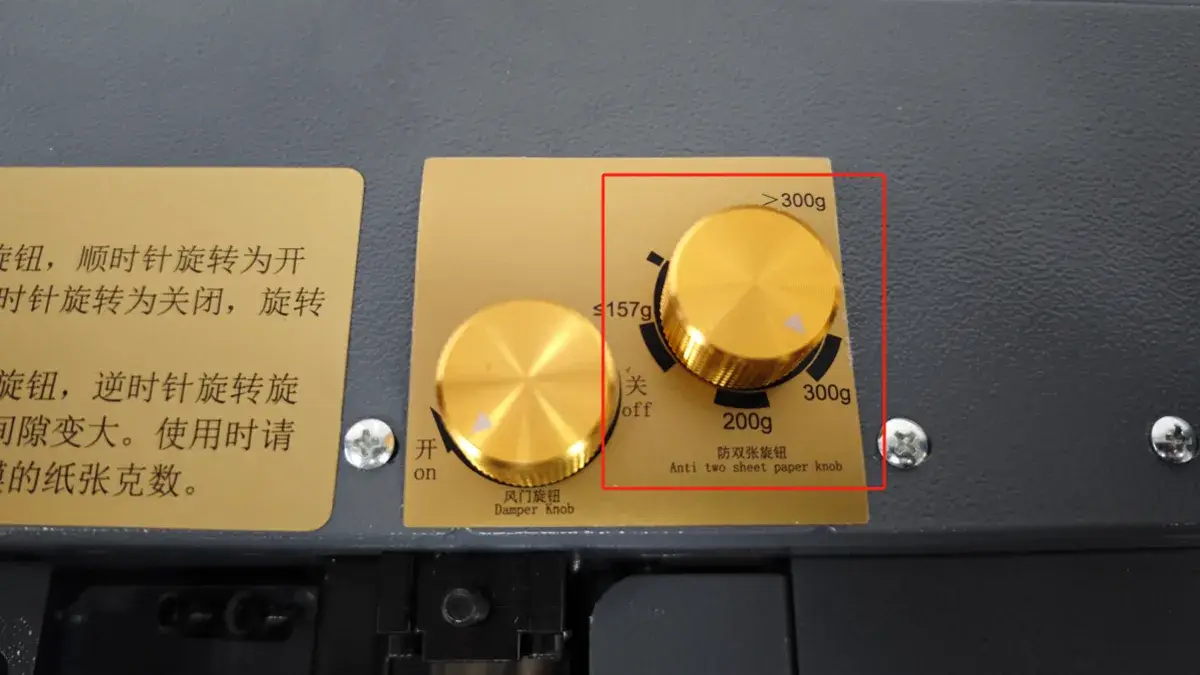

Anti-Double Sheet Adjustment SystemThe anti-double sheet adjustment system helps prevent two sheets from entering together, reducing feeding errors and protecting finished print quality.
-
Safety ProtectionBuilt-in safety protection supports safer operation during feeding, lamination, foiling, cutting, and collection.
-

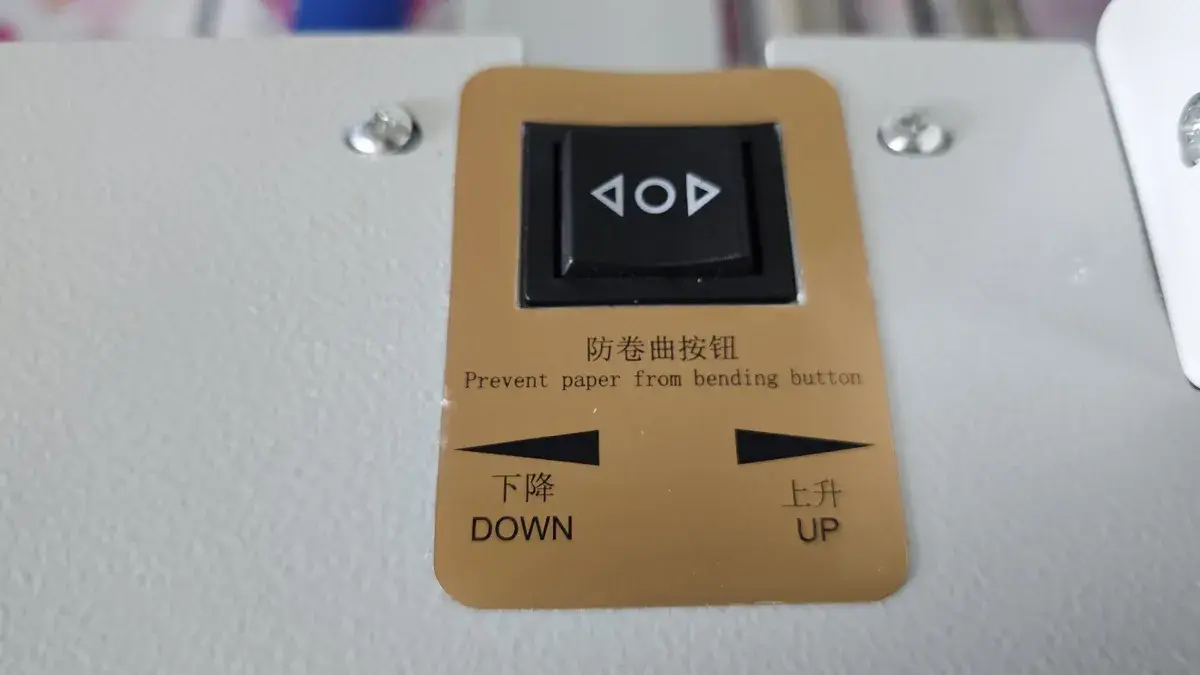

Anti-Curl ButtonThe anti-curl function helps keep laminated sheets flat, reducing curling and edge lifting after finishing.
-

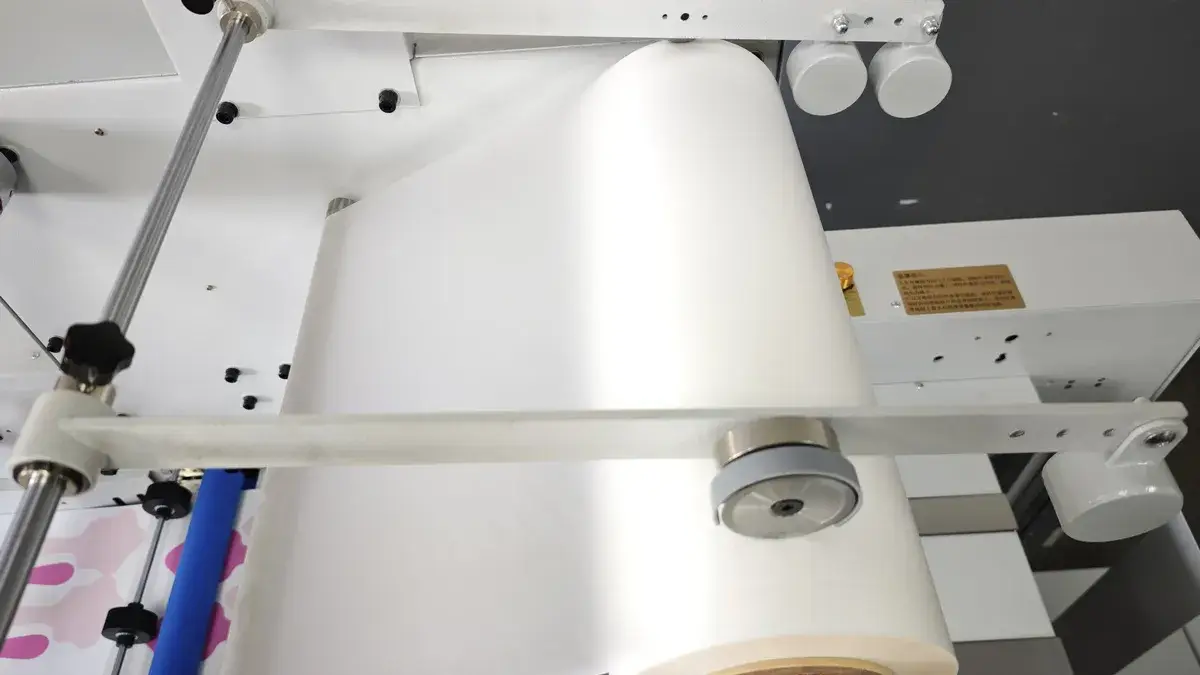

Unwinding Roller ShaftThe manually locked unwinding roller shaft allows faster film loading without removing the shaft, making film changeover more convenient.
-

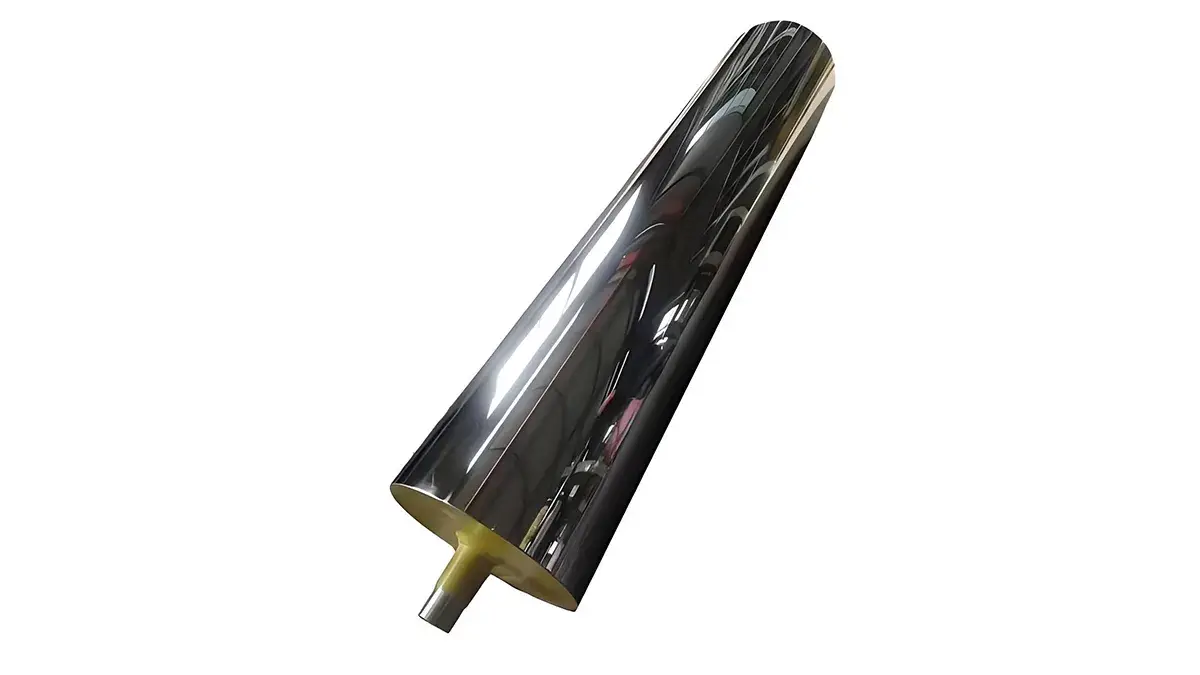

Mirror Pressure RollerThe mirror pressure roller provides smooth and even pressure transfer, helping create a cleaner surface finish on laminated and foiled sheets.
-

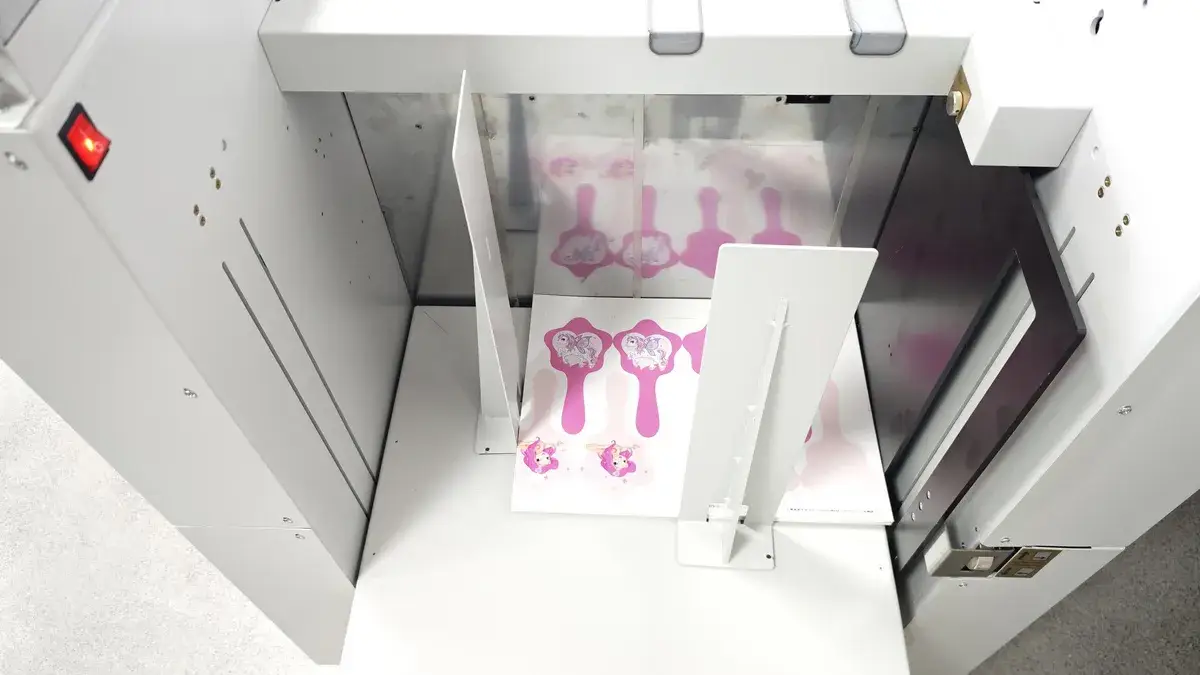

Collection SystemThe collection system automatically stacks finished sheets neatly after lamination. With capacity for paper piles up to 500 mm high, it supports longer unattended production runs.
-
Cold Lamination FilmsCold lamination films provide different surface finishes, including glossy, matte, and soft-touch effects. They are suitable for offset prints and digital printed materials that need surface protection and a refined finish.
-
Metallic Foiling FilmsMetallic foiling films create bright metallic effects on printed sheets, helping covers, business cards, invitations, packaging boxes, and promotional prints achieve a more premium look.
-

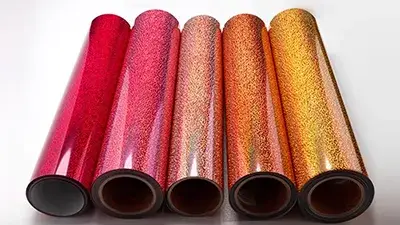

Holographic Foiling FilmsHolographic foiling films add decorative visual effects such as sparkle, milky way, crystal, carbon fiber, and other specialty finishes for creative and high-value printed products.
Stickers
Business Cards
DIY Invitation Cards
DIY Packaging Boxes
Product Brochures
Menus
