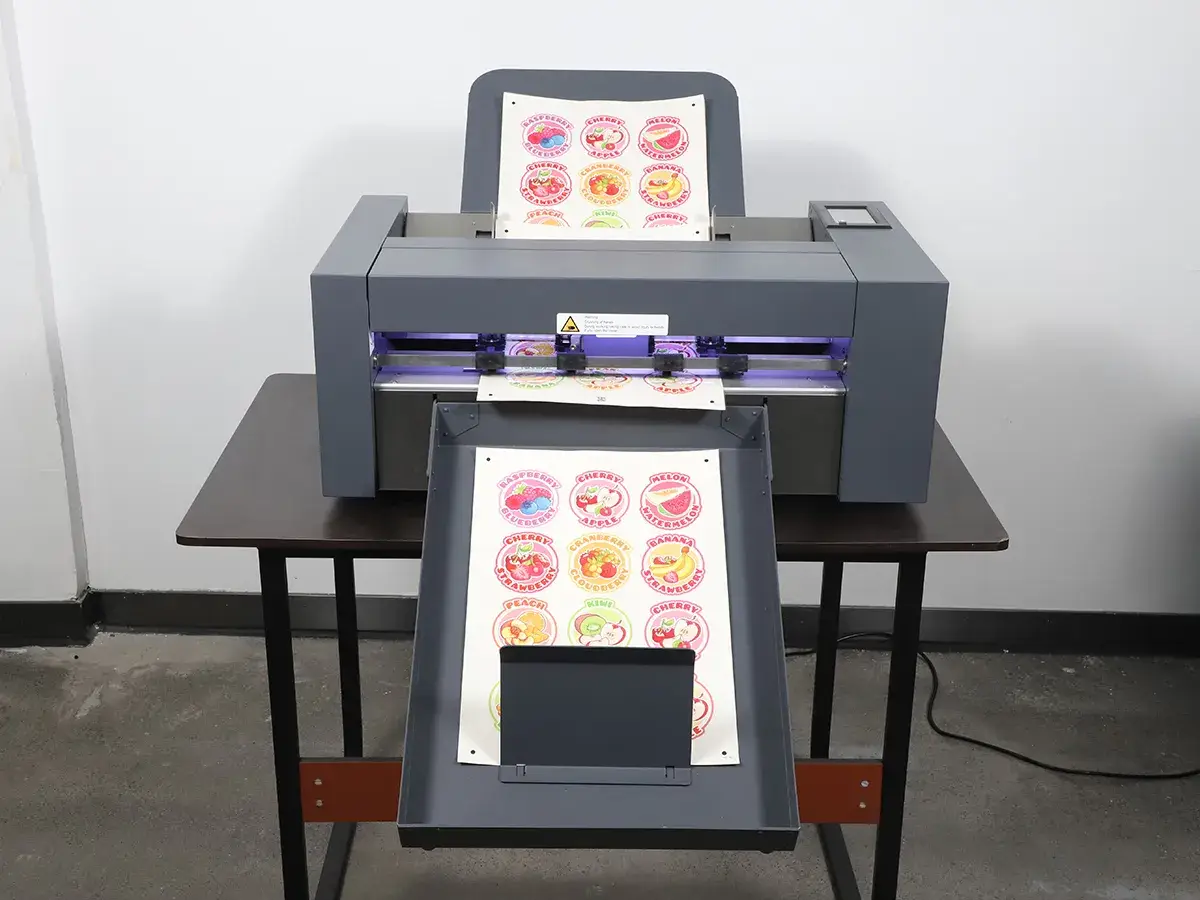

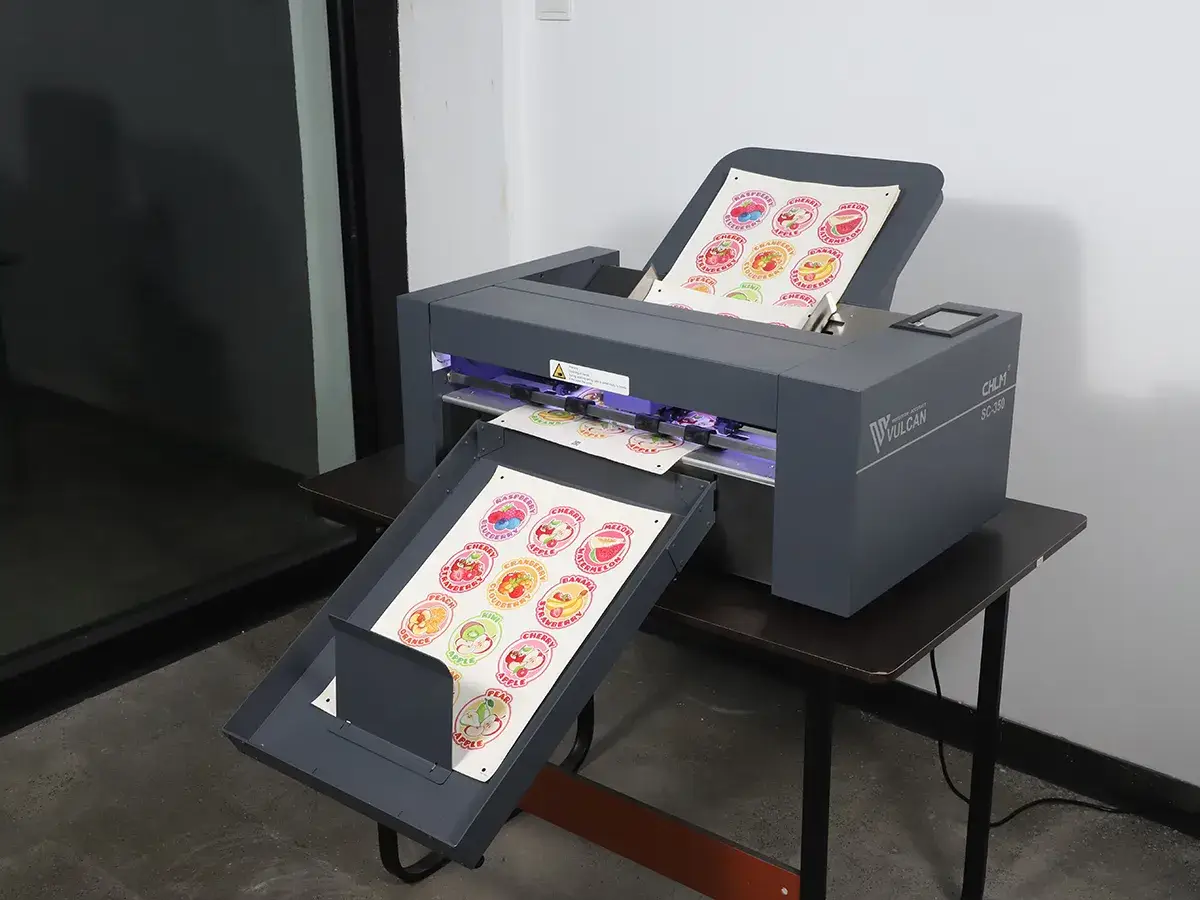

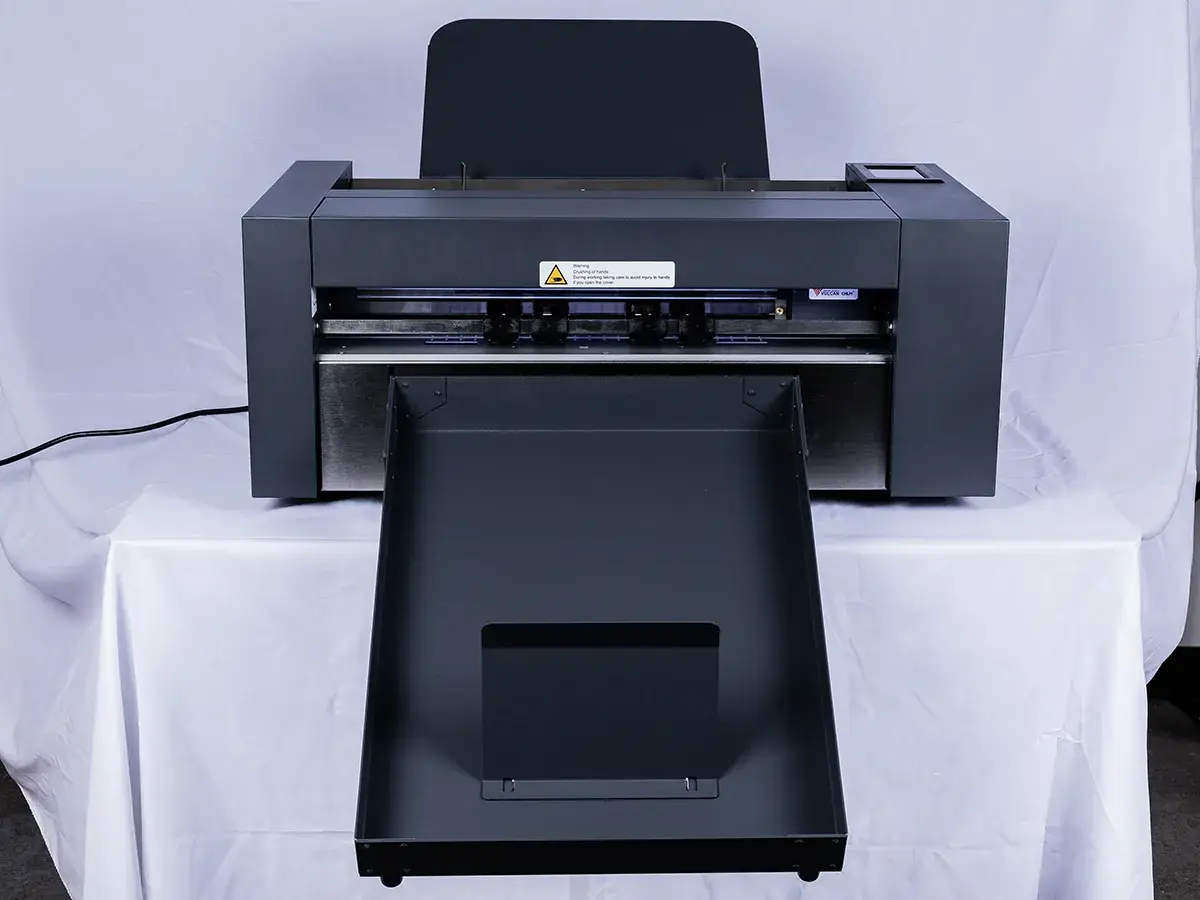

SC-350Automatic Sheet Label Cutter
Short-run sheet label production becomes easier when feeding, mark detection, and contour cutting are handled automatically. The automatic sheet label cutter helps copy shops, print shops, office print centers, and label producers process printable self-adhesive sheets in formats such as A3 and A4 with less manual operation.
With a CCD camera, automatic sheet feeding system, and digital cutting blade, the sheet label cutter can recognize QR codes or registration marks and complete contour cutting, kiss cutting, and custom-shape cutting automatically. This makes it suitable for on-demand labels, small-batch sticker production, and personalized label jobs where fast setup and flexible cutting are important.
The automatic sheet label cutter can process a wide range of printable self-adhesive materials, including photo paper, T-shirt transfer paper, photo-quality inkjet cards, stickers, glossy paper, transparent film, and other sheet label materials.
| Model | |
| Supported Media Size | Width: 185–350 mm, Length: 150–800 mm (A4, A3, SRA3, and custom sizes) |
| Scan Device | High-resolution CCD camera |
| Registration Mark Type | Dot mark |
| Job Retrieval | QR code |
| Paper Feeding Time | 2 seconds (SRA3 sheet) |
| Mark Detection Time | 4 seconds (SRA3 sheet) |
| Max. Cutting Speed | 1200 mm/s (High-speed mode) |
| Interfaces | USB 2.0 (Full speed), USB flash drive, Network |
| Software | SignCut Pro 2 (Supports Adobe Illustrator / CorelDRAW plugins) |
| Max. Cutting Force | 400 gf |
| Drive System | Servo |
| Command Sets | HP-GL |
| Operation Mode | PC / USB flash drive |
| Mechanical Resolution | 0.01254 mm |
| Cutting Tool | Cemented carbide blade |
| Cutting Accuracy | ±0.2 mm (Contour cutting) |
| Min. Character Size | Approx. 5 mm square |
| Media Weight | Up to 350 gsm |
| Exit Tray Capacity | 200 sheets (Up to 40 mm) |
| Control Panel | 4.3-inch touch LCD |
| Compatible OS | Windows and macOS |
| Power Supply | 100–240 VAC, 50/60 Hz (Auto-switching) |
| Power Consumption | 60 W |
| Operating Environment | Temperature: 10°C–35°C Humidity: 35%–75% RH (Non-condensing) |
| Dimensions (W × D × H) | With exit tray: 406 × 462 × 186 mm With media support tray: 1109 × 747 × 594 mm |
| Weight (G.W. / N.W.) | 36 kg / 33 kg |
| Package Dimensions (L × W × H) | 870 × 550 × 580 mm (0.28 CBM) |
| Warranty | 2 years |
- Speed That Supports Productivity
Fast sheet feeding, quick mark detection, and a maximum cutting speed of 1200 mm/s help operators complete sheet label jobs more efficiently and improve daily production output.
- Multiple Data Transfer Modes
The automatic sheet label cutter supports U-disk, USB cable, and network file transfer, allowing users to choose the most convenient working mode for different production environments.
- Easy Plug-and-Play Operation
No additional drivers are required, making setup simple for new users. The 4.3-inch HD touch screen responds quickly and makes daily operation more intuitive.
- Easy Access for Maintenance
Removable side panels make maintenance more convenient. Three internal sensors help operators check machine status and locate issues faster. If a sensor fails, feedback appears directly on the display screen, reducing the need for manual inspection one by one.
-
User-Friendly Touch ScreenThe touch screen provides a clear control interface, making sheet label cutting, file setup, and daily operation easier for operators.
-

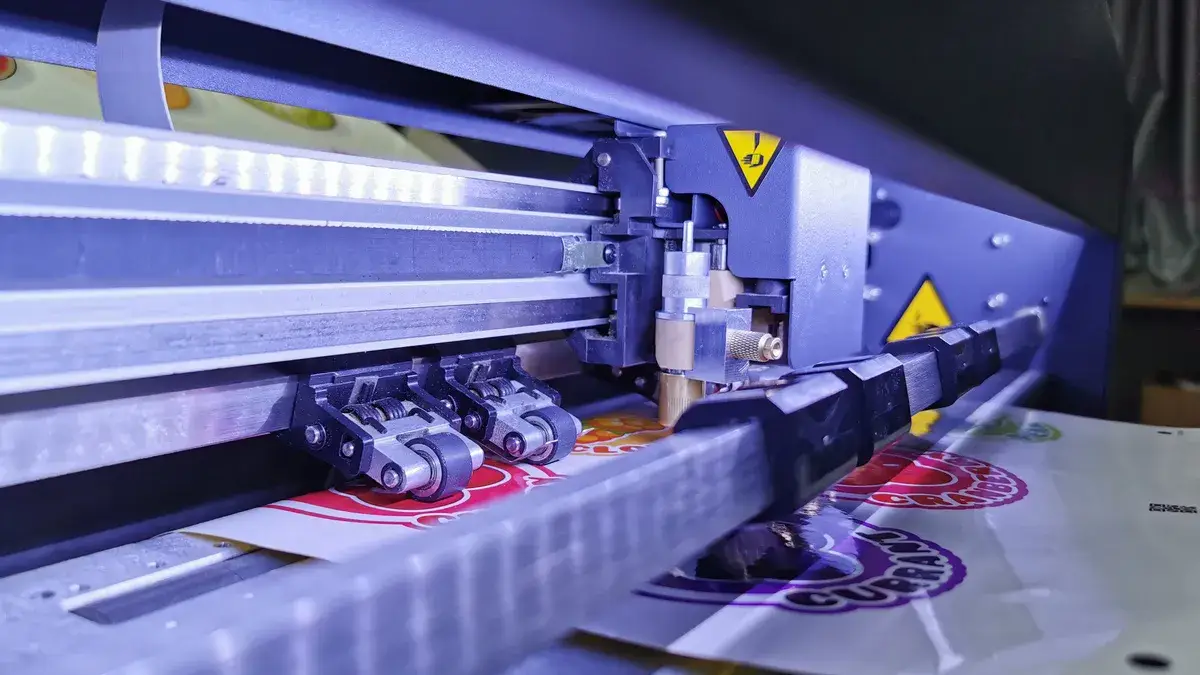

Stable CarriageThe stable carriage supports smooth blade movement, helping the automatic sheet label cutter maintain consistent cutting quality during repeated jobs.
-

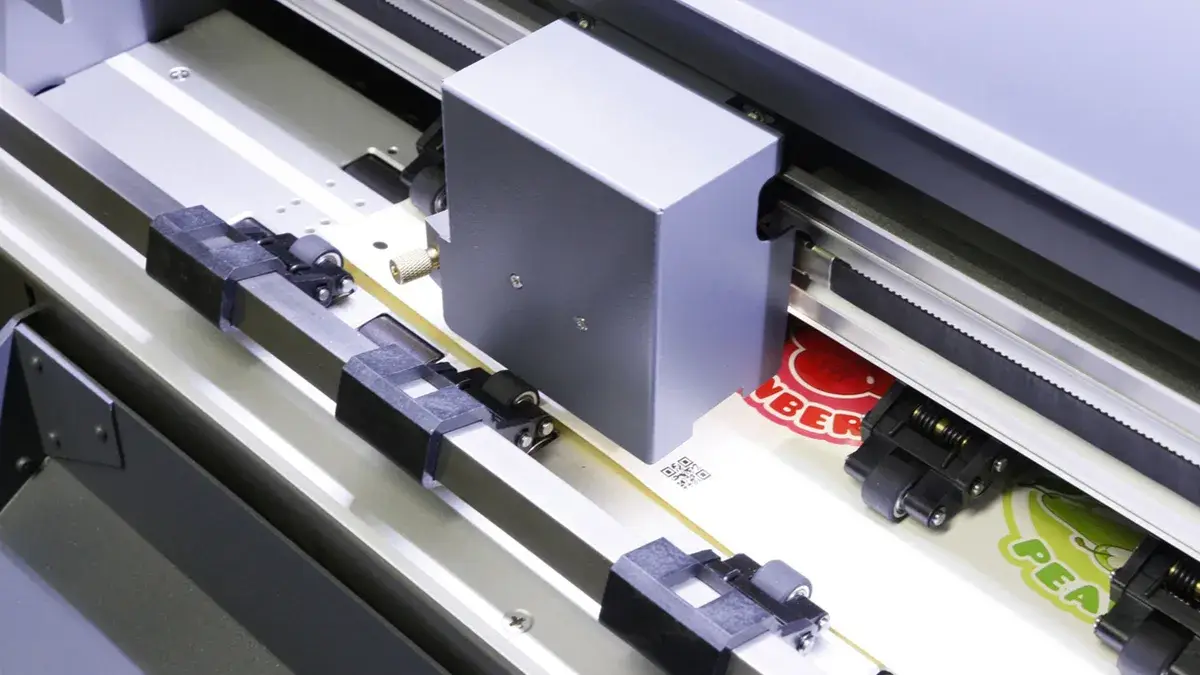

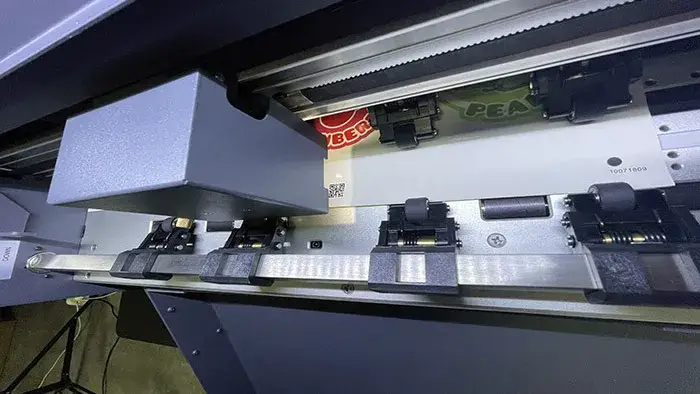

Camera SystemThe camera system detects registration marks on printed sheets, supporting accurate contour cutting for labels, stickers, and custom shapes.
-
QR Code SystemThe QR code system allows automatic job retrieval, making mixed-order sheet label cutting faster and easier to manage.
-

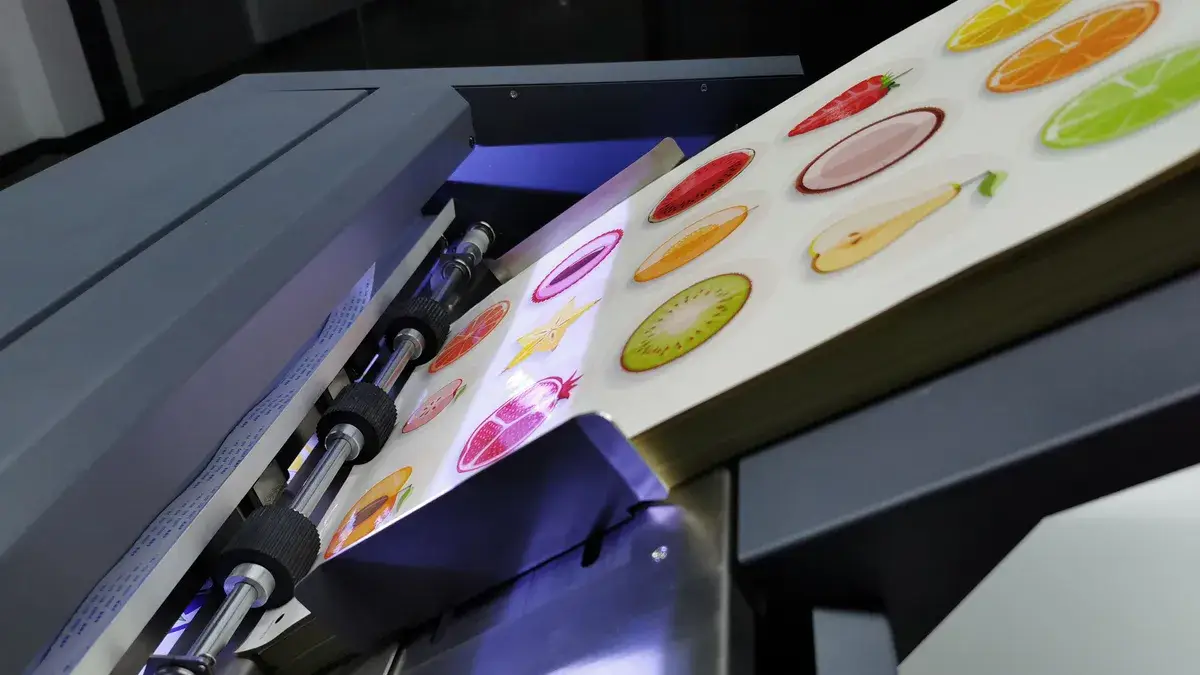

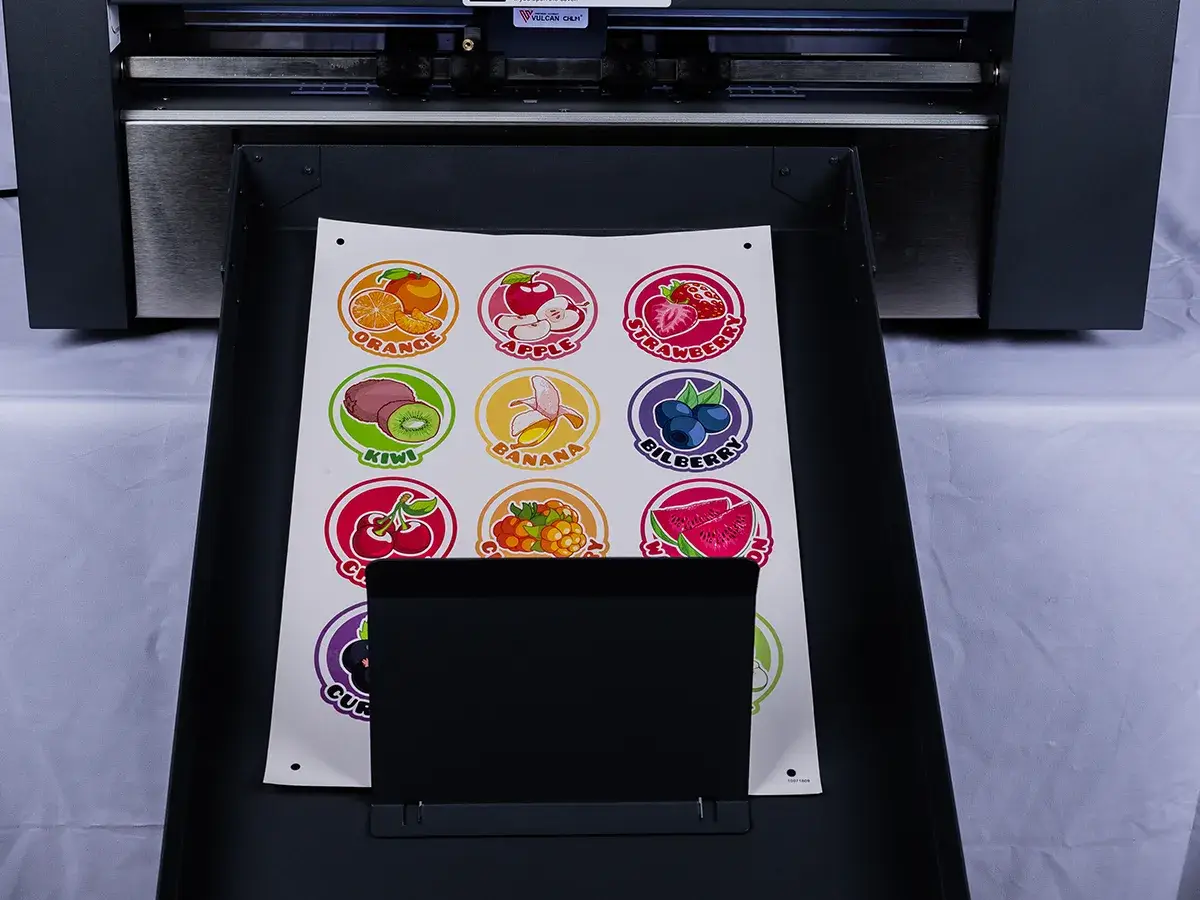

Automatic Paper Feeding SystemAutomatic paper feeding reduces manual handling and supports continuous sheet processing for short-run and on-demand label production.
-

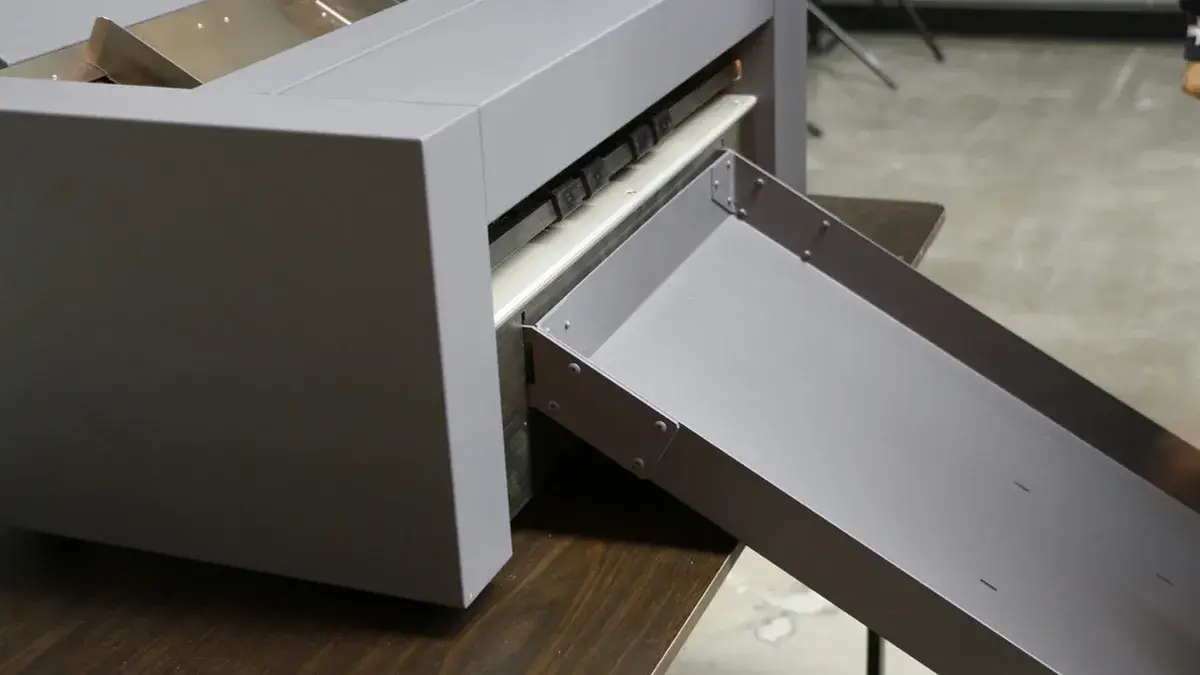

Large-Capacity Exit TrayThe large-capacity exit tray collects finished sheets neatly, helping operators keep output organized during batch cutting.
-
LED Working LightThe LED working light improves visibility around the cutting area, making operation and checking easier.
-

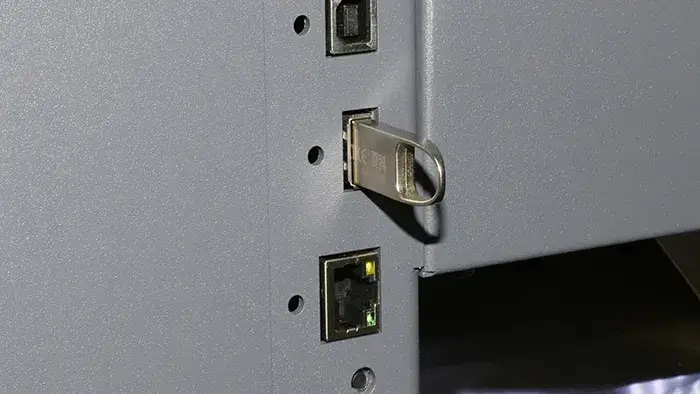

U-Disk FunctionU-disk support allows operators to load cutting files conveniently for flexible offline production.
-
Network InterfaceThe network interface supports easier file transfer and connection within different production environments.
-

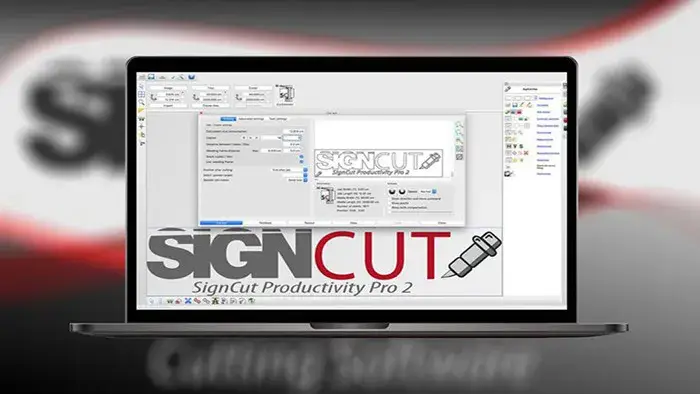

SignCut Pro SoftwareSignCut Pro software supports both Windows and Mac systems, helping users prepare and manage cutting jobs more flexibly.
