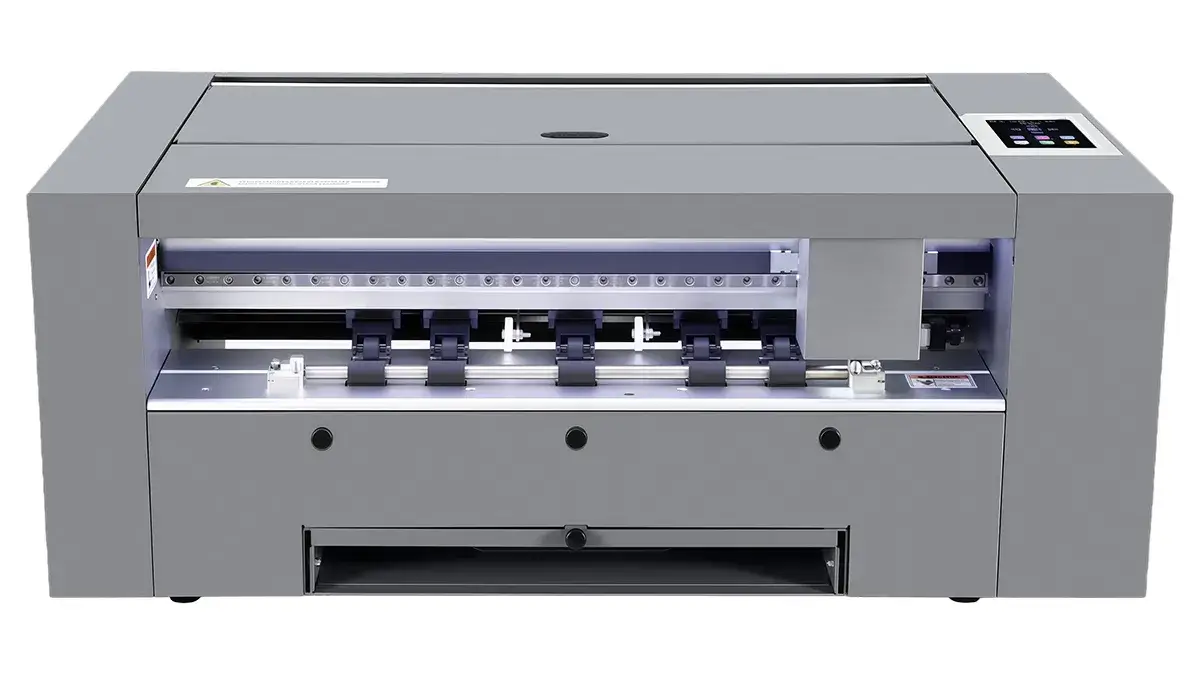

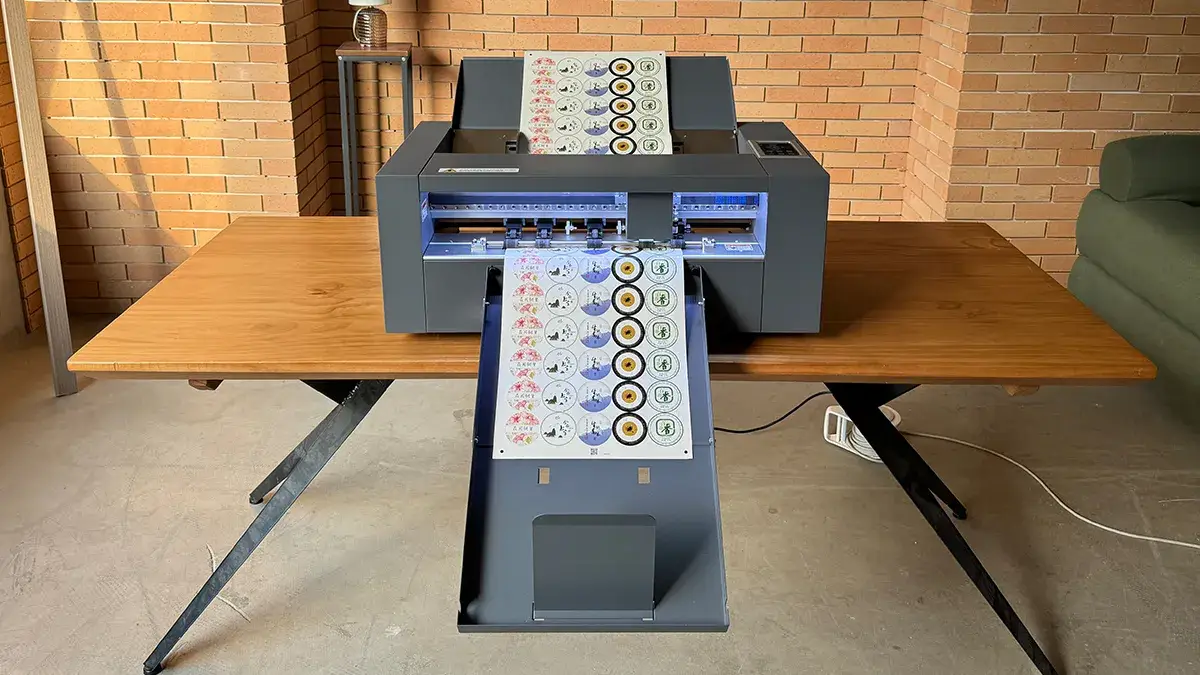

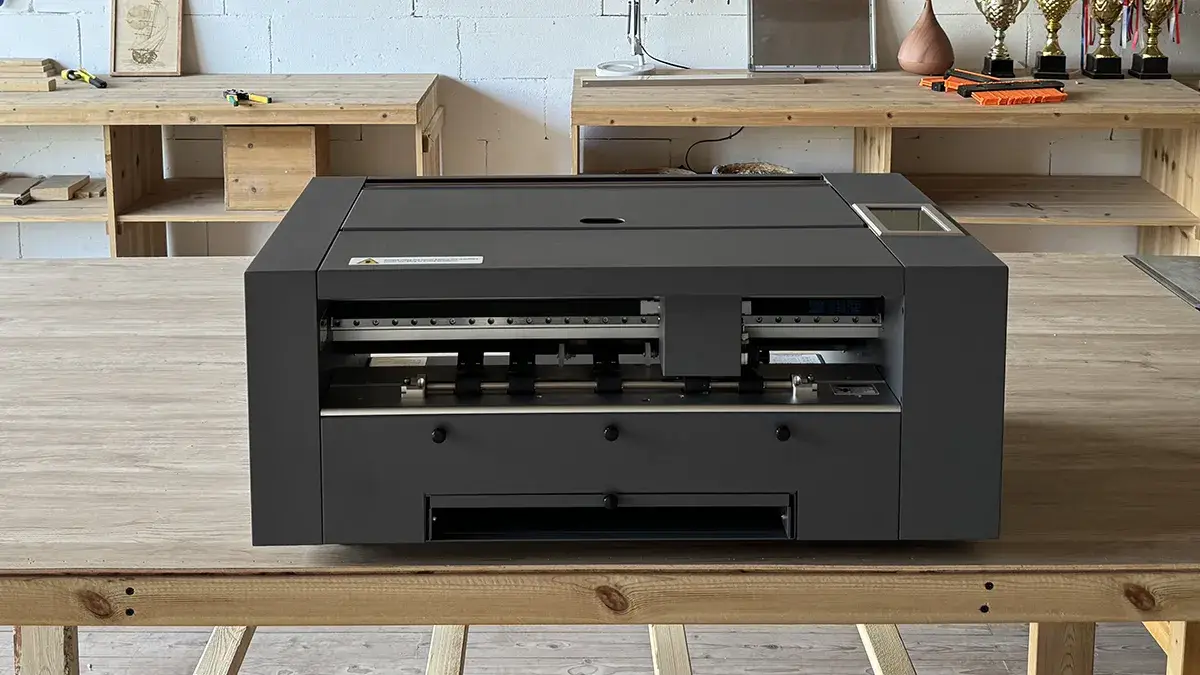

VSC-350ProDual Tool Sheet Cutter

Sheet-based finishing becomes more flexible when one cutter can handle half cutting, full cutting, and creasing in the same workflow. The dual tool sheet cutter is designed for users who need more than standard sheet label cutting, making it suitable for stickers, labels, tags, cards, and small packaging applications.

Equipped with two tools on one moving carriage, the cutter allows operators to process different finishing requirements more efficiently without changing machines. The heavy-duty structure supports stable long-term operation, helping print shops, copy centers, label producers, and packaging businesses manage repeated jobs with reliable performance.

Request a Quote
Watch Videos

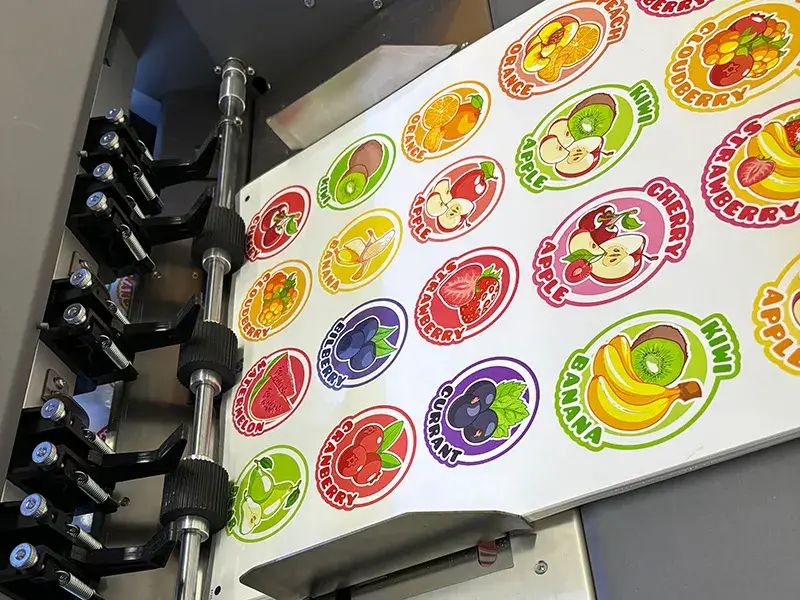

Applications Half-Cut Stickers and Sheet Labels

Suitable for half cutting stickers, sheet label stock, DIY labels, signs, and other adhesive sheet materials that need clean contour cutting without cutting through the backing paper.

  • Half-Cut Stickers and Sheet Labels
  • Half-Cut Stickers and Sheet Labels
  • Half-Cut Stickers and Sheet Labels
Full Cut and Creasing for Paper Cards

Supports full cutting and creasing on paper cards up to 400 gsm, making it practical for display packaging boxes, tags, cards, and other small-format paper products.

  • Full Cut and Creasing for Paper Cards
  • Full Cut and Creasing for Paper Cards
  • Full Cut and Creasing for Paper Cards
Technical Parameters
Configuration Digital servo system, auto-feeding, auto CCD scanning
Media Hold-down Method Dual-row pattern
Max. Cutting Speed 1600 mm/s
Max. Cutting Force 1000 gf
Effective Cutting Area 350 × 500 mm
Registration Mark Sensing CCD camera
Supported Media Size A4, A3, A3+
Mechanical Resolution 0.005 mm (5 μm)
Programmable Resolution HP-GL: 0.025 mm
Repeatability ±0.1 mm
Standard Interfaces USB 2.0 (Full speed), USB flash drive (Offline), Network cable
Memory Capacity 32 MB
Command Sets HP-GL
Number of Tools 2 (Dual-tool carriage)
Tool Types Pen (drawing), cutter blade (half/full cut), creasing tool (folding)
Control Panel 5.1-inch touch LCD
Power Supply 100–240 VAC, 50/60 Hz (Auto-switching) Max. 100 VA (machine)
Operating Temperature 10°C–35°C
Operating Humidity 35%–75% RH (Non-condensing)
Machine Dimensions (L ×W × H) 1025 × 750 × 625 mm
Package Dimensions (L × W × H) 745 × 432 × 280 mm
Weight (G.W. / N.W.) 40 kg / 37 kg
Compatible OS & Software Windows and MacOS (with SignCut Pro, supports CDR & AI plug-in mode)
Main Features
    • Multiple Data Transfer Modes
      Multiple Data Transfer Modes

      The VSC-350Pro supports cutting file transfer via USB flash drive, USB cable, and network. Users can select the most suitable working mode based on their specific needs.

    • Stable & Fast Paper Feeding
      Stable & Fast Paper Feeding

      Equipped with a fully automatic, advanced constant paper feeding system, it ensures continuous multi-sheet cutting without paper jams, truly enabling "unattended" operation.

    • High-Precision Vision Alignment
      High-Precision Vision Alignment

      A built-in CCD camera automatically detects pre-printed registration marks, achieving micron-level positioning accuracy. This guarantees perfect alignment for pre-printed designs, logos, or variable data—even on irregularly shaped sheets.

    • User-Friendly & Versatile
      User-Friendly & Versatile

      Featuring an intuitive control interface, it is compatible with mainstream design software (Adobe Illustrator, CorelDRAW, etc.) and supports a wide range of materials (adhesive labels, paper, cardstock, thin PET, etc.).

    • Cost-Effective On-Demand Production
      Cost-Effective On-Demand Production

      It eliminates die-making costs and setup time, making it ideal for small-batch, personalized, and urgent orders. This reduces labor and equipment investment while greatly improving production flexibility.

    • Small Footprint, Robust Structure & Stable Performance
      Small Footprint, Robust Structure & Stable Performance

      The VSC-350Pro adopts a heavy-duty mechanical structure and high-quality components (including Taiwan PMI guide rails, Taiwan MW power supply, a full-aluminum voice-coil motor moving carriage, and a 5.1-inch color touch screen), ensuring a long service life and consistent, stable operation.

    • Free Firmware Upgrade
      Free Firmware Upgrade

      Our factory continuously develops and optimizes the machine’s functions, providing regular free firmware updates for all sold units to enhance performance and add new features.

More
Product Details

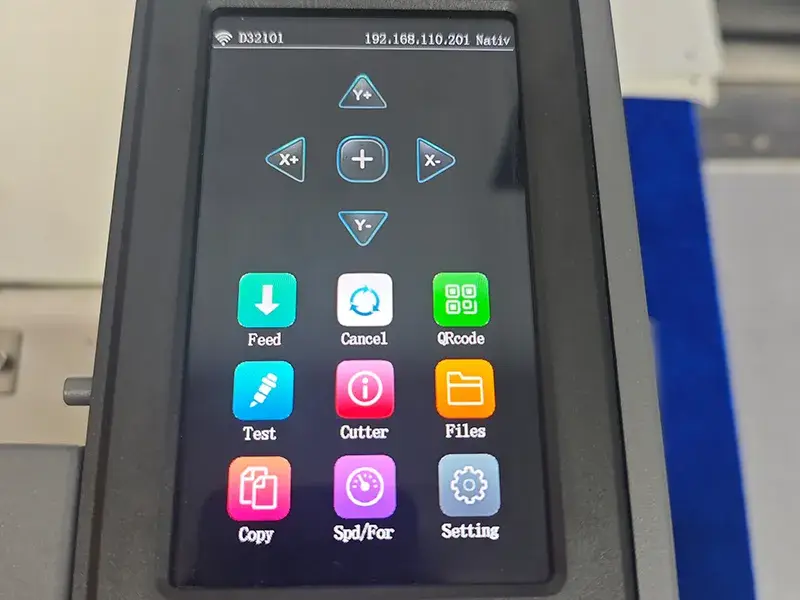

  • 5.1 inch Touchscreen5.1 inch Touchscreen

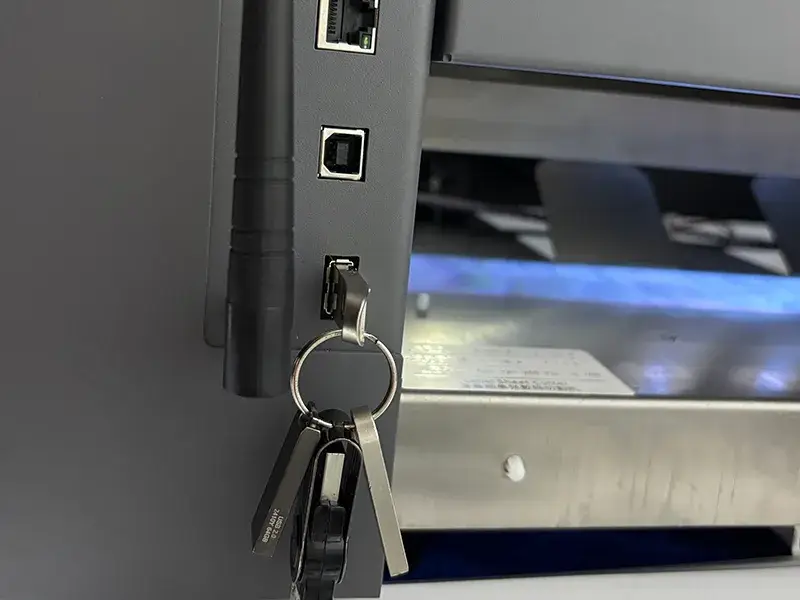

  • Ethernet + USB Type-B + USB Type-A & Wi-FiEthernet + USB Type-B + USB Type-A & Wi-Fi
  • Camera & QR Code SystemCamera & QR Code System

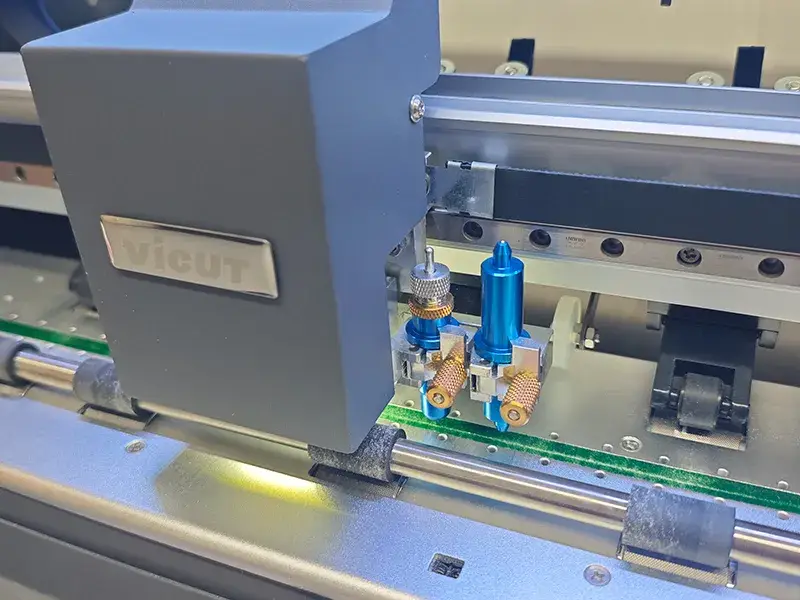

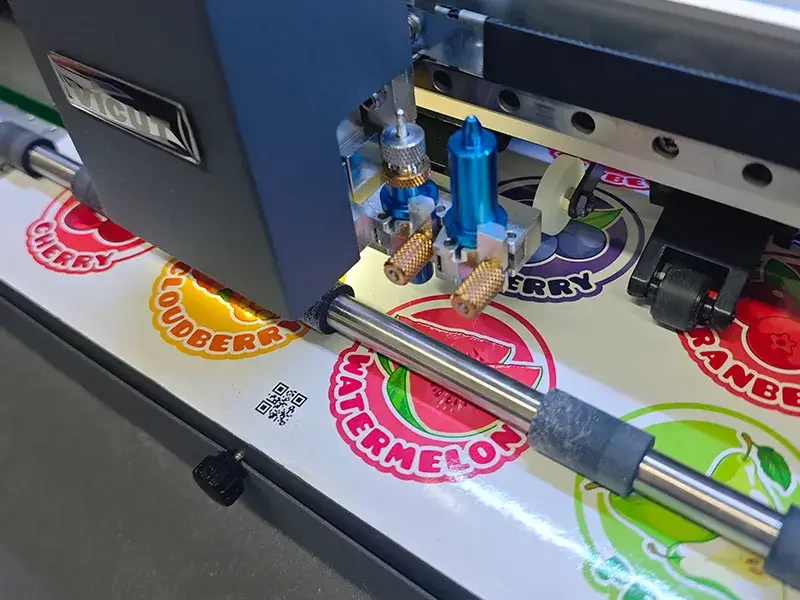

  • Heavy-duty Aluminum Carriage with Dual-toolHeavy-duty Aluminum Carriage with Dual-tool

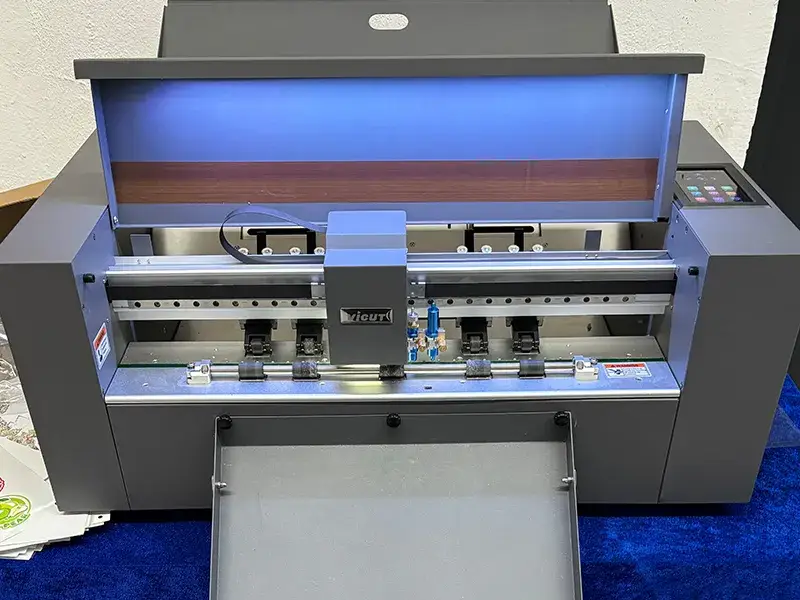

  • Large-capacity Output TrayLarge-capacity Output Tray

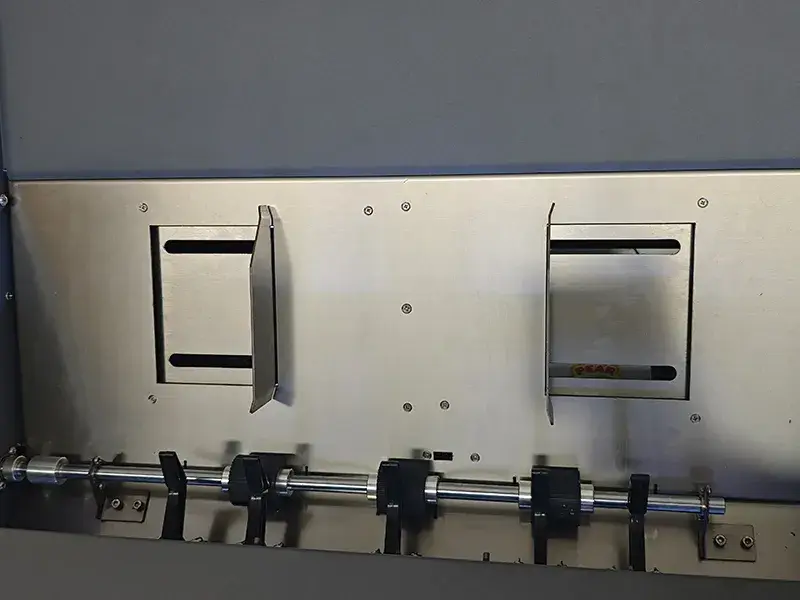

  • Paper Positioning FixturePaper Positioning Fixture

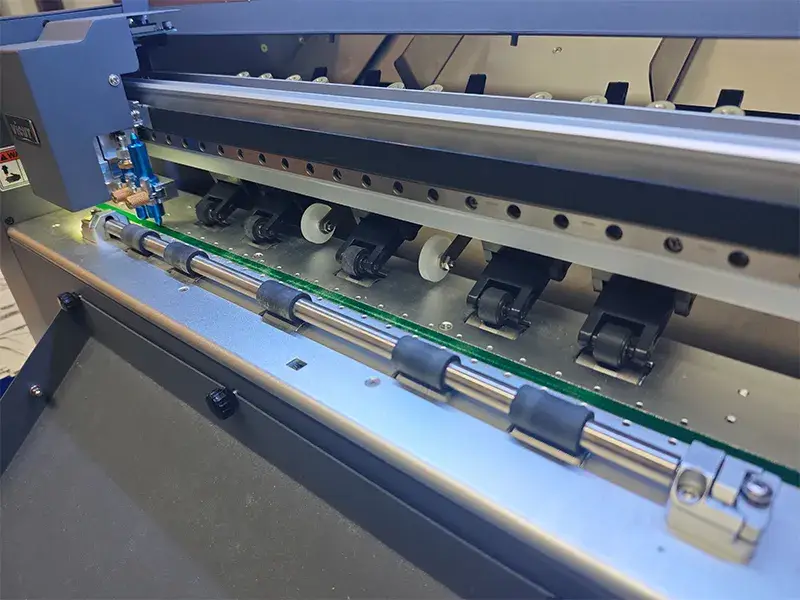

  • Paper Pickup RollerPaper Pickup Roller

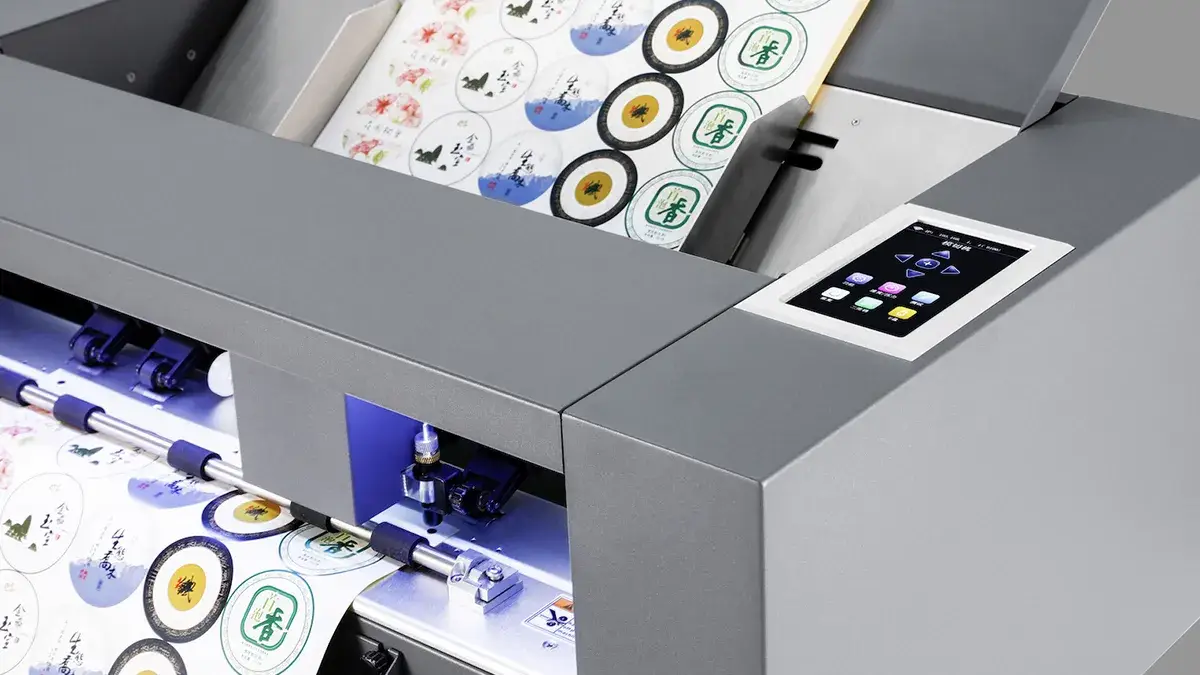

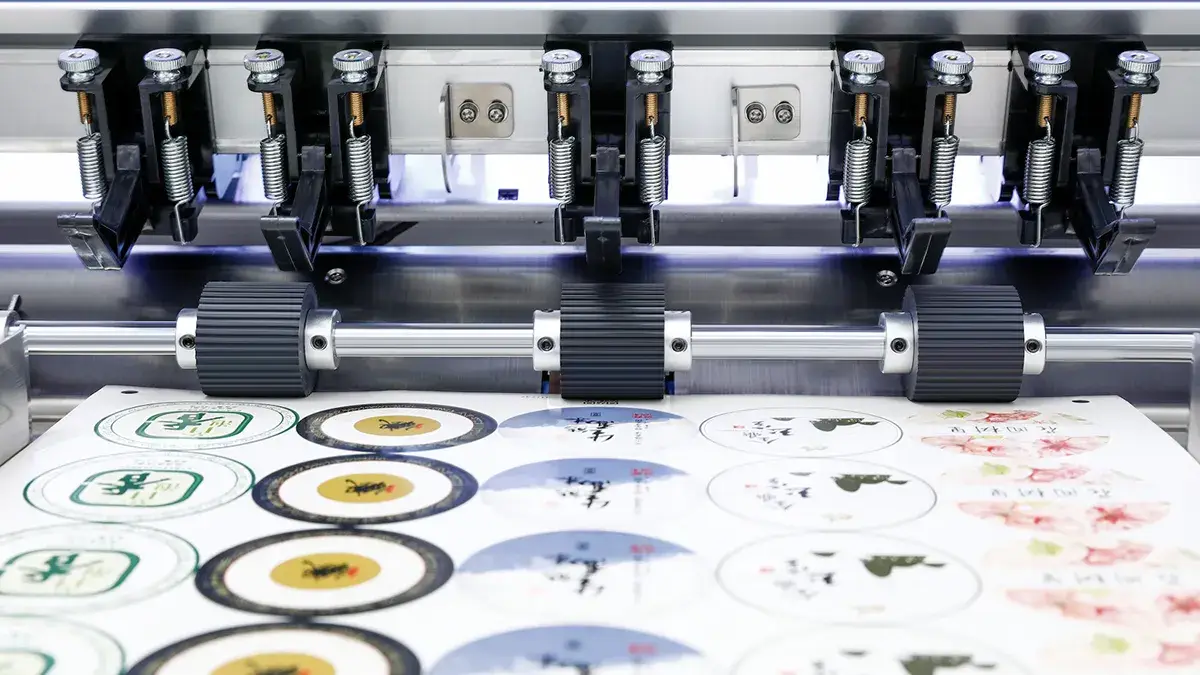

  • Automatic Paper Feeding SystemAutomatic Paper Feeding System
