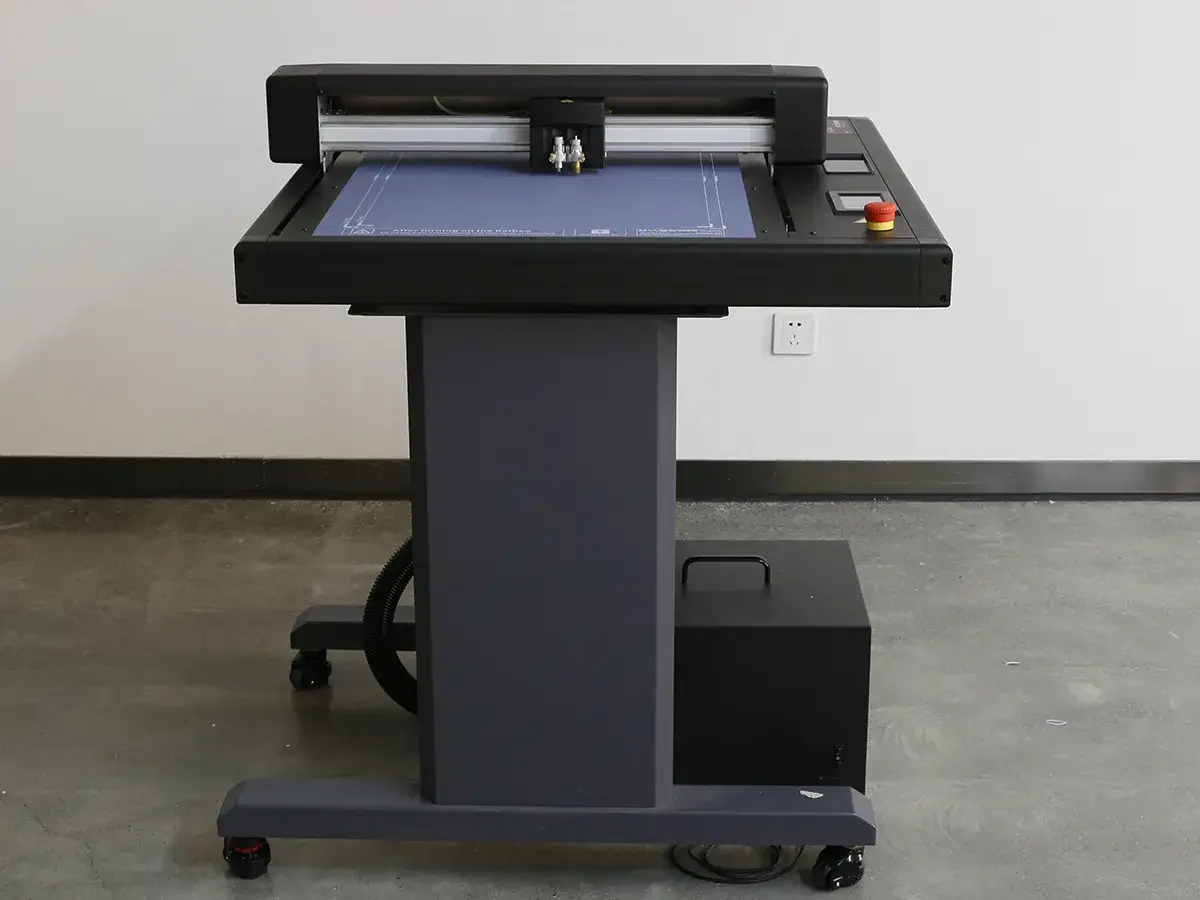

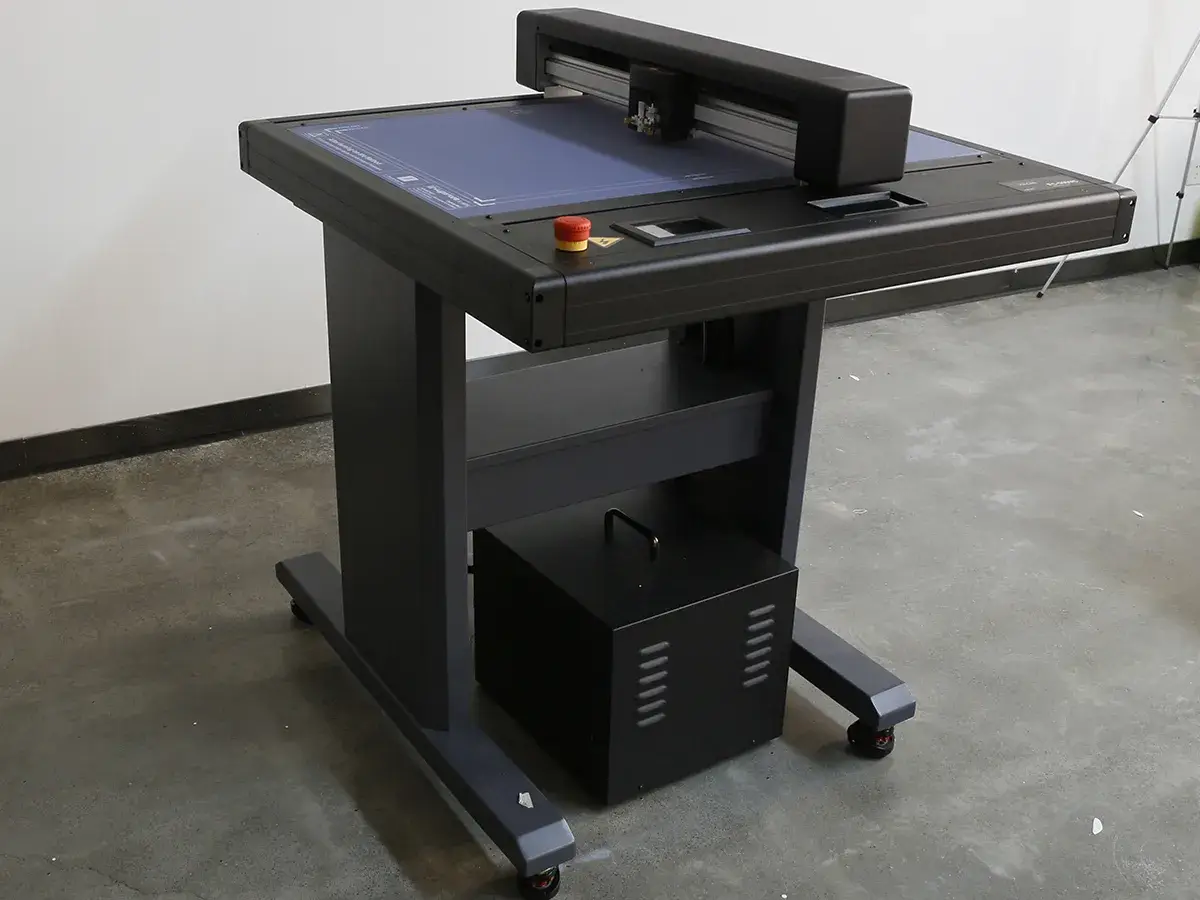

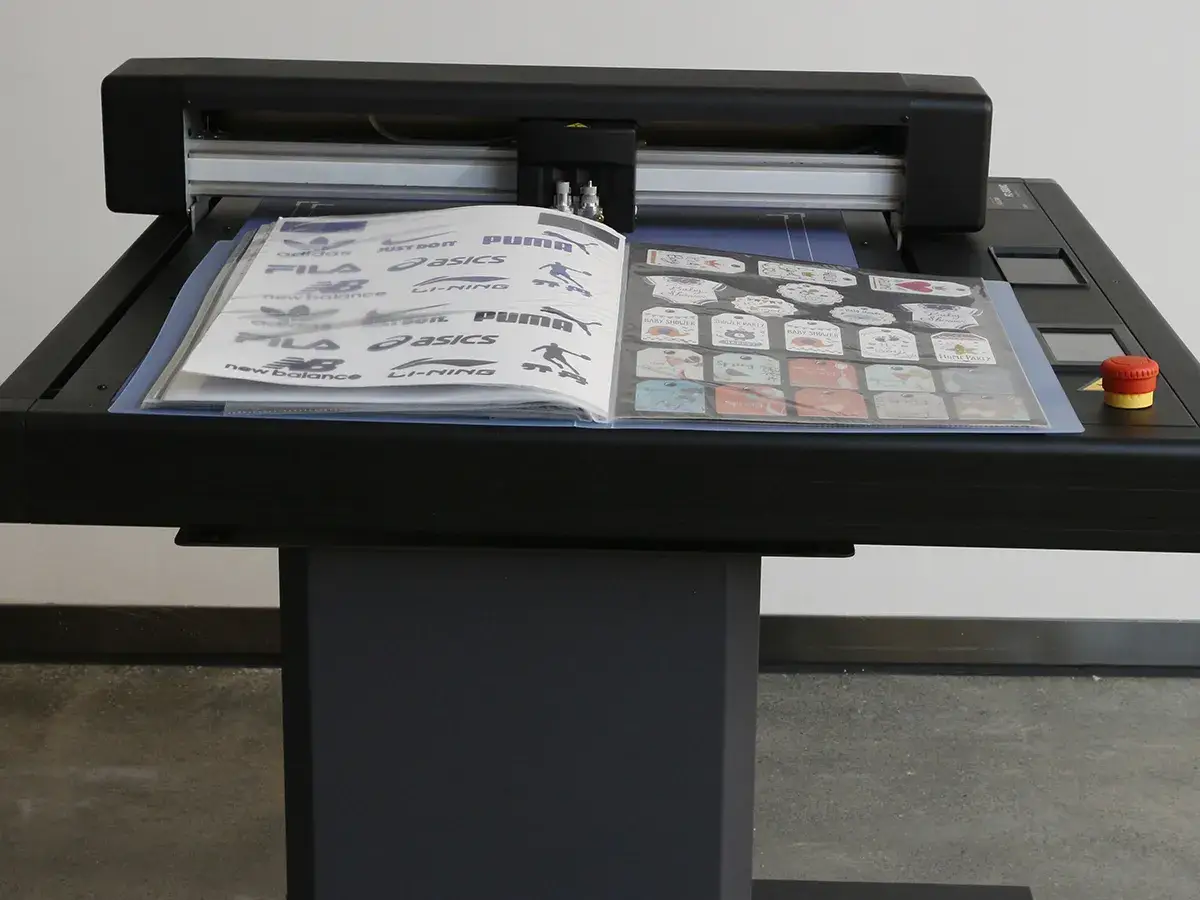

FC500VC/FC700VCFlatbed Cutting Plotter, Flatbed Cutter
Not every custom cutting job requires a large production cutter or a physical cutting die. The flatbed cutting plotter allows print shops, packaging studios, copy centers, and creative production teams to process complex shapes directly on the table, making short-run work, samples, and customized products easier to produce.
With digital contour cutting technology, the flatbed cutter supports full cutting, kiss cutting, creasing, perforating, and drawing. It is suitable for small and medium production needs such as packaging samples, tags, cards, sheet labels, DIY paper crafts, and prototype work. Users can process paper, synthetic materials, films, labels, and other media up to 600 gsm, helping expand service options without investing in traditional cutting dies.
Two working sizes are available to match different production needs. FC500VC is suitable for placing two SRA3 sheets, while FC700VC can handle two B2 sheets or one B1 sheet. This allows users to choose the right flatbed cutter based on material size, production capacity, floor space, and budget.
- Process Materials

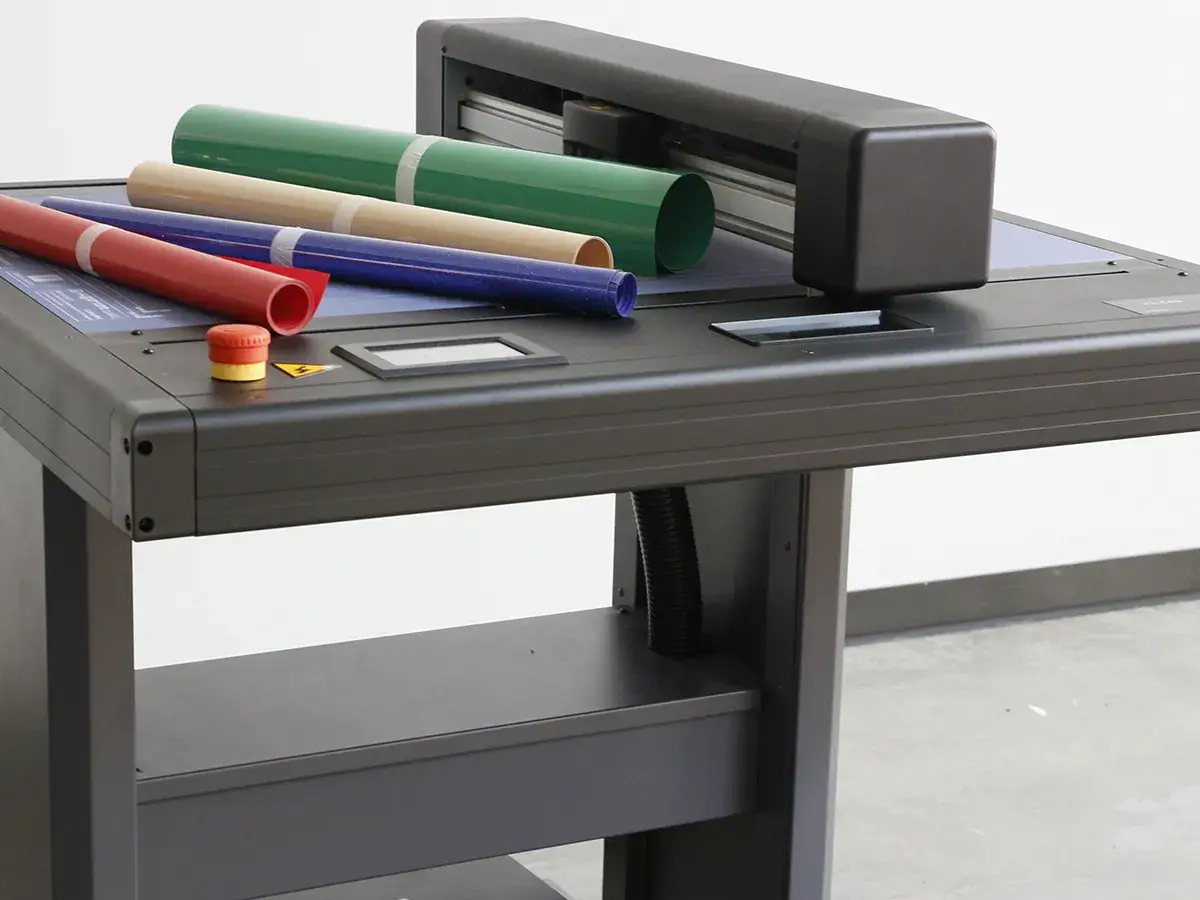

Cardboard, craft paper, fibrous cardboard, EVA rubber, PVC, sandblast material, vinyl, stickers, magnetic stickers, PET, TPU, reflective film, thin film, and other sheet materials.
- Packaging and Prototype Work
Suitable for packaging samples, prototype production, short-run packaging, and custom paper-based products.
- Tags, Cards, and Labels
Supports tags, sheet labels, cards, DIY paper crafts, and on-demand sheet card cutting.
- Light Production
A practical choice for small and medium production jobs that require flexible cutting without traditional dies.
- Ideal Users
Suitable for print shops, packaging studios, copy centers, creative workshops, label producers, and businesses handling customized sheet materials.
| Model | ||
| Configuration | Digital servo system, flatbed | Digital servo system, flatbed |
| Media Hold-down Method | Vacuum suction | Vacuum suction |
| Maximum Cutting Speed | 700 mm/s (Range: 10–700 mm/s) | 700 mm/s (Range: 10–700 mm/s) |
| Cutting Force | Tool 1: Max. 5.88 N (600 gf) Tool 2: Max. 5.88 N (600 gf) |
Tool 1: Max. 5.88 N (600 gf) Tool 2: Max. 5.88 N (600 gf) |
| Effective Cutting Area | 495 × 685 mm | 790 × 1085 mm |
| Max. Media Width (Y-axis) | 640 mm | 940 mm |
| Min. Character Size | 5 mm square | 5 mm square |
| Mechanical Resolution | 0.005 mm (5 μm) | 0.005 mm (5 μm) |
| Programmable Resolution | HP-GL: 0.025 mm | HP-GL: 0.025 mm |
| Repeatability | ±0.1 mm | ±0.1 mm |
| Standard Interfaces | USB 2.0 (Full Speed), USB flash drive, Ethernet | USB 2.0 (Full Speed), USB flash drive, Ethernet |
| Memory Capacity | 32 MB | 32 MB |
| Command Sets | HP-GL | HP-GL |
| Number of Tools | 3 tools | 3 tools |
| Tool Types | Cutter blade, calibration tool, creasing tool | Cutter blade, calibration tool, creasing tool |
| Control Panel | 4.3-inch touch LCD | 4.3-inch touch LCD |
| Power Supply | 100–240 VAC, 50/60 Hz (Auto-switching) | 100–240 VAC, 50/60 Hz (Auto-switching) |
| Power Consumption | Machine: Max. 150 VA Vacuum Pump: Max. 550 W |
Machine: Max. 150 VA Vacuum Pump: Max. 550 W |
| Operating Environment | Temperature: 10 °C to 35 °C (50 °F–95 °F) | Temperature: 10 °C to 35 °C (50 °F–95 °F) |
| Operating Humidity | 35% to 75% RH (Non-condensing) | 35% to 75% RH (Non-condensing) |
| External Dimensions (Y× X × H) | 981 × 977 × 1047 mm | 1420 × 1212 × 1050 mm |
| Package Dimensions (L× W × H) | Machine: 115 × 110 × 61 cm Vacuum Pump: 50 × 46 × 52 cm |
Machine: 155 × 145 × 61 cm Vacuum Pump: 50 × 46 × 52 cm |
| Weight (G.W. / N.W.) | Machine: 105 kg / 77 kg Vacuum Pump: 23 kg / 20 kg |
Machine: 154 kg / 104 kg Vacuum Pump: 23 kg / 20 kg |
- Plug-and-Play Setup
Simple installation allows users to start working quickly after power connection, with no additional drivers required.
- One-Click Repeat Function
Repeated jobs are easier to process. Operators only need to replace the sheet, press “Back to Origin,” and then press “Repeat,” making same-job cutting simple even for less experienced users.
- Continuous Cutting Workflow
When processing two or more sheets, operators can replace the first finished sheet while the next sheet is being cut. This reduces waiting time and improves production efficiency.
- Windows and Mac Compatibility
The Vulcan series flatbed cutting machine supports both Windows and Mac systems, giving users more flexibility in different design and production environments.
- Multiple Cut and Crease Processing
For harder or thicker materials, users can apply multiple cutting or creasing passes to achieve cleaner results. Cutting and creasing can also be processed separately for better finishing quality.
-
Camera SystemThe camera system supports accurate registration mark detection, helping users complete contour cutting with better positioning and cleaner results.
-

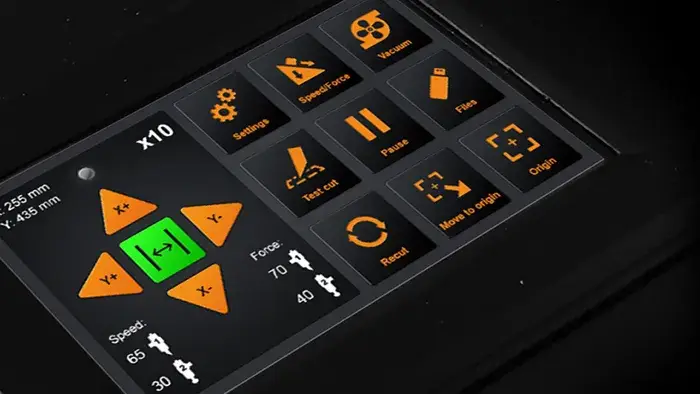

User-Friendly Touch ScreenThe touch screen provides a clear operation interface, making setup, job control, and daily adjustments easier for operators.
-

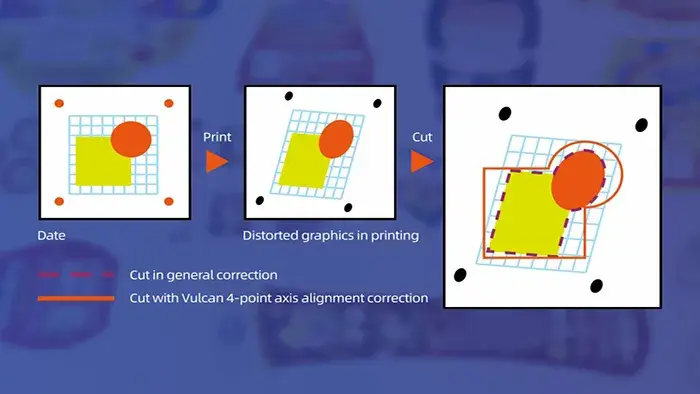

Advanced Contour CuttingAdvanced contour cutting allows the flatbed cutter to process complex shapes directly from printed or designed files, reducing the need for physical cutting dies.
-
Network InterfaceThe network interface makes file transfer and workflow connection more convenient in different production environments.
-
U-Disk FunctionU-disk support allows operators to load cutting files quickly for flexible offline operation.
-

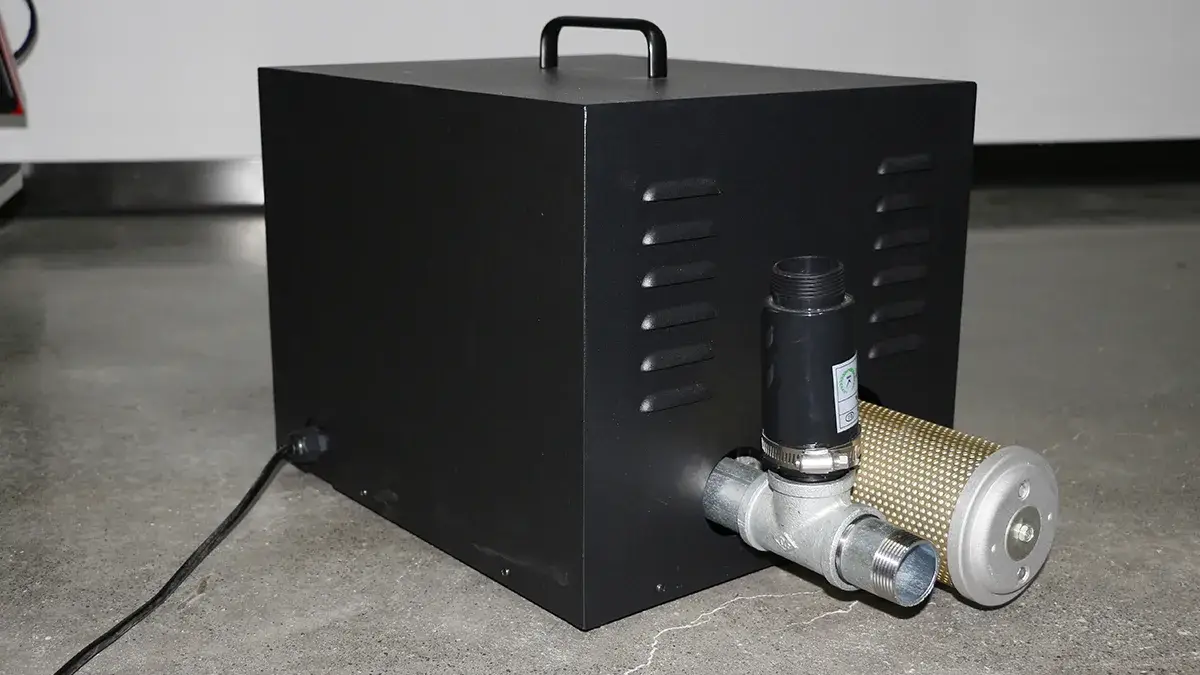

Vacuum BlowerThe vacuum blower holds materials firmly on the cutting table, helping reduce movement and improve cutting accuracy.
-
MufflerThe muffler helps reduce operating noise from the vacuum system, creating a more comfortable working environment.
-

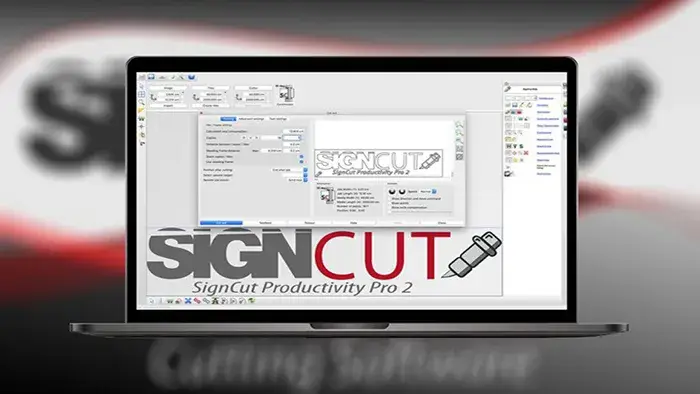

SignCut Pro SoftwareSignCut Pro software supports file preparation and cutting control, helping users manage digital cutting jobs more efficiently.
