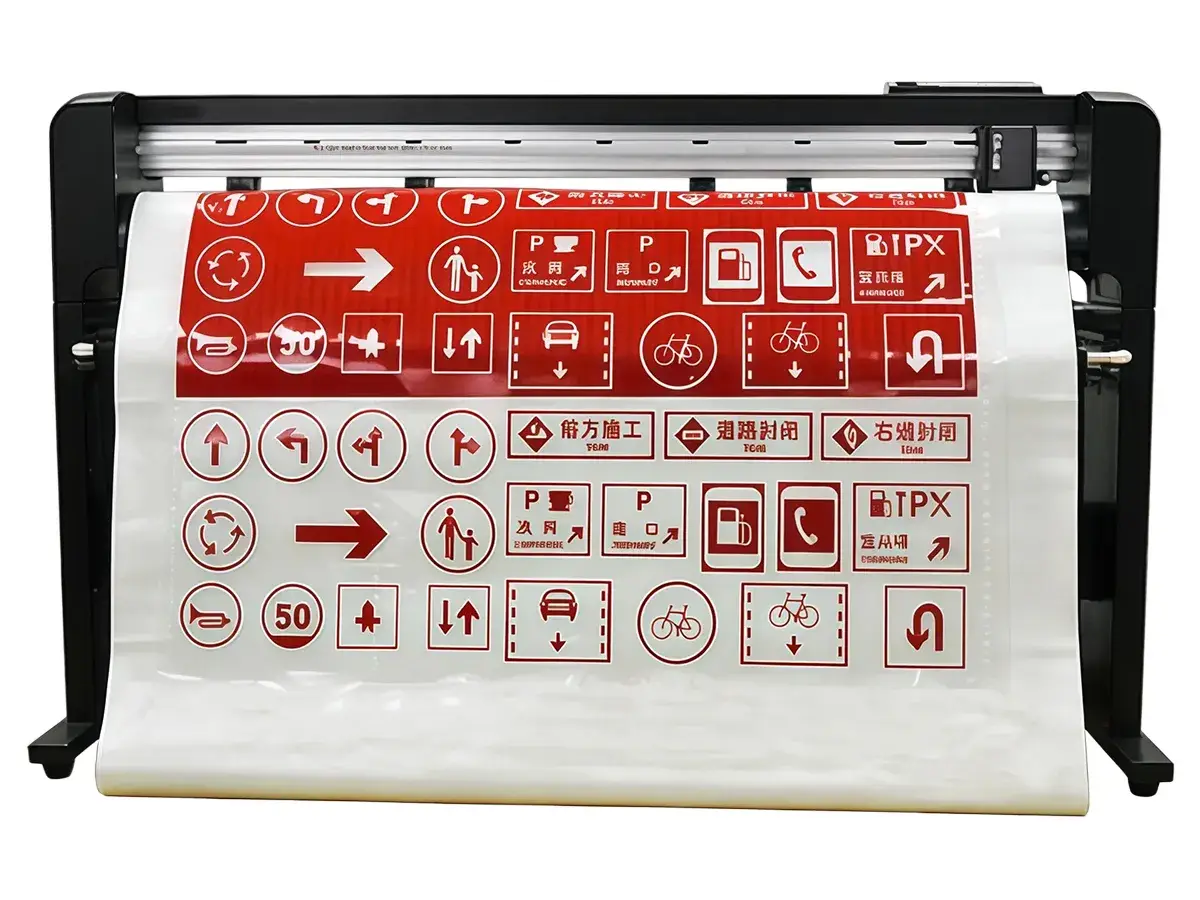

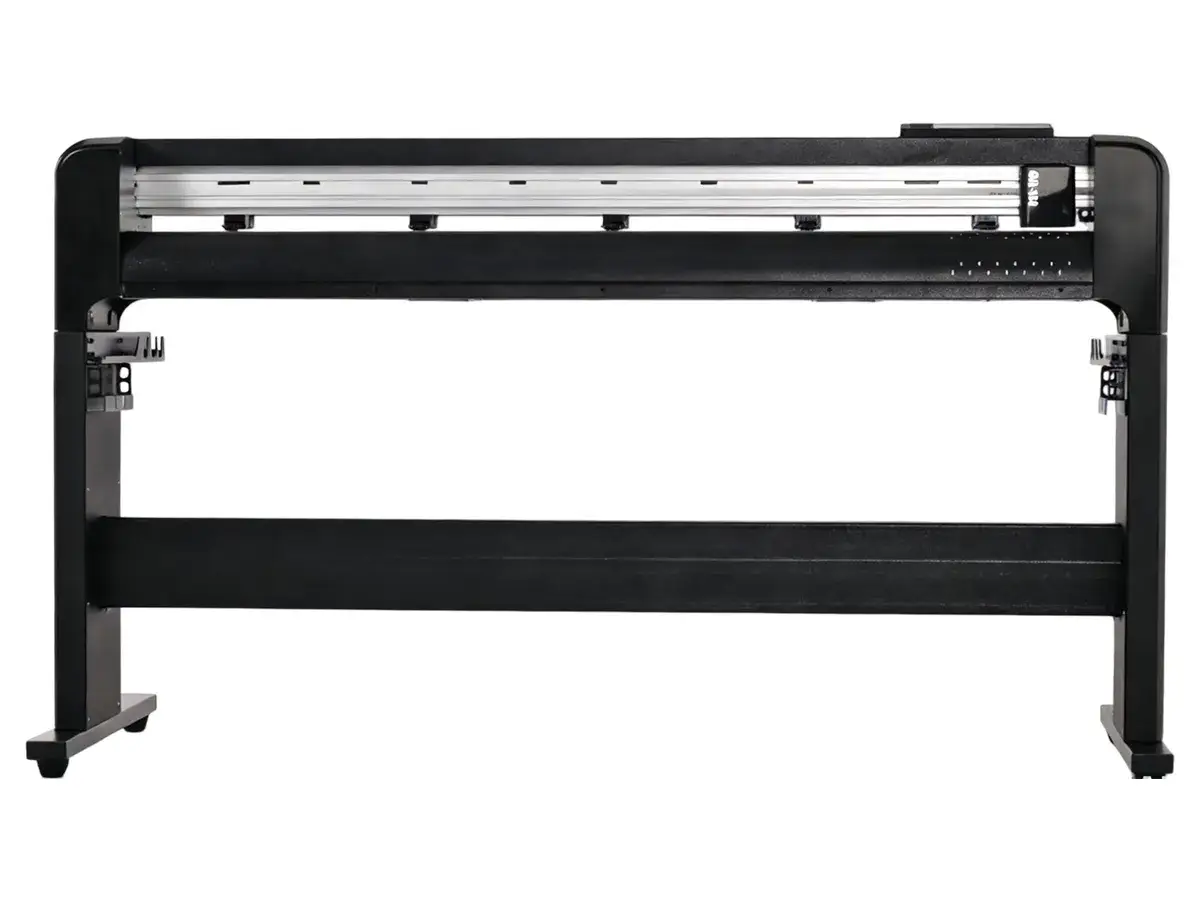

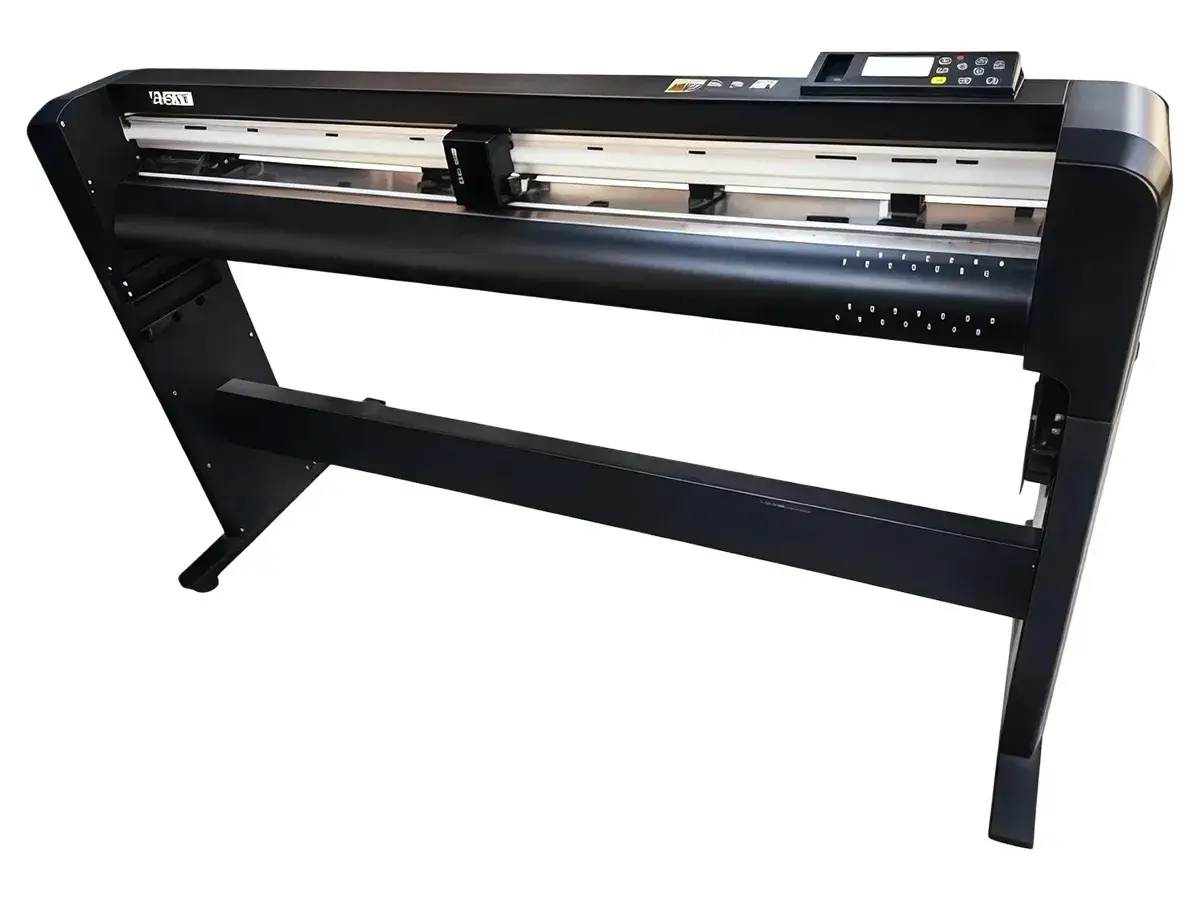

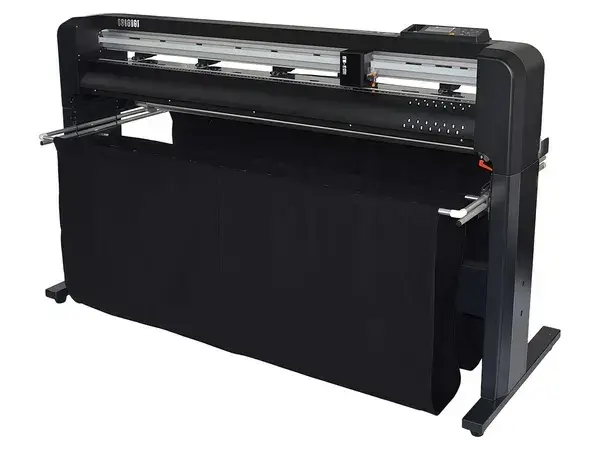

GC-140FReflective Film Cutter Plotter
Reflective film cutting requires stable tracking, precise cutting depth, and reliable material control, especially when working with road safety materials, automotive films, and high-grade graphic media. The reflective film cutter plotter is built for users who need cleaner cutting results on demanding materials without making daily operation complicated.
Designed for the automotive aftermarket, road safety, sign making, and graphics processing industries, the reflective film cutter plotter supports paint protection film (PPF), window tint film, diamond-grade reflective film, sandblast resist rubber, cardstock, self-adhesive vinyl, Amberlith, Rubylith, and other specialty materials.
With a built-in grating ruler, static-free design, and multi-level cutting force adjustment, the cutter helps users maintain consistent cutting depth and stable performance across different materials. This makes the reflective film cutter plotter a practical choice for businesses producing traffic signs, vehicle graphics, reflective decals, window films, labels, and other precision-cut applications.
Heat Transfer Vinyl
Pre-Printed Media
Avery Dennison Reflective Sheeting
Pre-Printed Reflective Sheeting
3M Reflective Sheeting
Road & Traffic Signs
Sandblast Film
| Model | |
| Max. Cutting Width (Non-contour) | 1290 mm |
| Max. Cutting Width (Contour) | 1220 mm |
| Max. Mountable Media Width | 1440 mm |
| Min. Mountable Media Width | 70 mm |
| Number of Push Rollers | 5 pcs |
| Max. Cutting Thickness | 1 mm |
| Max. Cutting Speed | 800 mm/s |
| Max. Cutting Force | 600 gf / 5.8 N in 8 steps |
| Cutting Force Adjustment | Adjustable in 1 gf increments |
| Drive System | X/Y-Axis: Servo; Z-Axis: High-speed voice coil motor |
| Mechanical Resolution | 0.0125 mm |
| Min. Circle Diameter | 0.8 mm |
| Min. Character Size | 1 × 1 mm |
| Min. Number Size | 3 × 3 mm |
| Compatible OS | Windows 10/8/7/XP |
| Memory Buffer | 2 MB |
| Software | Windows Driver, SignWork Pro, CADtoPlot Pro |
| LCD Language | English / Chinese |
| File Format | HP-GL, PLT |
| Standard Ports | USB, RS-232 |
| Registration Mark Detection | GARMS |
| Power Input | 90–240 VAC, 50/60 Hz |
| Power Consumption | 60 W |
| Included Holders | 1 blade holder, 1 pen holder |
| Blade Diameters | Ø 0.9 mm, Ø 1.5 mm, Ø 2.0 mm |
| Blade Angles | 30°, 45°, 60° |
| Compatible Pens | Water-based fiber-tip pens & oil-based ballpoint pens |
| Media Stock Roller Plates | Included |
| Basket | Optional |
| Weight (G.W. / N.W.) | 96 kg / 62 kg |
| Packing Dimensions (L × W × H) | 171 × 40 × 57 cm (0.4 CBM) |
-

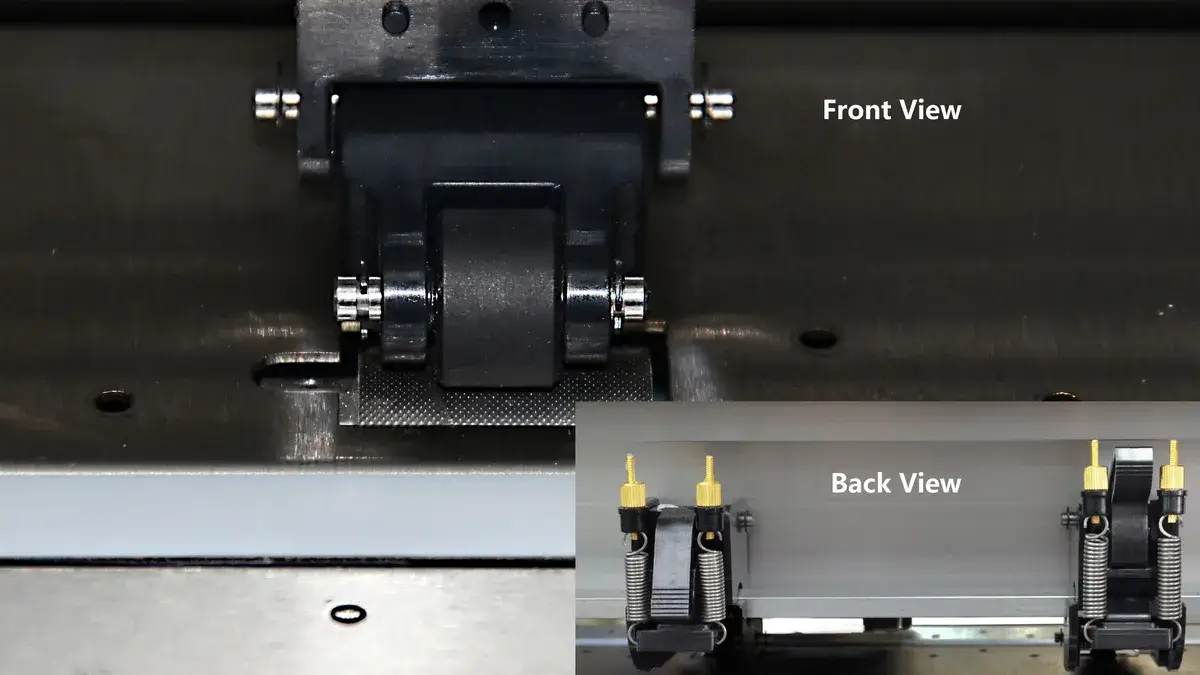

Accurate Rigid Push RollersRigid push rollers hold the media firmly during feeding, helping maintain stable material movement and cleaner cutting results.
-
Stable Tracking up to 7000 mm / 23 ft
Long-distance tracking supports accurate cutting over materials up to 7000 mm / 23 ft, making the reflective film cutter plotter suitable for longer graphics, traffic signs, and vehicle film applications.
-
Advanced Tool CarriageThe advanced tool carriage supports smooth blade movement and helps improve cutting accuracy on reflective films, vinyl, and other specialty media.
-

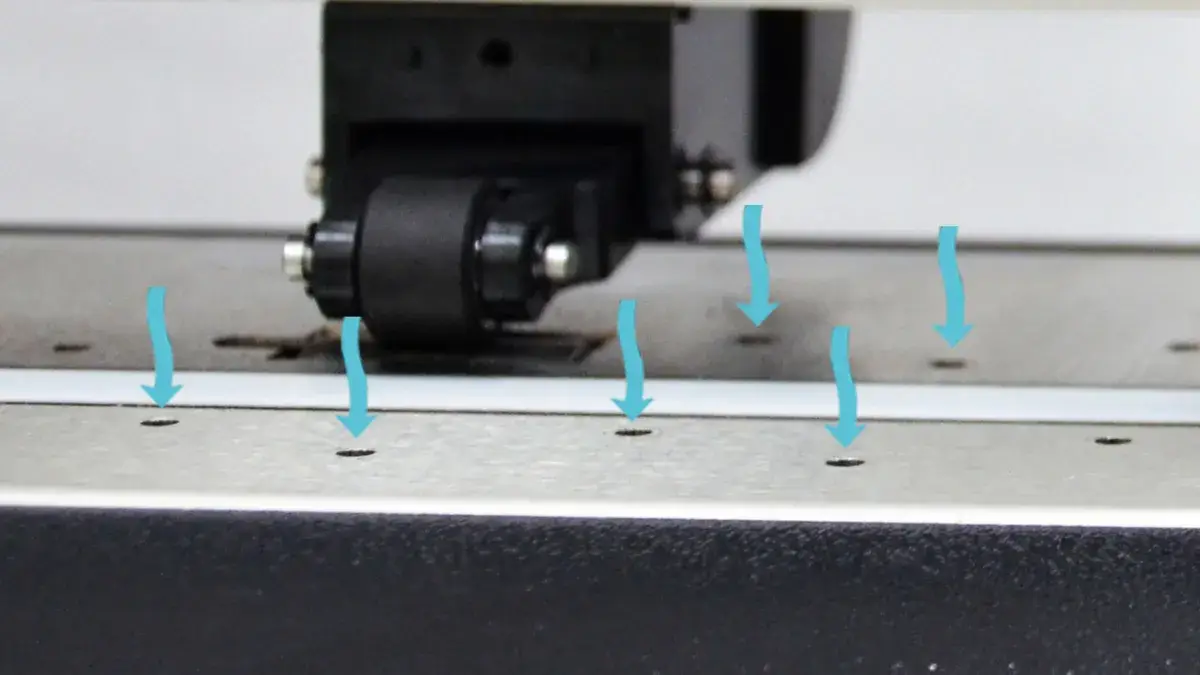

Suction Cutting TableThe suction cutting table helps keep media flat during cutting, reducing material movement and supporting more precise results
-
Servo Motor with Closed-Loop ControlServo motor and closed-loop control support stable motion, accurate positioning, and reliable cutting performance during daily production.
-
Grating Ruler for Consistent Cutting DepthThe grating ruler helps maintain consistent cutting depth, even when material surfaces vary, supporting cleaner cuts on demanding media.
-
Electrostatic EliminationElectrostatic elimination reduces static interference during cutting, helping improve material handling and cutting stability.
-
Small Text CuttingFine cutting capability supports small text and detailed graphics, making the cutter suitable for labels, signs, and precision graphic applications.
-
Quality ComponentsSelected components support stable long-term operation and help maintain consistent cutting performance.
-
Clean and Smooth Edge QualityClean edge cutting helps produce professional finished results for reflective sheeting, vinyl graphics, and traffic sign materials.
-

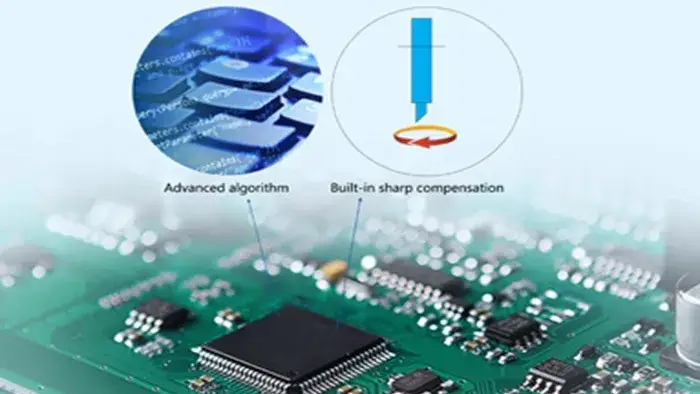

Chip-Based Blade-Tip CompensationBlade-tip compensation by chip improves cutting path accuracy, especially around corners, curves, and detailed shapes.
-
No Overcut RequiredAccurate start and end point alignment reduces the need for overcut, helping create cleaner finished edges.
-
DXF Direct OutputDXF direct output makes file handling easier for users working with design and cutting software.
-
Software CompatibilityCompatibility with AutoCAD, AI, CorelDRAW, and FlexiSign helps users connect the cutter with existing design workflows.
-
Handshake Protocol and Free SDKHandshake protocol and free SDK support make software integration easier for professional users and customized workflow requirements.
