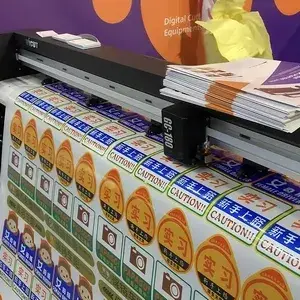

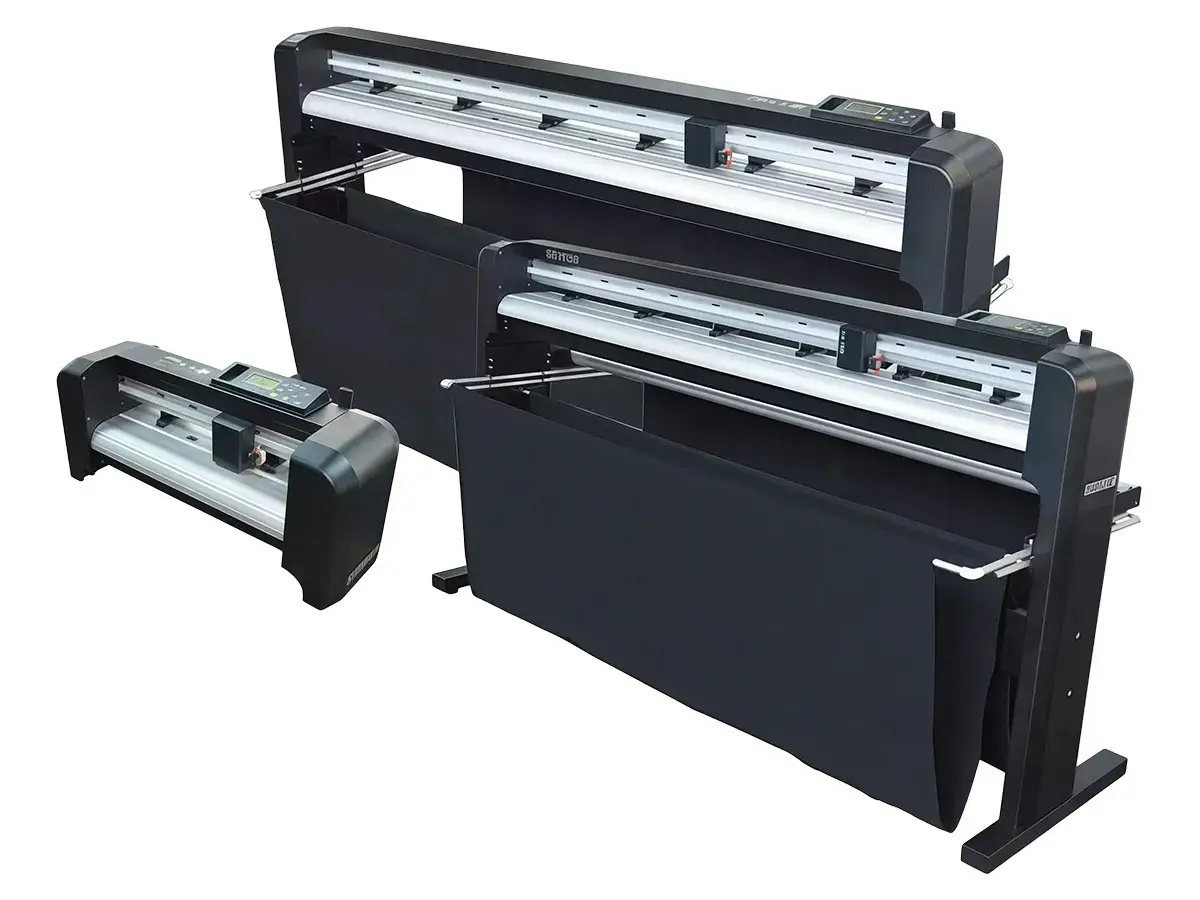

GC SeriesRoll Feed Cutting Plotter
Reliable tracking and precise cutting control are essential when working with long graphics, automotive films, reflective materials, and signage media. The roll feed cutting plotter is designed for businesses that need stable cutting performance across wider roll materials without adding unnecessary complexity to daily operation.
Built for automotive aftermarket, road safety, signage, graphic production, and countertop installation applications, the cutter supports paint protection film (PPF), window tint film, standard reflective film, sandblast resist rubber, card paper, self-adhesive vinyl, Amberlith, Rubylith, and other flexible media.
With servo drive control, roll feeding, and precise contour cutting capability, the roll feed cutting plotter helps users process vehicle graphics, window films, decals, road signs, and custom adhesive graphics with cleaner edges and more consistent results. It is a practical choice for sign shops, film installers, and graphics businesses that need dependable cutting for both daily production and custom orders.

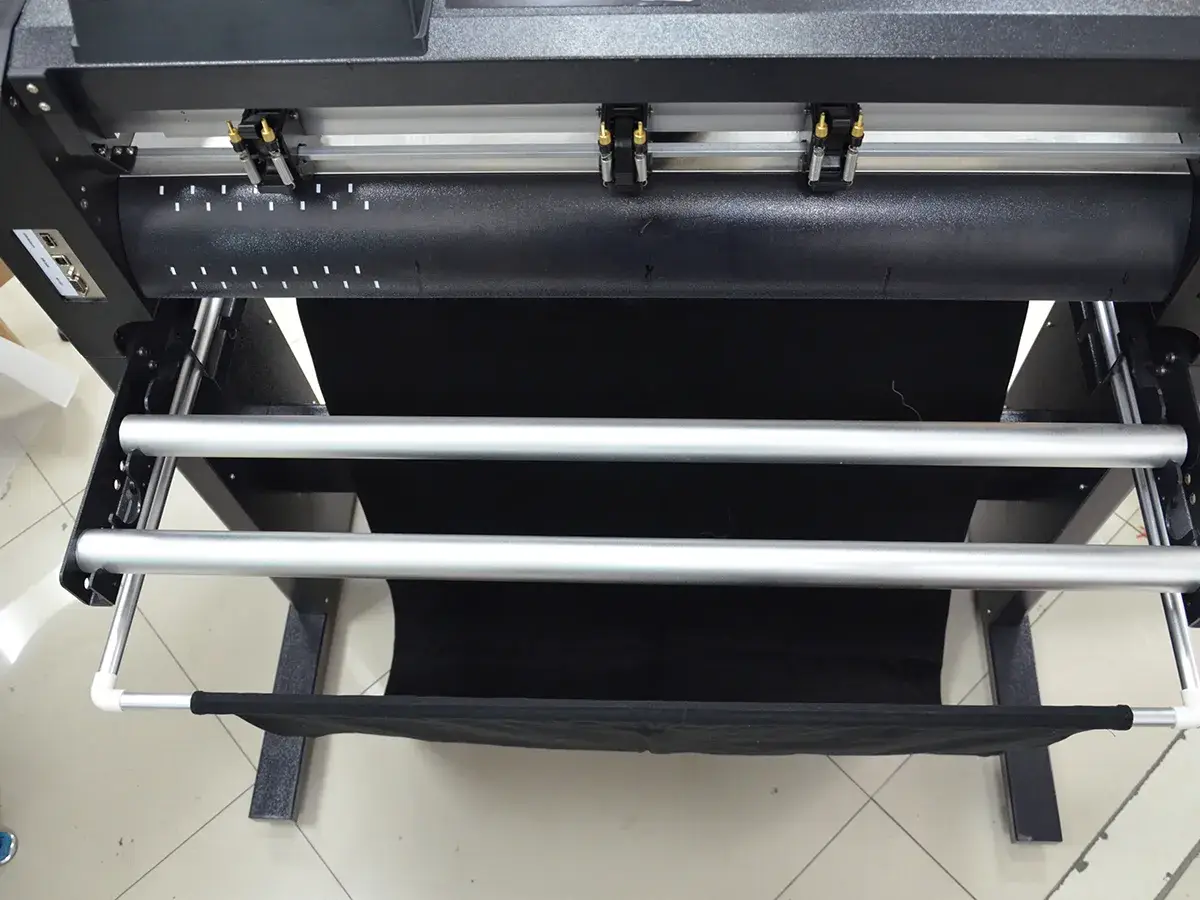

| Model | |||
| Max. Cutting Width (Non-contour) | 450 mm | 1290 mm | 1630 mm |
| Max. Cutting Width (Contour) | 430 mm | 1220 mm | 1520 mm |
| Max. Mountable Media Width | 570 mm | 1440 mm | 1780 mm |
| Min. Mountable Media Width | 70 mm | 70 mm | 70 mm |
| Max. Cutting Speed | 800 mm/s | 800 mm/s | 800 mm/s |
| Max. Cutting Force | 450 gf in 8 steps | 450 gf in 8 steps | 450 gf in 8 steps |
| Cutting Force Adjustment | Adjustable in 1 gf increments | Adjustable in 1 gf increments | Adjustable in 1 gf increments |
| Drive System | Servo | Servo | Servo |
| Mechanical Resolution | 0.0125 mm | 0.0125 mm | 0.0125 mm |
| Min. Circle Diameter | 0.8 mm | 0.8 mm | 0.8 mm |
| Min. Character Size | 1 × 1 mm | 1 × 1 mm | 1 × 1 mm |
| Min. Number Size | 3 × 3 mm | 3 × 3 mm | 3 × 3 mm |
| Supported OS | Windows 10/8/7/XP | Windows 10/8/7/XP | Windows 10/8/7/XP |
| Memory Buffer | 2 MB | 2 MB | 2 MB |
| Software | Windows Driver, SignWork Pro, CADtoPlot Pro | Windows Driver, SignWork Pro, CADtoPlot Pro | Windows Driver, SignWork Pro, CADtoPlot Pro |
| LCD Language | English | English | English |
| File Formats | HP-GL, PLT | HP-GL, PLT | HP-GL, PLT |
| Standard Interfaces | USB flash drive, USB, RS-232 | USB flash drive, USB, RS-232 | USB flash drive, USB, RS-232 |
| Registration Mark sensing | CCD camera | CCD camera | CCD camera |
| Power Supply | 90–240 VAC, 50/60 Hz | 90–240 VAC, 50/60 Hz | 90–240 VAC, 50/60 Hz |
| Power Consumption | 60 W | 60 W | 60 W |
| Cutter / Pen Holder | 1 each | 1 each | 1 each |
| Blade Diameter | 2.0 mm | 2.0 mm | 2.0 mm |
| Blade Angles | 30°, 45°, 60° | 30°, 45°, 60° | 30°, 45°, 60° |
| Pen Types | Water-based fiber-tip pen & oil-based ballpoint pen | Water-based fiber-tip pen & oil-based ballpoint pen | Water-based fiber-tip pen & oil-based ballpoint pen |
| Media Hold-down Method | Pinch rollers | Pinch rollers | Pinch rollers |
| Media Support Roller | N/A | Included | Included |
| Media Basket | N/A | Optional | Optional |
| Weight (G.W. / N.W.) | 23 kg / 21 kg | 68 kg / 48 kg | 85 kg / 57 kg |
| Package Size (L × W × H) | 90 × 35 × 40 cm (0.13 CBM) | 171 × 40 × 57 cm (0.4 CBM) | 220 × 40 × 57 cm (0.5 CBM) |

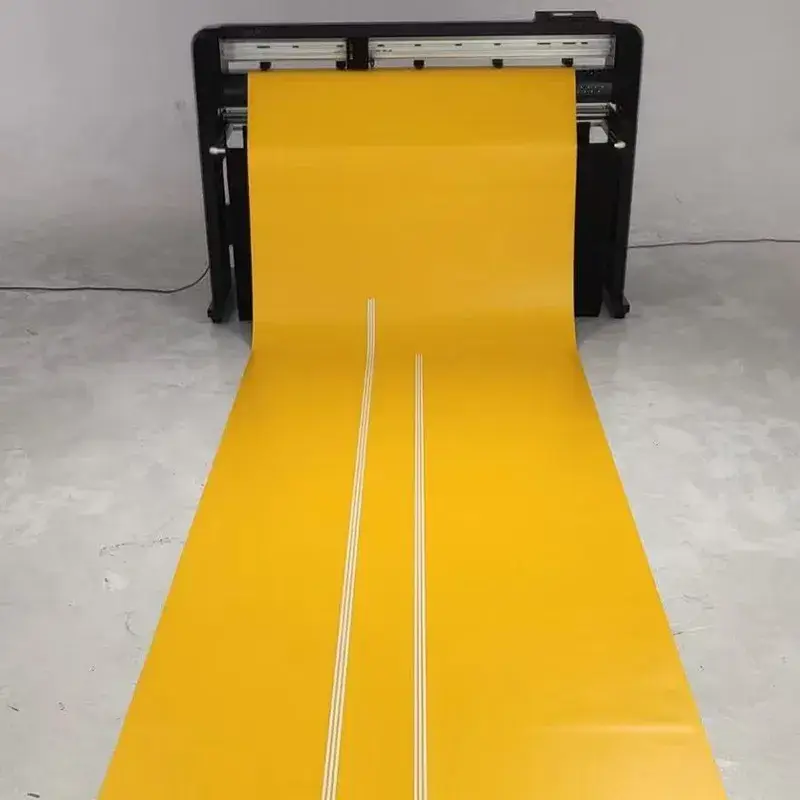

- Stable Tracking up to 7000 mm / 23 ft
Stable long-distance tracking helps users process larger graphics, long decals, and roll media with better accuracy over extended cutting lengths.

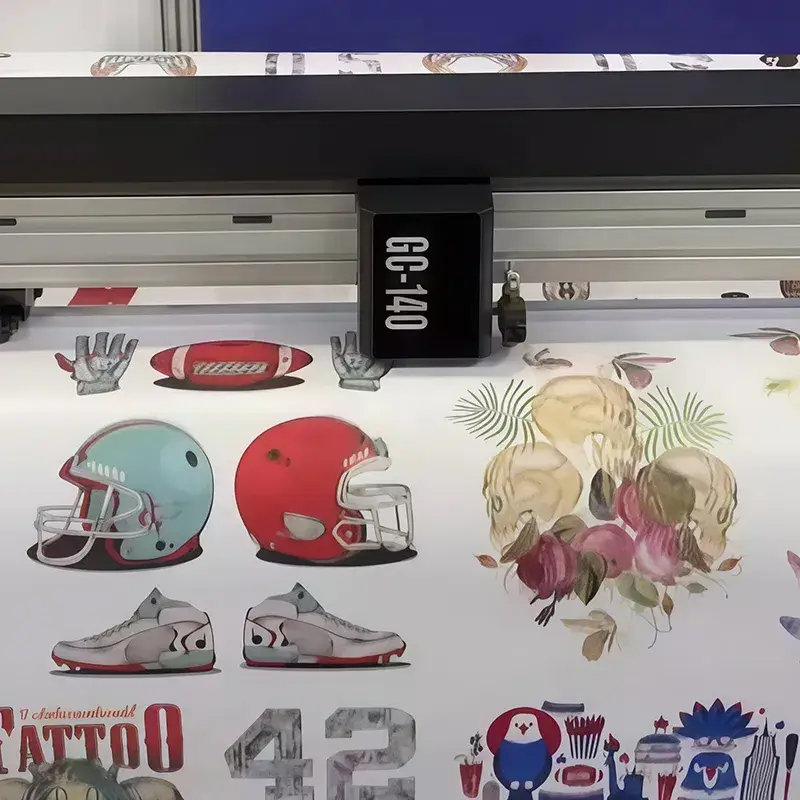

- Precise Small Text Cutting
The cutter can handle fine details such as 0.8 mm circles, 1 × 1 mm characters, and 3 × 3 mm numbers, making it easier to produce detailed signs, decals, and graphic elements with clean weeding.
- Fast Cutting Performance
With a maximum cutting speed of 800 mm/s and maximum acceleration of 4000 mm/s, the roll feed cutting plotter supports efficient production for daily signage and graphic cutting jobs.
- 8-Step Cutting Force Adjustment
Different cutting paths can be assigned by color and processed in sequence with different cutting force settings, helping users handle varied materials and cutting requirements in one job.
- Handshake Protocol and SDK Support
The available Software Development Kit allows integration with customer software, making the cutter more suitable for professional workflows and customized production systems.
-

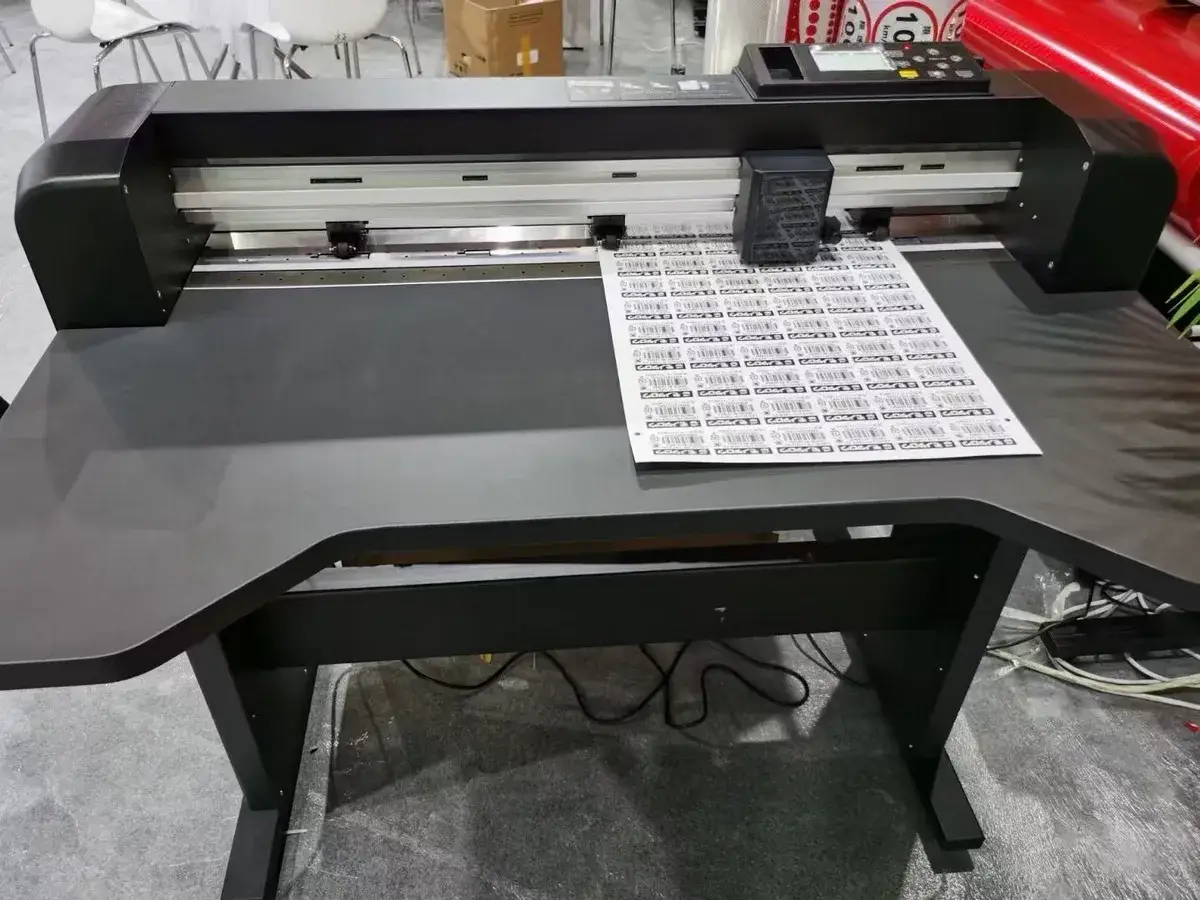

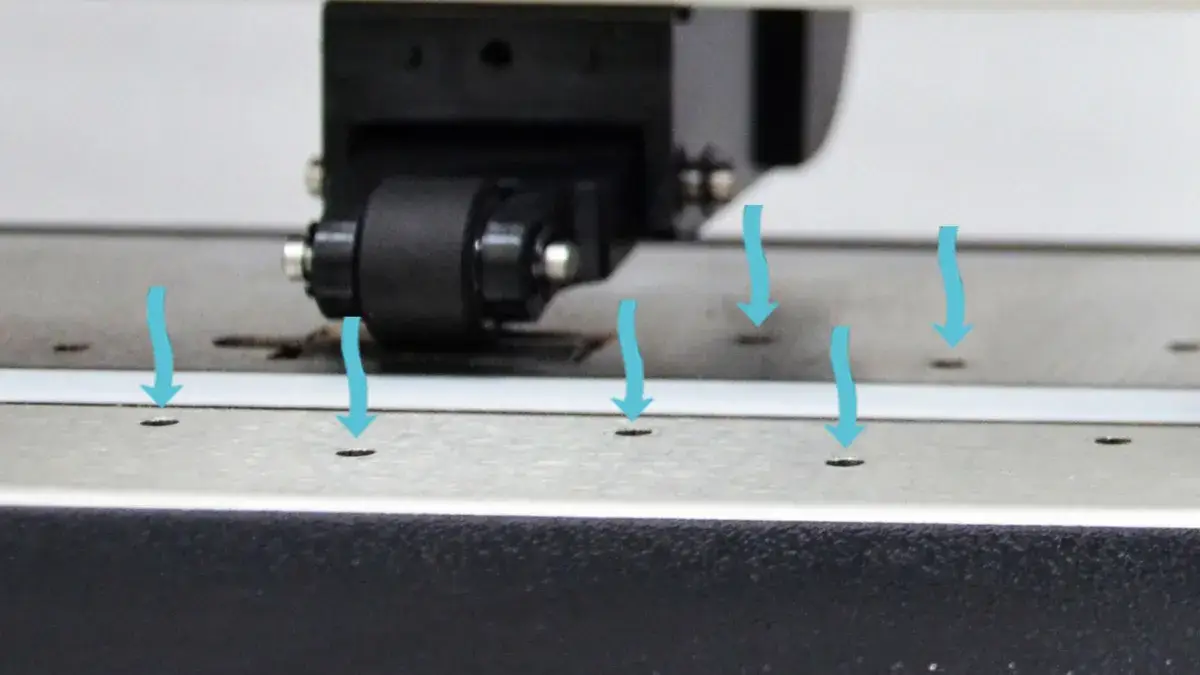

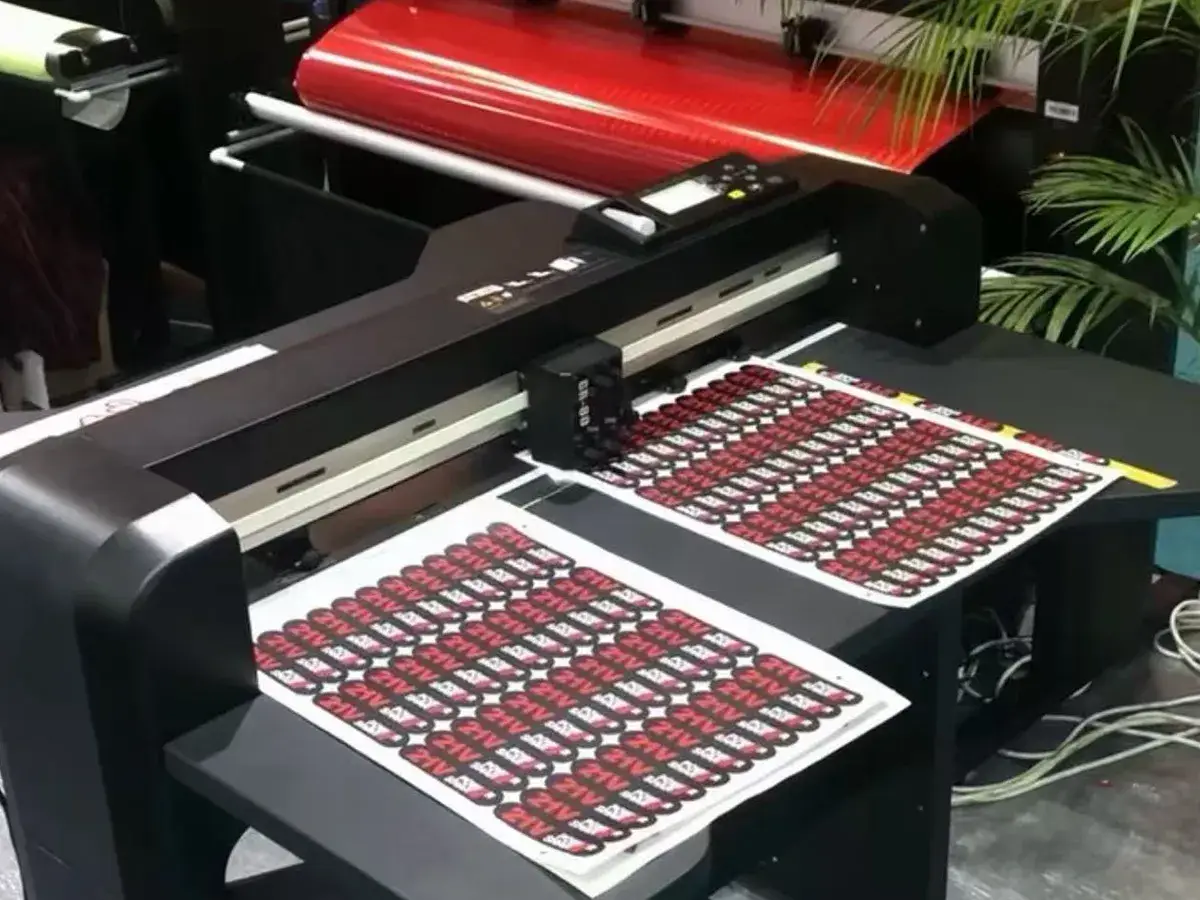

Suction Cutting TableThe suction cutting table holds media flat during cutting, helping reduce material movement and improve cutting accuracy on films, vinyl, and graphic materials.
-

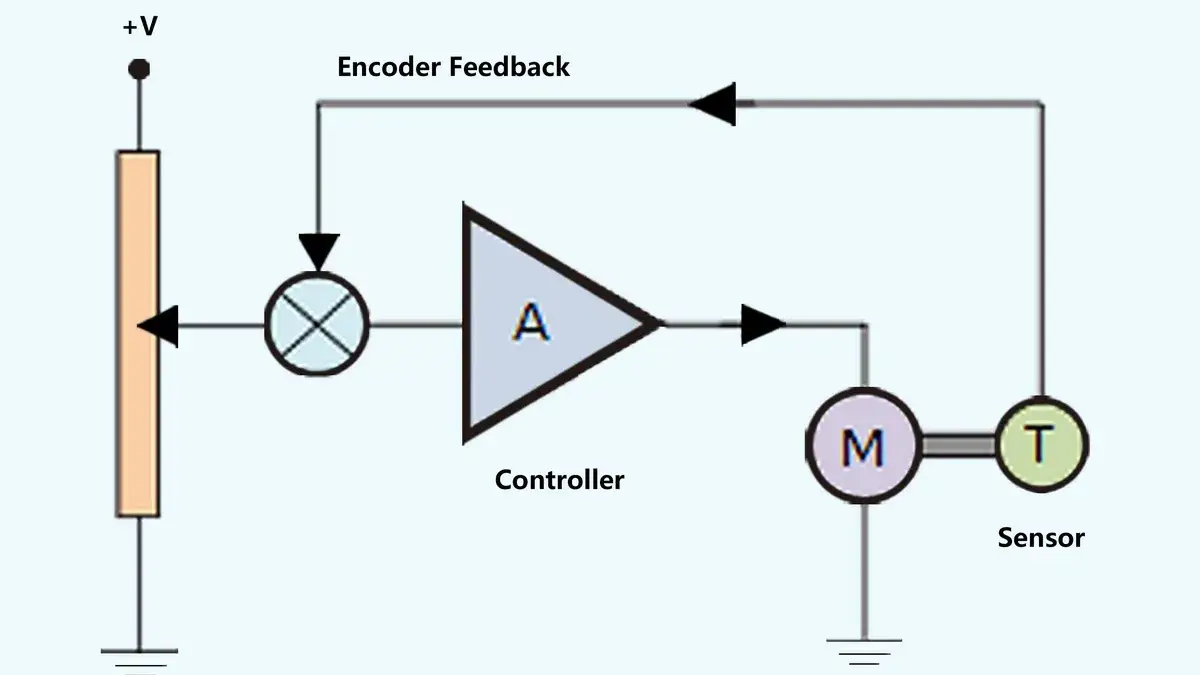

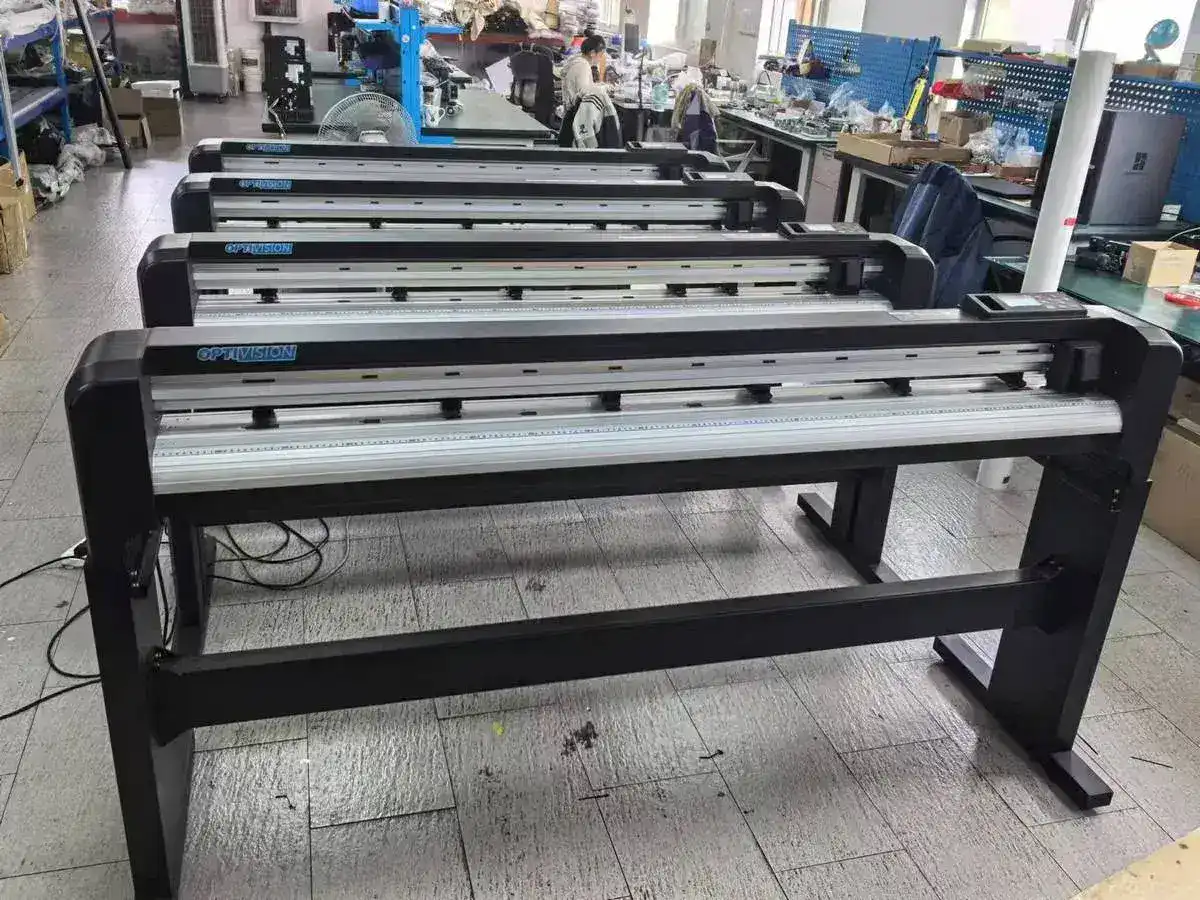

Servo Motor with Closed-Loop ControlServo motor and closed-loop control support stable movement, accurate positioning, and reliable cutting performance during daily production.
-

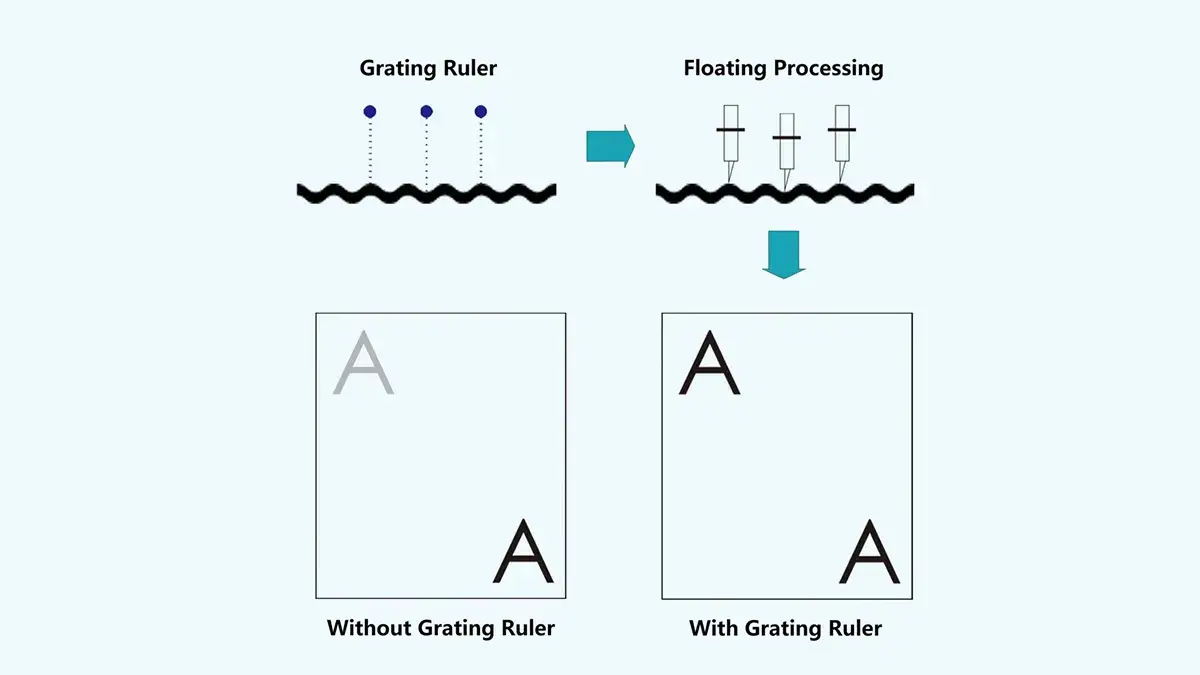

Grating Ruler for Consistent Cutting DepthThe grating ruler helps maintain consistent cutting depth across the full cutting width, supporting cleaner results even when material surfaces vary.
-

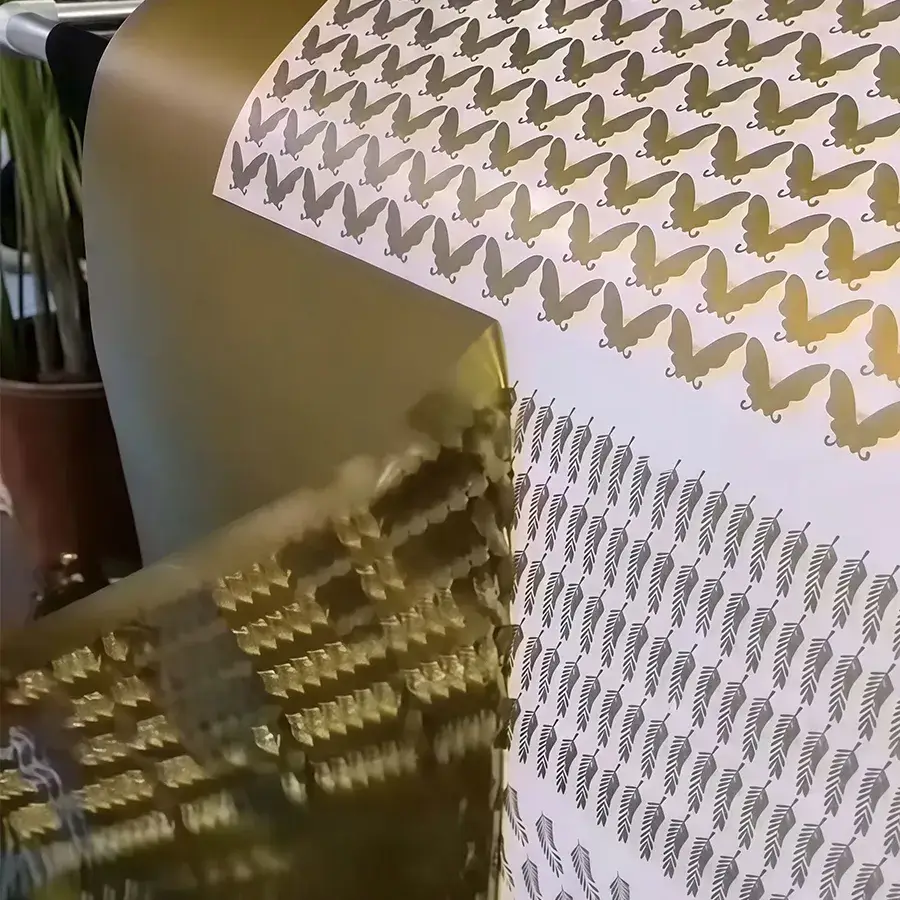

Clean and Smooth Edge QualityClean edge cutting helps produce professional finished graphics, decals, reflective signs, and adhesive materials with less finishing work.
-

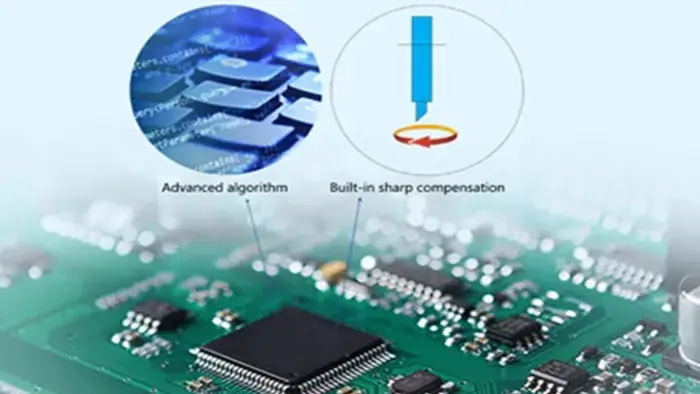

Chip-Based Blade-Tip CompensationBlade-tip compensation by chip improves cutting path accuracy, especially around corners, curves, and detailed shapes.
-
One-Click History ClearingOne-click history clearing allows operators to remove the current job from memory quickly, making repeated job management easier.
-

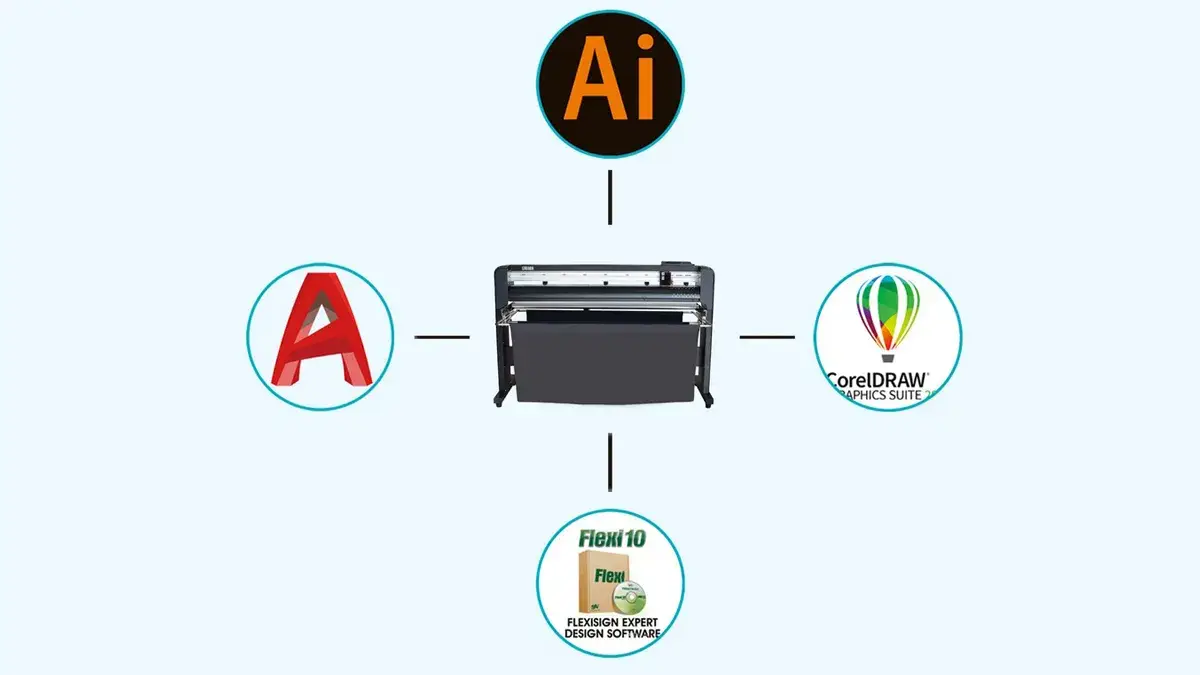

Software CompatibilityCompatibility with AutoCAD, AI, CorelDRAW, and FlexiSign helps users connect the cutter with their existing design and production workflow.
